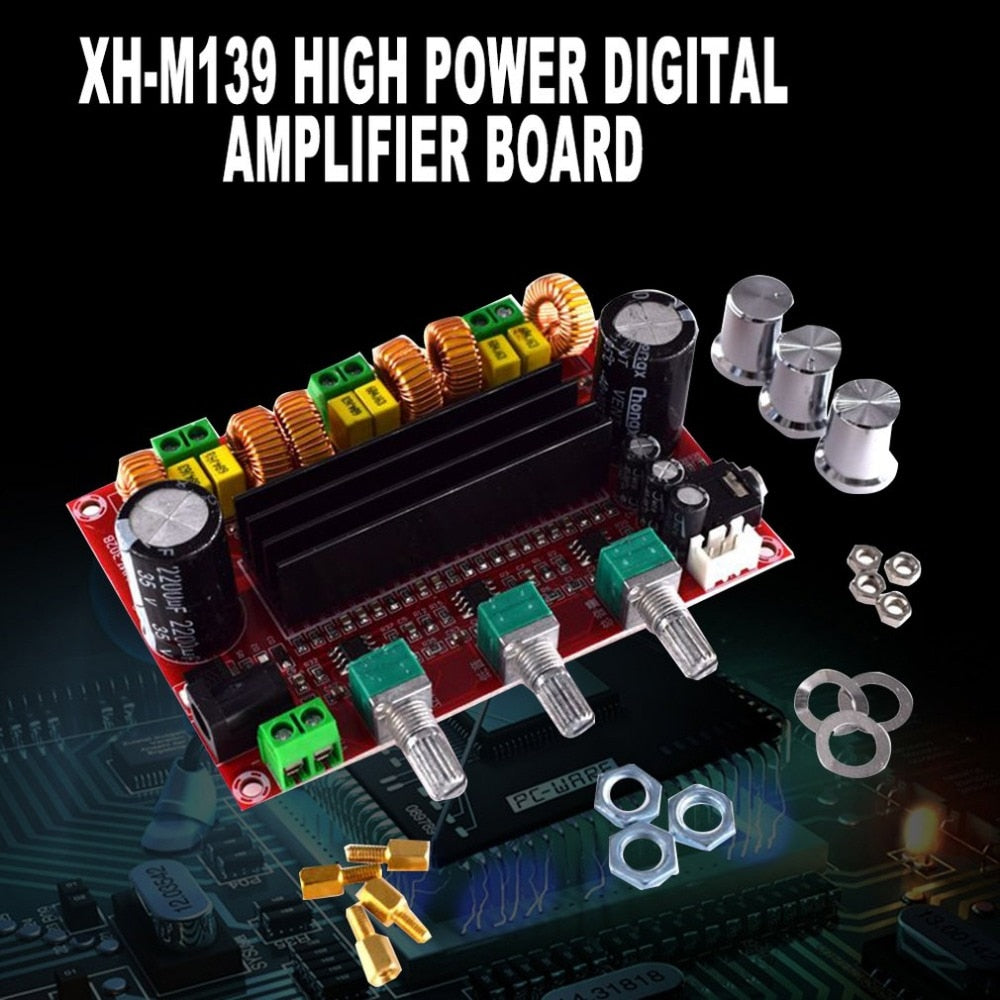

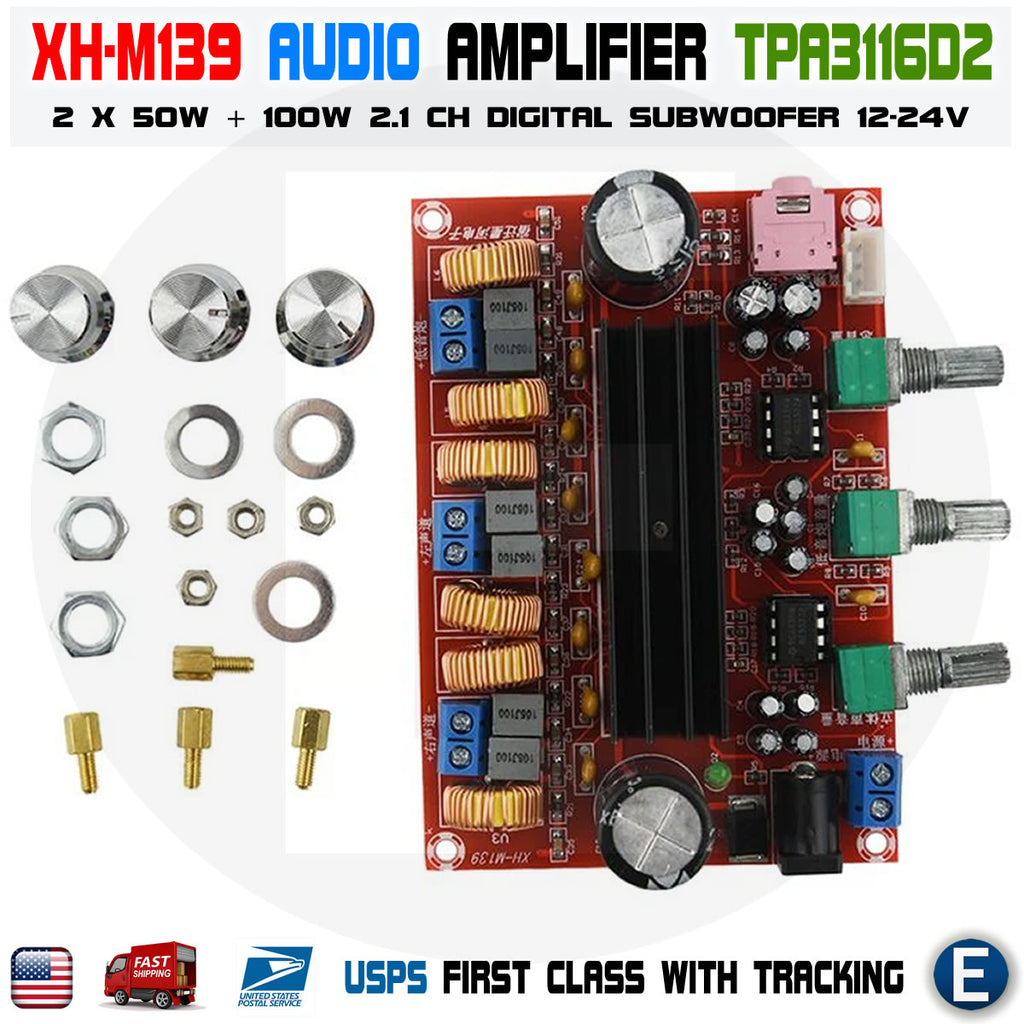

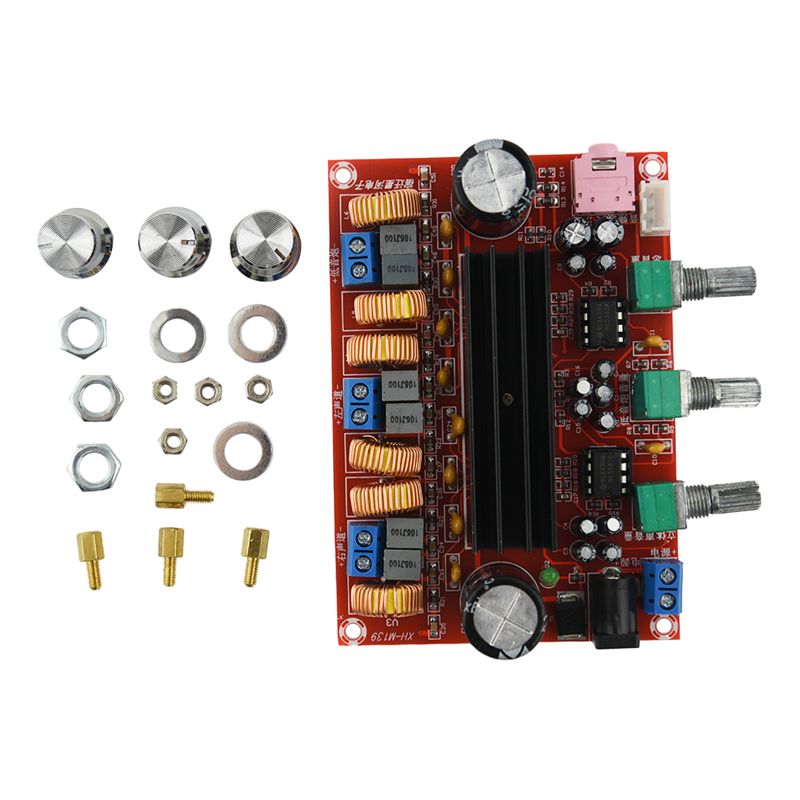

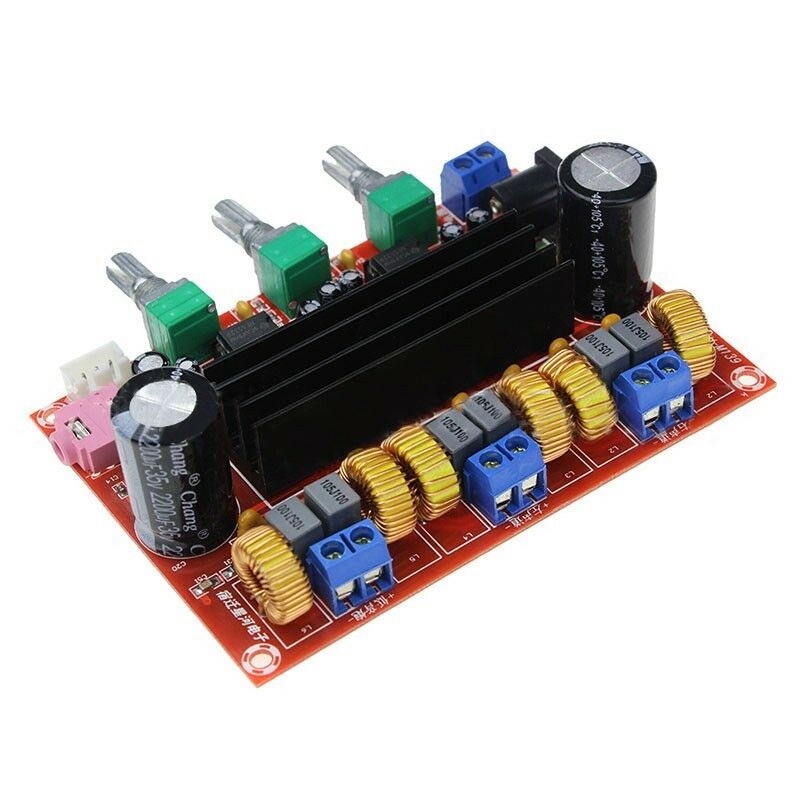

XH-M139 Amplifier Board TPA3116D2 50Wx2+100W 2.1 Channel Digital Subwoofer 12-24V

Out of stock
Features:- Excellent quality: high quality material, safe and durable.- Stable performance: with better noise performance, excellent output drive capability and relatively high small signal bandwid...
$14.63
  customers are viewing this product

Features:
- Excellent quality: high quality material, safe and durable.
- Stable performance: with better noise performance, excellent output drive capability and relatively high small signal bandwidth, large power supply voltage range.
- High fidelity: When used as an audio amplifier, the tone is warm and the fidelity is high.
- Wide range of uses: suitable for high quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers.

Description:

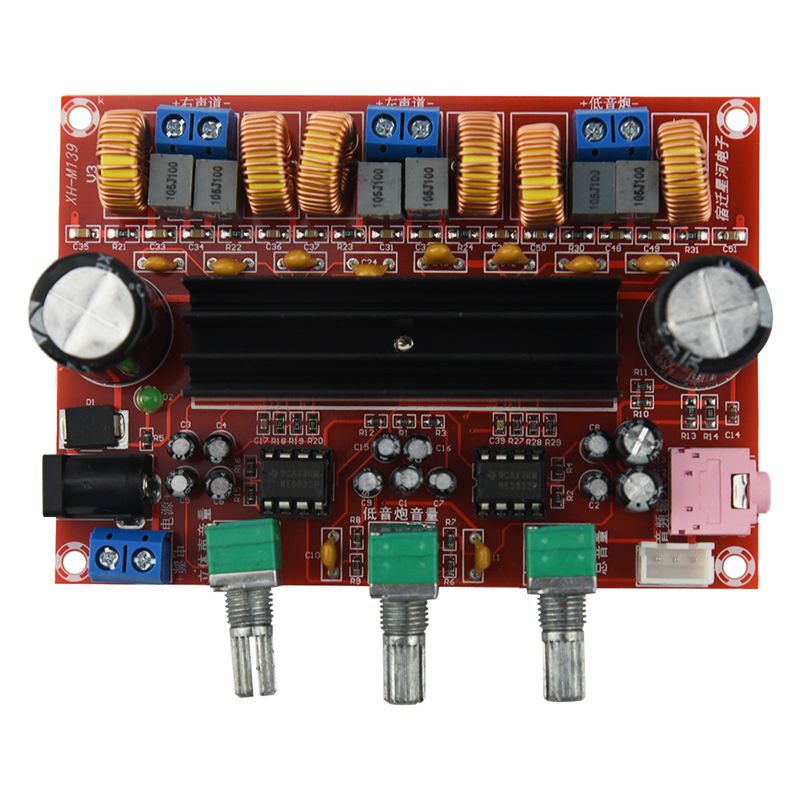

This power amplifier module samples two original TPA3116D2 digital power amplifier chips, one of which is used for power amplification of the left and right channels, and the other is bridged with the front of the NE5532 to drive the subwoofer. It has the characteristics of small size, high efficiency, high power and small heat.

Specifications:

Model: XH-M139
Chip Select:TPA31116D2*2
Supply Voltage: DC 12-24V
Output Power: 50W*2+100W Subwoofer *1
Output Impedance:4~8Ω
Frequency Range: 14~100Khz
SNR:100db

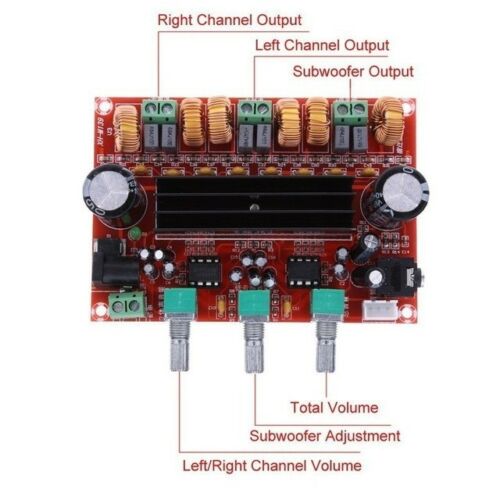

Number of Channels:3(Left Channel,Right Channel,Subwoofer)
Switching Frequency: 1.2MHz

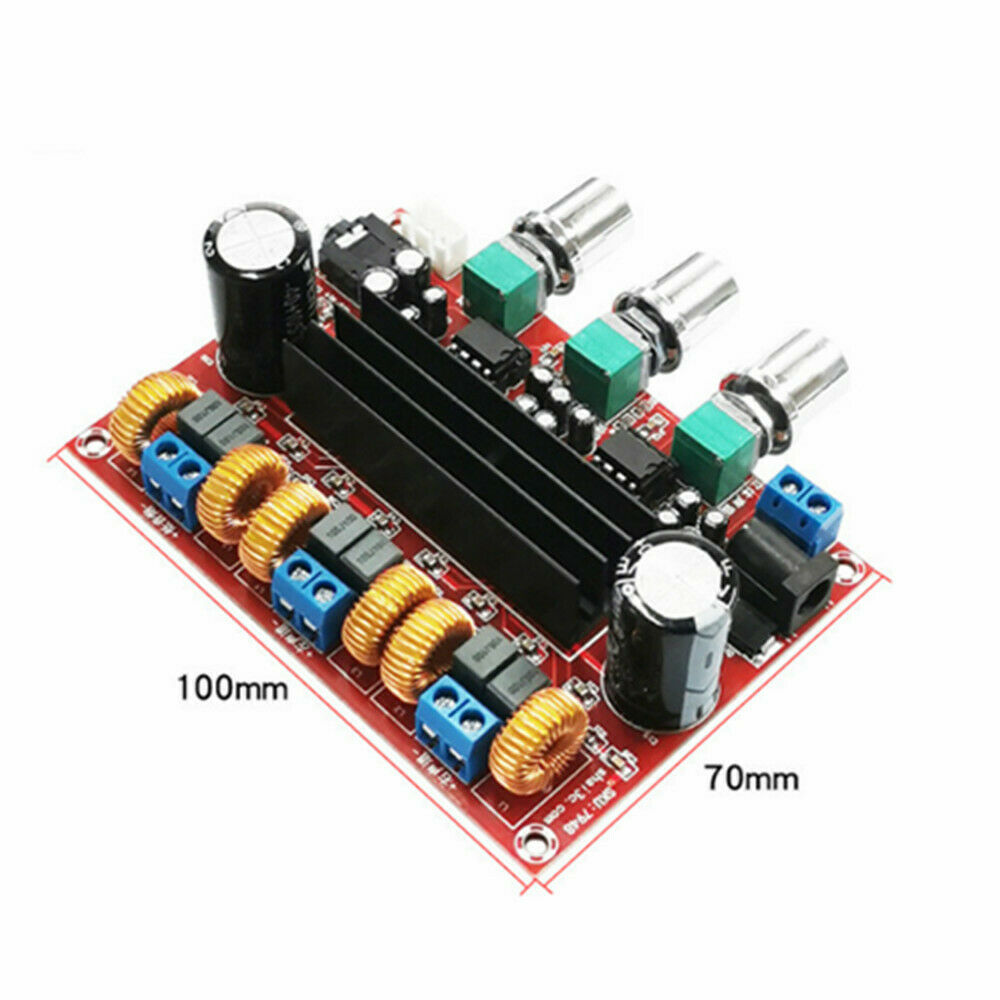

Size: L*W*H/10*9*2.5cm/3.93*3.54*0.98''
Color: red
Size: approx. 100 x 85 x 29mm/3.93 x 3.34 x 1.14''
Weight: approx. 107g

note: TPA3116D2 amplifier has a power on artifact where you hear a pop noise on all speakers even when muted.

Package Included:
1 X XH-M139 Amplifier Board TPA3116D2 50Wx2+100W 2.1 Channel Digital Subwoofer 12-24V
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
