LM386 Super Mini Audio Amplifier DIY Kit Board 35x37mm 3-12V - Unsoldered

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Integrated Circuits (ICs):Power Management ICs
Unbranded
A-01-01-05
Features: 1.This Kit uses the audio amplifier LM386 chip, a simple external circuit,the audio signal is amplified. 2.By potentiometer can adjust the size of the input audio signal, thereby controll...
$3.98
$3.98
  customers are viewing this product

Features:
1.This Kit uses the audio amplifier LM386 chip, a simple external circuit,the audio signal is amplified.
2.By potentiometer can adjust the size of the input audio signal, thereby controlling the size of the output audio outputs.
3.Circuit is simple, less components used, welded easily.
4.Sound volume are good, high cost, widely used in small speakers and other equipment.
5.The main circuit LM386 audio amplifier chip and audio input adjustment circuit.

Description:
This Kit uses the audio amplifier LM386 chip, a simple external circuit,widely used in small speakers and other equipment.

Specification:
Color:blue
Operating voltage: DC 3 ~ 12V;
Driver Speaker: 0.5W-10W Speaker 1;
PCB Size: 37 x 35mm
PCB Weight:4g

Package included :

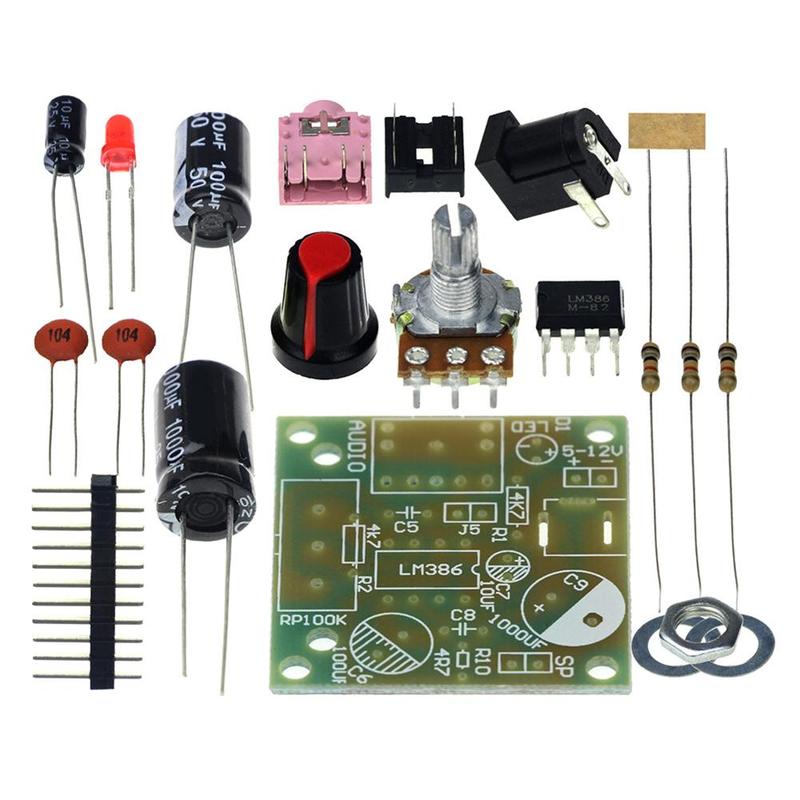

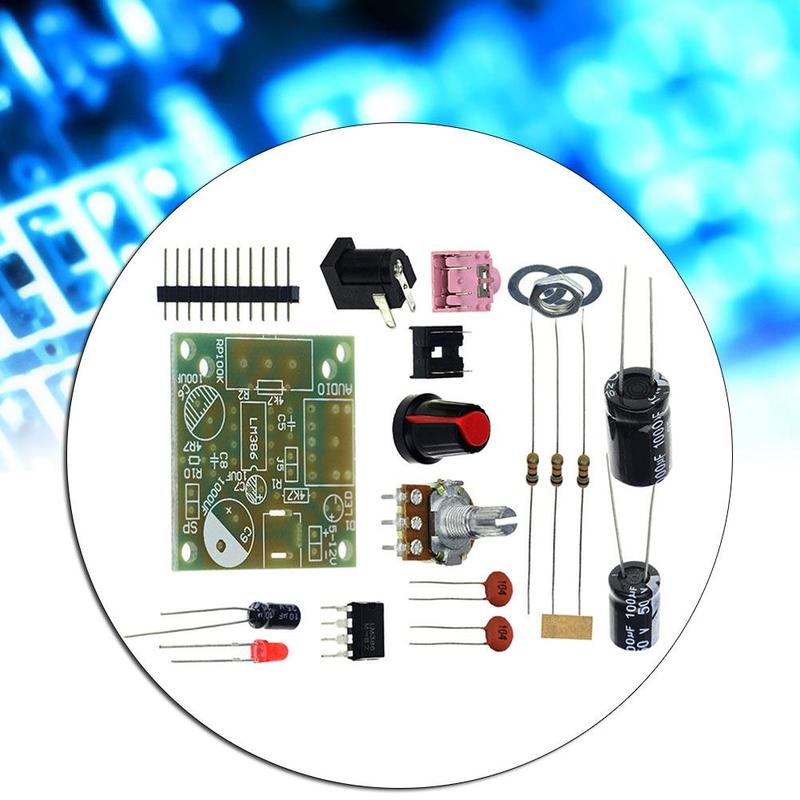

1 x LM386 Super Mini Audio Amplifier DIY Kit Board 35x37mm 3-12V - Unsoldered
Instructions/schematics are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.

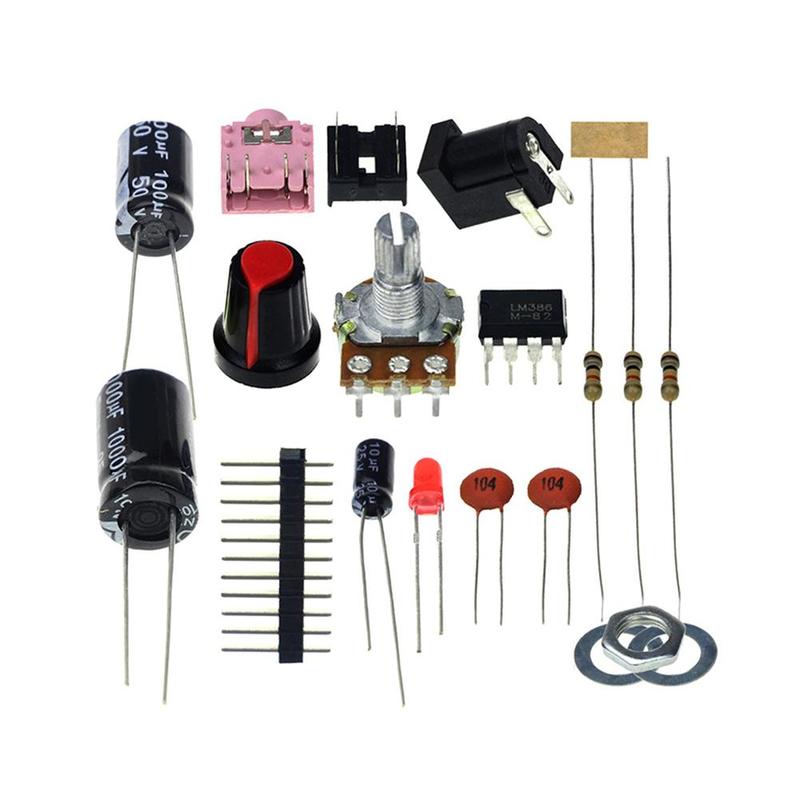

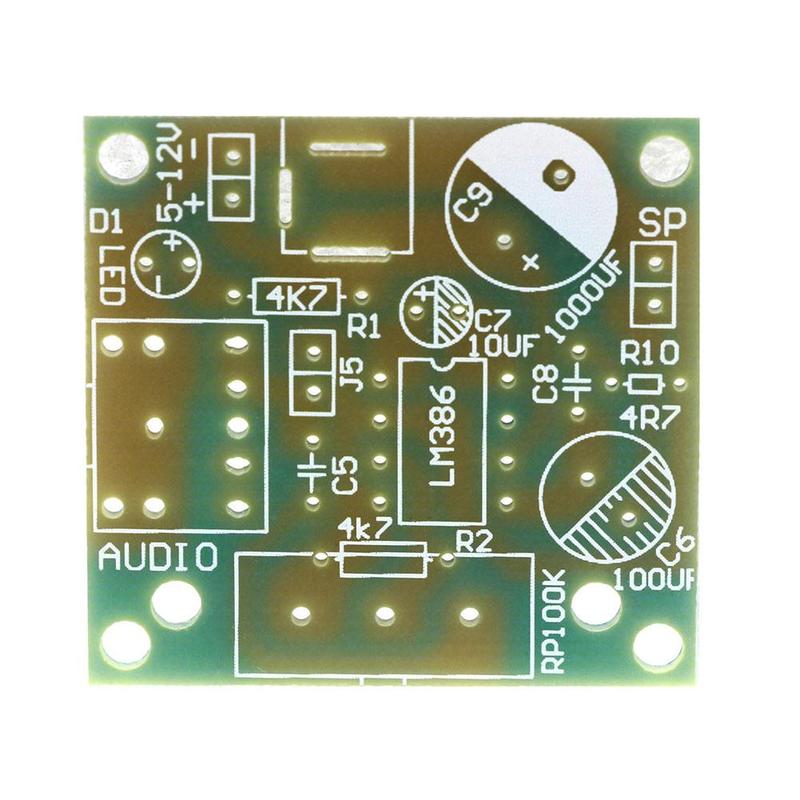

1x PCB
1x 10K variable resistor
1x Potentiometer knob housing
Pin 6-pin
1x 1K resistor
1x 10 ohm
2x 104 ceramic capacitors
1x DIP8 IC socket
1x LM386
1x DC005 Block
1x 3MM LED
1x 10UF Capacitance
1x 100UF Capacitor
1x 1000UF capacitor
1x 3.5 Audio Block
