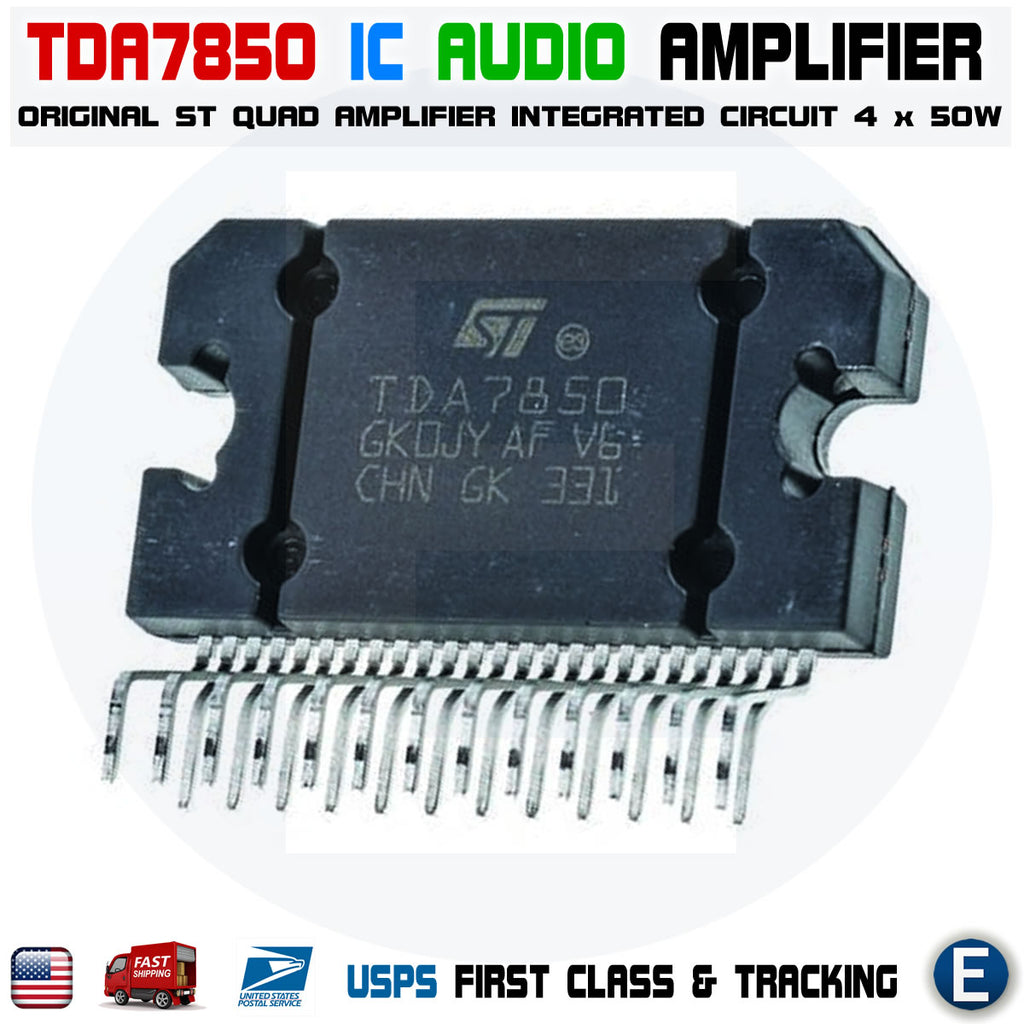

TDA7850 4X50W Mosfet Quad Bridge Power Audio Amplifier Car Original ST 25pin

In stock
FeaturesHigh output power capability:– 4 x 50 W/4 max.– 4 x 30 W/4 @ 14.4 V, 1 kHz, 10 %– 4 x 80 W/2 max.– 4 x 55 W/2 @ 14.4V, 1 kHz, 10 %MOSFET output power stageExcellent 2 driving capabilityHi-F...
$5.23
$5.23
  customers are viewing this product

Features
High output power capability:
– 4 x 50 W/4 max.
– 4 x 30 W/4 @ 14.4 V, 1 kHz, 10 %
– 4 x 80 W/2 max.
– 4 x 55 W/2 @ 14.4V, 1 kHz, 10 %
MOSFET output power stage
Excellent 2 driving capability
Hi-Fi class distortion
Low output noise
ST-BY function
Mute function
Automute at min. supply voltage detection
Low external component count:
– Internally fixed gain (26 dB)
– No external compensation
– No bootstrap capacitors
On board 0.35 A high side driver

Protections:
Output short circuit to gnd, to Vs, across the load
Very inductive loads
Overrating chip temperature with soft thermal limiter
Output DC offset detection
Load dump voltage
Fortuitous open gnd
Reversed battery
ESD

Description
The TDA7850 is a breakthrough MOSFET
technology class AB audio power amplifier in
Flexiwatt 25 package designed for high power car
radio. The fully complementary P-Channel/NChannel output structure allows a rail to rail
output voltage swing which, combined with high
output current and minimized saturation losses
sets new power references in the car-radio field,
with unparalleled distortion performances.
The TDA7850 integrates a DC offset detector.

Package Included:
1 x TDA7850 4X50W Mosfet Quad Bridge Power Audio Amplifier Car 25pin Original ST
