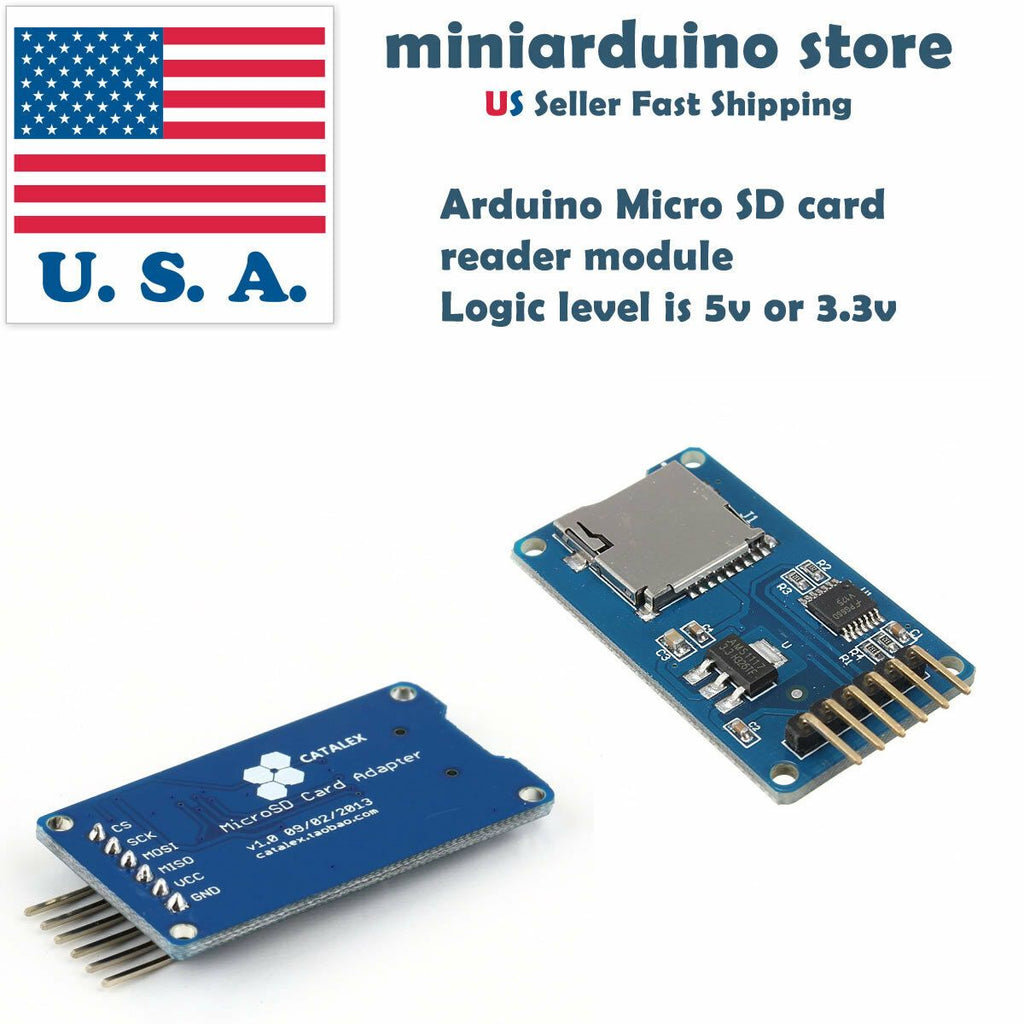

1 x Micro SD Storage Board Micro SD TF Card Memory Shield Module SPI For Arduino

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Other Electronic Components
B-03-04-02
Micro SD Storage Board Micro SD TF Card Memory Shield Module SPI for Arduino Features - Support Micro SD Card, Micro SDHC card (high-speed card) - The level conversion circuit board that can in...
$2.63
$2.63
  customers are viewing this product

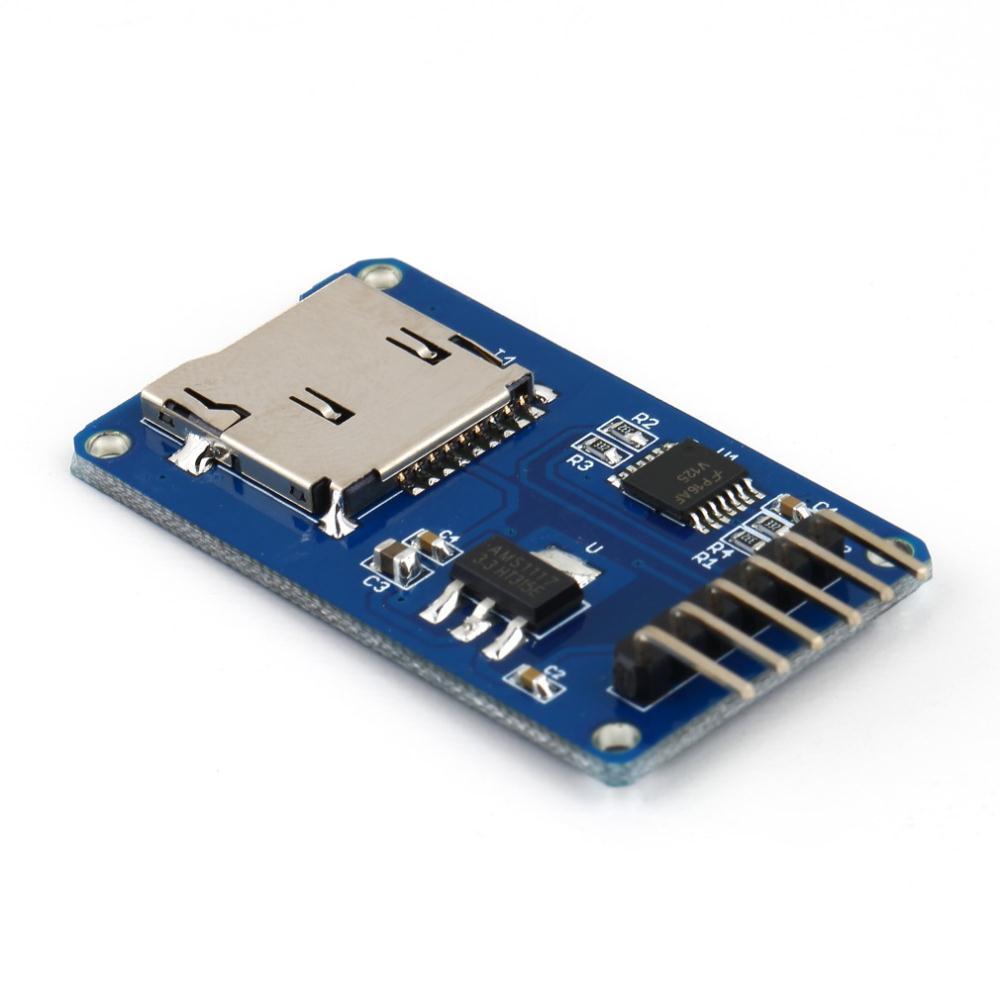

Micro SD Storage Board Micro SD TF Card Memory Shield Module SPI for Arduino

Features

- Support Micro SD Card, Micro SDHC card (high-speed card)

- The level conversion circuit board that can interface level is 5V or 3.3V

- Communication interface is a standard SPI interface

- Control Interface: a total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground

- VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin

- 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply

- Level conversion circuit: micro SD card into the direction of signals into 3.3V,

- MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal

- Micro SD card connector: yes since the bomb deck for easy card insertion and removal

- Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination

Specifications

- Power supply: 4.5V - 5.5V, 3.3V voltage regulator circuit board

- Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm

- Control Interface: GND, VCC, MISO, MOSI, SCK, CS

- Size: 42x24x12mm

Package Includes

1 x Micro SD Storage Board Micro SD TF Card Memory Shield Module SPI for Arduino
