5Pcs Atmega328P Arduino Pro Mini Module 3.3V 8MHz 1Pcs FT232RL FTDI USB Cable

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Integrated Circuits (ICs):Microcontrollers & Programmers
Arduino
222423161507
Description: Arduino Compatible Pro Mini ATMEGA328P 8MHz 3V3 This board connects directly to the FTDI Basic Breakout board and supports auto-reset.20 Digital input / output ports:TX, RX, D2 ~ D13,...
$16.23
$16.23
  customers are viewing this product

Description: Arduino Compatible Pro Mini ATMEGA328P 8MHz 3V3

This board connects directly to the FTDI Basic Breakout board and supports auto-reset.

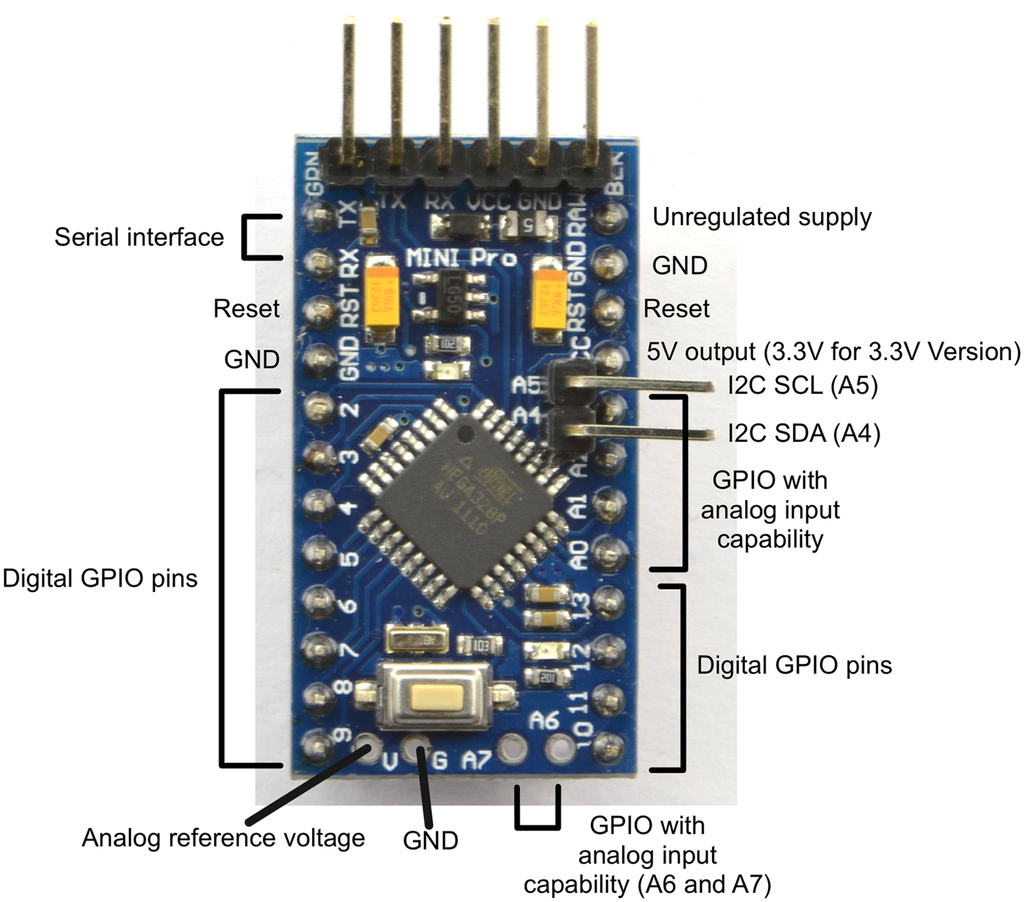

20 Digital input / output ports:TX, RX, D2 ~ D13, A0~A5
8 analog inputs ports:A0 ~ A7
1 pairs of TTL level serial transceiver ports RX / TX
6 PWM ports: D3, D5, D6, D9, D10, D11
Main Chip Atmel ATmega328P-AU
The bootloader is already installed in the board.
Flash Memory: 32 KB of which 2 KB used by bootloader.
3.3V regulator, ATmega328 running at 8MHz with external resonator (0.5% tolerance).
USB connection off board.
Max 150mA output
Over current protected
Reverse polarity protected
On board Power and Status LEDs
Support external power supply 3.3-12V DC
Support 12V or less than 12V battery power supply (using RAW and GND power ports)
Size: 33.8mm x 18mm

FT232RL Specifications:

FTDI USB 3.3V 5.5V to TTL Serial Adapter/Converter Module works 100% with Pro Mini 3.3V & 5V
USB power supply, can choose 5V or 3.3V, set by jumper
chipset FT232RL
USB power has over current protection, using 500MA self-restore fuse
RXD/TXD transceiver communication indicator
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Module size:36mm(length)*17.5mm(width)
Driver download address:
https://www.ftdichip.com/FTDrivers.htm

Package Included:
5 x Arduino Compatible Pro Mini Board with Headers Bootloader ATMEGA328P 8MHz 3V3
5 x Pin headers
1 x FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter For Arduino Pro Mini
1 x Dupont M-M 20cm 6P programming cable
1 x USB mini cable 30cm

Please NOTE before purchasing, Technical support is Not provided!
