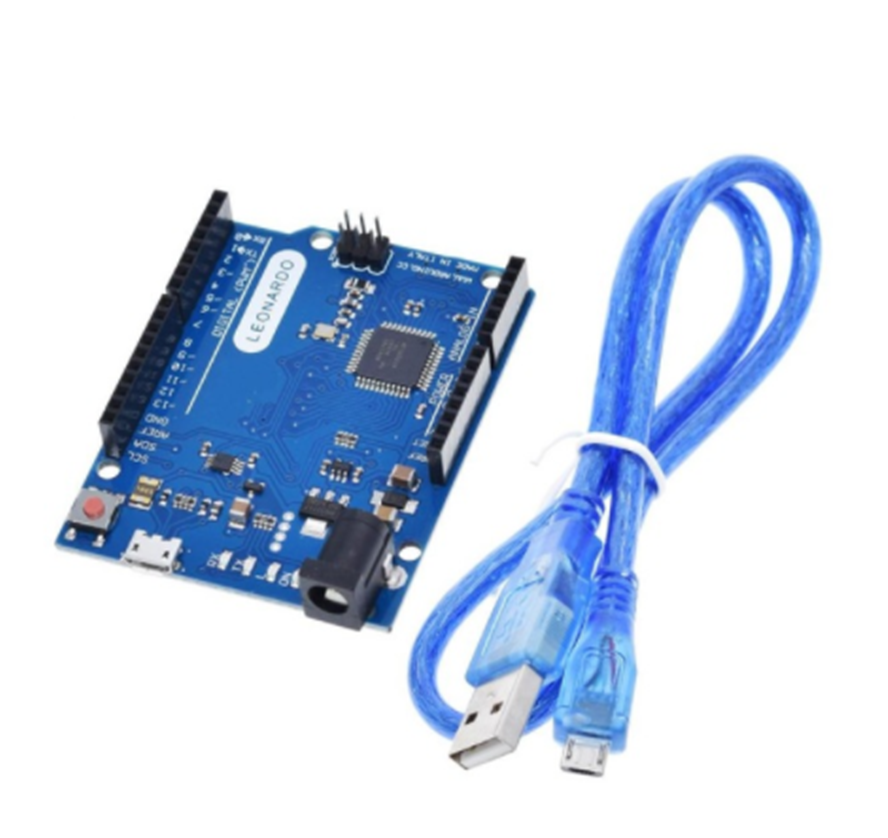

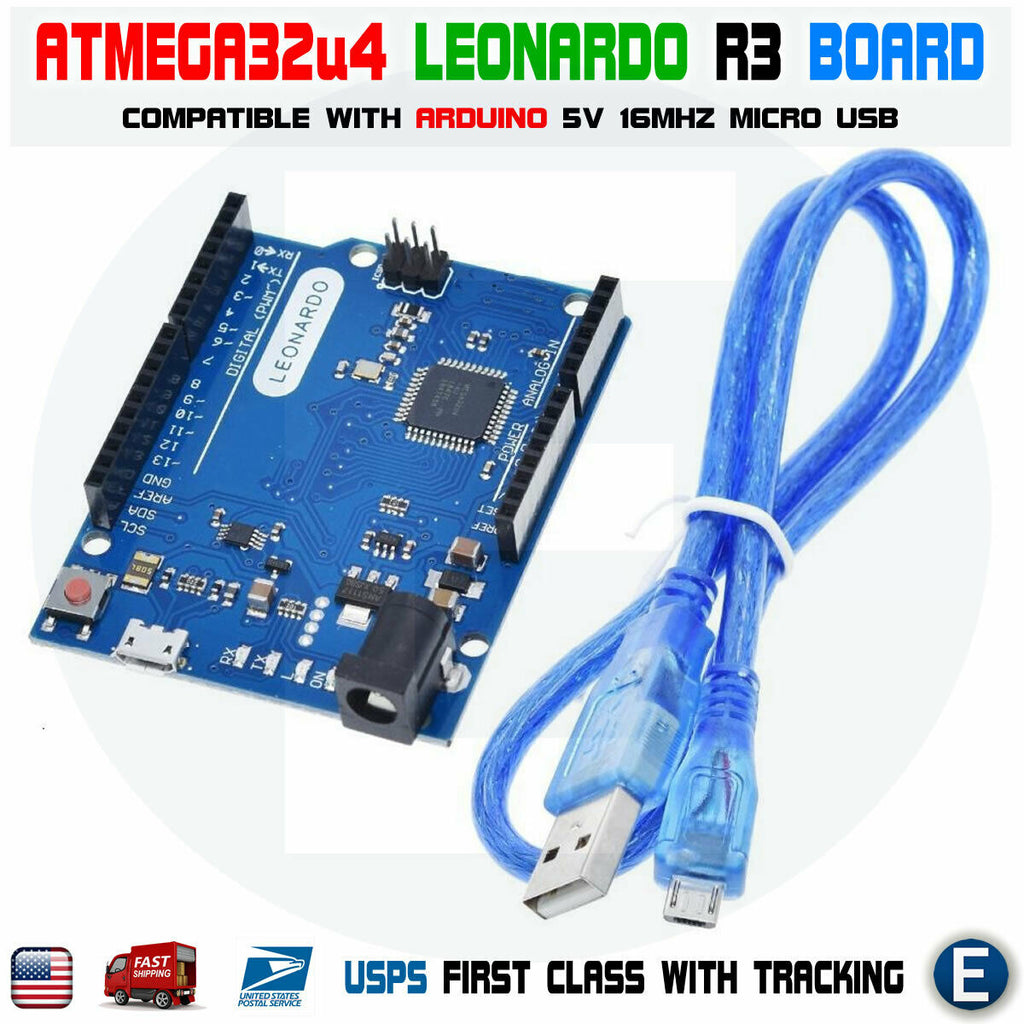

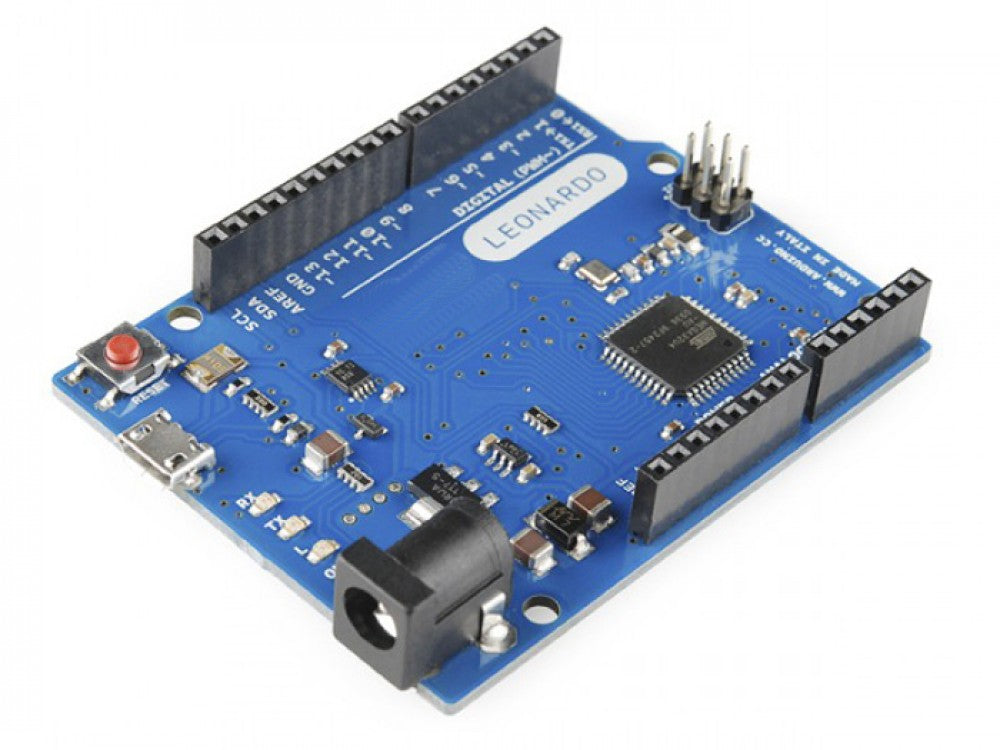

ATmega32U4 Leonardo R3 Board Micro USB Compatible with Arduino + Cable

In stock
A-03-09-01+B-02-12-03
Specification: Microcontroller:ATmega32u4 Operating Voltage:5V Input Voltage (recommended):7-12V Input Voltage (limits):6-20V Digital I/O Pins:20 PWM Channels:7 Analog Input Channels:12 DC Current ...
$14.63
$14.63
  customers are viewing this product

Specification:
Microcontroller:ATmega32u4
Operating Voltage:5V
Input Voltage (recommended):7-12V
Input Voltage (limits):6-20V
Digital I/O Pins:20
PWM Channels:7
Analog Input Channels:12
DC Current per I/O Pin:40 mA
DC Current for 3.3V Pin:50 mA
Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM:2.5 KB (ATmega32u4)
EEPROM:1 KB (ATmega32u4)
Clock Speed:16 MHz

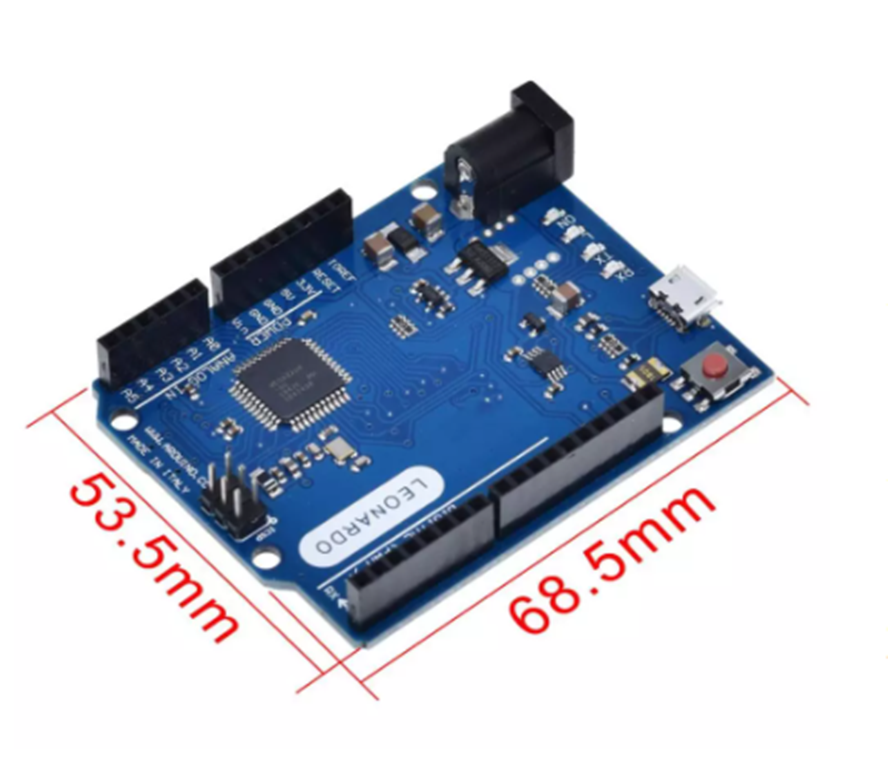

Length: 68.6 mm
Width: 53.3 mm
Weight: about 20g

Package Included:
1 x ATmega32U4 Leonardo R3 Board Micro USB Compatible with Arduino Cable
1 x micro usb cable
Instructions are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
