3pcs HC-SR04 Ultrasonic Module Measuring Sensor Arduino Raspberrypi Robot

In stock
Business & Industrial:Electrical Equipment & Supplies:Sensors:Other Sensors
HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor for Arduino Features:* 100% Brand New and High Quality* Working Voltage : 5V(DC)* Static current: Less than 2mA.* Output signal: Elect...
  customers are viewing this product

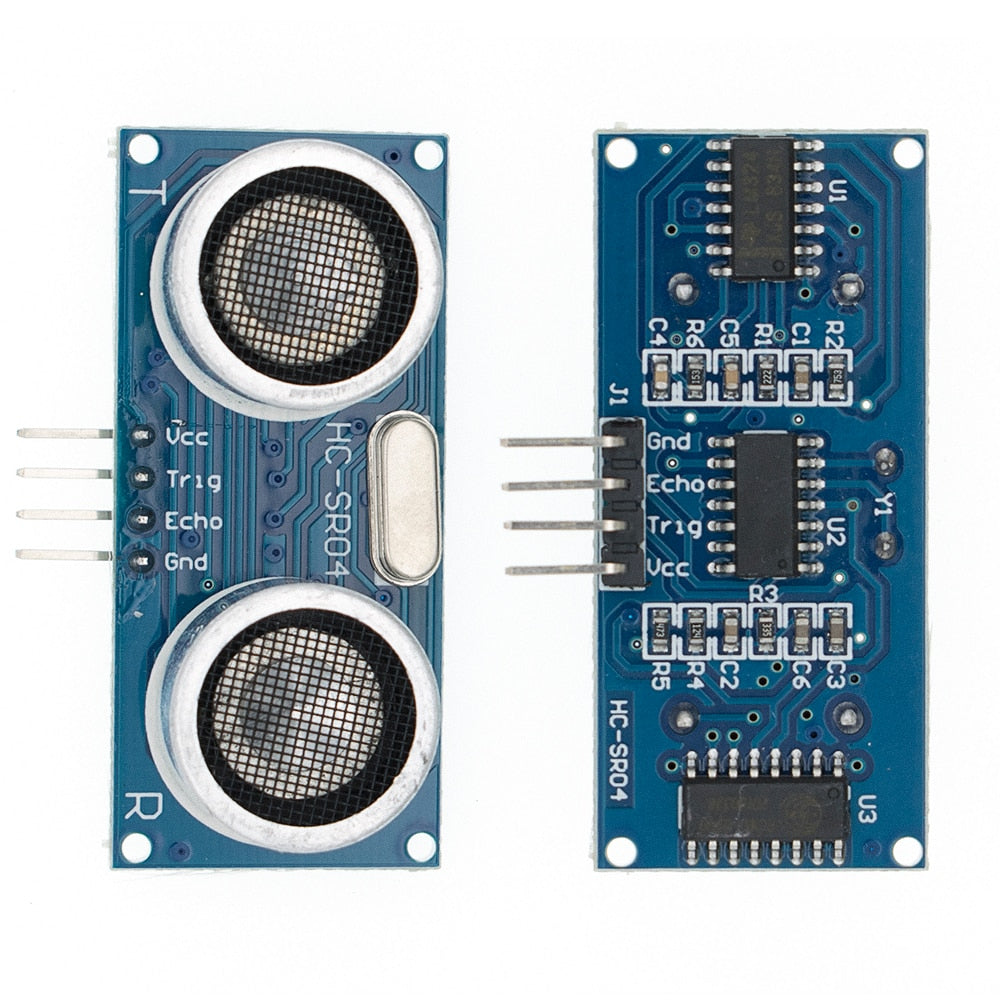

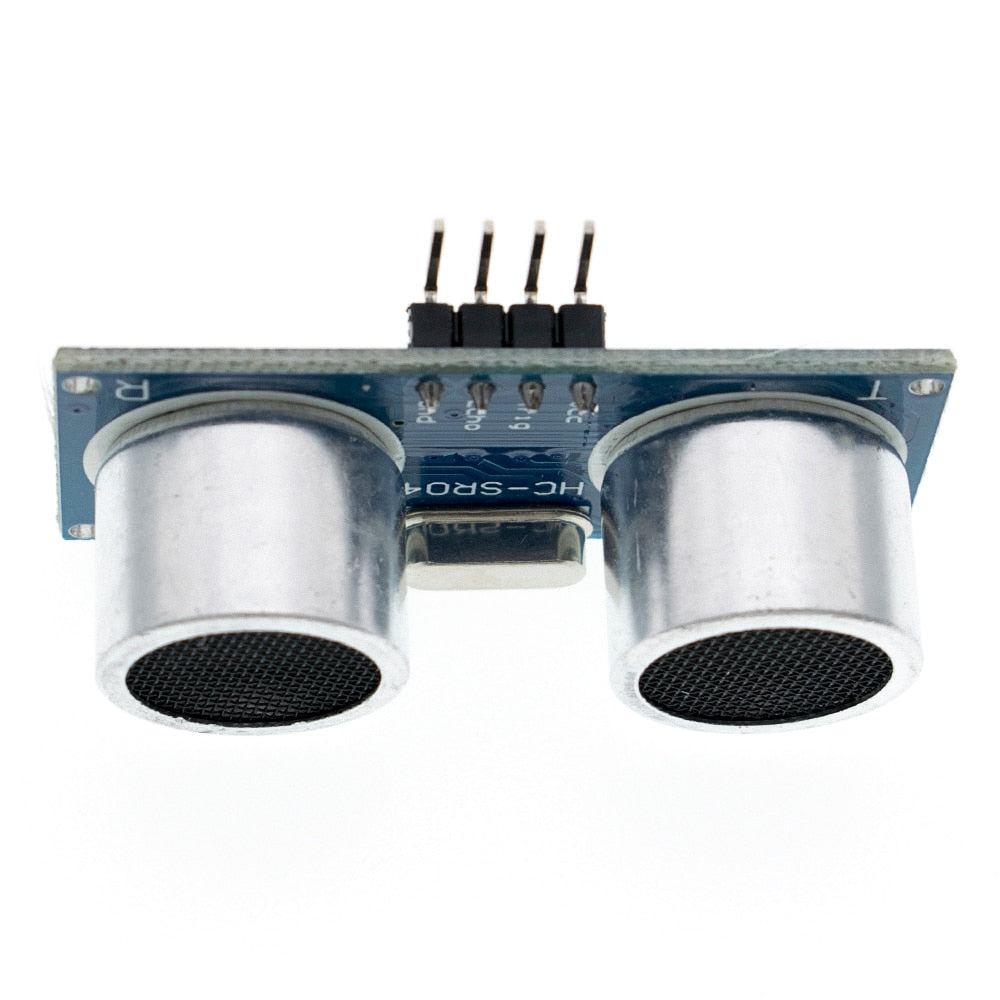

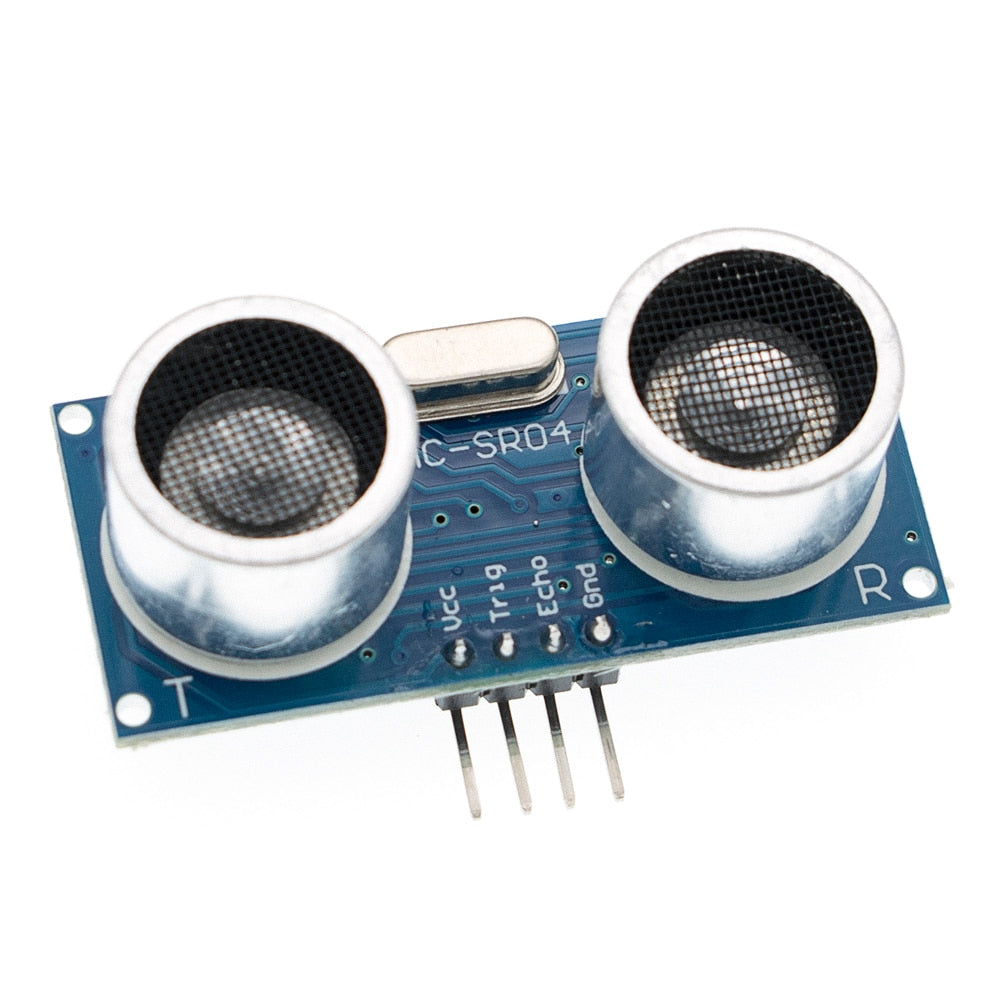

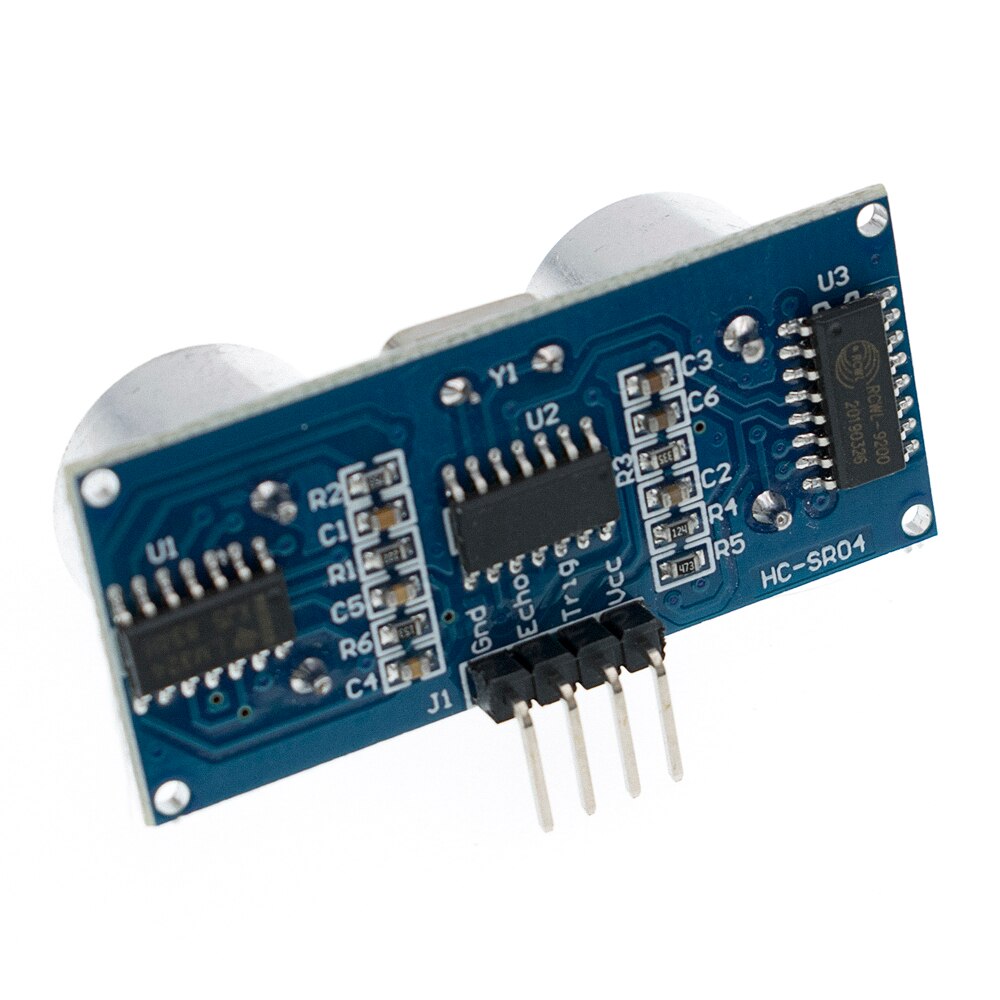

HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor for Arduino

* 100% Brand New and High Quality
* Working Voltage : 5V(DC)
* Static current: Less than 2mA.
* Output signal: Electric frequency signal, high level 5V, low level 0V.
* Sensor angle: Not more than 15 degrees.
* Detection distance: 2cm-450cm.
* High precision: Up to 0.3cm
* Input trigger signal: 10us TTL impulse
* Echo signal : output TTL PWL signal

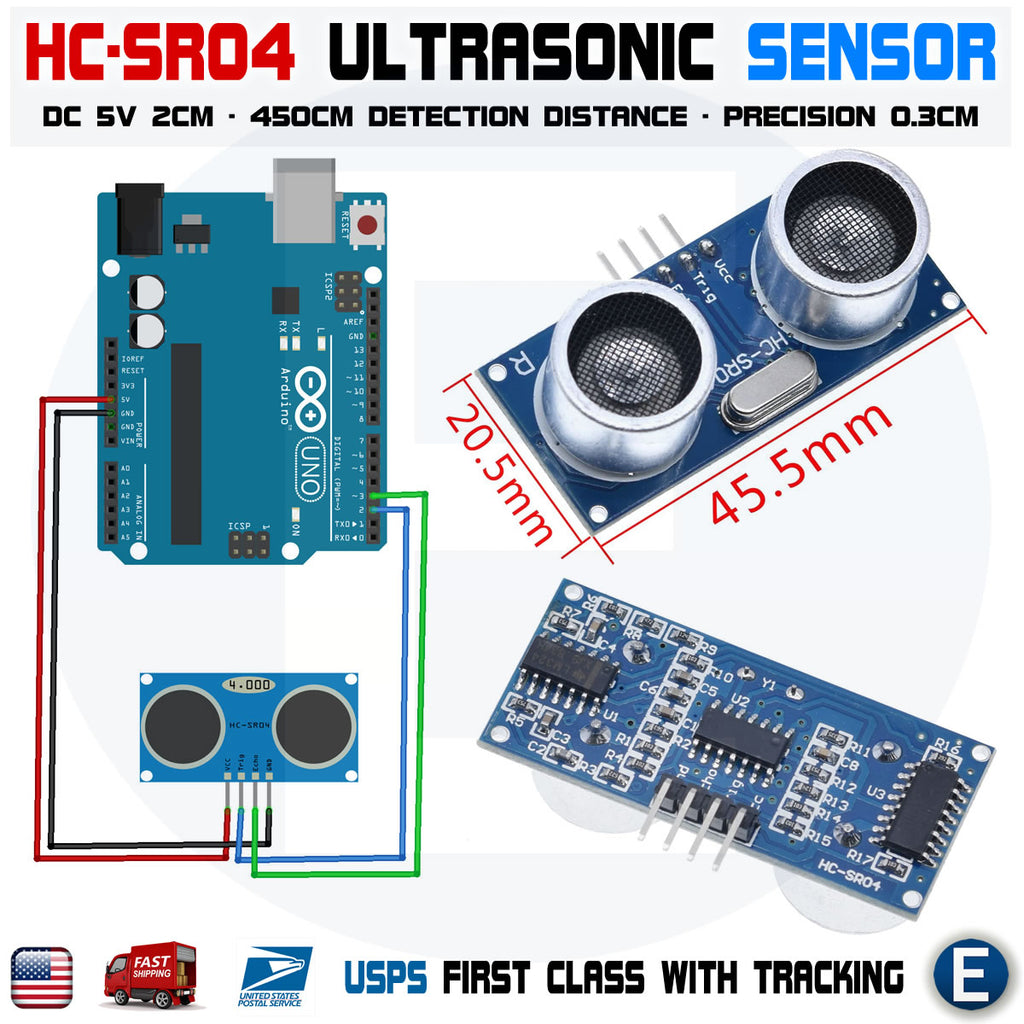

Mode of connection:

* Use method: Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.

Color: Blue & Silver

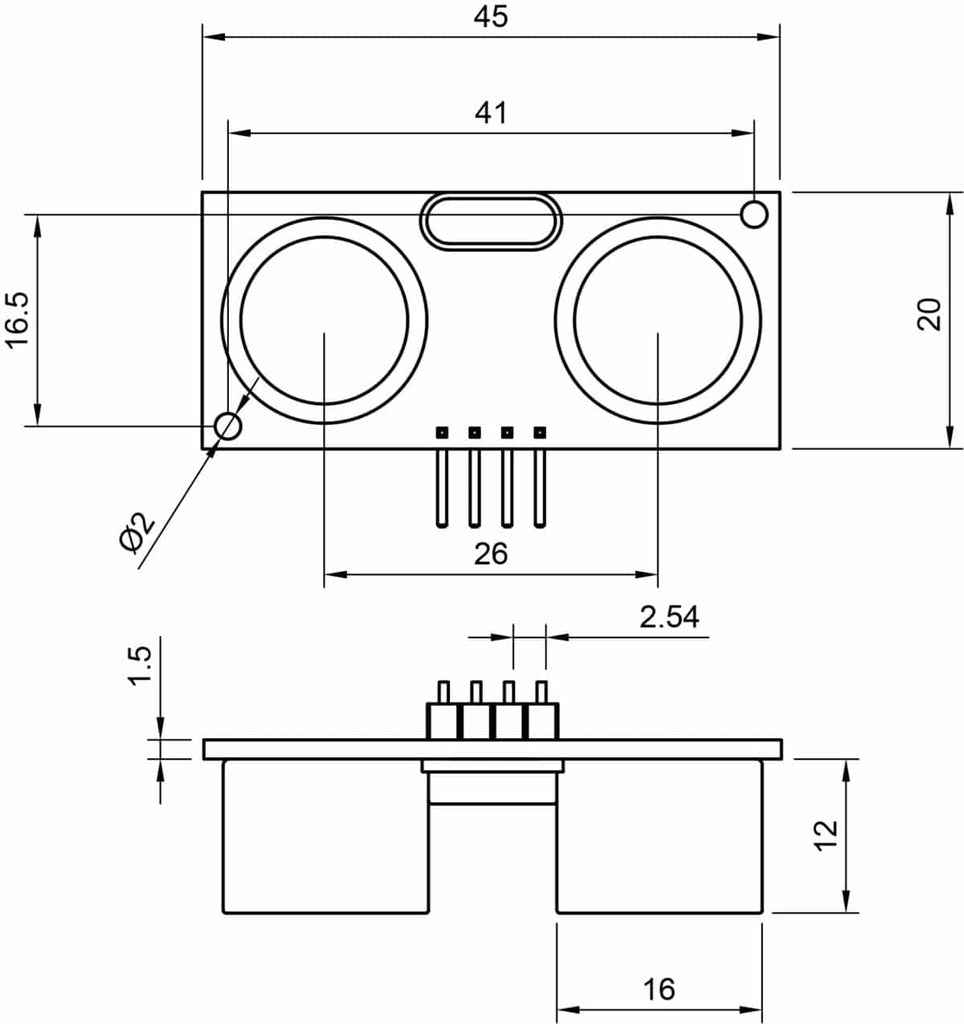

Item size: 44*20*15mm

Package included:

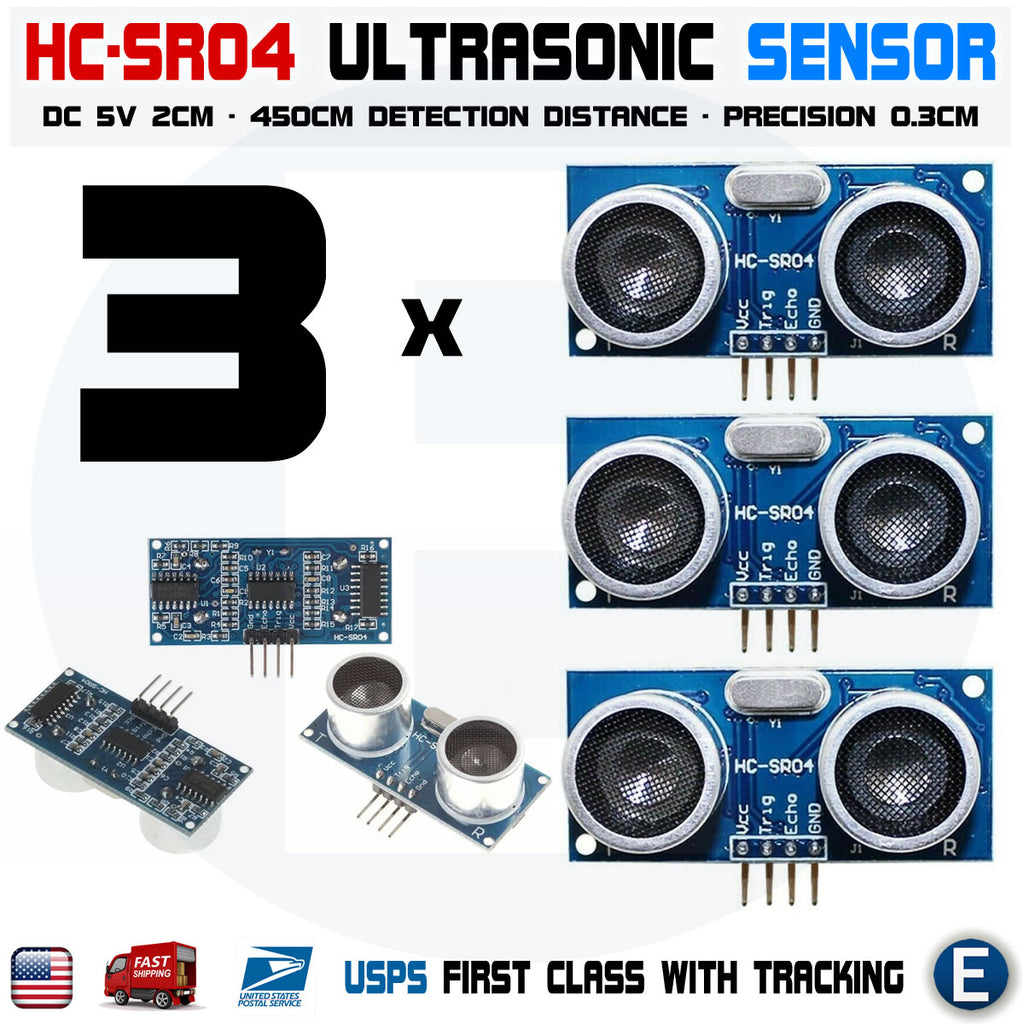

3 x HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor
