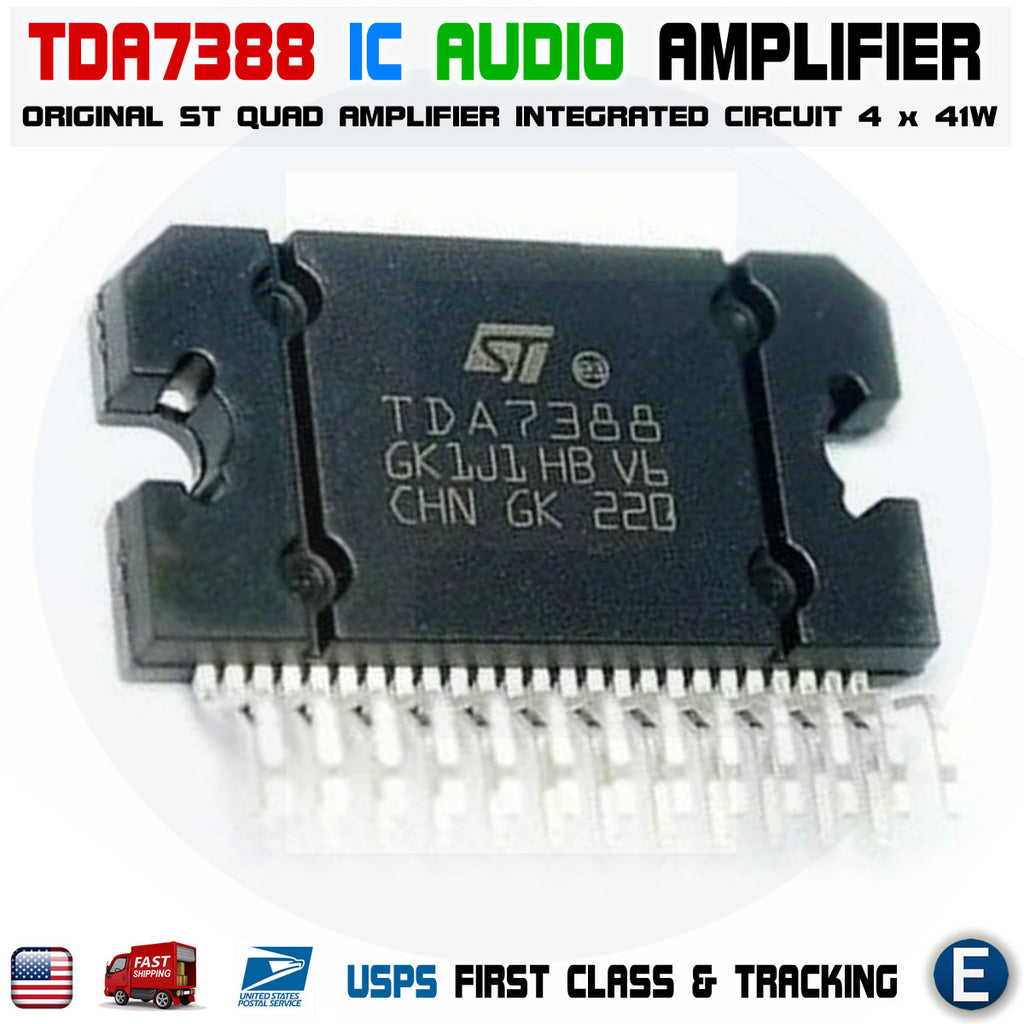

TDA7388 ORIGINAL ST Amplifier IC QUAD replace TDA7381 4x41W Car Audio

In stock
FeaturesHigh output power capability:– 4 x 45 W / 4  max.– 4 x 26 W / 4  @ 14.4 V, 1 kHz, 10 %Low distortionLow output noiseStandby functionMute functionAutomute at min. supply voltage detection ...
$5.23
$5.23
  customers are viewing this product

Features
High output power capability:
– 4 x 45 W / 4  max.
– 4 x 26 W / 4  @ 14.4 V, 1 kHz, 10 %
Low distortion
Low output noise
Standby function
Mute function
Automute at min. supply voltage detection
 Low external component count:
– Internally fixed gain (26 dB)
– No external compensation
– No bootstrap capacitors

Protections:
Output short circuit to gnd, to VS, across the load
Very inductive loads
Overrating chip temperature with soft thermal limiter
Load dump voltage
Fortuitous open GND
Reversed battery
ESD

Description
The TDA7388 is an AB class audio power
amplifier, packaged in Flexiwatt 25 and designed
for high end car radio applications.
Based on a fully complementary PNP/NPN
configuration, the TDA7388 allows a rail to rail
output voltage swing with no need of bootstrap
capacitors. The extremely reduced boundary
components count allows very compact sets.

Package Included:
1 x TDA7388 ORIGINAL ST Amplifier IC QUAD replace TDA7381 4x41W
