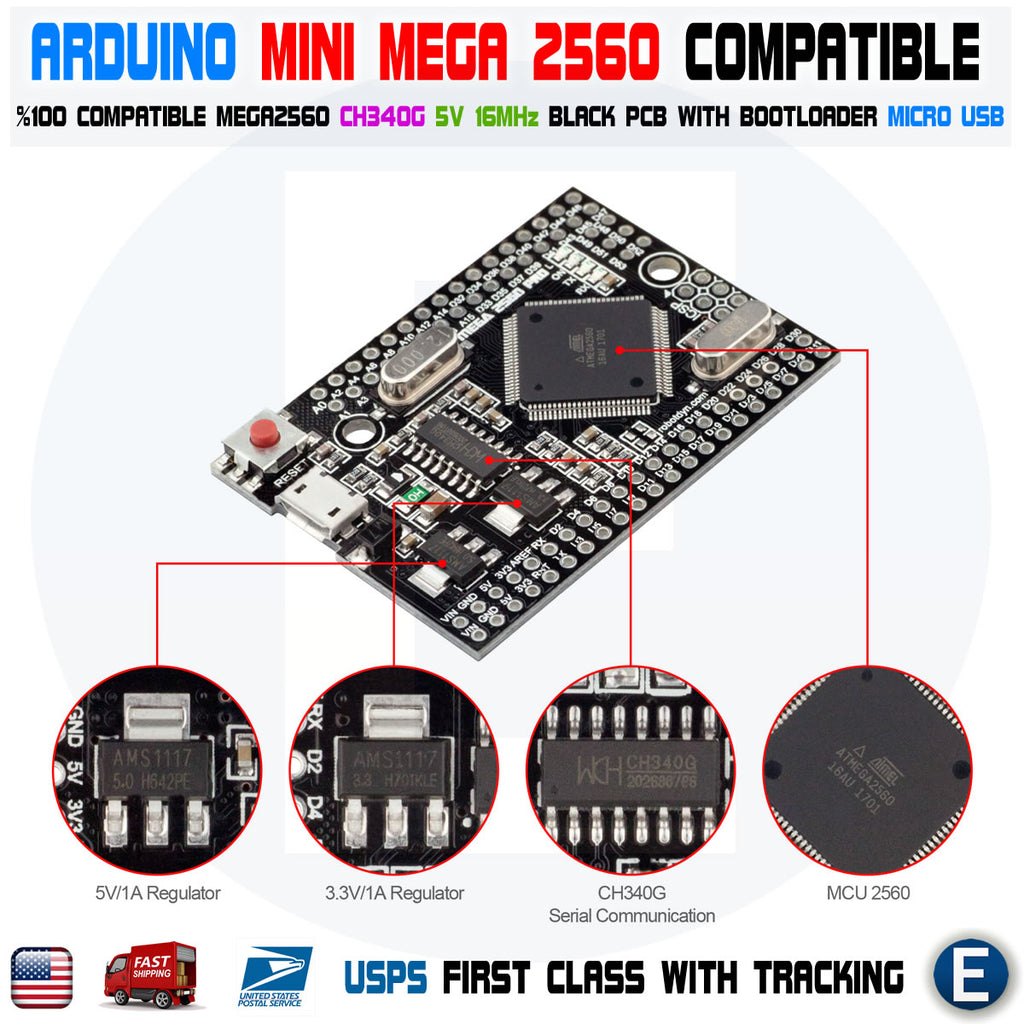

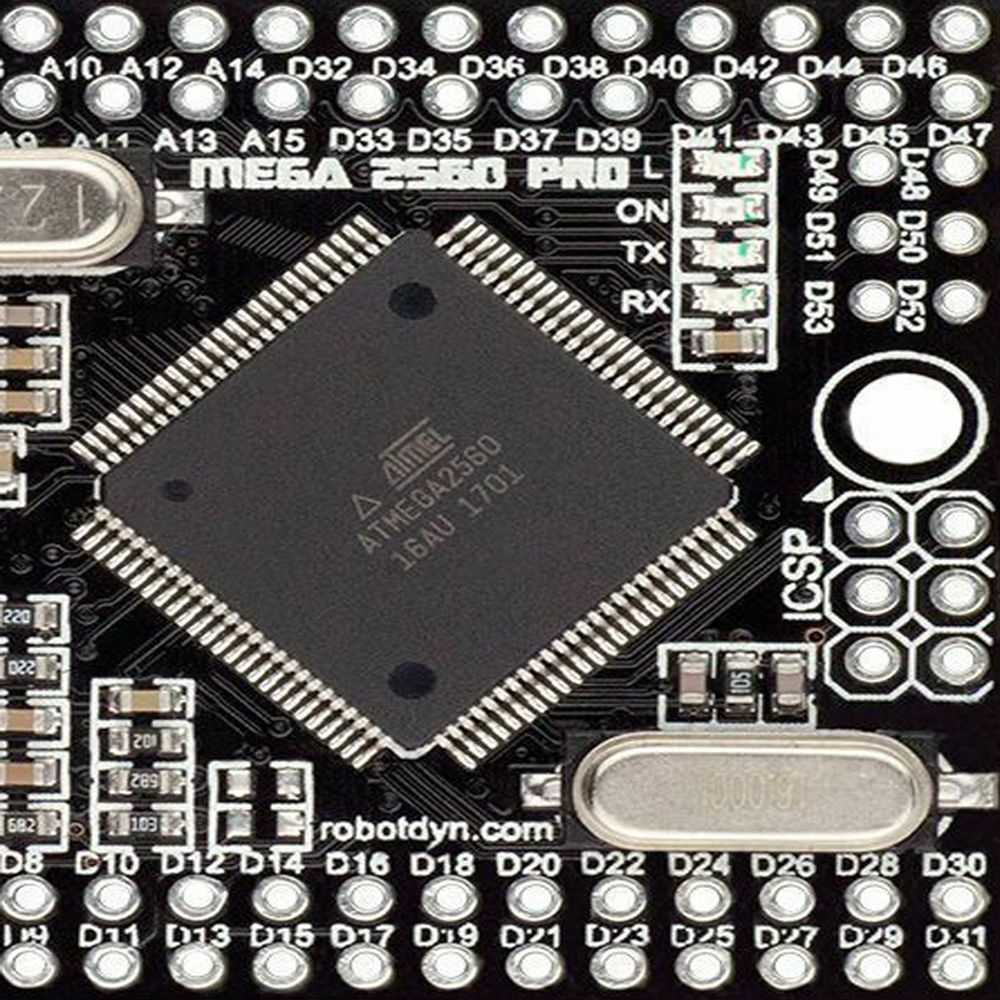

Arduino Mega 2560 PRO Embedded, MCU mini Mega2560, micro USB CH340G 2018

Out of stock
Consumer Electronics:Other Consumer Electronics
A-03-05-03
Fully compatible with Arduino IDE.   The EMBEDDED version of Mega 2560 CH340G/ATmega2560 - compatible with Arduino Mega 2560 board. Built on the Atmel ATmega2560 microcontroller and USB-UART int...
$18.63
  customers are viewing this product
Fully compatible with Arduino IDE.

The EMBEDDED version of Mega 2560 CH340G/ATmega2560 - compatible with Arduino Mega 2560 board. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

Ultra-compact size 38x55mm. It is a good solution, to make your final project on solder proto-board. Board for functionality similar to the Arduino Mega 2560. It is embedded board, but the same stable, and uses the original chips ATmega2560 (16 MHz).

The board used the chip CH340G as converter UART-USB. When you work in the frequency 12MHz, giving a stable result of data exchange (need install drivers to computer).
Mega PRO (Embed) 2560 CH340G / ATmega2560 - connects to the computer via micro USB cable (used for almost all Android smartphones). You can supply power to board through the MicroUSB connector or to power pinheaders. The voltage regulator (LDO) can deal with incoming voltage from 6V to 9V (peack 12V) DC. Output current for 5V - about 800mA, for 3.3V - about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.

Detail page of product: https://robotdyn.com/mega-2560-pro-embed-ch340g-atmega2560-16au.html

On detail page, you can find:
Schematic: (PDF)
PinOut Diagram: (PDF) - (JPG)

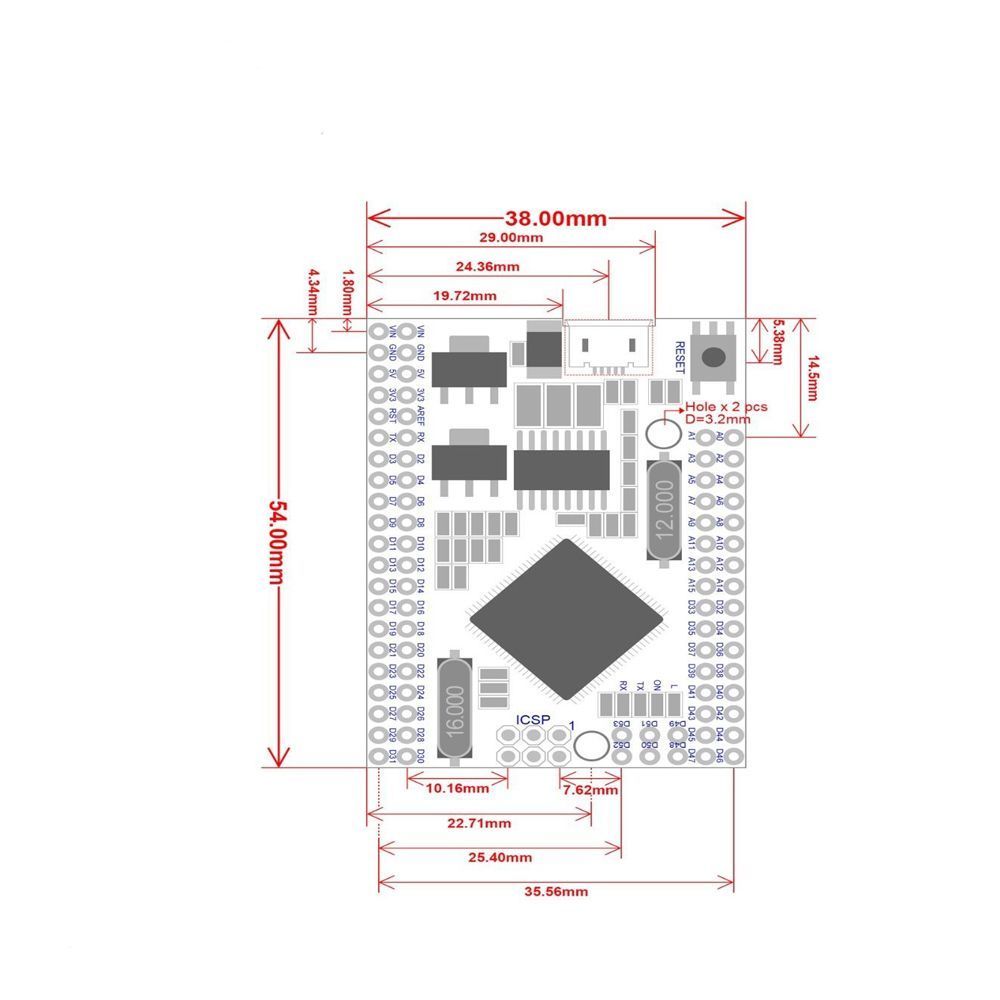

Mechanic Diagram: (PDF) - (JPG)
Driver: (Win) - (Linux) - (Mac OS) -(Android)
Instruction(PDF) for installation
Library for Eagle CAD

Technical Characteristics:

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 6-9V
Input Voltage (limit) 12V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current for 5V Pin 800 mA
DC Current for 3.3V Pin 800 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
LED_BUILTIN 13
Length 55 mm
Width 38 mm
Weight 17 g
With bootloader

Package Included:

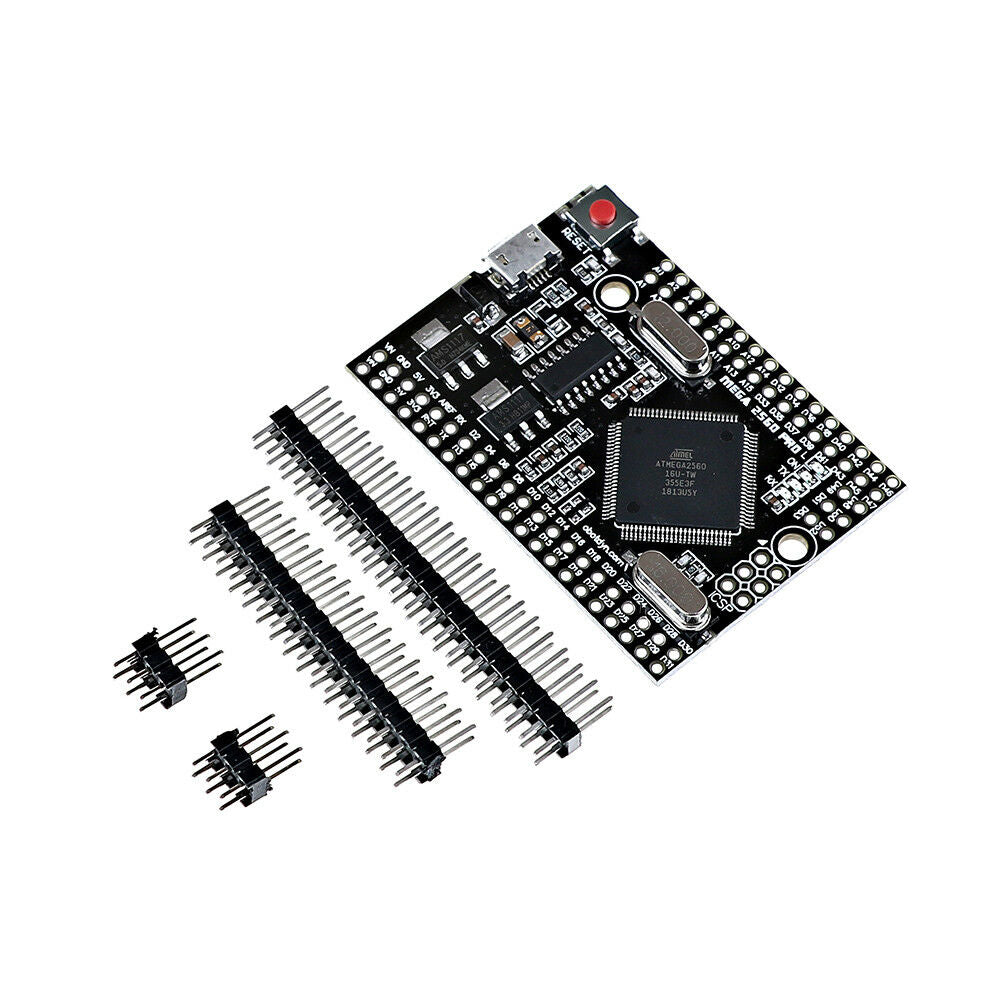

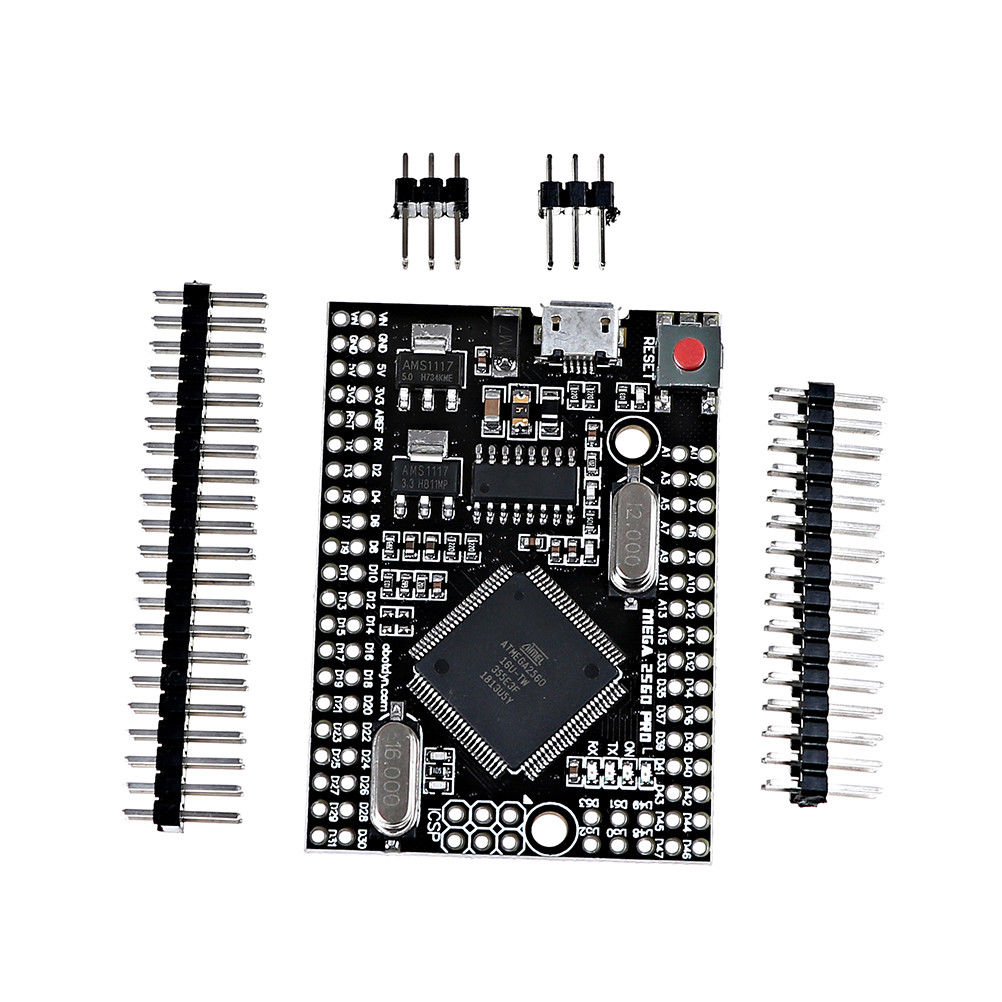

1 x Arduino Mega 2560 PRO Embedded, MCU mini ATmega2560, micro USB CH340G
Technical support is NOT included in this auction
