4pcs Arduino Nano V3.0 ATmega328P Microcontroller Board Mini USB CH340g Soldered

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Other Electronic Components
Specifications: Arduino Nano V3.0 compatible board   FeaturesUpdated layout for better integrationGuaranteed to work with the Arduino IDECH340 USB interfaceMini USB interface for power and com...
$12.23
  customers are viewing this product

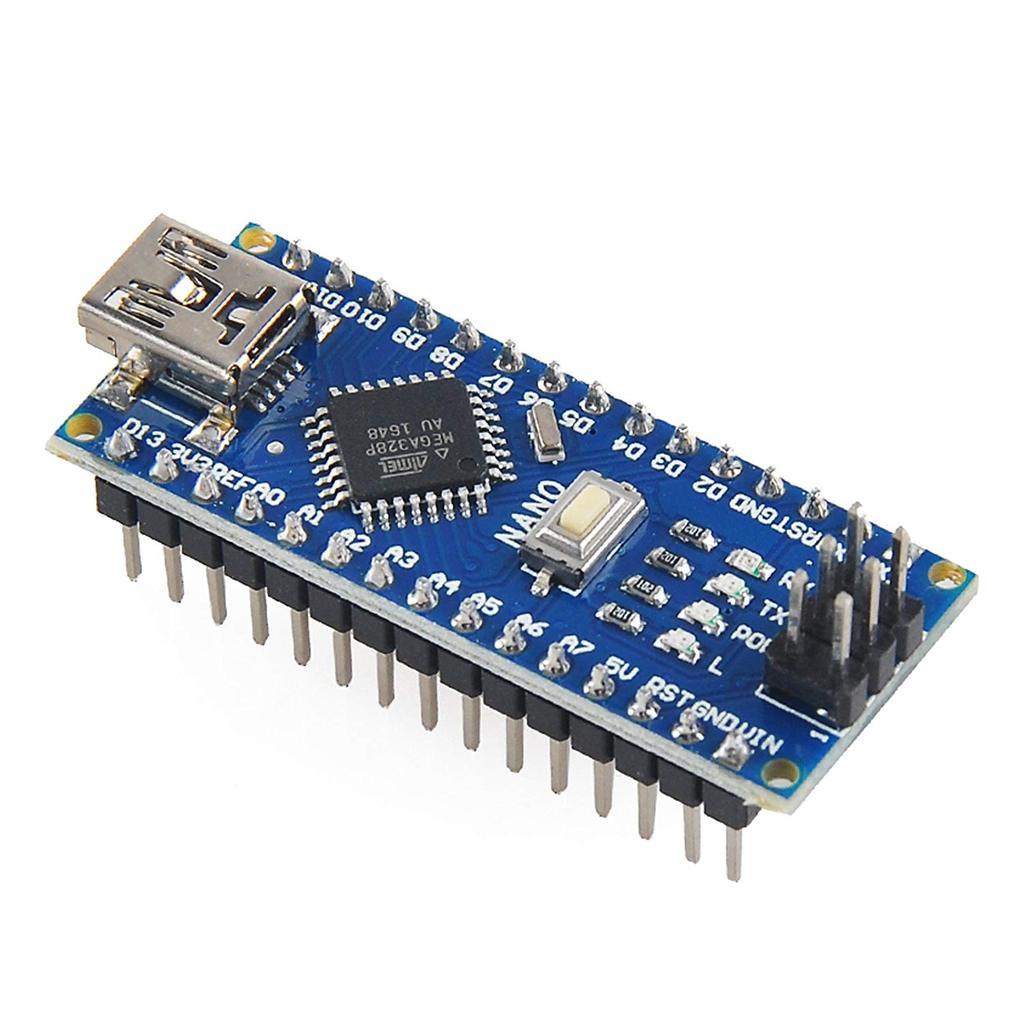

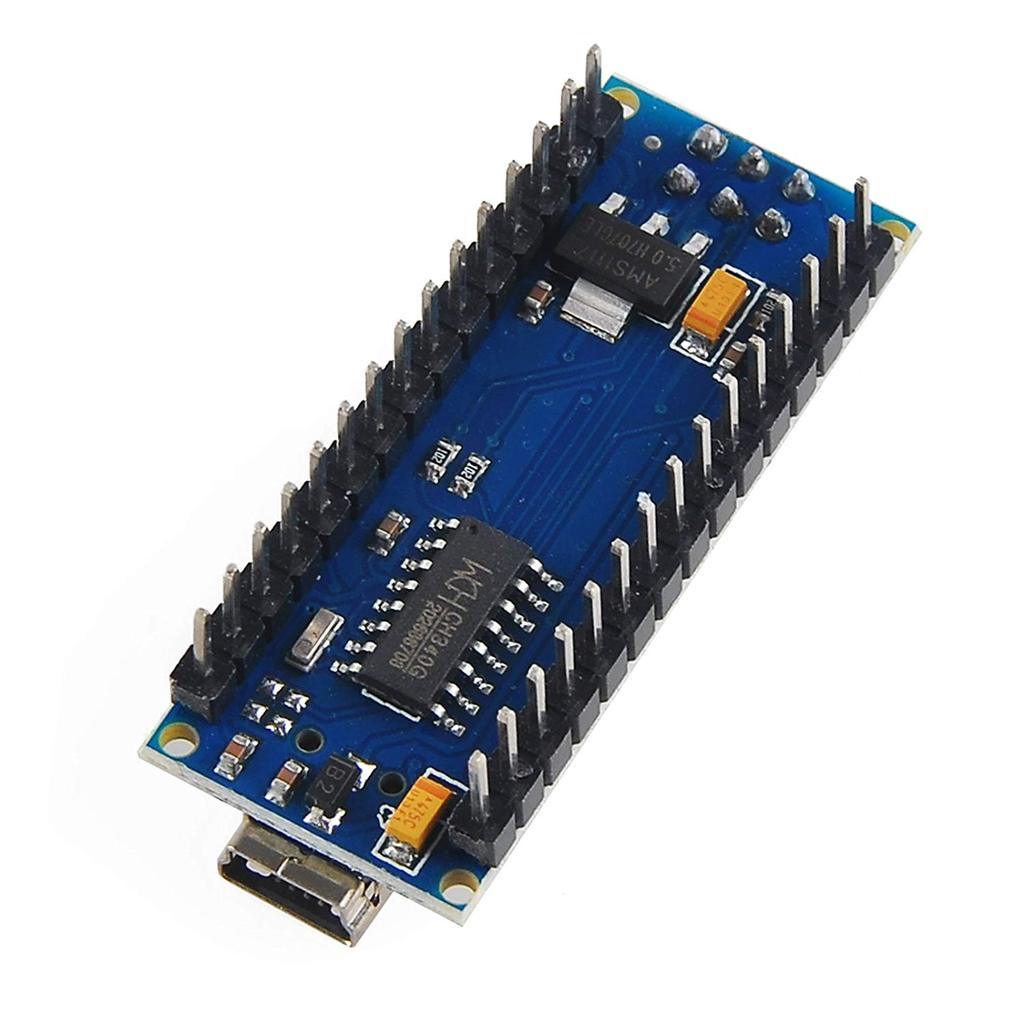

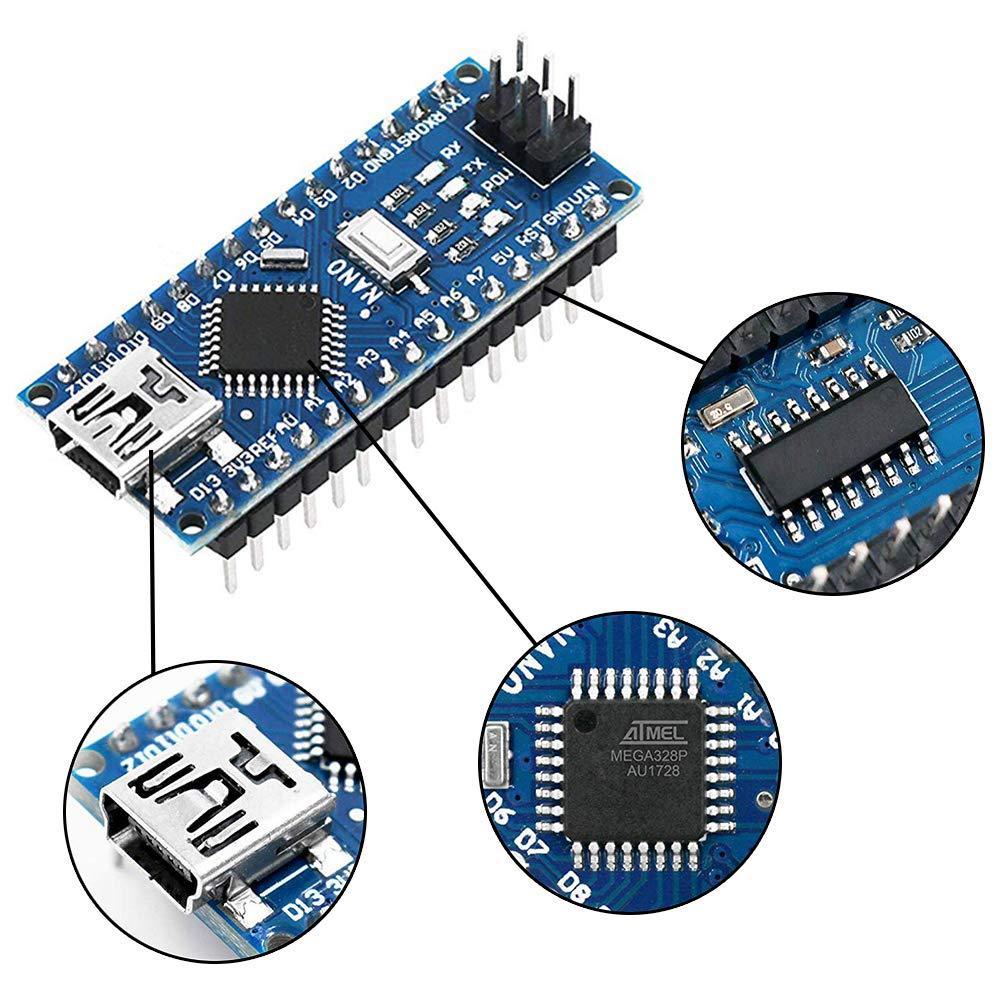

Specifications: Arduino Nano V3.0 compatible board

Features
Updated layout for better integration
Guaranteed to work with the Arduino IDE
CH340 USB interface
Mini USB interface for power and communication
Compact Size
Complete access to all headers
Specification
Micro-controller : Atmel ATMega328
Operating voltage : 5V
Digital I/O Pins:14 (of which 6 provide PWM output)
Analog Pins: 8
DC Current per I/O Pin:40 mA
Flash Memory: 32 KB (ATmega328) of which 2 KB used by boot loader
SRAM: 2 KB (ATmega328)
EEPROM:1 KB (ATmega328)
Clock Speed:16 MHz
Dimensions: 42*17*8 mm

The header pins has been soldered for this package. It uses the chip ATmega328P CH340 instead of FT232RL. You can start with various electronic projects by using the Arduino software (IDE). It has everything that Arduino/Genuino UNO has, even with more analog input pins and onboard +5V AREF jumper. It is a smallest, complete, and breadboard friendly board and 100% compatible with the official Arduino Nano card, and fully compatible with Windows, Mac and Linux operating system. It can be powered via USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). This board has 22 digital inputs and outputs, and 8 analog inputs - a module with many interfaces. It is enough for most applications.

Package Included:
4 x Arduino Nano compatible board - pin headers soldered to pcb board
