2.4" TFT LCD Display Shield Touch Panel Screen Arduino UNO R3 ATmega328p CH340g

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:LEDs, LCDs & Display Modules:LCD Display Modules
Miniarduino
223225970981
2.4" diagonal LCD TFT display shield for UNO MEGA - Bright 4 white-LED backlight - Colorful 18-bit 262,000 different shades - 4-wire resistive touchscreen - 240x320 resolution - 8 bit digital inter...
$12.23
$12.23
  customers are viewing this product
2.4" diagonal LCD TFT display shield for UNO MEGA
- Bright 4 white-LED backlight
- Colorful 18-bit 262,000 different shades
- 4-wire resistive touchscreen
- 240x320 resolution
- 8 bit digital interface,plus 4 control lines
- Use digital pins 5-13 and analog 0-3
- Pin 12 is available if not using the micro SD
- 5V compatible,use with 3.3V or 5V logic
- Onboard 3.3V (300mA LDO regulator)
- Size:71*52*7mm
- SD card slot
- SSD1297 ID=0x9341

References:
https://github.com/prenticedavid/MCUFRIEND_kbv/

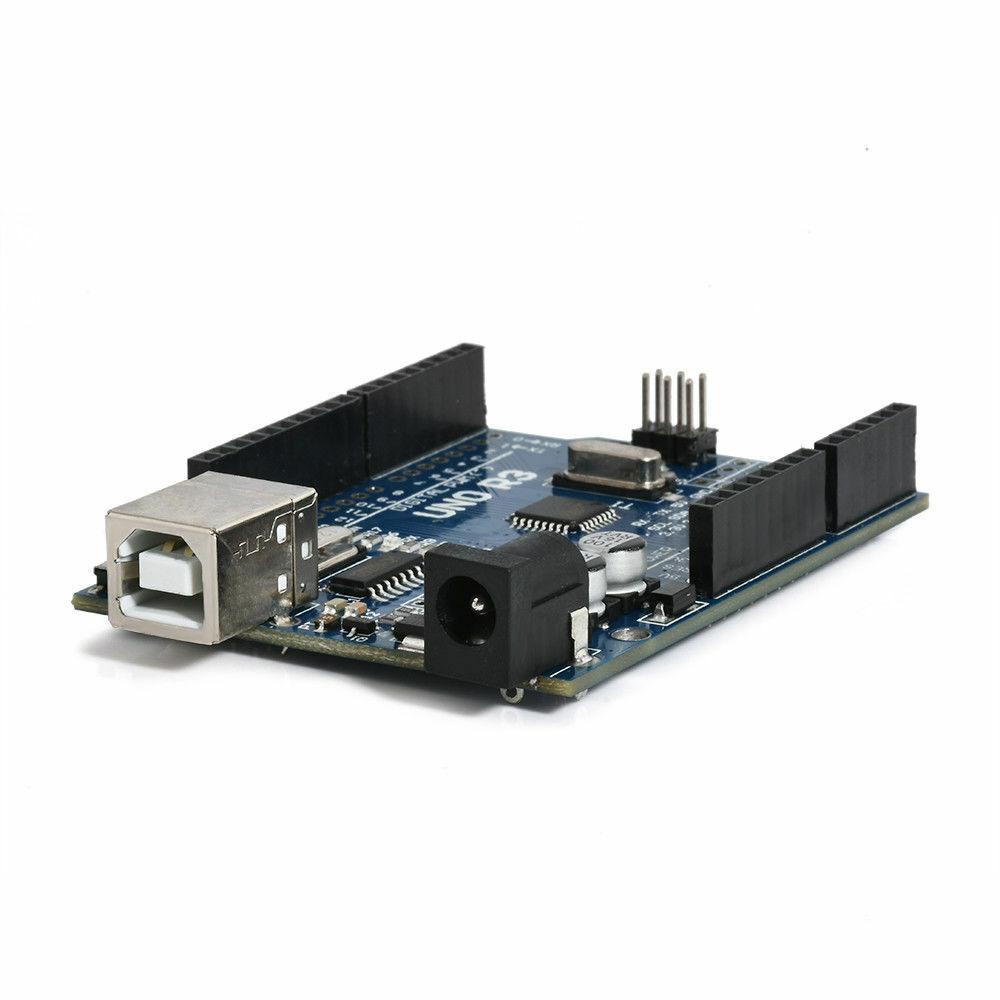

Arduino UNO R3 compatible CH340G

The Arduino UNO R3 is the best board to get started with electronics and coding. If this is your first experience with electronics and coding, the UNO is the most robust board you can start playing with. The UNO R3 is the most used and documented board of the whole Arduino family.
The UNO R3 is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Differences with other boards:

The UNO R3 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter.

Revisions:
Revision 3 of the board (compared to Revision 2 ) has the following new features:

1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible with both the board that uses the AVR, which operates with 5V and with the Arduino Due that operates with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
Stronger RESET circuit.

Technical specifications:

Model: UNO R3 (Revision 3)
Microcontroller: ATmega328
CH340 for USB/Serial Interface
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16MHz
Length: 68.6 mm
Width: 53.4 mm
Weight: 25 g
Built-in bootloader.
Female Header: Welded female header
Memory:
The ATmega328 has 32 KB (with 0.5 KB occupied by the bootloader). It also has 2 KB of SRAM and 1 KB of EEPROM
Package Included:
1 x 2.4" TFT LCD Display Shield Touch Panel Screen
1 x Arduino UNO R3 CH340g
1 x USB Blue cable 20cm
