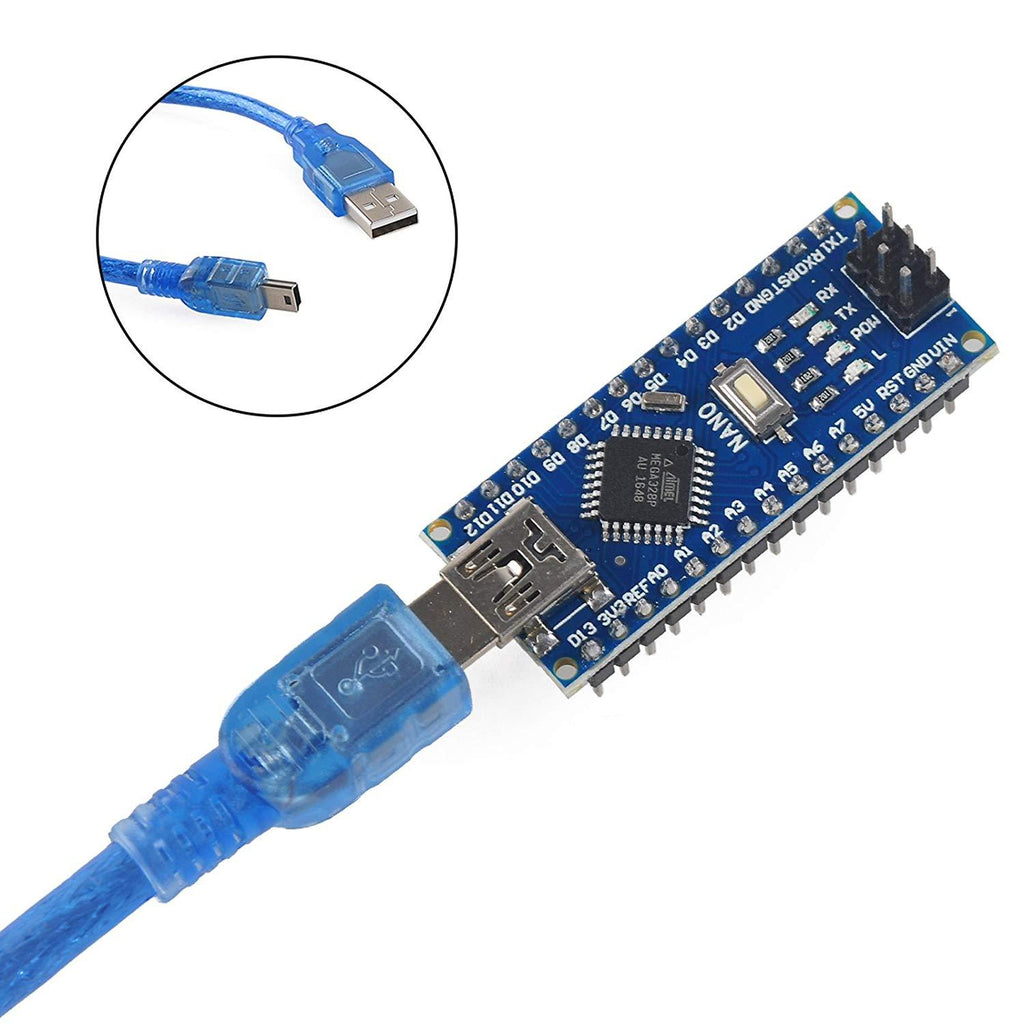

10 x ATmega328P Nano Board Soldered Compatible for Arduino Nano V3 USB Cable

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Other Electronic Components
A-03-02-03+
Specifications: Microcontroller ATmega328P Operating Voltage (logic level): 5 V Input Voltage (recommended): 7-12 V Input Voltage (limits): 6-20 V Digital I/O Pins 14 (of which 6 provide PWM outpu...
$85.63
  customers are viewing this product

Specifications:

Microcontroller ATmega328P
Operating Voltage (logic level): 5 V
Input Voltage (recommended): 7-12 V
Input Voltage (limits): 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins: 8
Dimensions: 0.73" x 1.70"
Length: 45 mm
Width: 18 mm
Weight: 5 g
CH340G
Mini USB

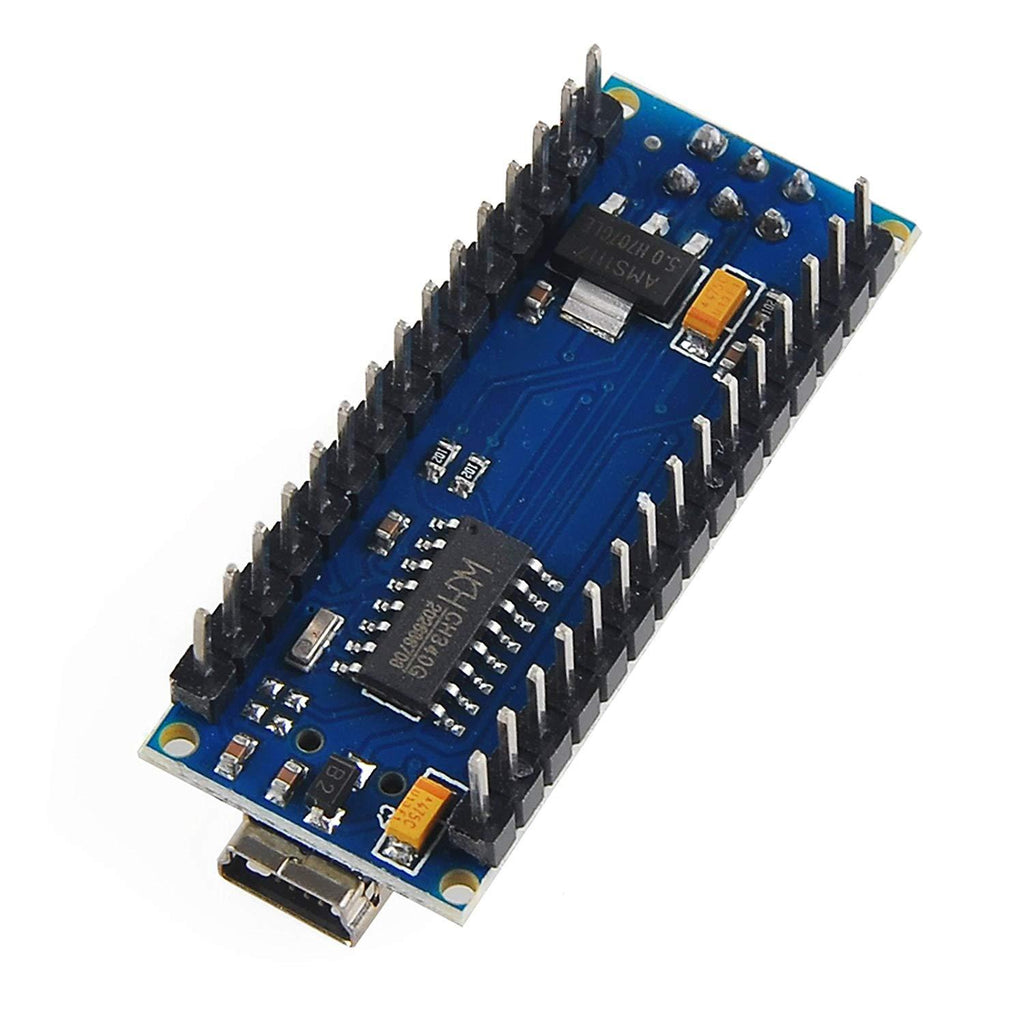

The header pins has been soldered for this package and it comes with 1 USB Cables. It uses the chip ATmega328P CH340 instead of FT232RL. You can start with various electronic projects by using the Arduino software (IDE). It has everything that Arduino/Genuino UNO has, even with more analog input pins and onboard +5V AREF jumper. It is a smallest, complete, and breadboard friendly board and 100% compatible with the official Arduino Nano card, and fully compatible with Windows, Mac and Linux operating system. It can be powered via USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). This board has 22 digital inputs and outputs, and 8 analog inputs - a module with many interfaces. It is enough for most applications.

MINI USB Cable for Arduino NANO

100% brand new and good quality.
Perfect fit for your Arduino Nano Boards.
length: 30CM/11.81 inch
material: PVC
color: BLUE

Package Included:

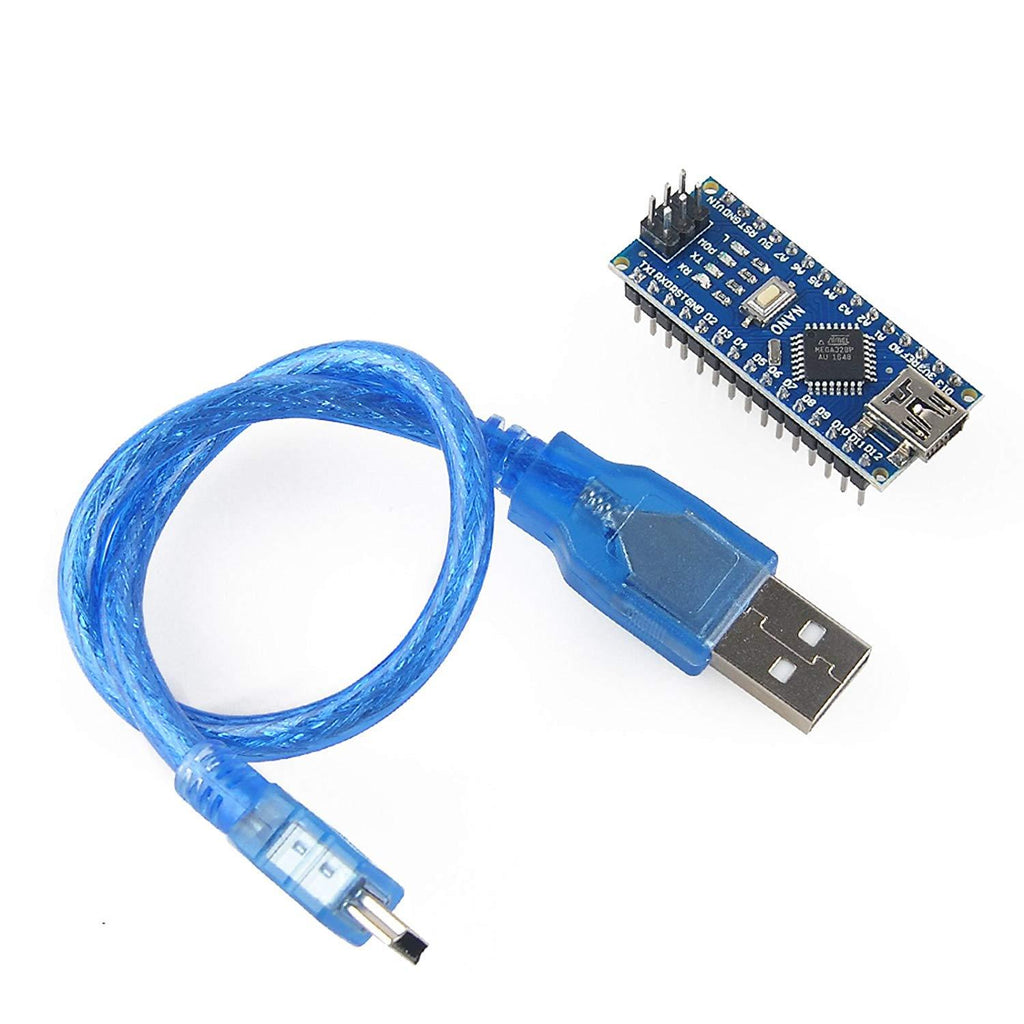

10 x ATmega328P Nano Micro-Controller Board Soldered Compatible for Arduino Nano V3 + 1 Mini USB Cable
