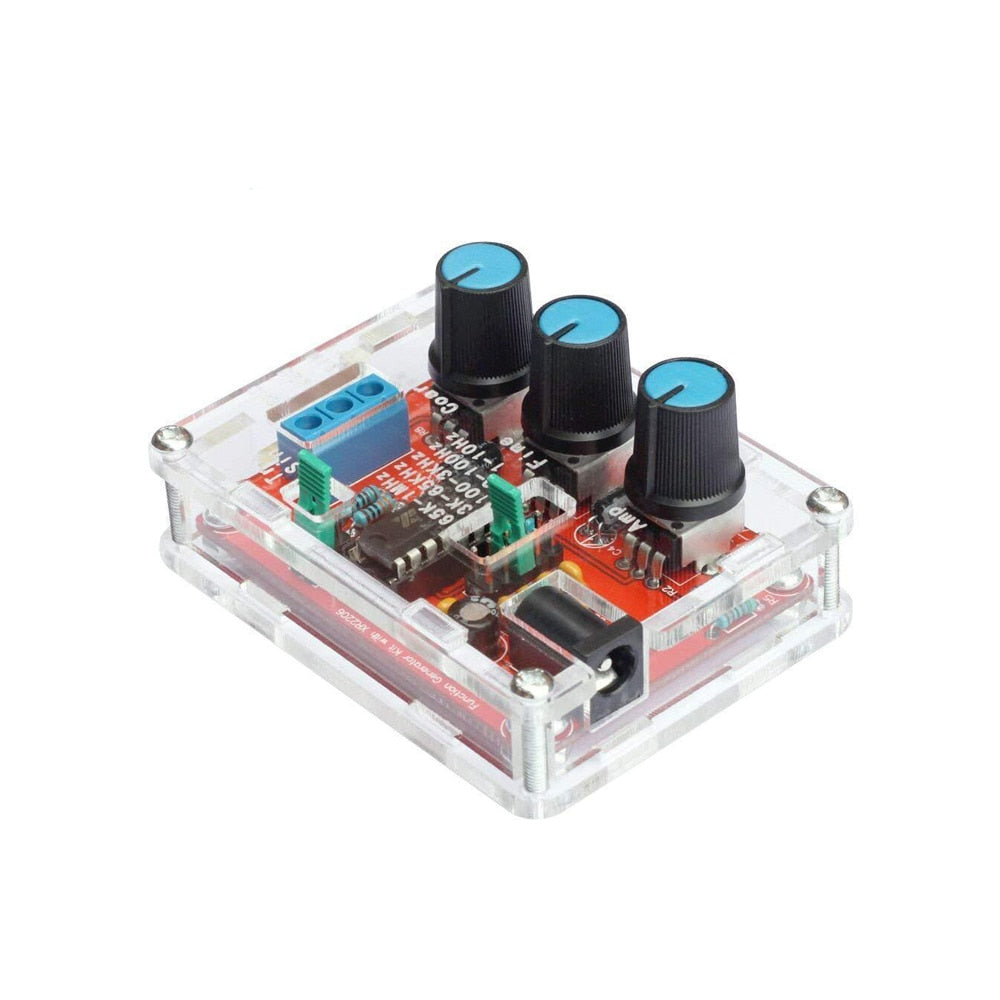

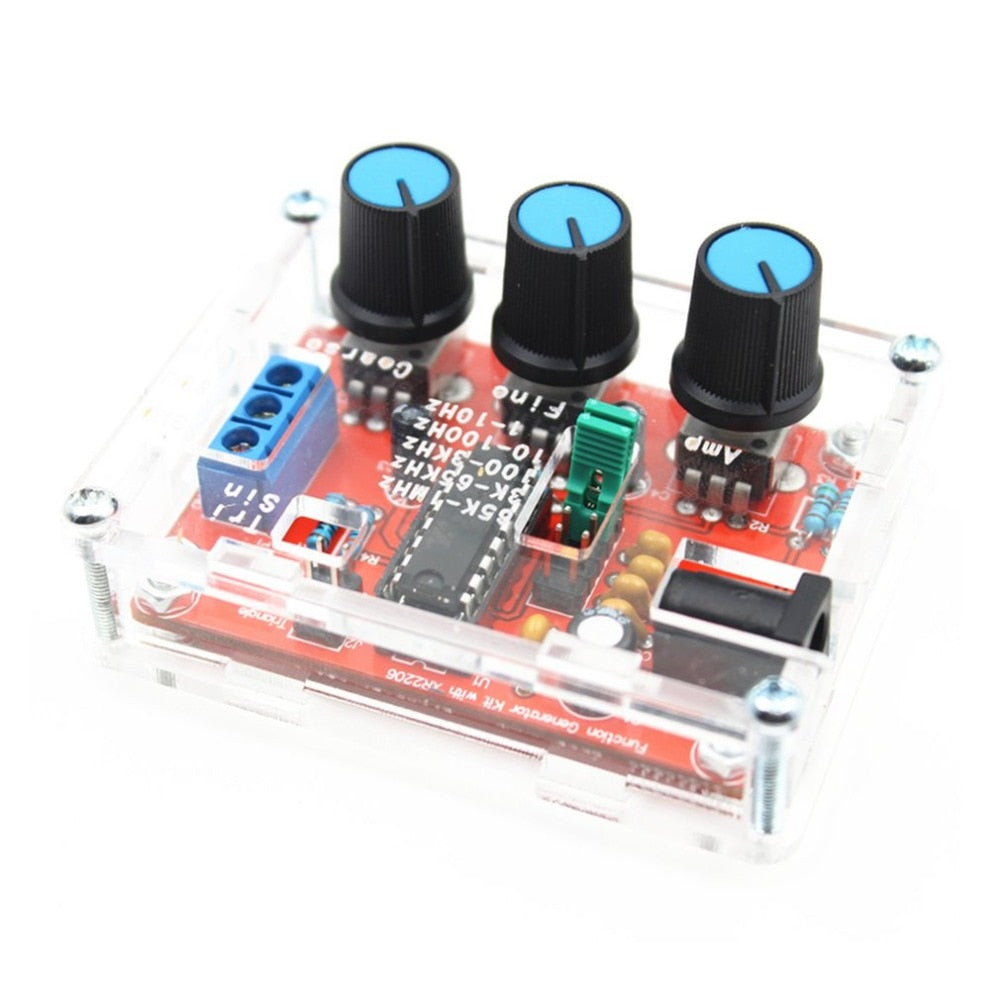

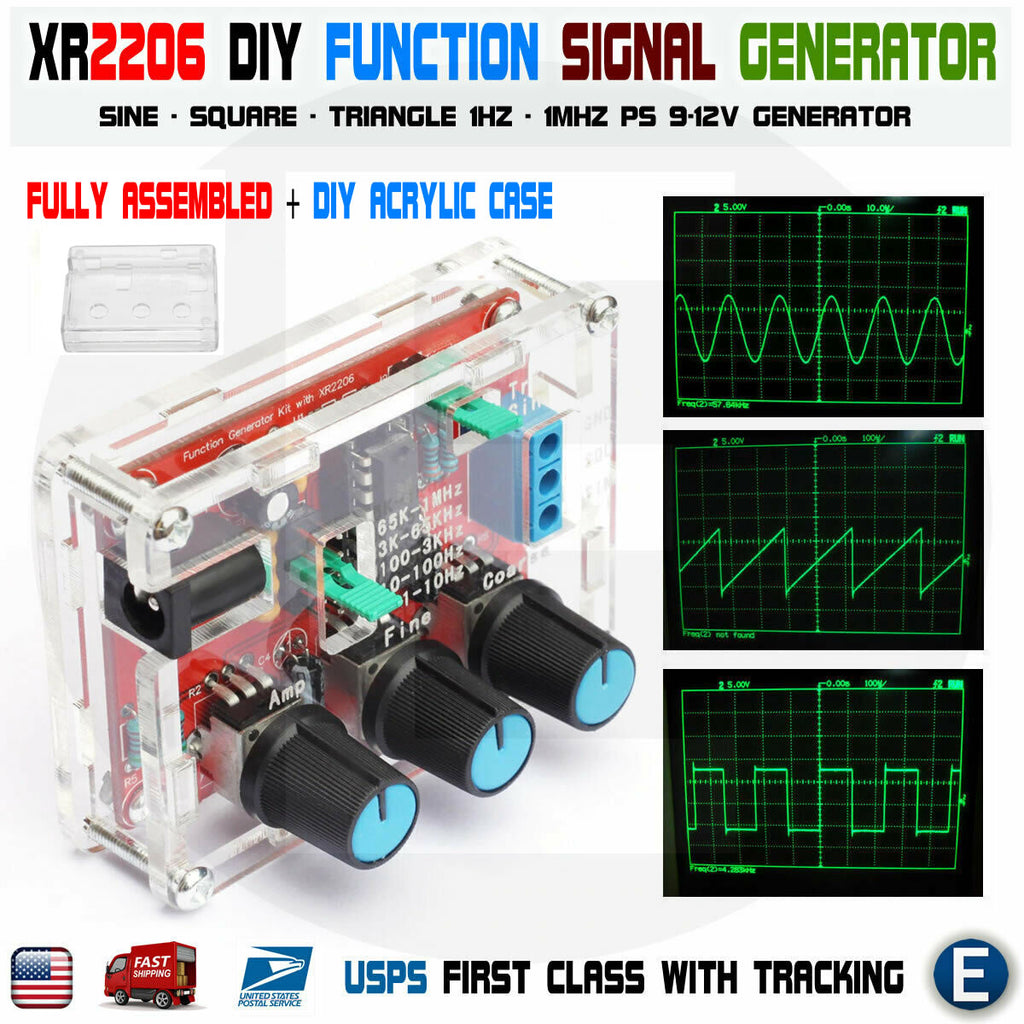

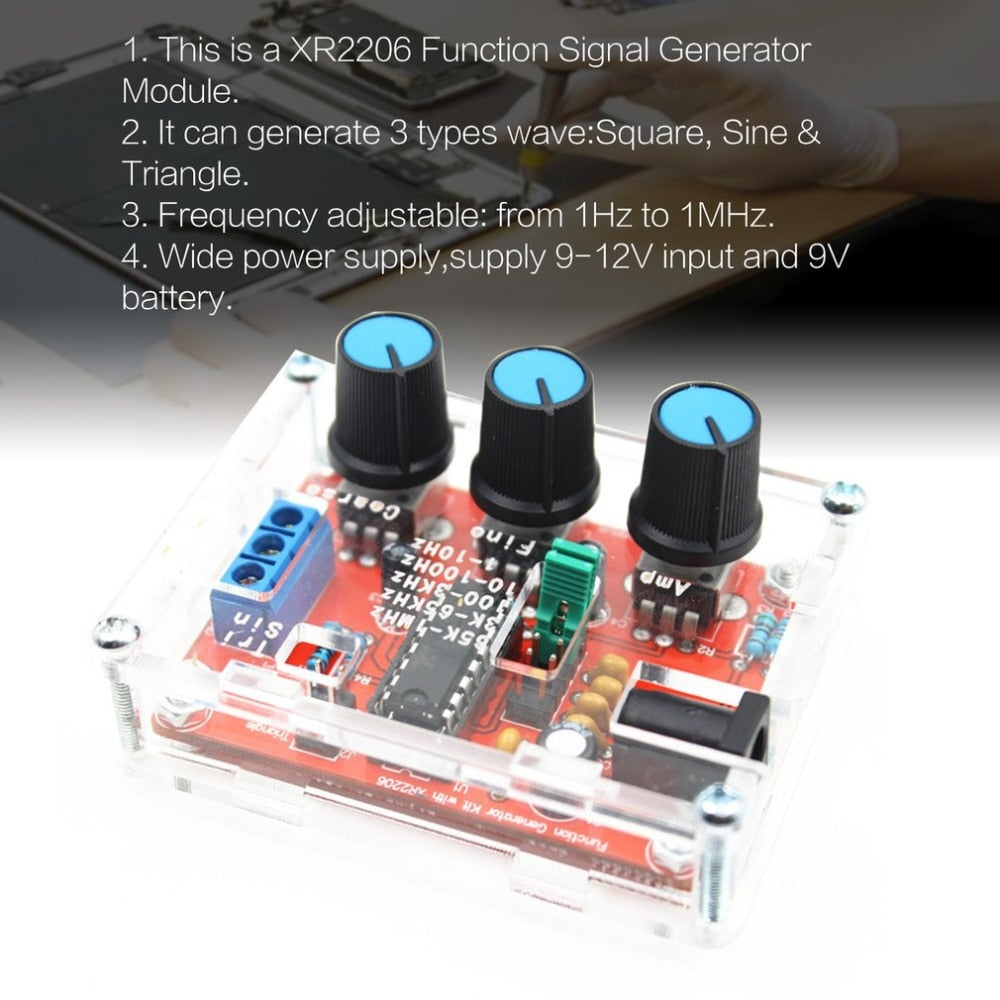

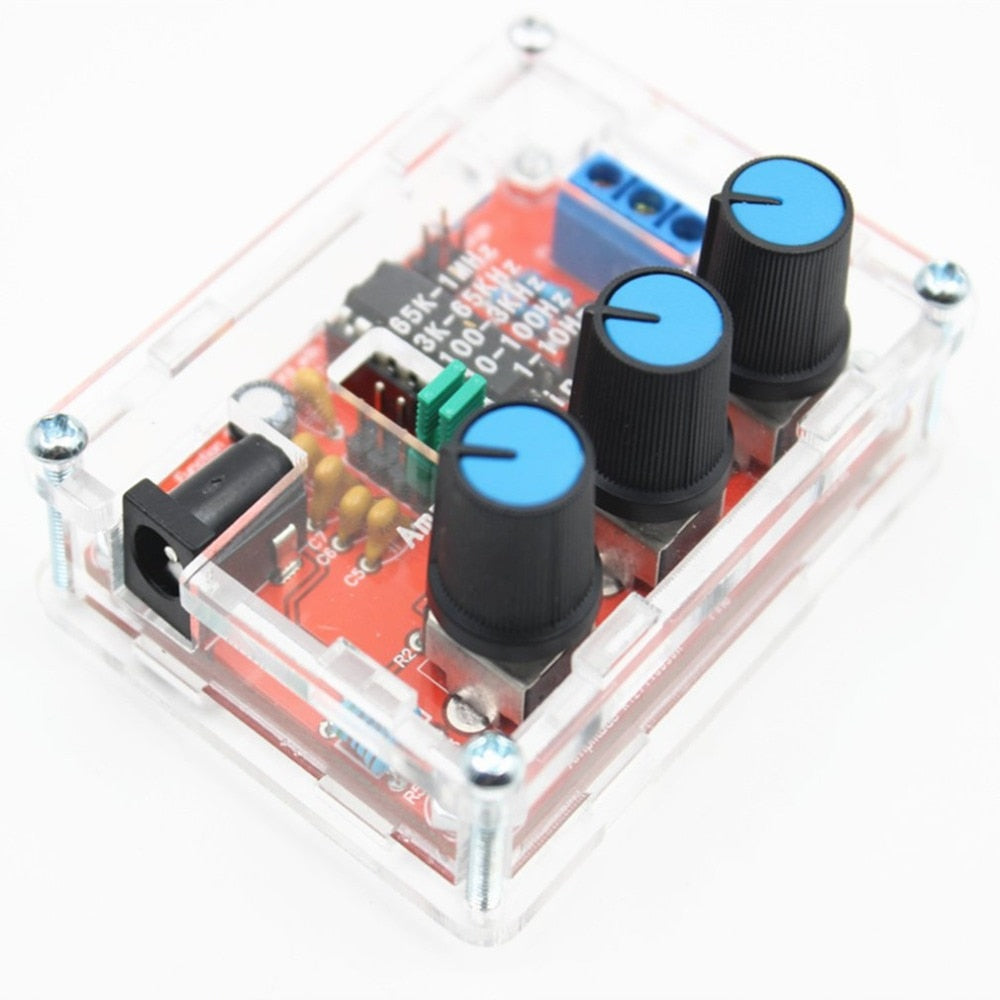

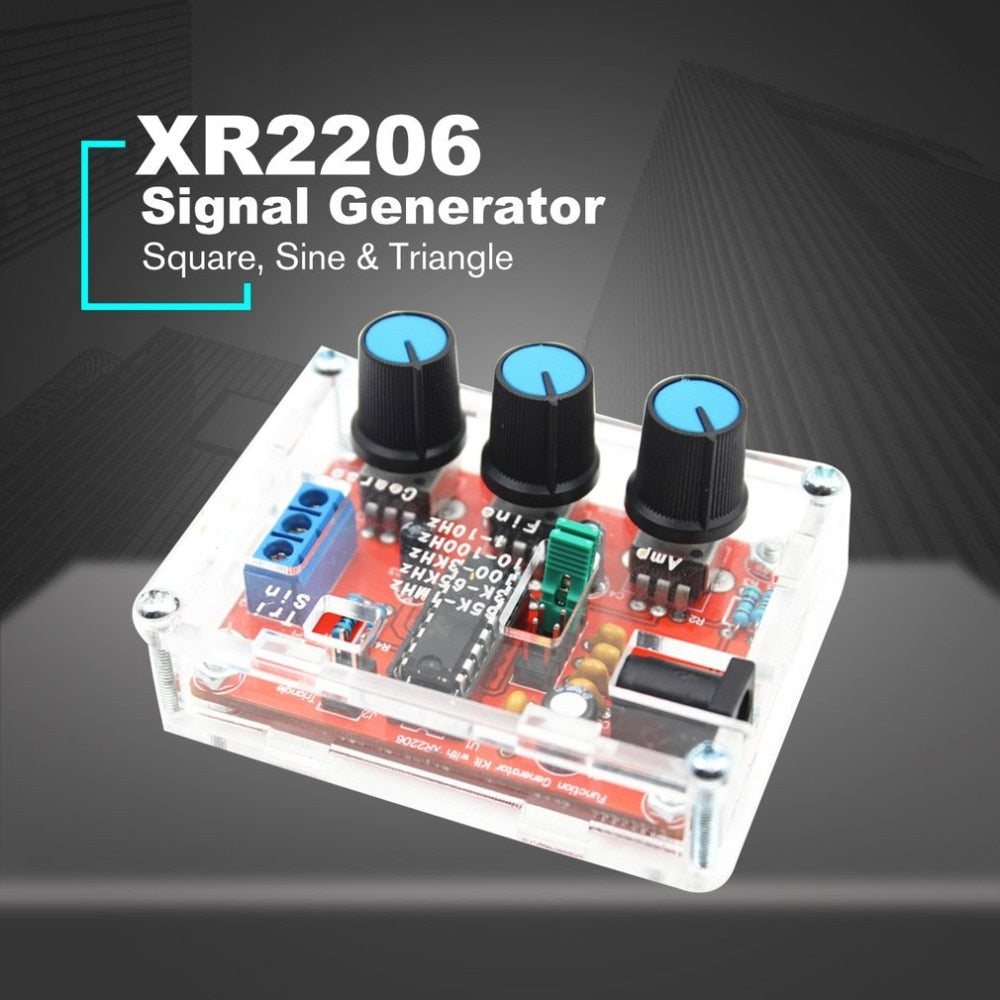

XR2206 Function Signal Generator Welded Assembled Kit Sine Output 1HZ-1MHZ + DIY acrylic case

In stock
Business & Industrial:Test, Measurement & Inspection:Signal Sources & Conditioning:Signal Generators
B-01-02-02
Description : Voltage Supply: 9-12V DC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz – 1MHz SINE WAVE Amplitude: 0 – 3V at 9V DC input Distortion: Les...
$8.89
$8.89
  customers are viewing this product
Description :
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz – 1MHz
SINE WAVE
Amplitude: 0 – 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz – 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 – 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA

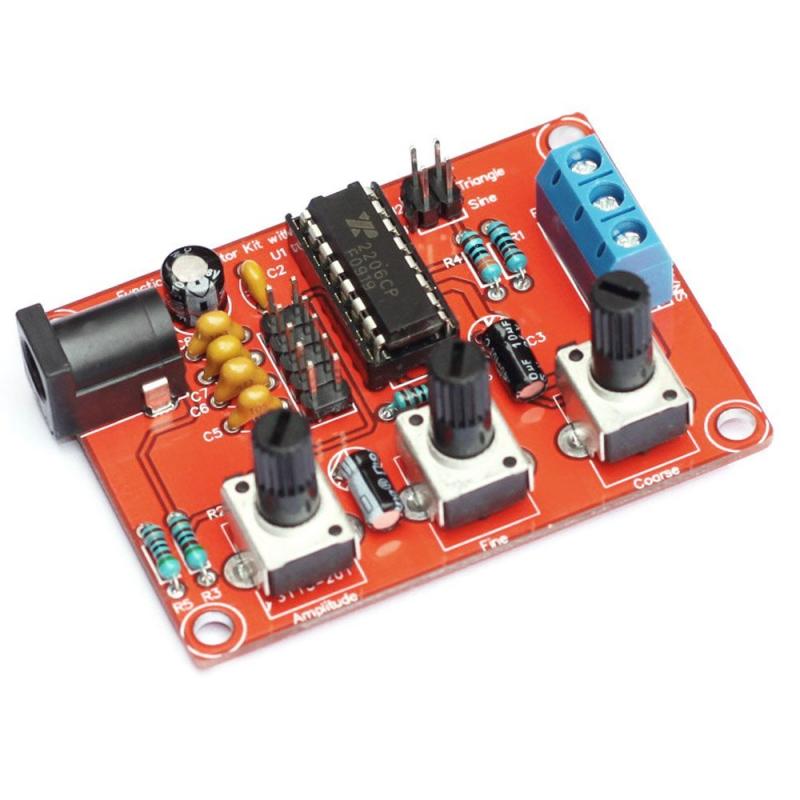

The welding installation considerations, follow these steps:

1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.

2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.

3.The back with a diagonal cutting pliers to cut short the pins as far as possible

Debugging steps:

1. After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!

2. check the IC whether against, such as anti please timely correction.

3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v

Using

1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)

2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)

3. SQU blue terminals output pulse

4. AMP : Sine wave, triangle wave amplitude adjustment

5. FINE : Frequency fine adjustment

6. Coarse : Frequency of coarse adjustment

Package Included:
1 x XR2206 Function Generator DIY Kit Sine, Triangle, Square Output 1HZ-1MHZ (welded/assembled)
1 x Acrylic Case - (needs to be assembled)
1 x Schematic diagram
