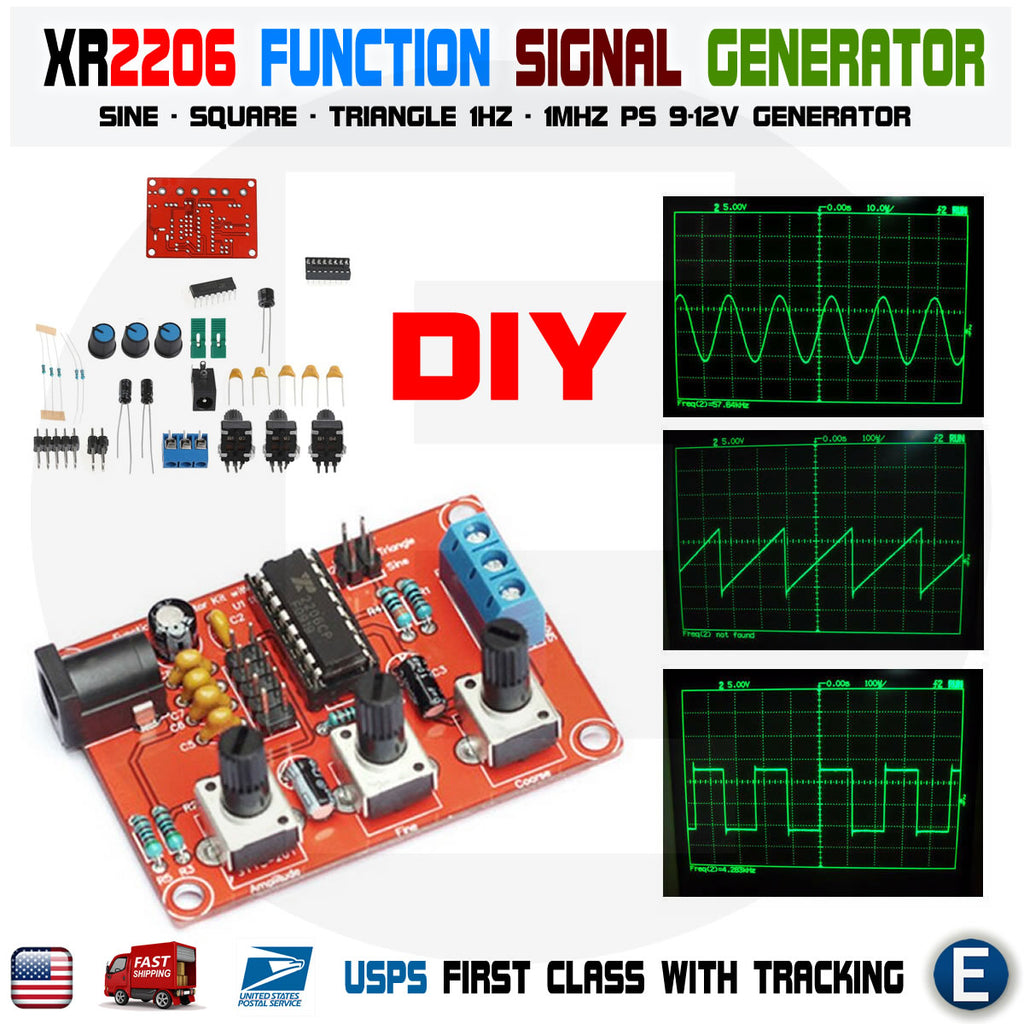

XR2206 Function Signal Generator DIY Kit Sine Output 1HZ-1MHZ

Out of stock
Business & Industrial:Test, Measurement & Inspection:Signal Sources & Conditioning:Signal Generators
Description : Voltage Supply: 9-12V DC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz – 1MHz SINE WAVE Amplitude: 0 – 3V at 9V DC input Distortion: Less than...
$4.50
  customers are viewing this product
Description :
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz – 1MHz
SINE WAVE
Amplitude: 0 – 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz – 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 – 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA

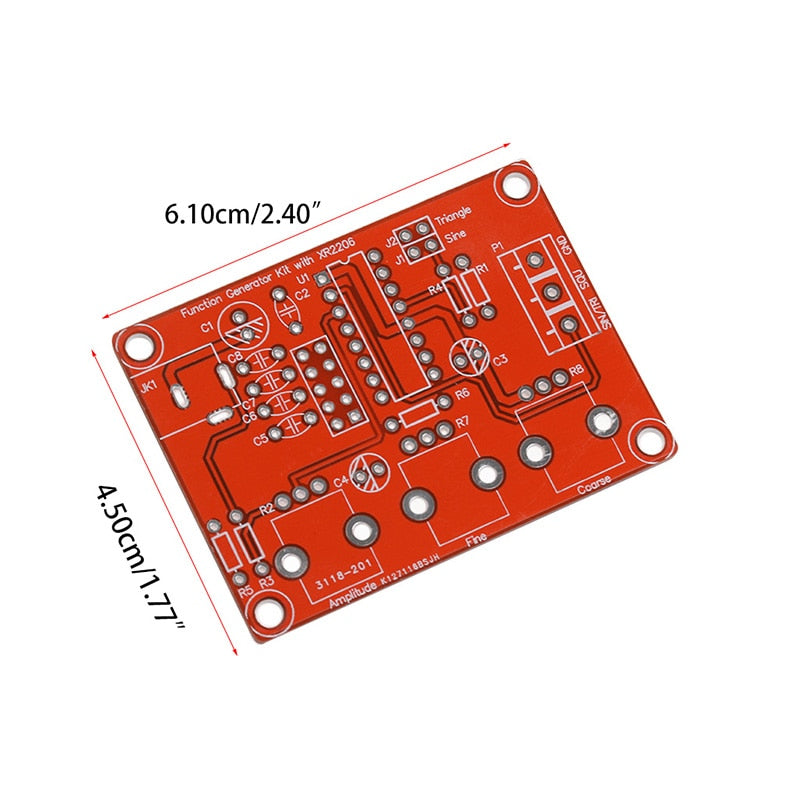

The Function Generator component parameter table

Note

label

type

parameters

R1

resistor

1K

Regardless of the polarity

R2

Adjustable resistance

B503=50K

(by screen printing layer)

R3, R5,R6

resistor

5.1K

Regardless of the polarity

R4

resistor

330

Regardless of the polarity

R7

Adjustable resistance

B503=50K

(by screen printing layer)

R8

Adjustable resistance

B104=100K

(by screen printing layer)

C1,

Electrolytic capacitor

100UF

The positive short feet negative long feet

C2

non-polar capacitors

104

Regardless of the polarity

C3,C4

Electrolytic capacitor

10UF

The positive short feet negative long feet

C5

non-polar capacitors

105

Regardless of the polarity

C6

non-polar capacitors

473

Regardless of the polarity

C7

non-polar capacitors

222

Regardless of the polarity

C8

non-polar capacitors

101

Regardless of the polarity

U1

IC

XR2206

(by screen printing layer)

JK1

DC POWER



(by screen printing layer)

J1

2PIN Jumper cap

XM2.54

Regardless of the polarity

J2

2PIN Jumper cap

XM2.54

Regardless of the polarity

P1

Signal wire terminal



(by screen printing layer)

J3

2*5P Jumper cap







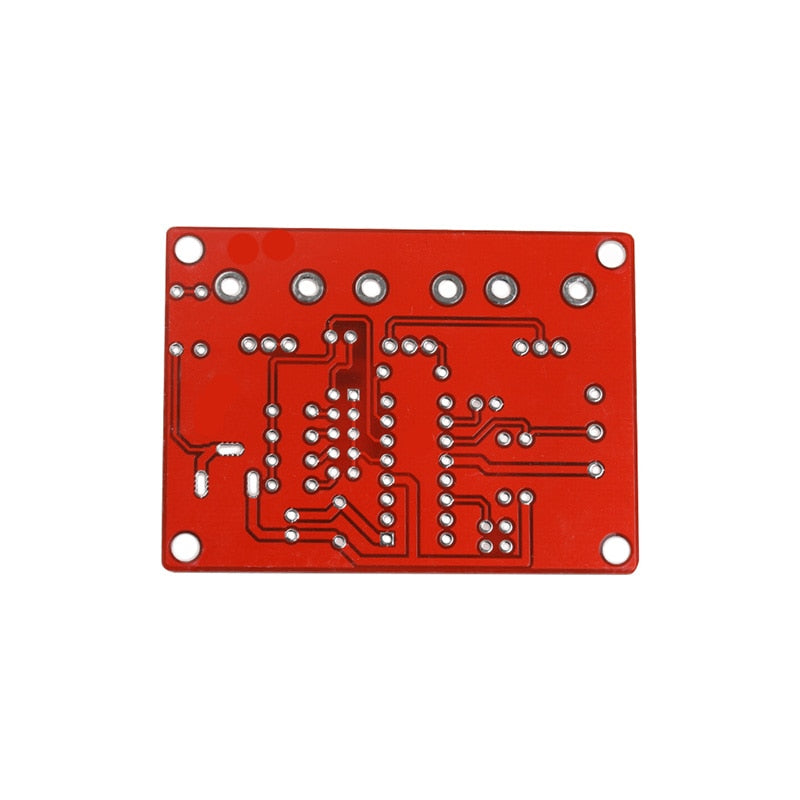

The welding installation considerations, follow these steps:

1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.

2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.

3.The back with a diagonal cutting pliers to cut short the pins as far as possible

Debugging steps:

1. After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!

2. check the IC whether against, such as anti please timely correction.

3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v

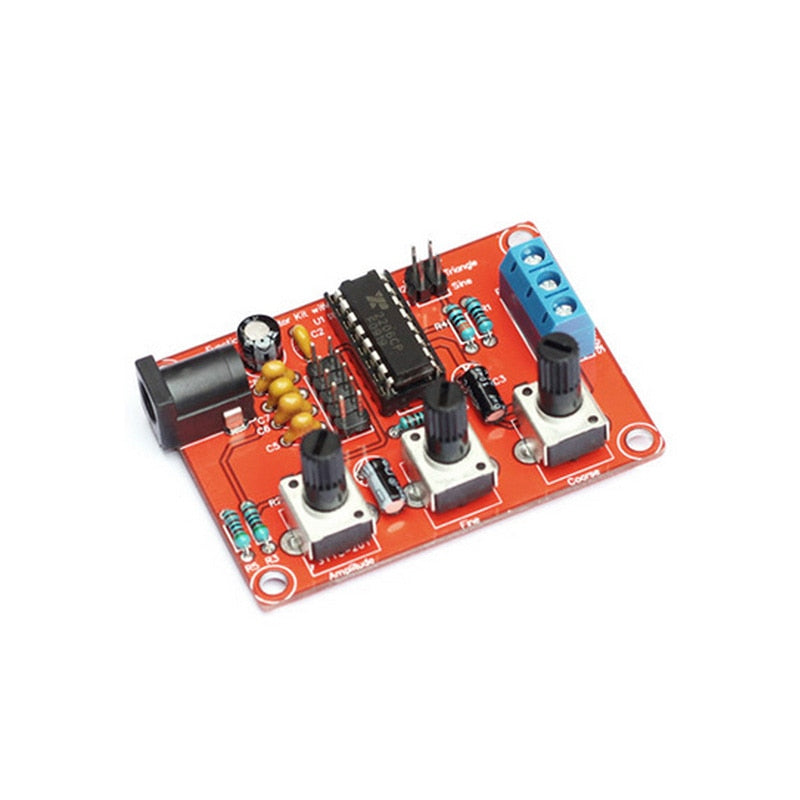

Using

1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)

2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)

3. SQU blue terminals output pulse

4. AMP : Sine wave, triangle wave amplitude adjustment

5. FINE : Frequency fine adjustment

6. Coarse : Frequency of coarse adjustment

Package Included:
1 x XR2206 Function Generator DIY Kit Sine, Triangle, Square Output 1HZ-1MHZ (soldering required)
1 x Schematic diagram

Technical Support is NOT included.
This product is DIY kit, NOT the end product ! Acrylic case in Not included.
We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
