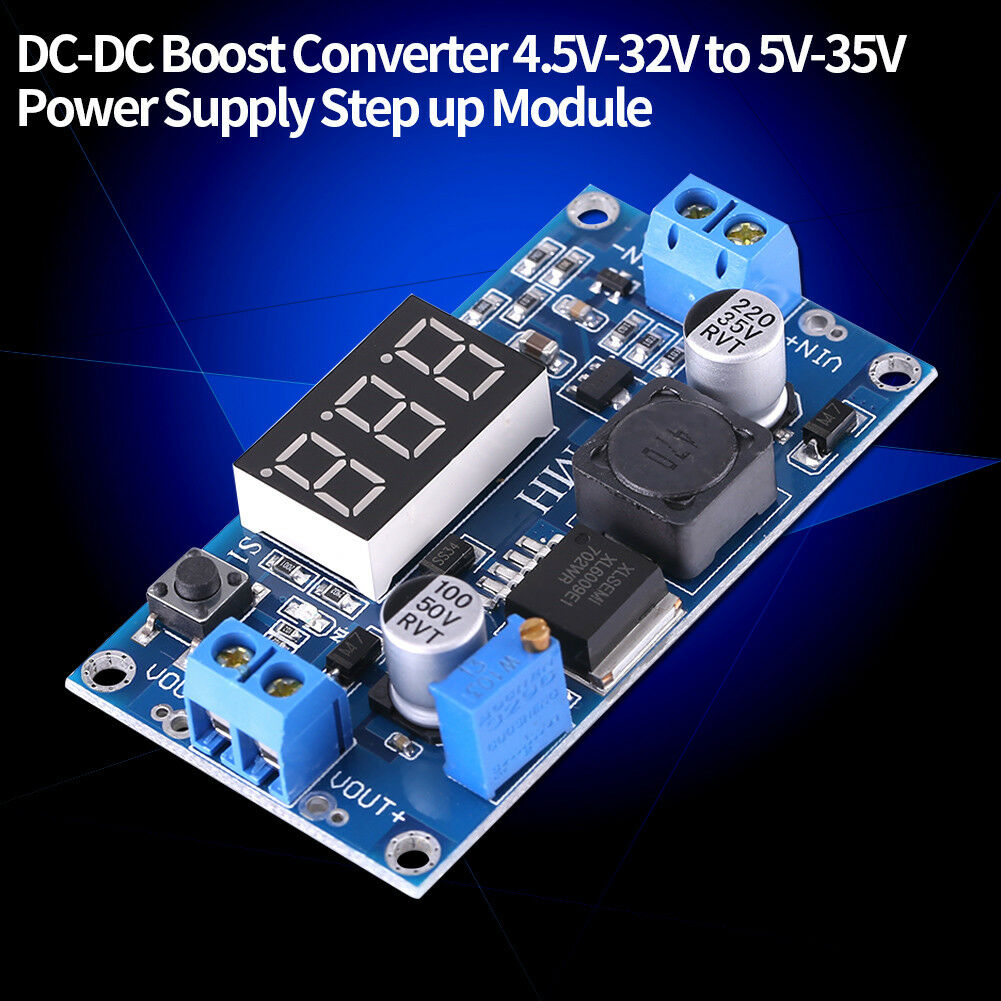

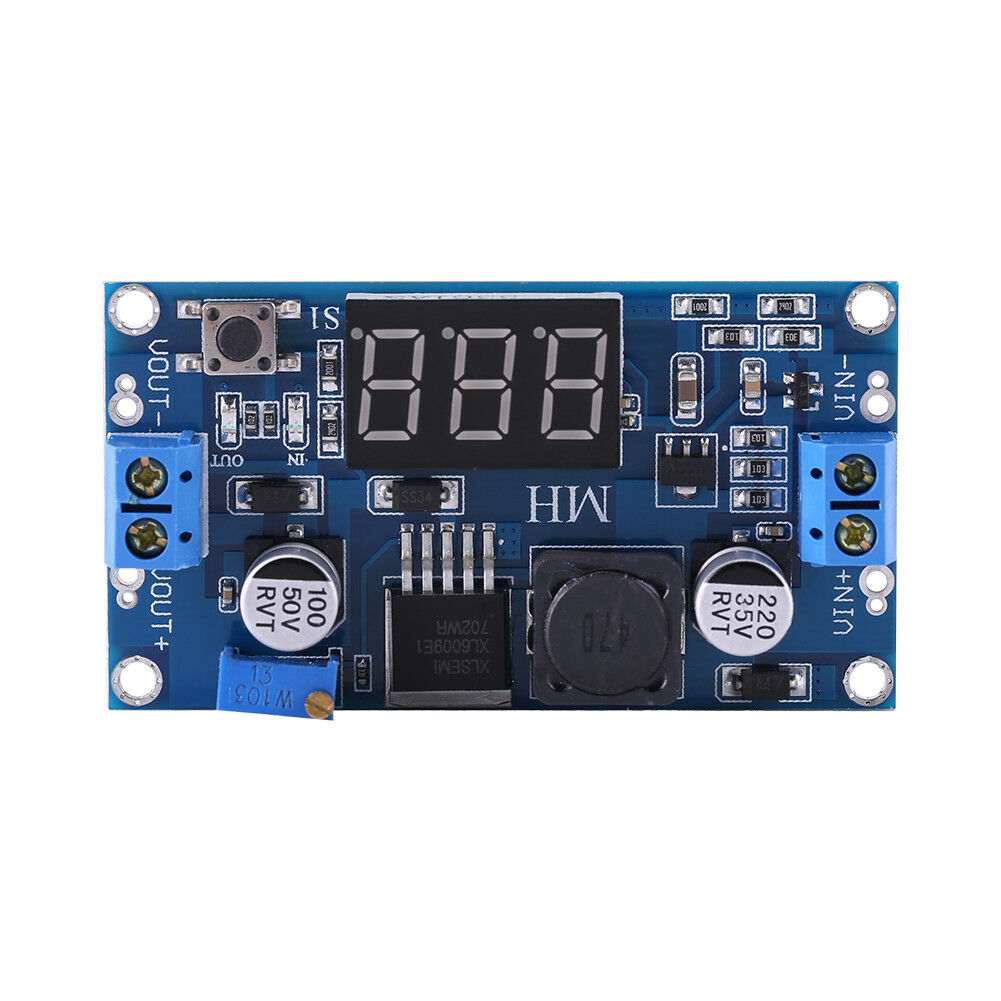

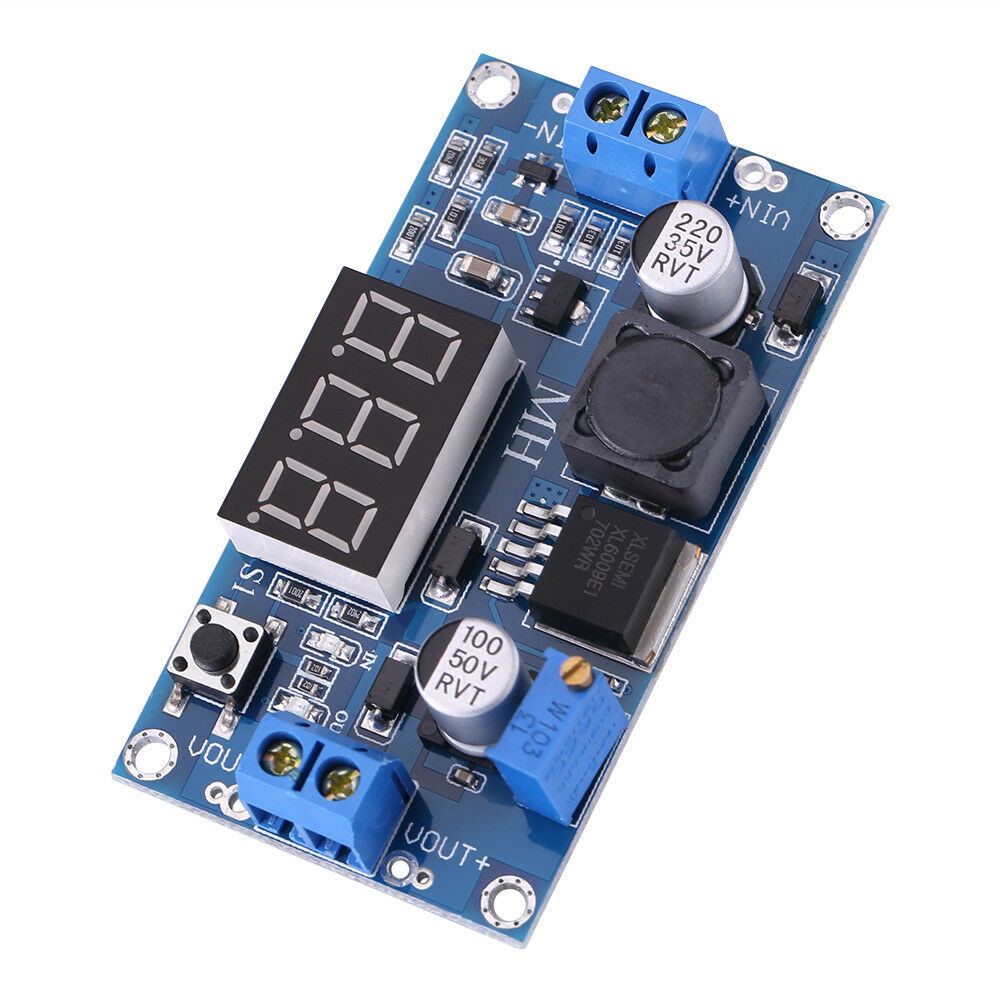

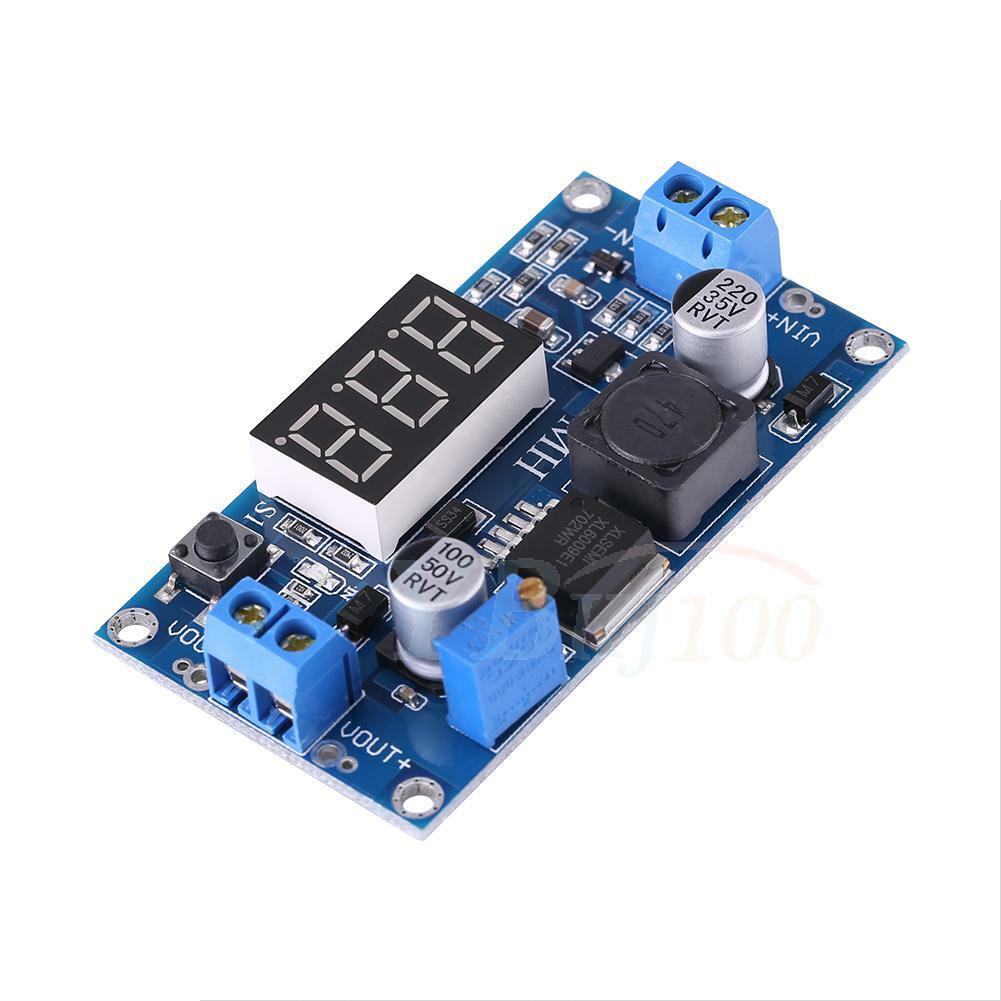

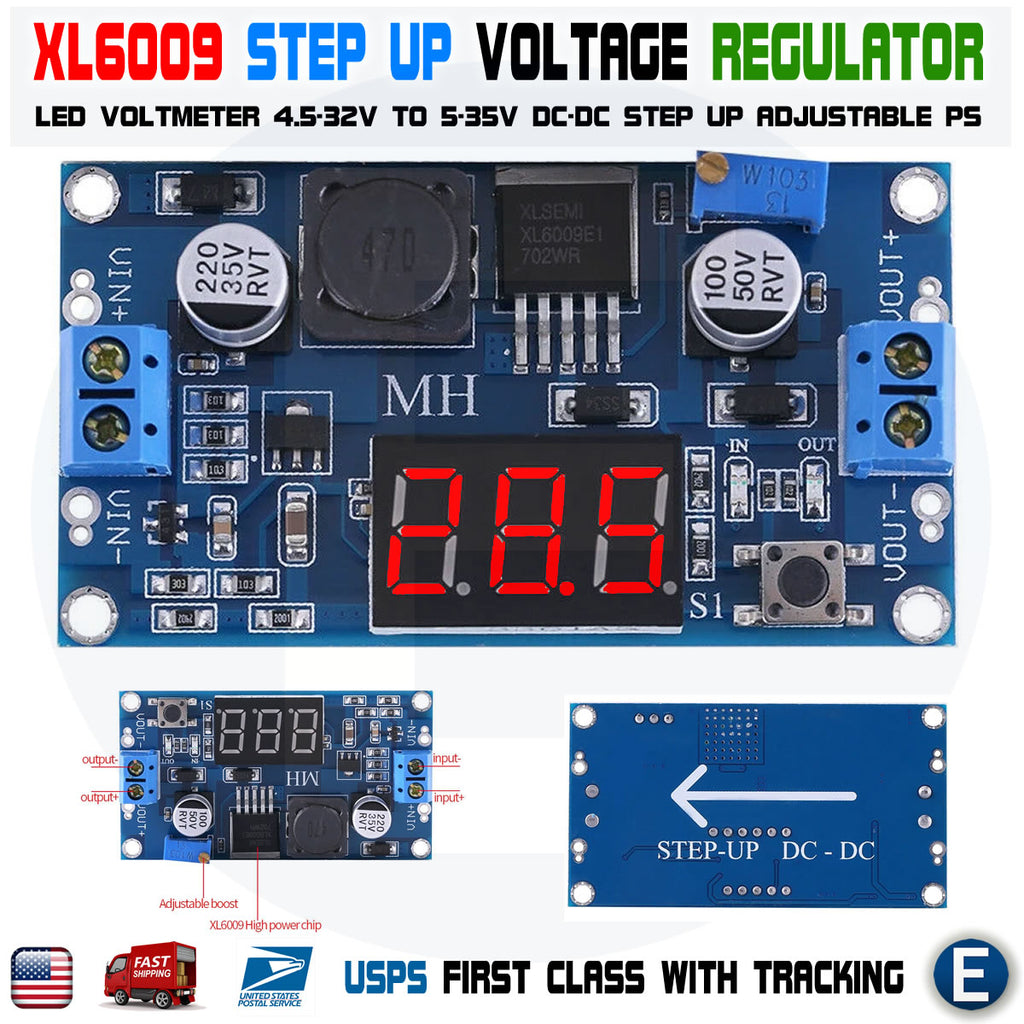

XL6009 LED DC-DC 4.5-32V to 5-35V Voltage Step Up Adjustable Boost Voltmeter Module 4A

In stock
B-02-03-02
Features: Ultra-wide input voltage 4.5-32V (Normally operating below 5V, but the digital tube does not work), the optimal working voltage range is 5-32V. Ultra wide boost output voltage 5-55V to me...
$6.90
$6.90
  customers are viewing this product

Features:
Ultra-wide input voltage 4.5-32V (Normally operating below 5V, but the digital tube does not work), the optimal working voltage range is 5-32V.
Ultra wide boost output voltage 5-55V to meet your needs.
Built-in 4A high efficiency MOSFET switching tube for up to 94% efficiency.
The ultra-high switching frequency is 400KHz, which can achieve very good results with a small-capacity filter capacitor with smaller ripple and volume.
With power indicator, easy to know the working conditions.

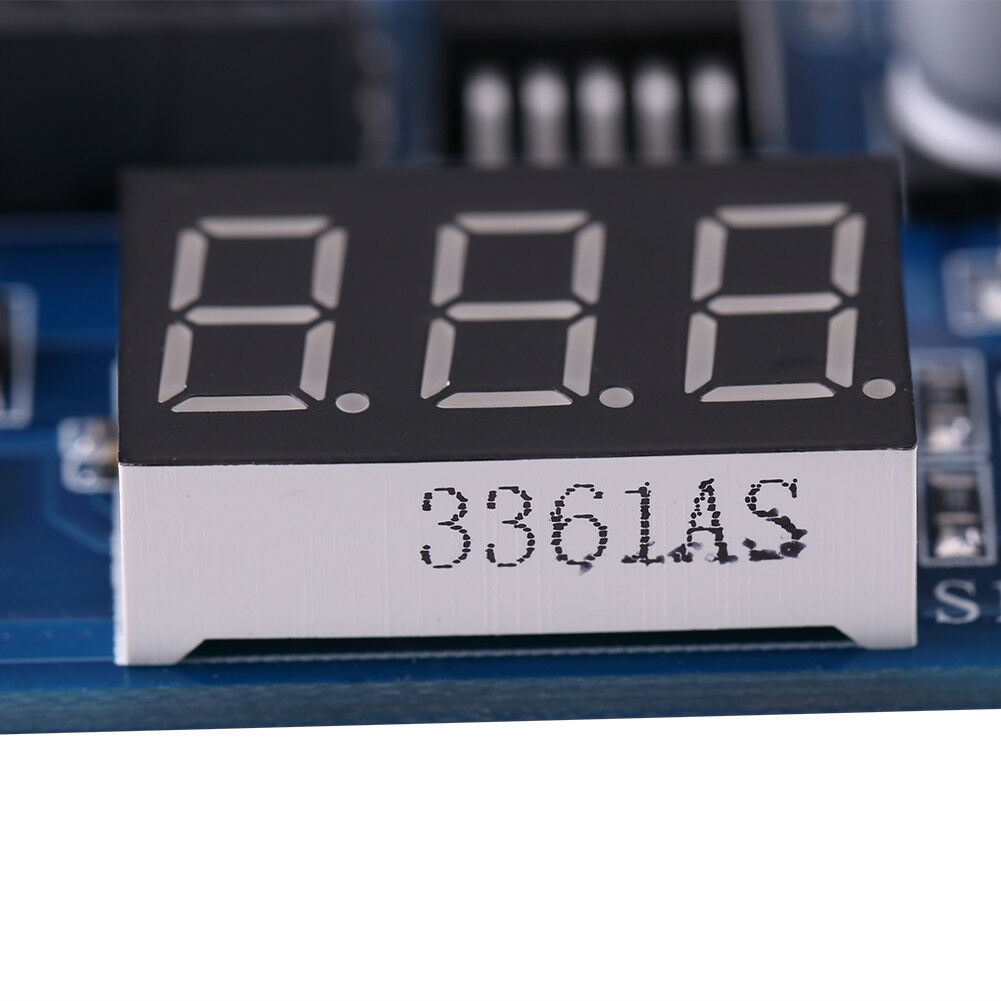

Adopting more advanced voltage microprocessor, the voltmeter error is ±0.05V, and the range is 0-35V. And the voltmeter can display the data and self-calibrating.(Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
Touch the button to switch the measurement or input or output voltage.
An indicator light shows which voltage is being measured, and save the settings, even if it is powered off and then on.
The voltmeter can be turned off and easily tapped when the display is not needed.
With terminal block, no soldering iron can be used easily, and the wire bond point is retained.
It has overheat protection and short circuit protection, safe to use.

Specification:
Model: XL6009
Material: Fiberglass board, Electronic component

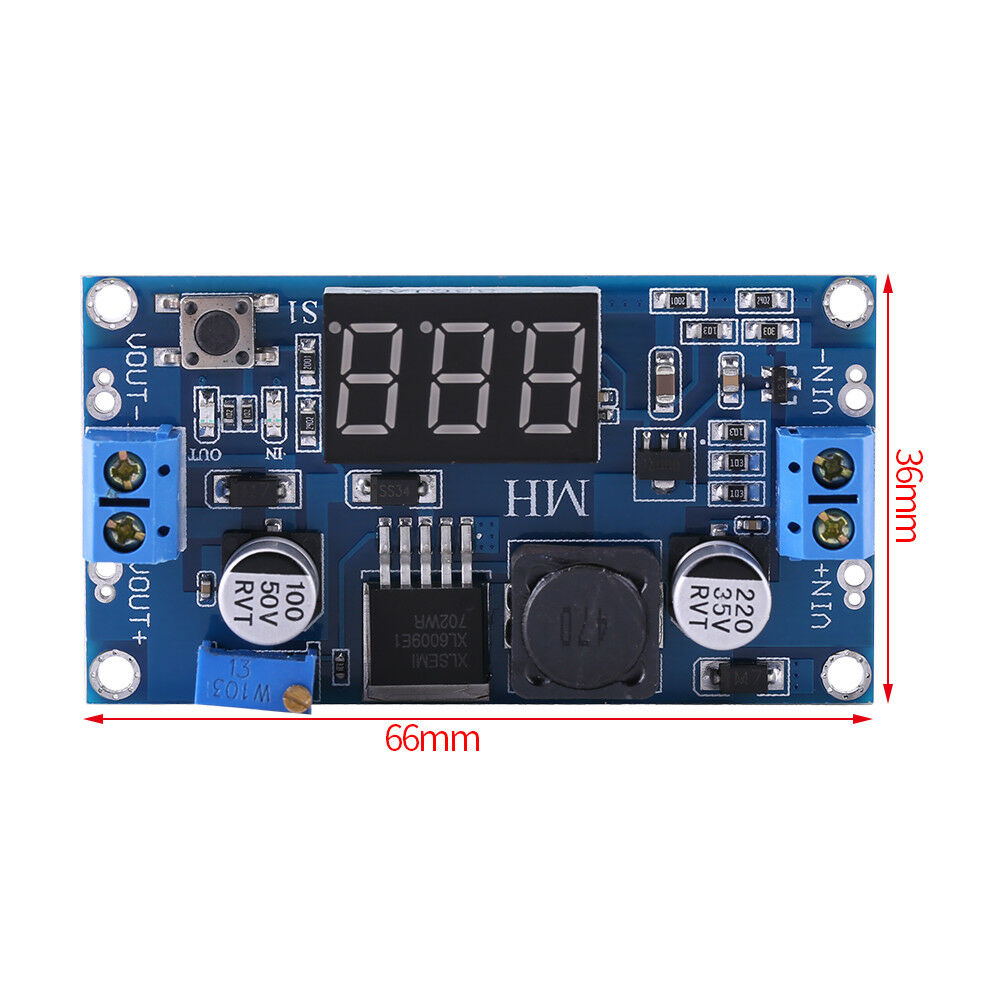

Size: app.60 x 37mm/2.36 x 1.46in
Color: Blue
Quantity: 1 Pc

Product parameters
Module Feature: Non-isolation booster
Rectifier system:Not synchronous rectifier
Input Current: 4A(Max.), No load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the greater the no-load current.)
Output voltage: 5V-35V
Transfer Efficiency:94% (The larger the pressure difference, the lower the efficiency)
Switching Frequency:400KHz
Output Ripple:50mV
Load Regulation:±0.5%
Voltage Regulation:±0.5%
Operating temperature:-40 - 85℃/-40 - 185℉°

Wiring Method:

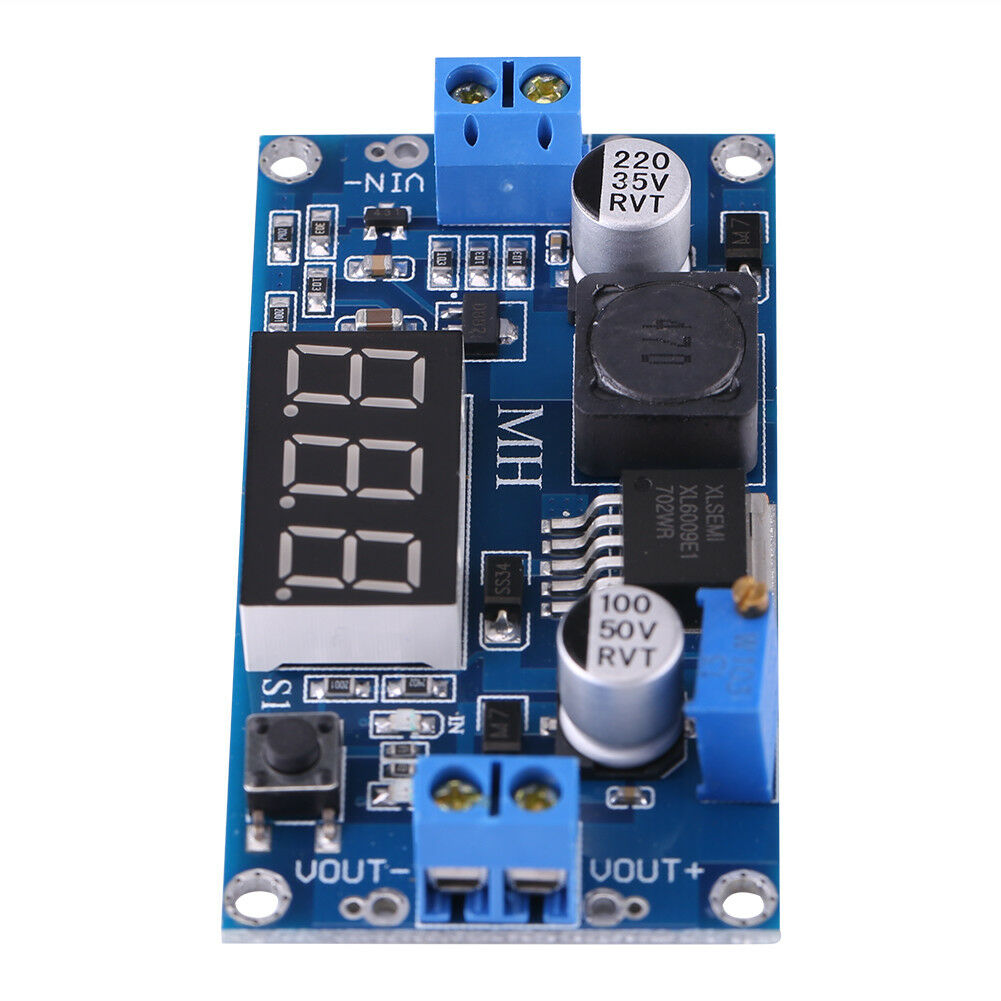

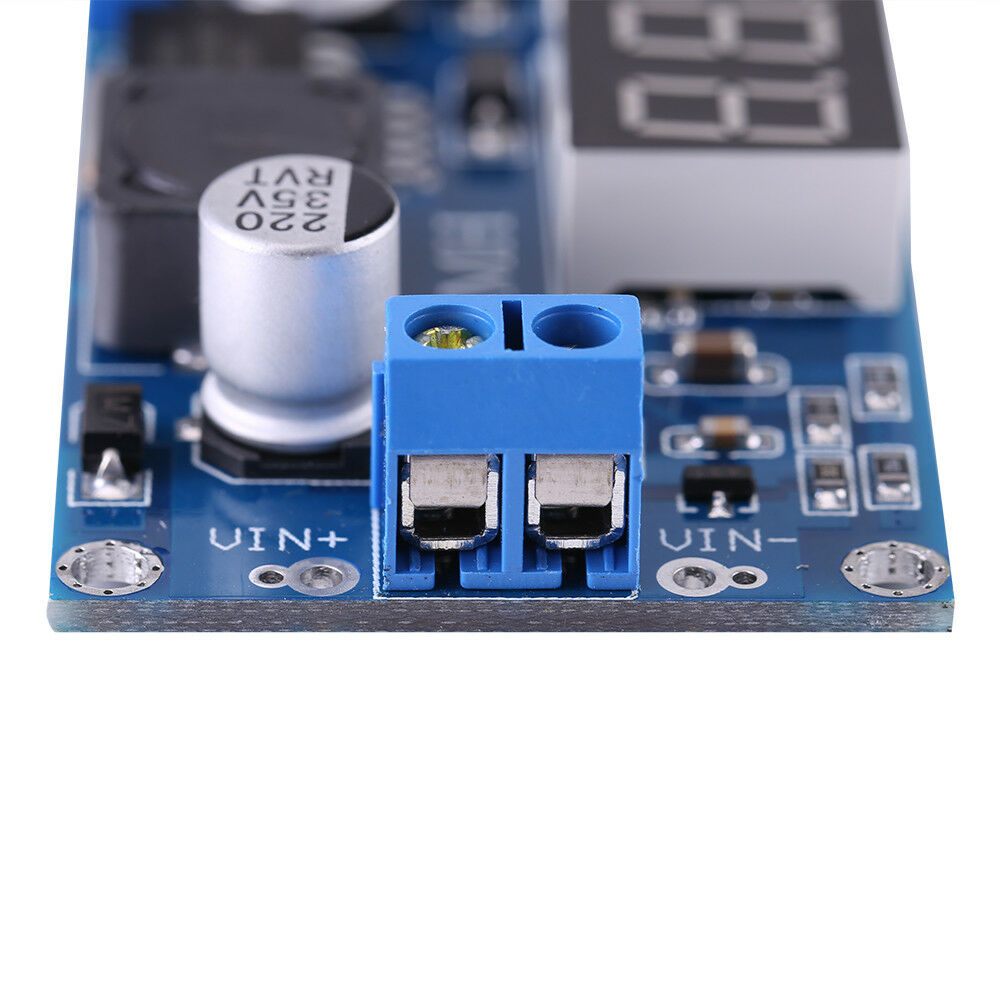

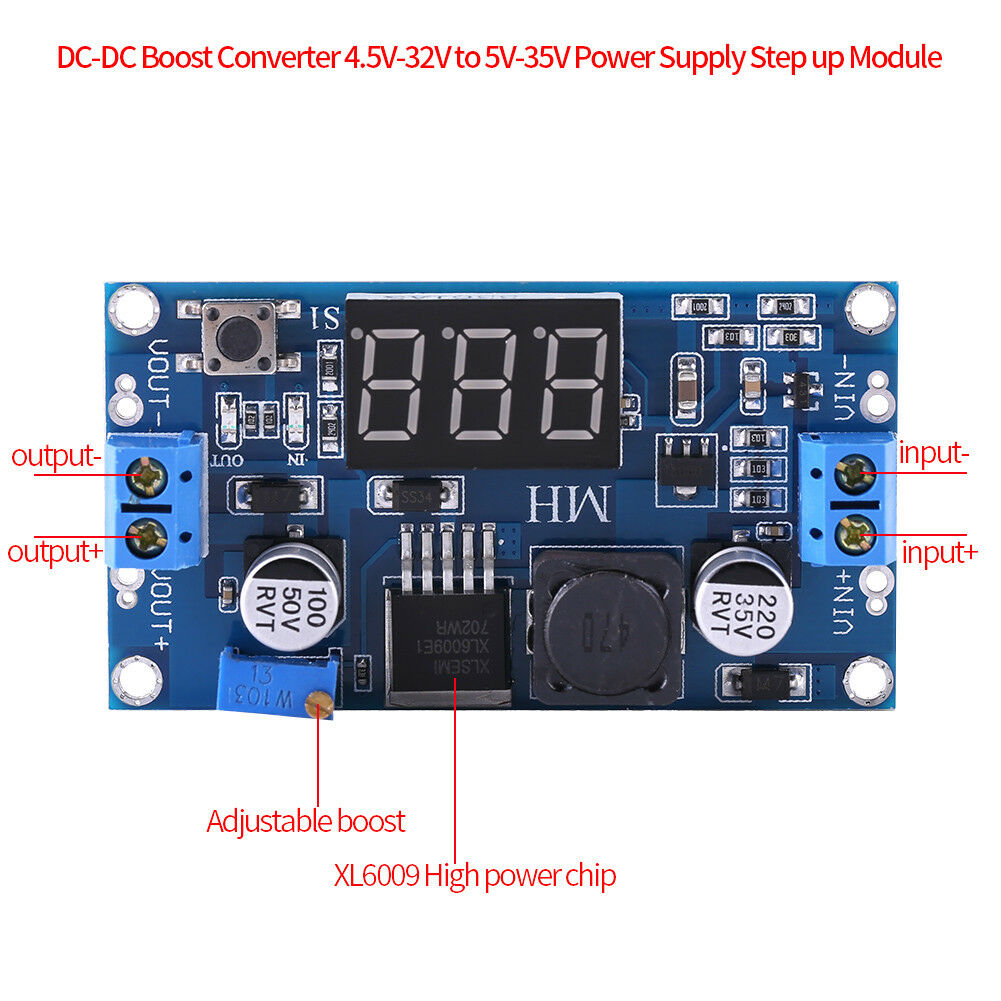

IN+ : input positive
IN- : Input negative
OUT+: output positive
OUT-: output negative

Test Sample Reference:
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1A 24W
Input 3V Output 12V 0.4A 4.8W

Package Included:
1 x XL6009 LED DC-DC 4.5-32V to 5-35V Voltage Step Up Adjustable Boost Voltmeter Module 4A
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
