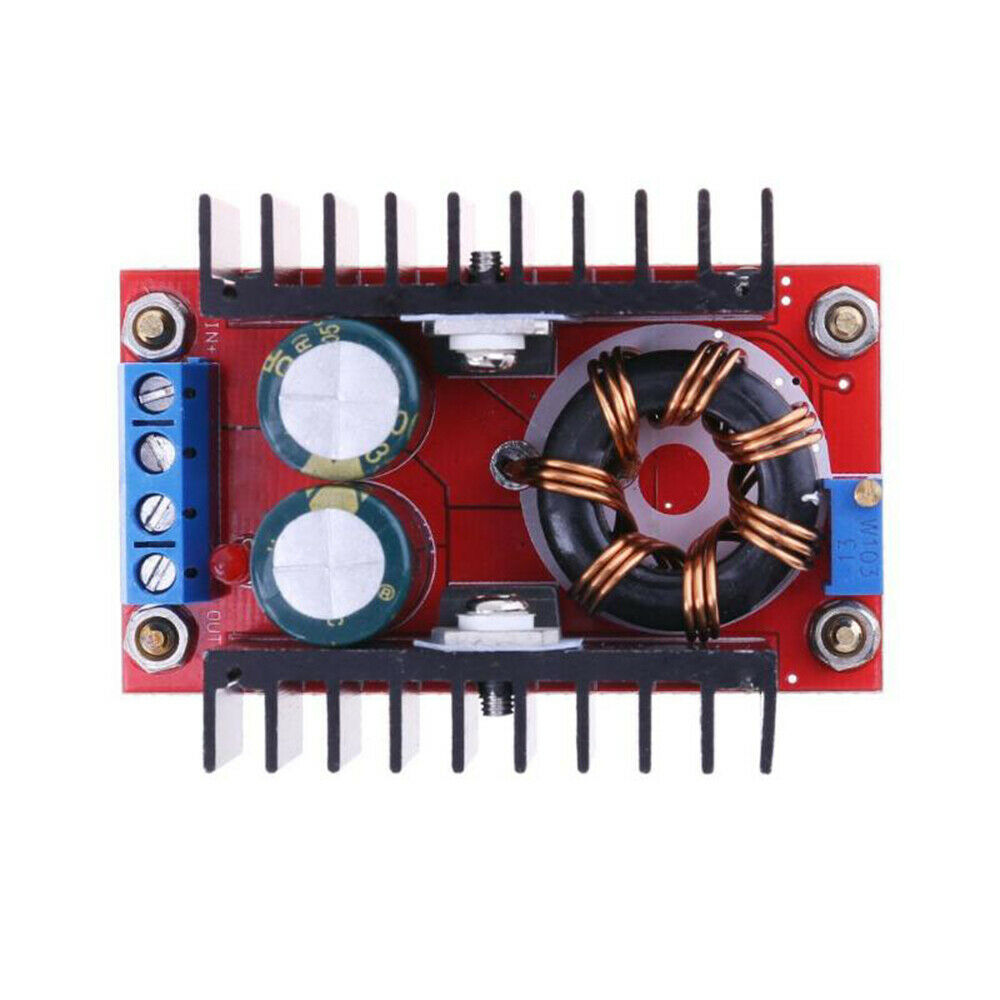

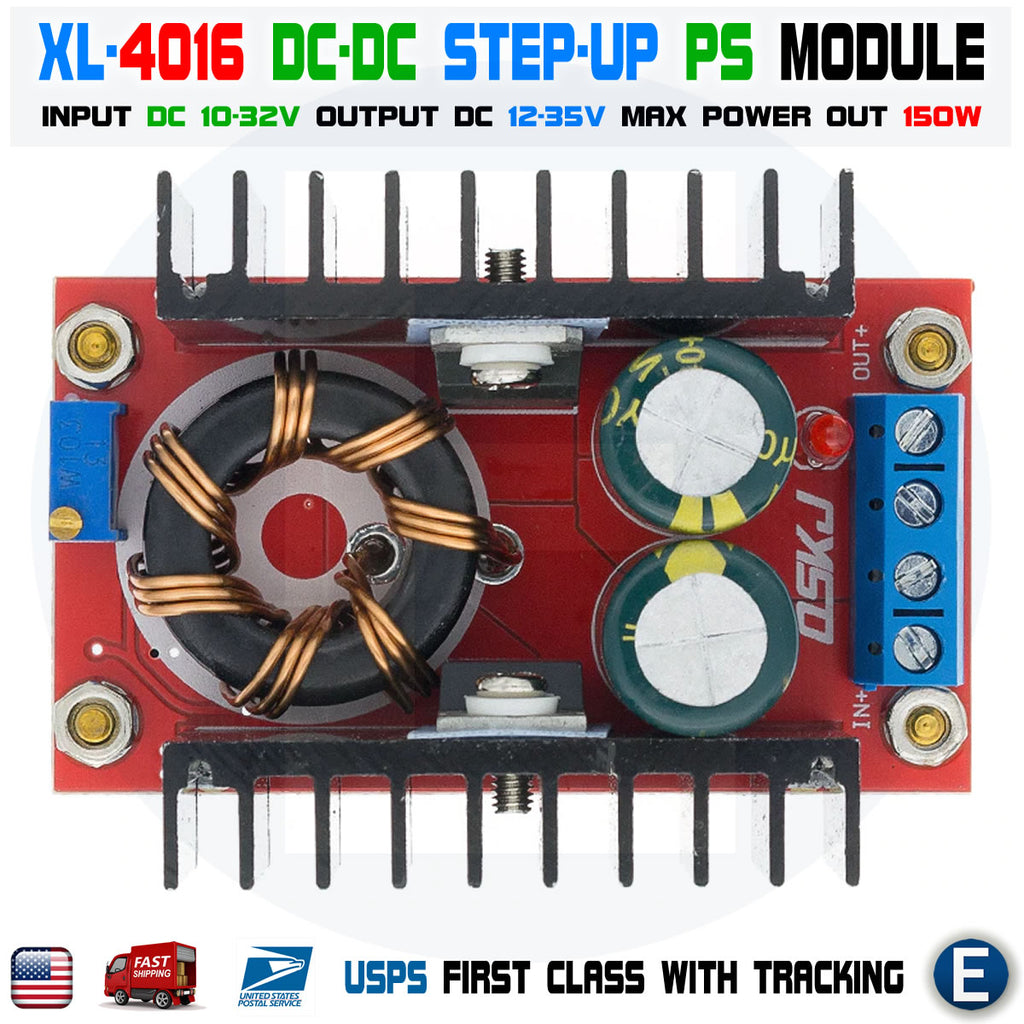

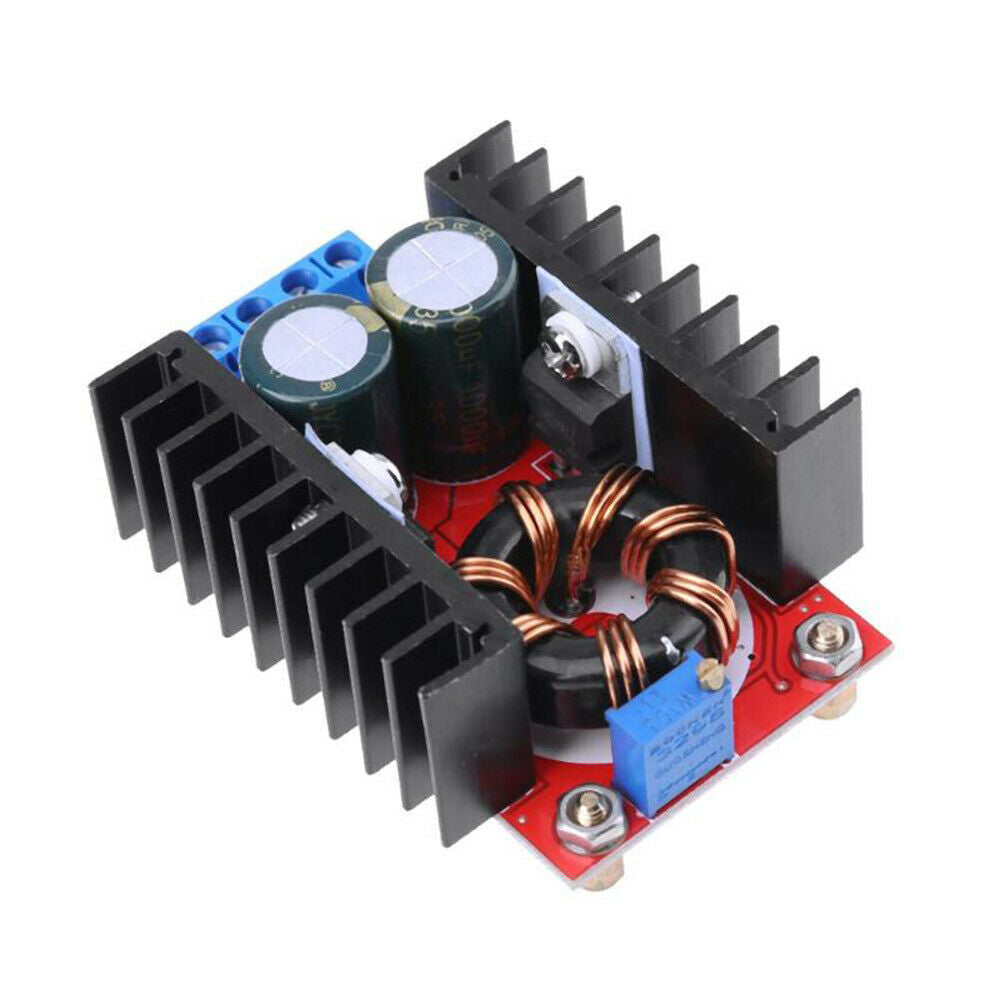

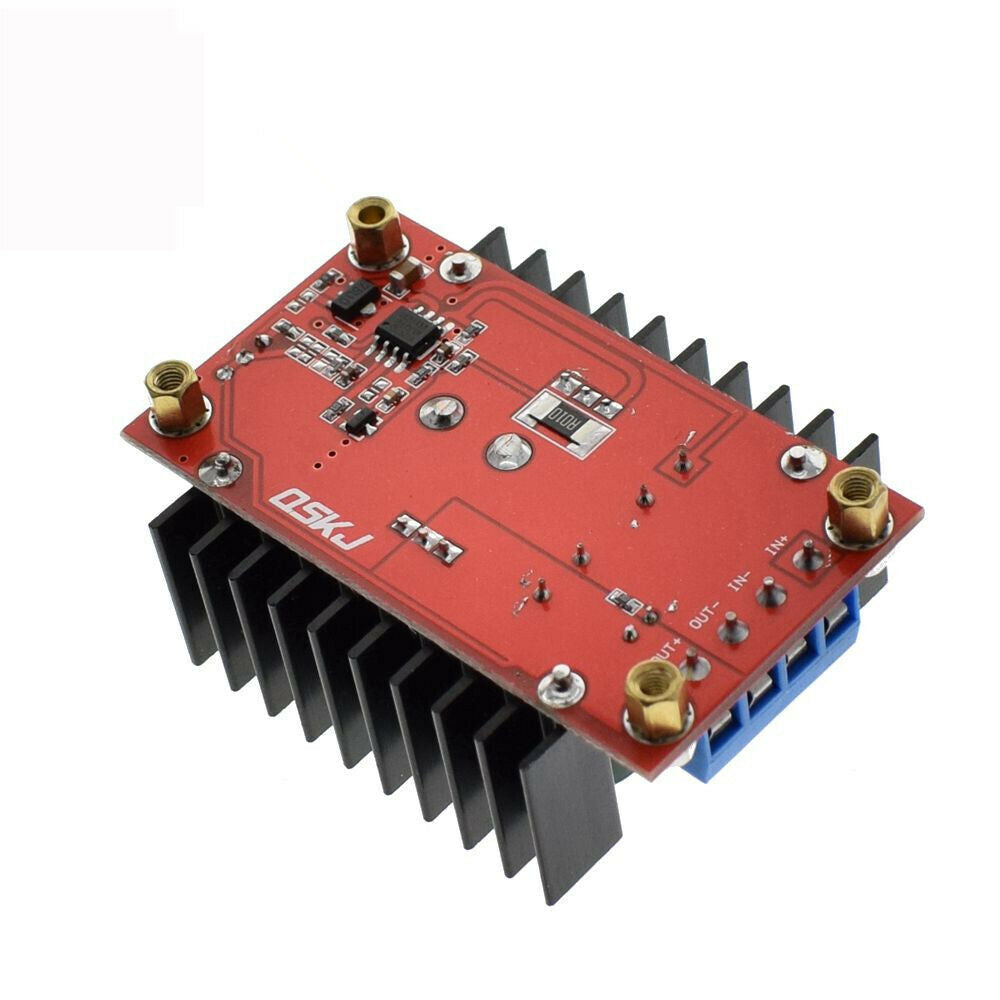

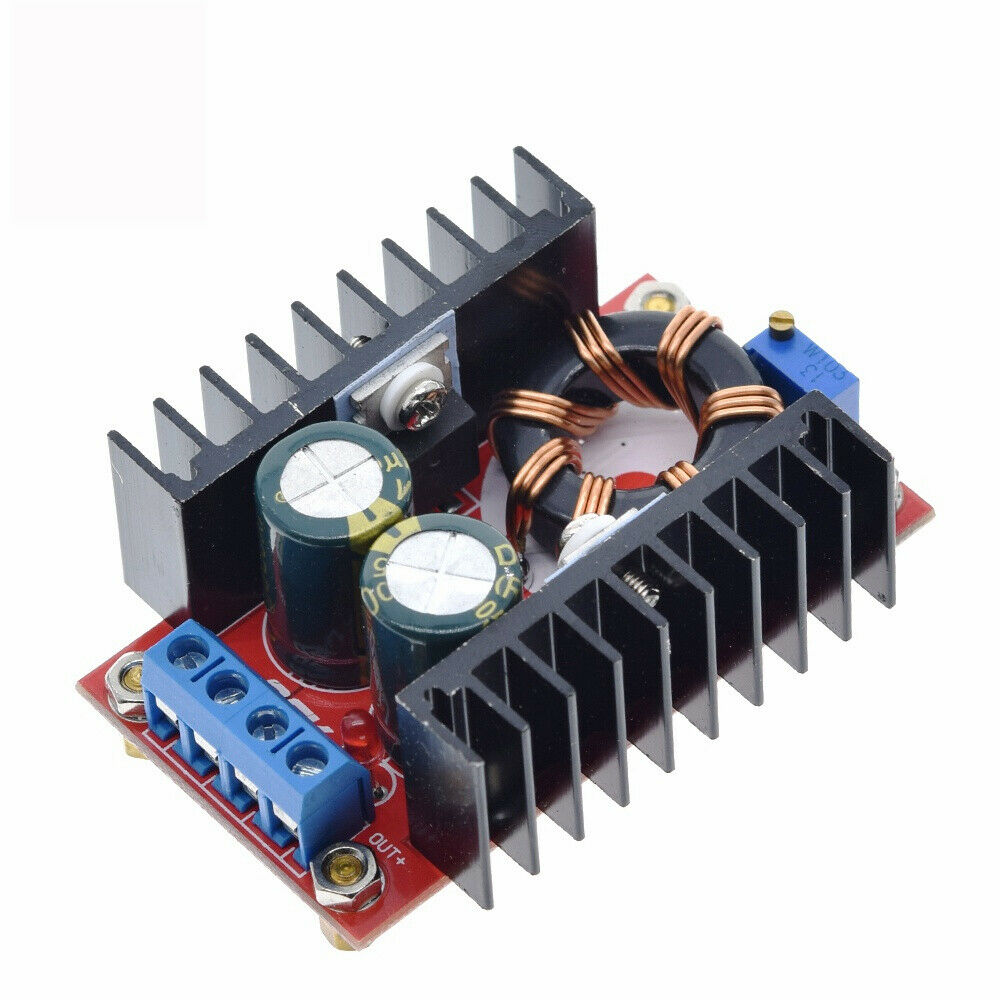

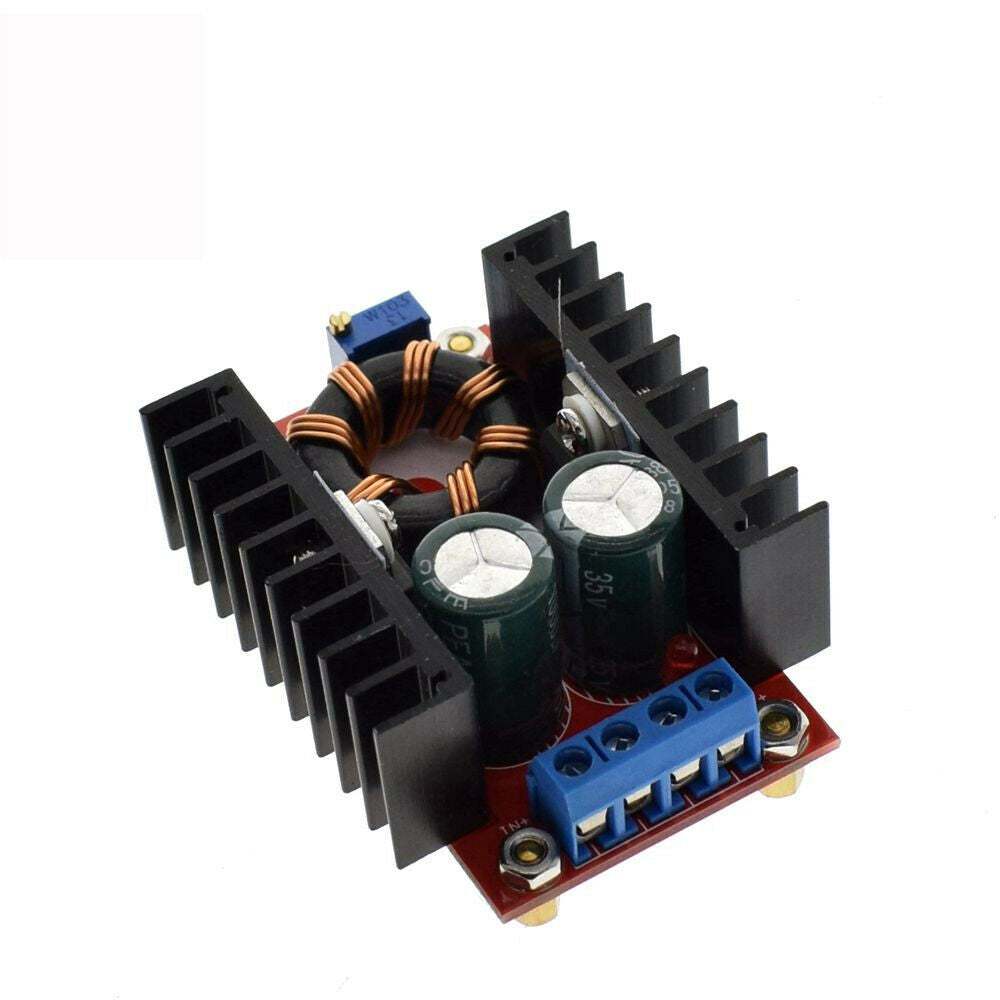

XL4016 DC-DC 10-32V To 12-35V 150W Step-Up Power Supply Boost Converter Module

In stock
Size: 65 (length) *47 (width) *23.5 (height) mm (excluding copper column)High quality dc-dc Boost Converter 10-32v to 12-35v Step Up Charger Power Module 150WAdjustable Static Power DC Boost Voltag...
$5.30
$5.30
  customers are viewing this product

Size: 65 (length) *47 (width) *23.5 (height) mm (excluding copper column)
High quality dc-dc Boost Converter 10-32v to 12-35v Step Up Charger Power Module 150W
Adjustable Static Power DC Boost Voltage Regulator Converter Module 10-32V to 12-35V Step Up 150W 6A
Input voltage: DC 10-32 V
Output Voltage: DC 12-35 V(Adjustable)
The Output Current: 6 A (MAX)
Input current: 10A (MAX)
Output Power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real Power.
Conversion efficiency: 94% (when Input 19V 2.5a Output 16V, Reference)
Output ripple: 2% (MAX)
Working Temperature: industrial (40 ° c to + 85 ° c), environmental Temperature, wining 40 degrees, both please reduce power to use, or to enhance cooling).
Full-load temperature: 45 degrees
No-load current: 25mA typical
Voltage regulation: 0.5%
Load regulation: 0.5%
Dynamic response speed: 200uS 5%
Short circuit protection: No Please installs the fuse or protection circuit at input parts.
Input Reverse protection: No (please comply with a Reverse protection or connect a bond at Input parts.)

Applications:
Adjustable vehicle power supply, connect the 12V input, and output could be 14-35v (adjustable vehicle power supply), However, the output voltage can not be less than the input voltage.
Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery.
Power your electronic devices as long as you adjust the voltage to the voltage you need and the current does not exceed the rated current
System level power supply before, when you are doing a project when the input is 10 to 18 v, and your system board and will need about 24 v power supply and the power is large, using ordinary DC - DC module power is too small, that you choose this module we will be your best choice, can be used without debugging direct work, easily achieve efficient high-power booster.

Package Included:
1 x XL4016 DC-DC 10-32V To 12-35V 150W Step-Up Power Supply Boost Converter Module
Instructions/schematics are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing
