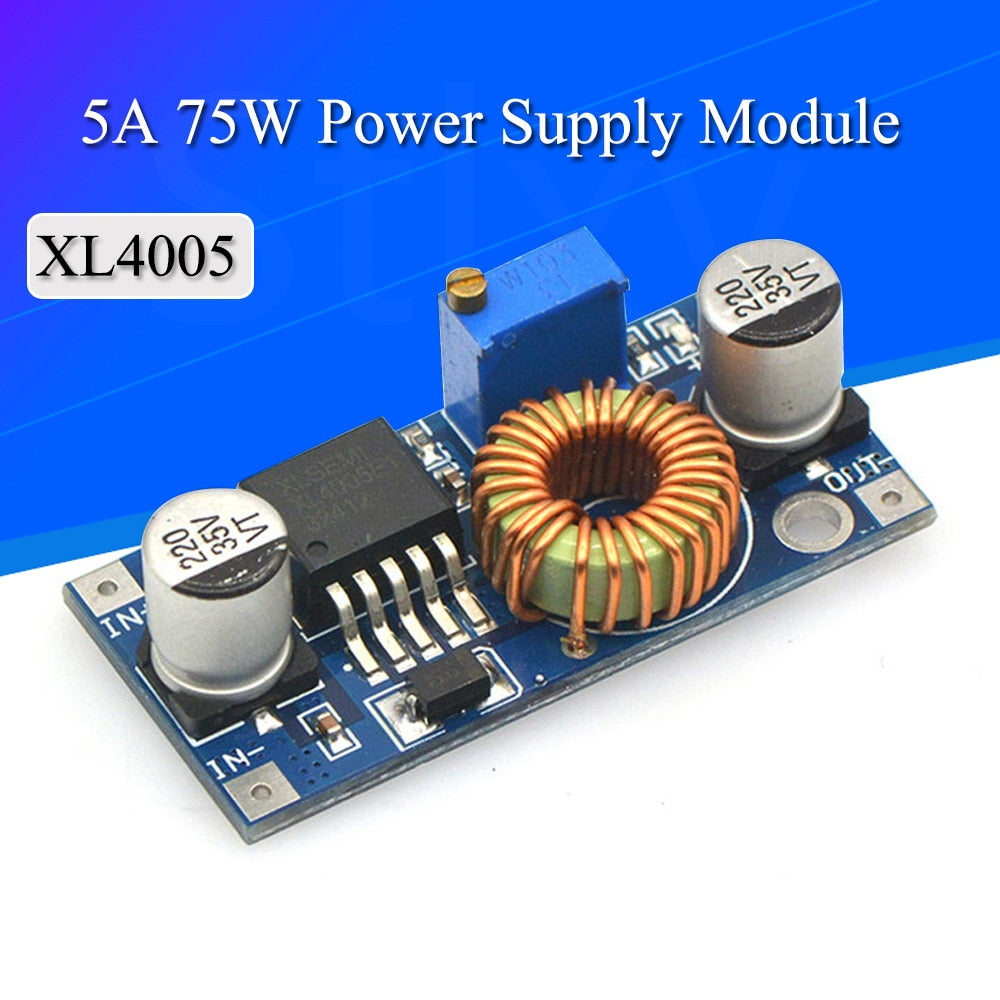

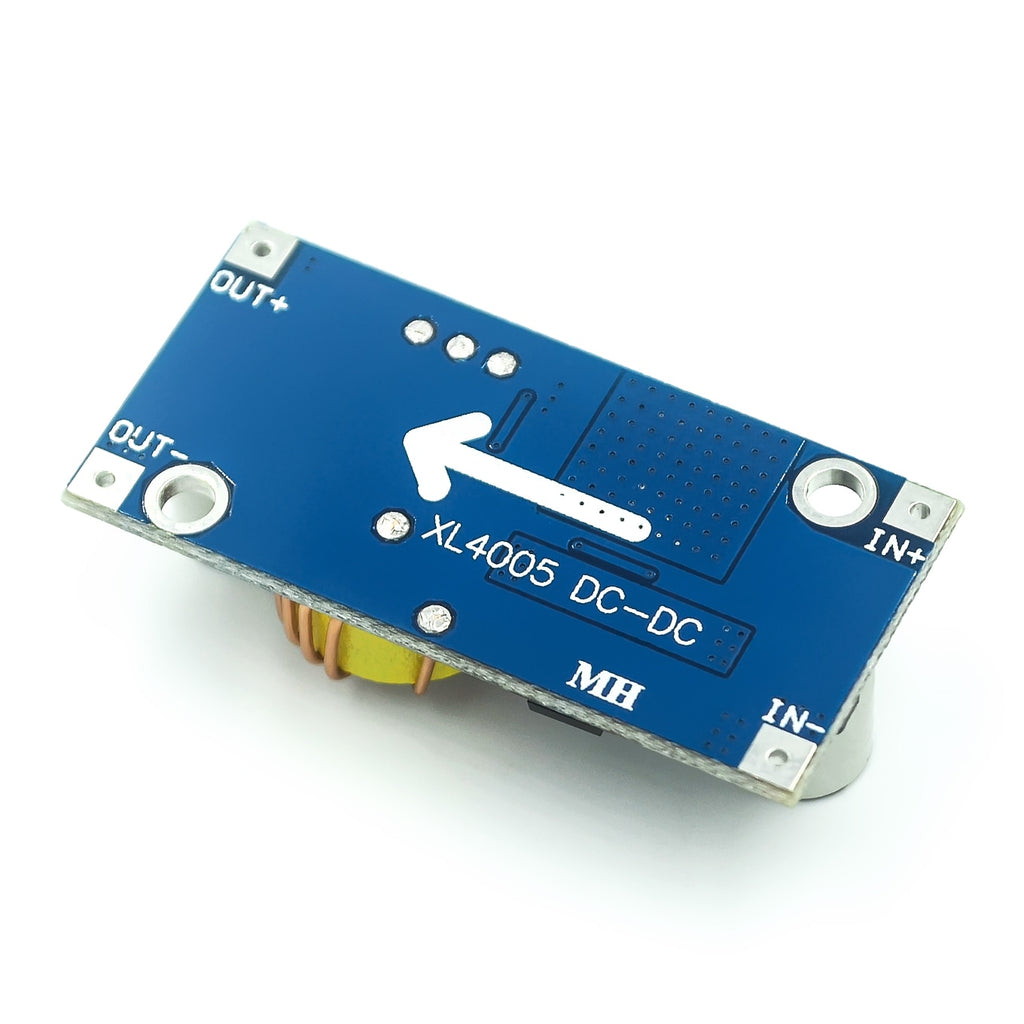

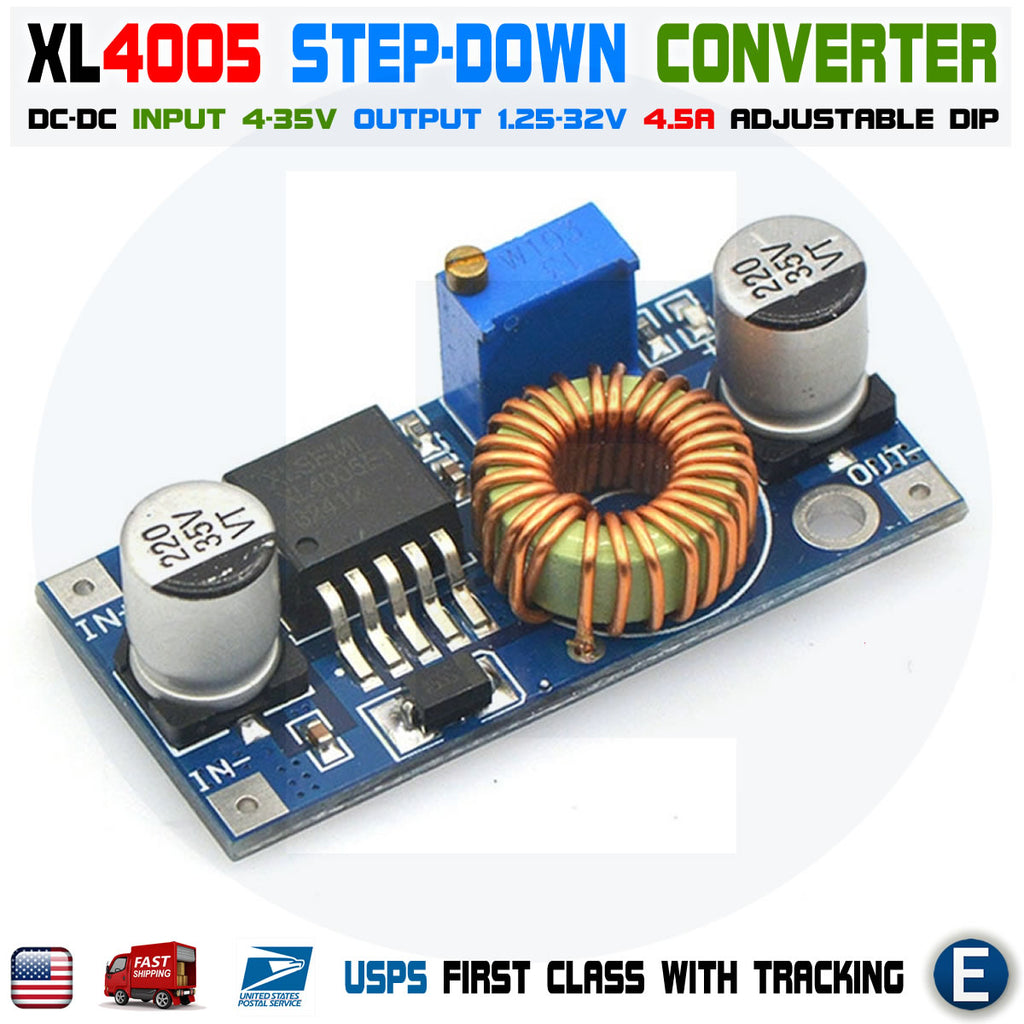

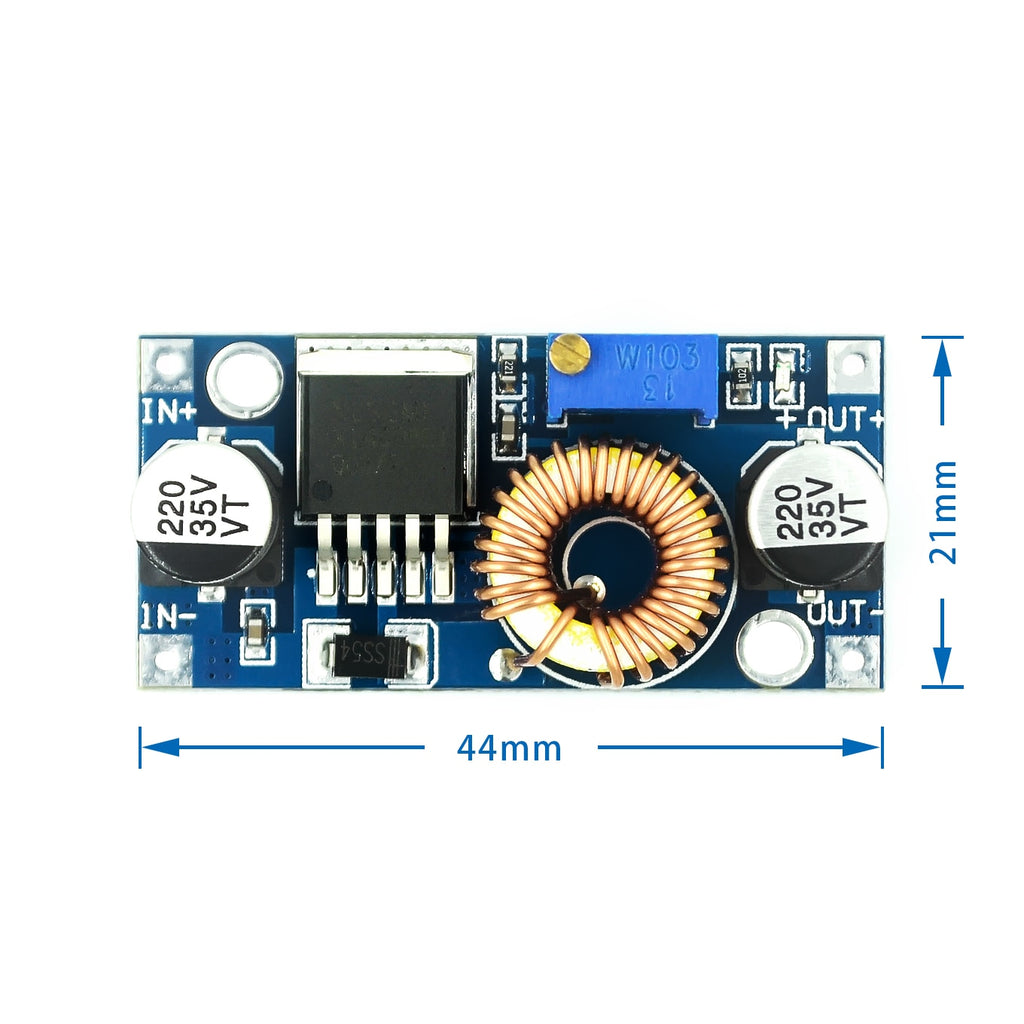

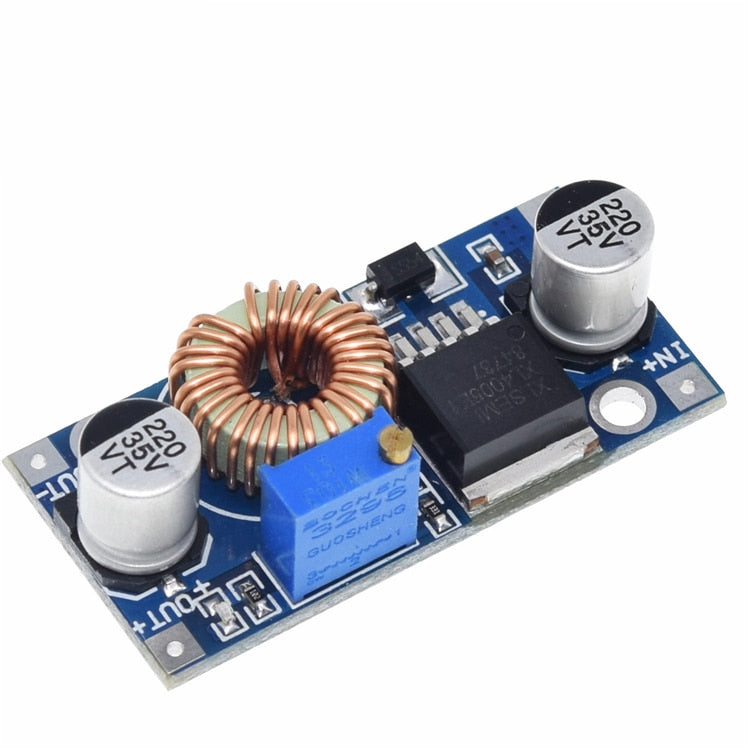

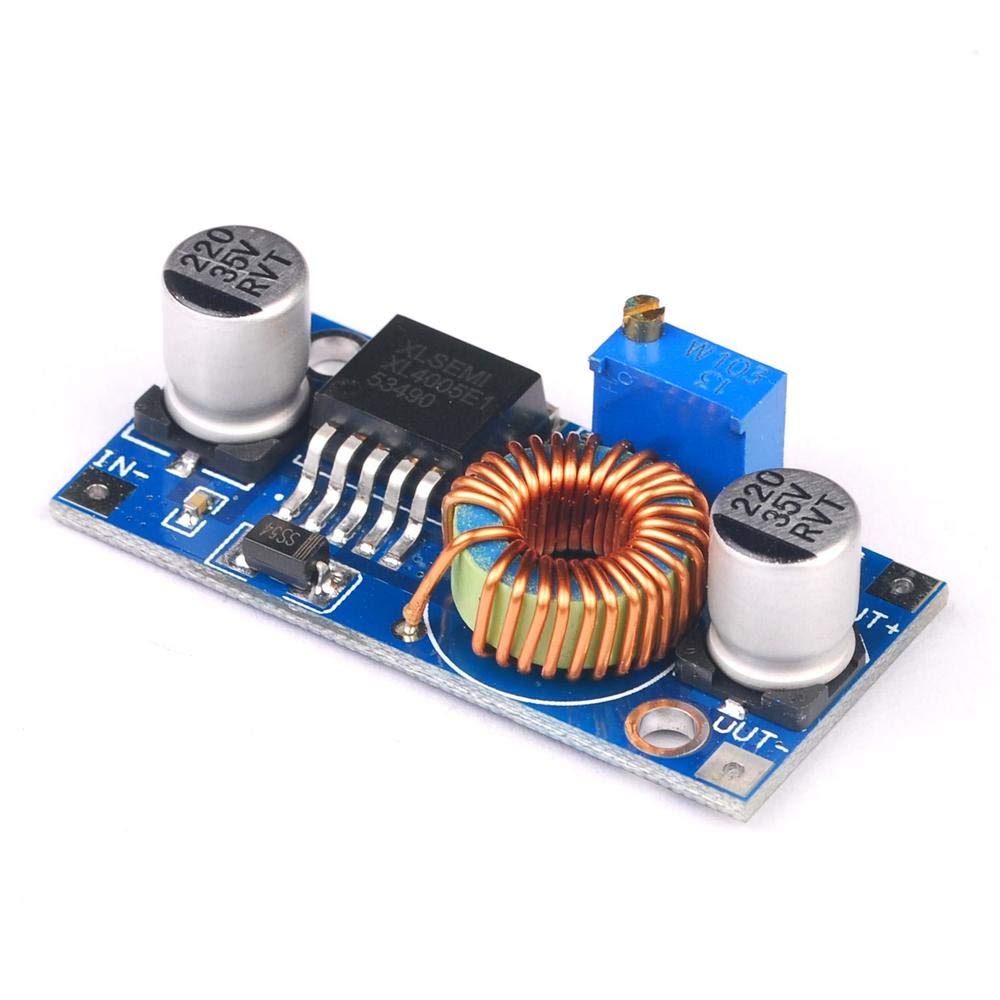

XL4005 DSN5000 DC-DC Adjustable Step-Down Power Supply Buck Module 1.25-32V

In stock
Business & Industrial>Electrical Equipment & Supplies>Electronic Components & Semiconductors>Semiconductors & Actives>Power Regulators & Converters
B-02-03-04
Performance: Properties: non-isolated step-down module (BUCK) Input voltage: 4-35V (input please try not to exceed 38V) Output voltage: 1.25-32V continuously adjustable Output Current: 0-5A, recomm...
$2.63
$2.63
  customers are viewing this product

Performance:
Properties: non-isolated step-down module (BUCK)
Input voltage: 4-35V (input please try not to exceed 38V)
Output voltage: 1.25-32V continuously adjustable
Output Current: 0-5A, recommended in 4.5A.
Output Power: 75W recommendations in the use of more than 50W, please add heat sink.
Operating temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96% (efficiency of input and output voltage, current, pressure related)
Load regulation: S (I) ≤0.8%
Voltage Regulation: S (u) ≤0.8%
Power Indicator: YES
Short circuit protection: YES (limit current 8A)
Overtemperature protection: (automatically shut off the output after overtemperature)
Input Reverse Polarity Protection: None (if necessary please enter the string into the high current diode)

Package Included:
1 x XL4005 DSN5000 DC-DC Adjustable Step-Down Power Supply Buck Module 1.25-32V
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
