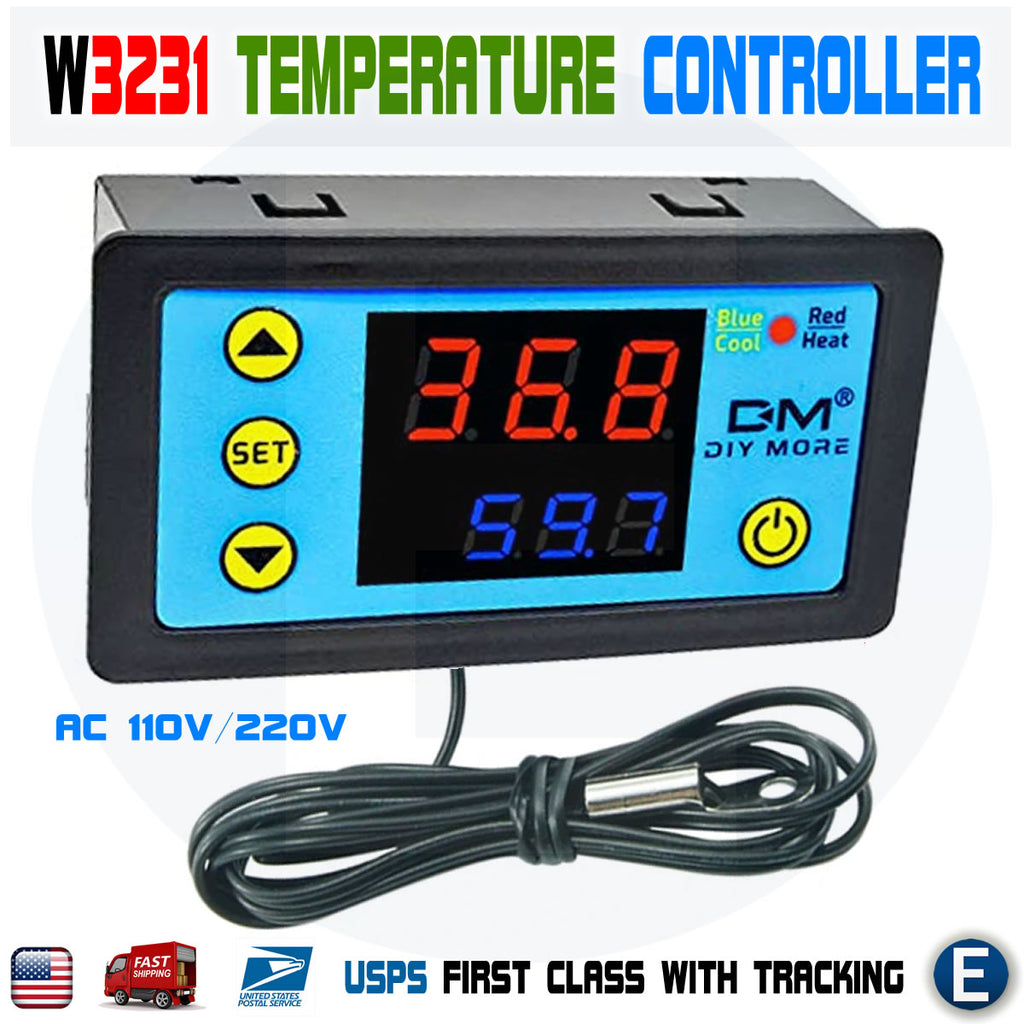

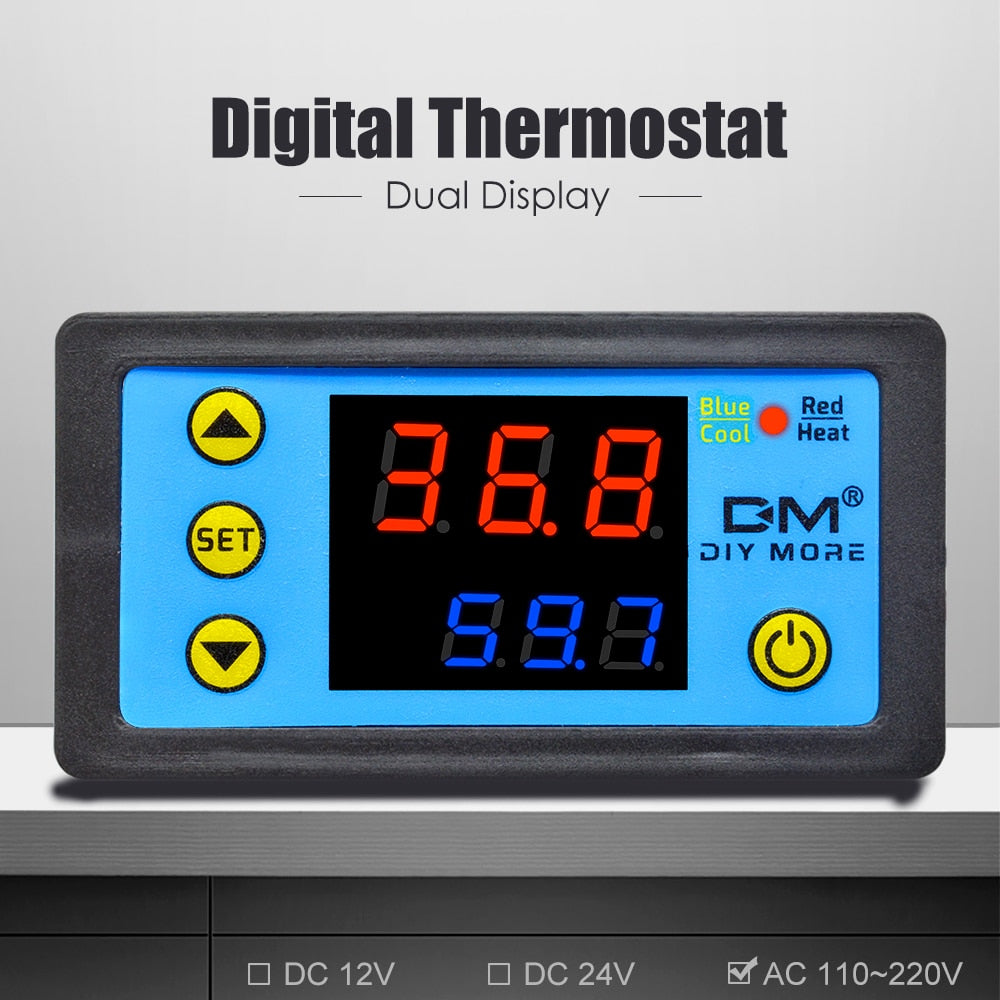

W3231 Digital Dual LED Thermostat Temperature Controller With NTC Sensor 110-220V
Description: 1. This product is an upgraded version of W3230 temperature control. 2. Compared with the previous generation, the upgrade is as follows 1 degree Celsius (°C) and Fahrenheit (°F) can ...
$8.63
customers are viewing this product
Description:
1. This product is an upgraded version of W3230 temperature control.
2. Compared with the previous generation, the upgrade is as follows
1 degree Celsius (°C) and Fahrenheit (°F) can be measured and displayed (W3230 can only display measurement °C)
2 increase the buzzer (Buzzer), can send an audible buzzer alarm (W3230 no buzzer)
3 red and blue bi-color indicator light indicates the output mode at the same time, red is the heating mode (heat), blue is the cooling mode (Cool) (W3230 is a single red indicator, only the output can be indicated)

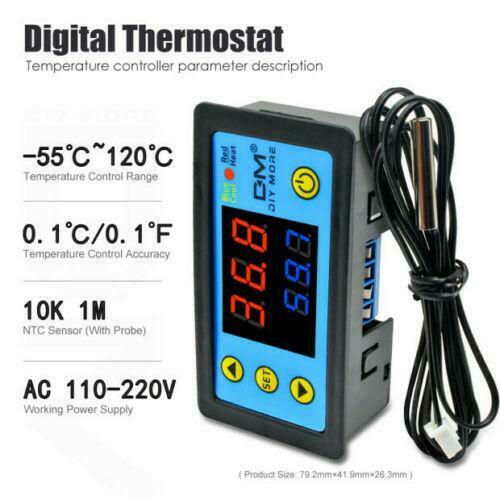

Features:
Temperature control range: -55℃~120℃/-67℉~ 248℉
Temperature control accuracy: 0.1 °C / 0.1 °F
Display color: red + blue

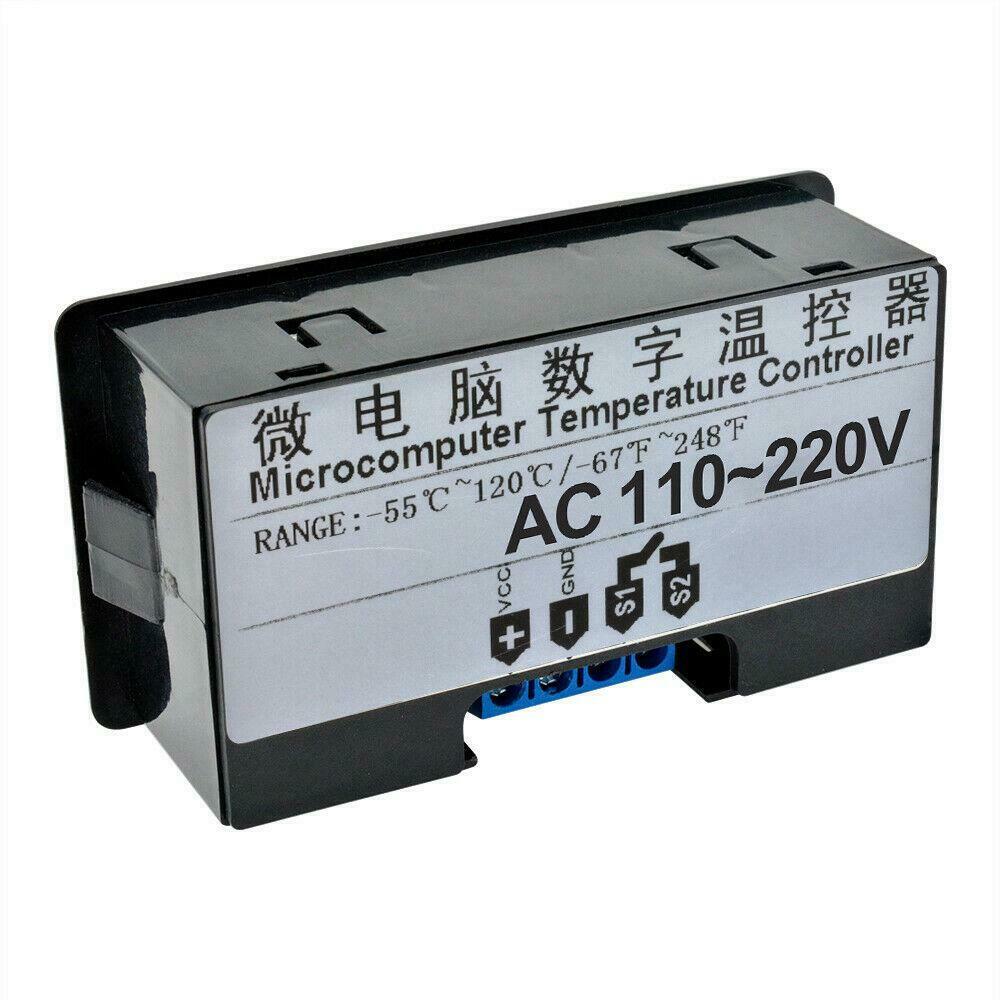

Working power supply: AC 110-220V
Sensor: NTC 10K 1 Meter (with probe)
Product Size: 79.2mm×41.9mm×26.3mm
Hole Size: 72.1mm×39.2mm
product weight: 52g
Warning code
| code |
Reason for error |
Solution |
|
HHH |
Temperature exceeds alarm temperature |
The temperature drops below the alarm temperature and returns to normal. |
|
LLL |
No temperature sensor detected |
Replacement reconnect temperature sensor
|

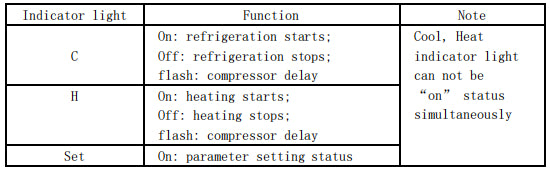

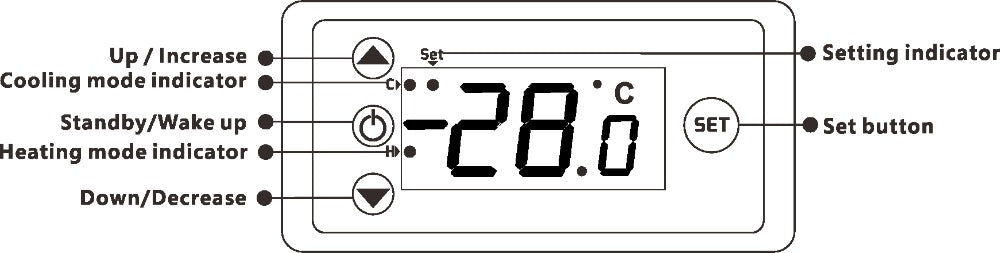

Indicator light

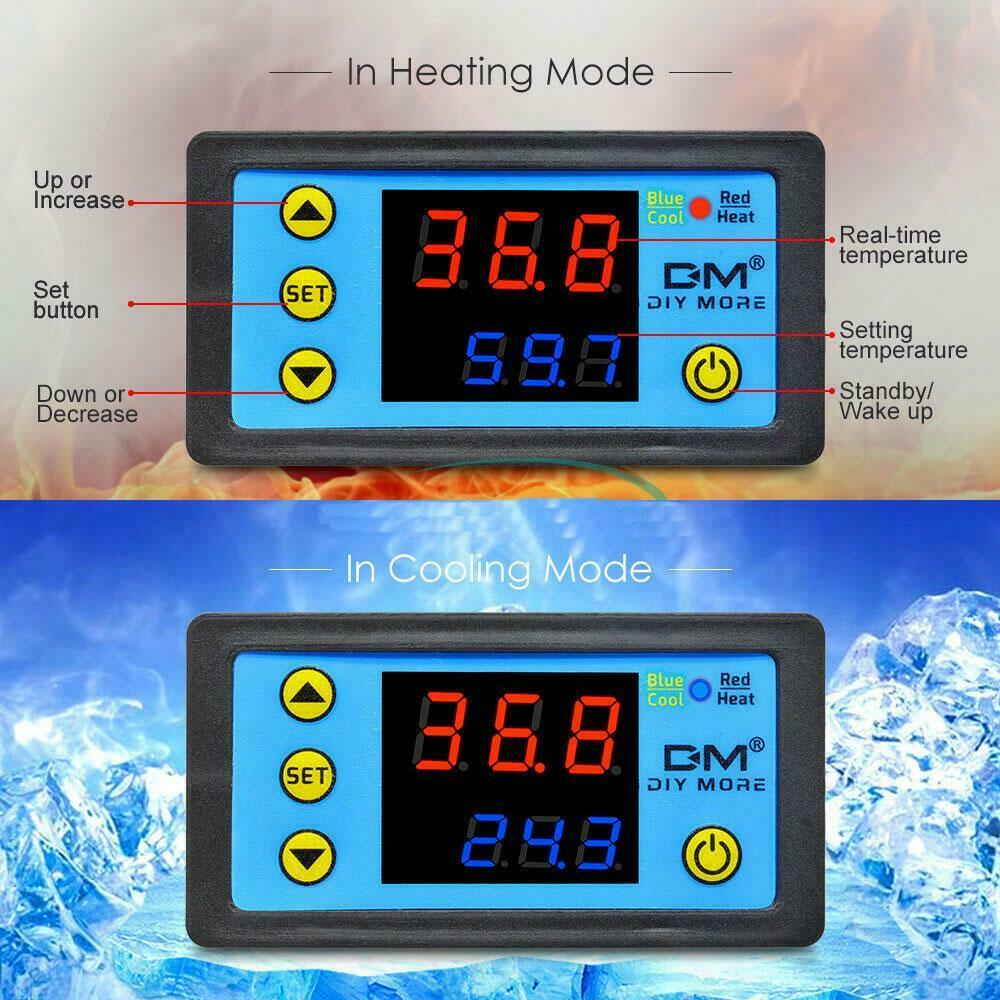

Operation guide
1. Short press “SET” small digital tube to flash, press “△” or “▽” to set the target temperature, press “Standby” button or no operation to save the setting within 3 seconds.
2. Press and hold “SET” to enter the code setting mode, press “△” or “▽” to switch the code. After selecting, press “SET” to enter the code setting. After setting, press “Standby” button or no operation to save the setting within 3 seconds. .
3. The last parameter setting is saved by default after shutdown.
4, restore the factory settings: press and hold "SET" to power on.
5. When the module is powered on, it will start directly. After power-on, press and hold the “standby” button, the module will enter “sleep” or “wake up”; in case of power failure, the module will run automatically after power recovery, no need to start manually.
|
Color |
Indicating situation |
|
Red |
The red light flashes and the heating mode is delayed.；The red light is always on, heating mode is running. |
|
Blue |
Blue light flashes, cooling mode delay starts； The blue light is always on ,cooling mode is running. |
1. Short press “SET” small digital tube to flash, press “△” or “▽” to set the target temperature, press “Standby” button or no operation to save the setting within 3 seconds.
2. Press and hold “SET” to enter the code setting mode, press “△” or “▽” to switch the code. After selecting, press “SET” to enter the code setting. After setting, press “Standby” button or no operation to save the setting within 3 seconds. .
3. The last parameter setting is saved by default after shutdown.
4, restore the factory settings: press and hold "SET" to power on.
5. When the module is powered on, it will start directly. After power-on, press and hold the “standby” button, the module will enter “sleep” or “wake up”; in case of power failure, the module will run automatically after power recovery, no need to start manually.
Operation instruction:
- Under controller normal working status, press and hold “ ”key for 3s can turn off the controller; under controller “off” status, press and hold “ ” key for 3s can turn on the controller.
- Under the controller normal working status, screen display the current temperature value; also the controller can also switch the working mode between heating and cooling.
- Controller starts refrigerating with cool indicator light on when the measuring temperature≥temperature set value+ difference value, and the refrigerating relay is connected; the “Cool” indicator light flashes, it indicates the refrigerating equipment is under compressor delay protect status; when the measuring temperature ≤temperature set value, the Cool indicator light on, and refrigerating relay disconnects.
- System starts heating when the measuring temperature value ≤the temperature set value-difference value, and the “Heat” indicator light on, and the heat relay connects; when the measuring temperature ≥ temperature set value , the “Heat” indicator light is off, and the heat relay disconnects.
Package Included:
1 x W3231 Digital Dual LED Thermostat Temperature Controller With NTC Sensor 110-220V
Technical support is NOT included with this purchase.
1 x W3231 Digital Dual LED Thermostat Temperature Controller With NTC Sensor 110-220V
Technical support is NOT included with this purchase.
