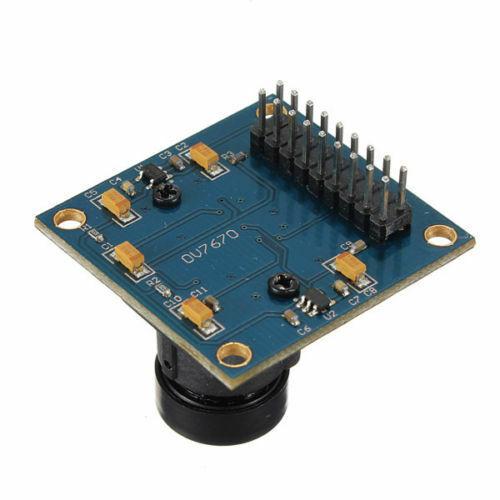

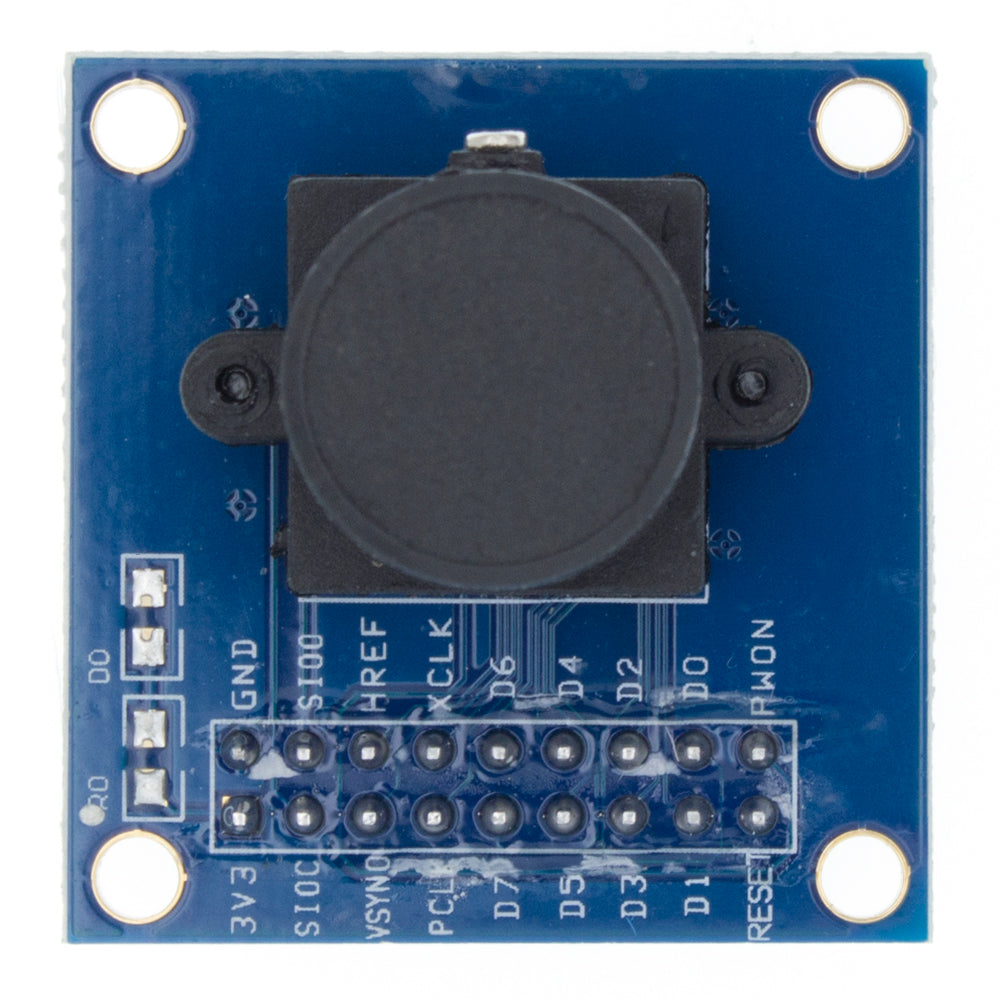

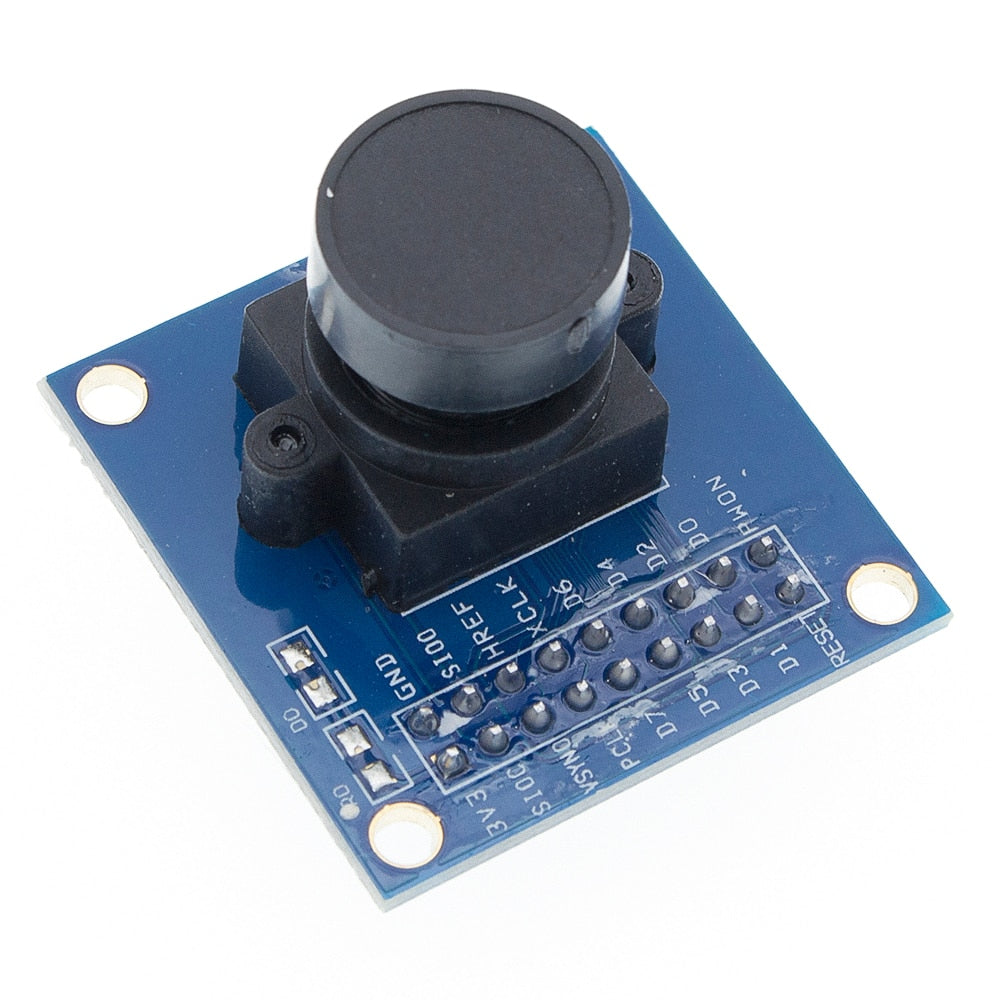

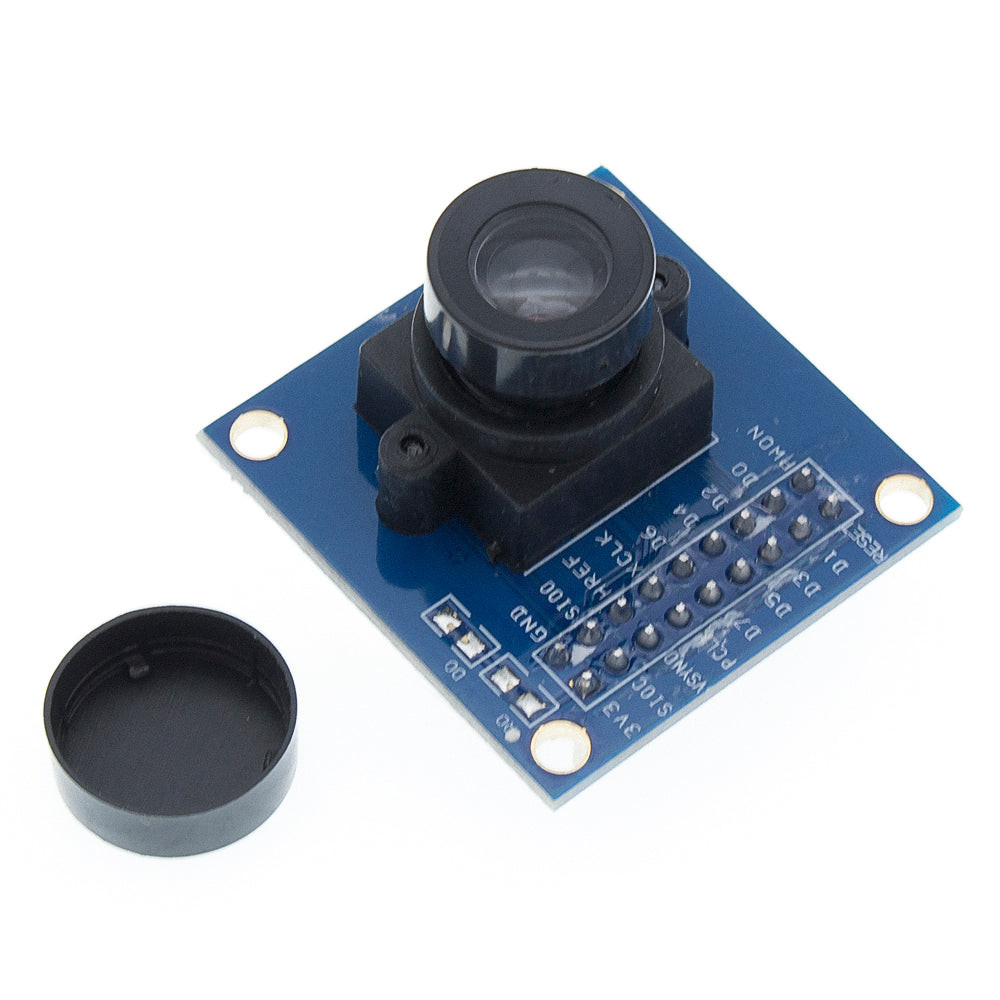

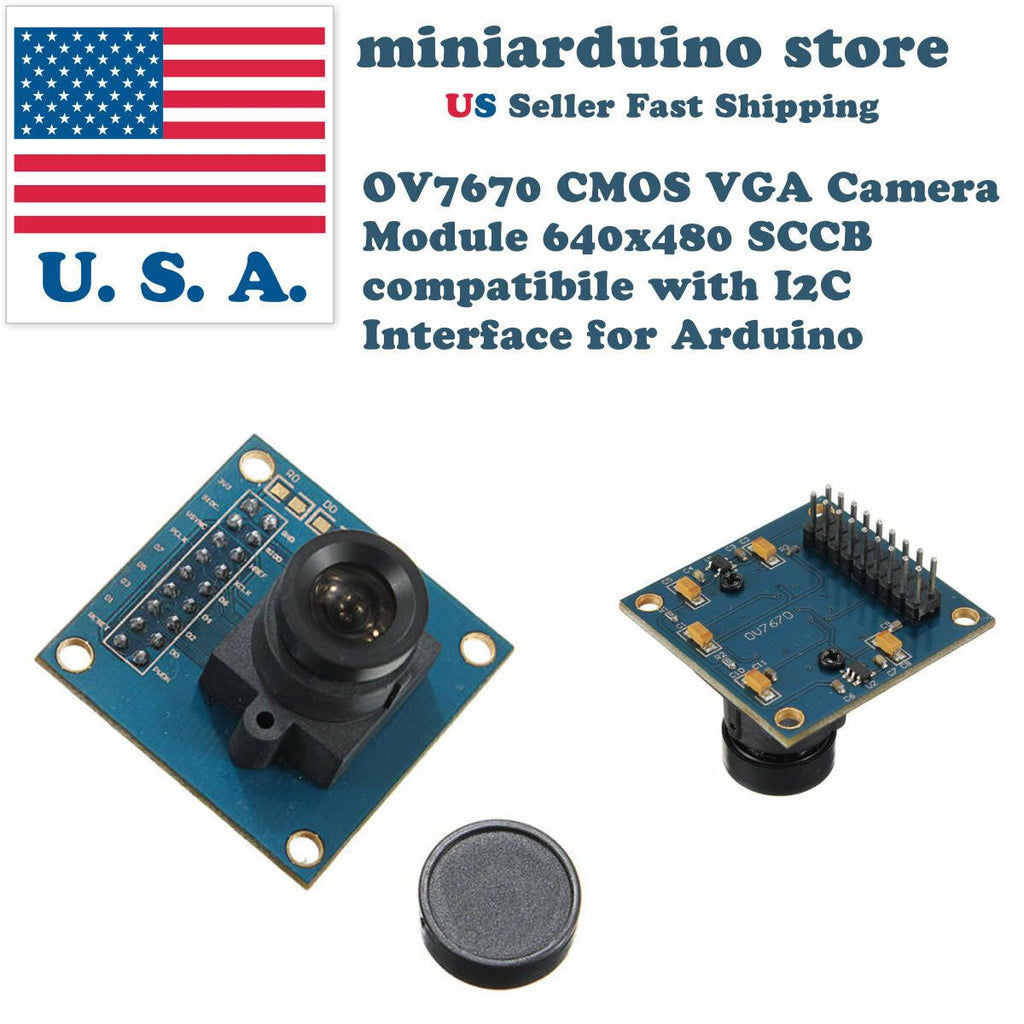

VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB I2C Interface Arduino USA

In stock
Business & Industrial:Electrical Equipment & Supplies:Electrical Tools:Electrical Tool Kits
222432722632
Package included: 1 x OV7670 CMOS Camera Module    Specifications: 1.Photosensitive Array: 640 x 480; IO 2.Voltage: 2.5V to 3.0V; 3.Operating Power: 60mW/15fpsVGAYUV; 4.Sleeping Mode: <20 uA; 5...
$4.23
$4.23
  customers are viewing this product

Package included:
 1 x OV7670 CMOS Camera Module



 Specifications:
 1.Photosensitive Array: 640 x 480; IO
 2.Voltage: 2.5V to 3.0V;
 3.Operating Power: 60mW/15fpsVGAYUV;
 4.Sleeping Mode: <20 uA;
 5.Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit);
 6.Lens Size: 1/6"; Vision Angle: 25 degree;
 7.Max. Frame Rate: 30fps VGA;
 8.Sensitivity: 1.3V / (Lux-sec);
 9.Signal to Noise Ratio: 46 dB;
 10.Dynamic Range: 52 dB;
 11.Browse Mode: By row;
 12.Electronic Exposure: 1 to 510 row;
 13.Pixel Coverage: 3.6um x 3.6um;
 14.Duck Current: 12 mV/s at 6'C



 Features:
 1.High sensitivity for low-light operation;
 2.Low operating voltage for embedded application;

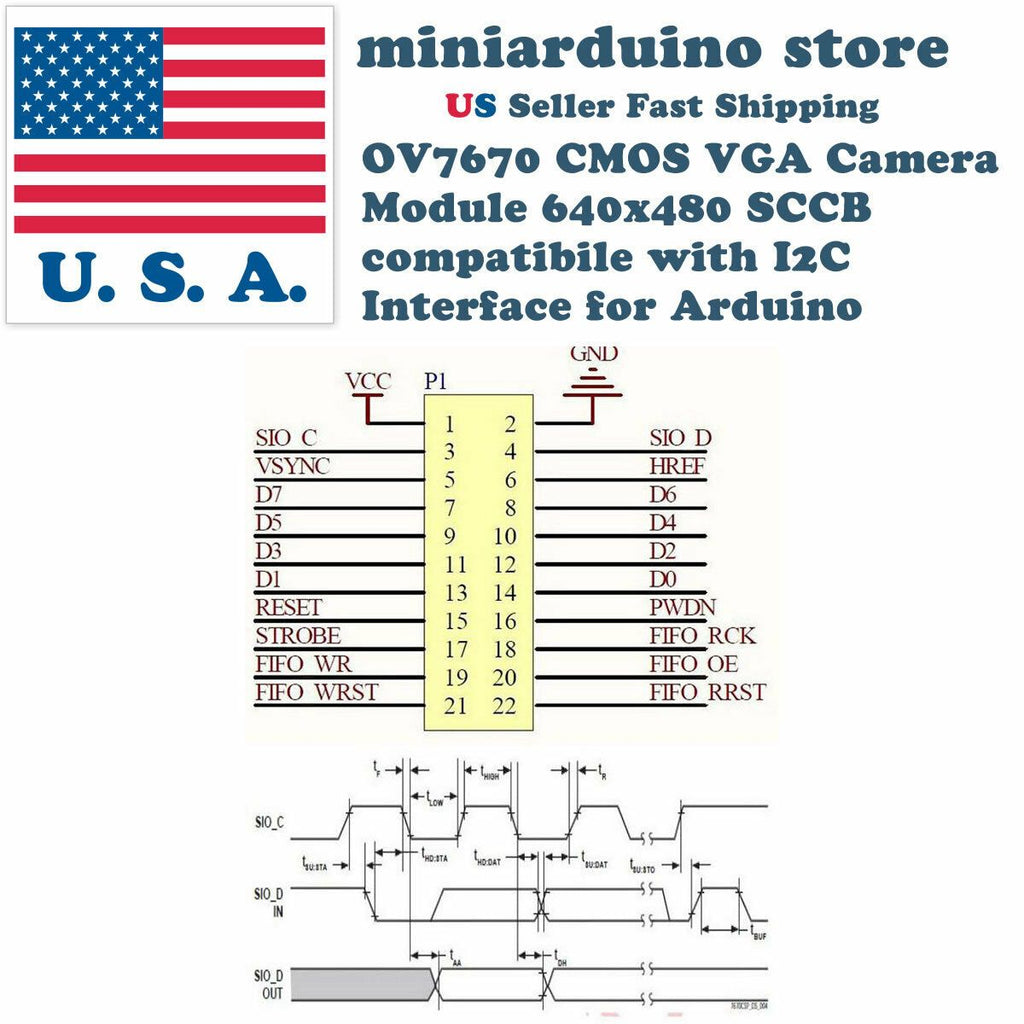

 3.Standard SCCB interface compatible with I2C interface;
 4.Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr(4:2:2)output format;
 5.Support VGA, CIF and from CIF to 40 x 30 format;
 6.Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
 7.Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming;
 8.ISP includes noise reduction and defect correction;
 Support image scaling; Lens shading correction;
 9.Flicker 50/60Hz auto detection;
 10.Color saturation level auto adjust;
 11.Edge enhancement level auto adjust;
 12.De-noise level auto adjust
