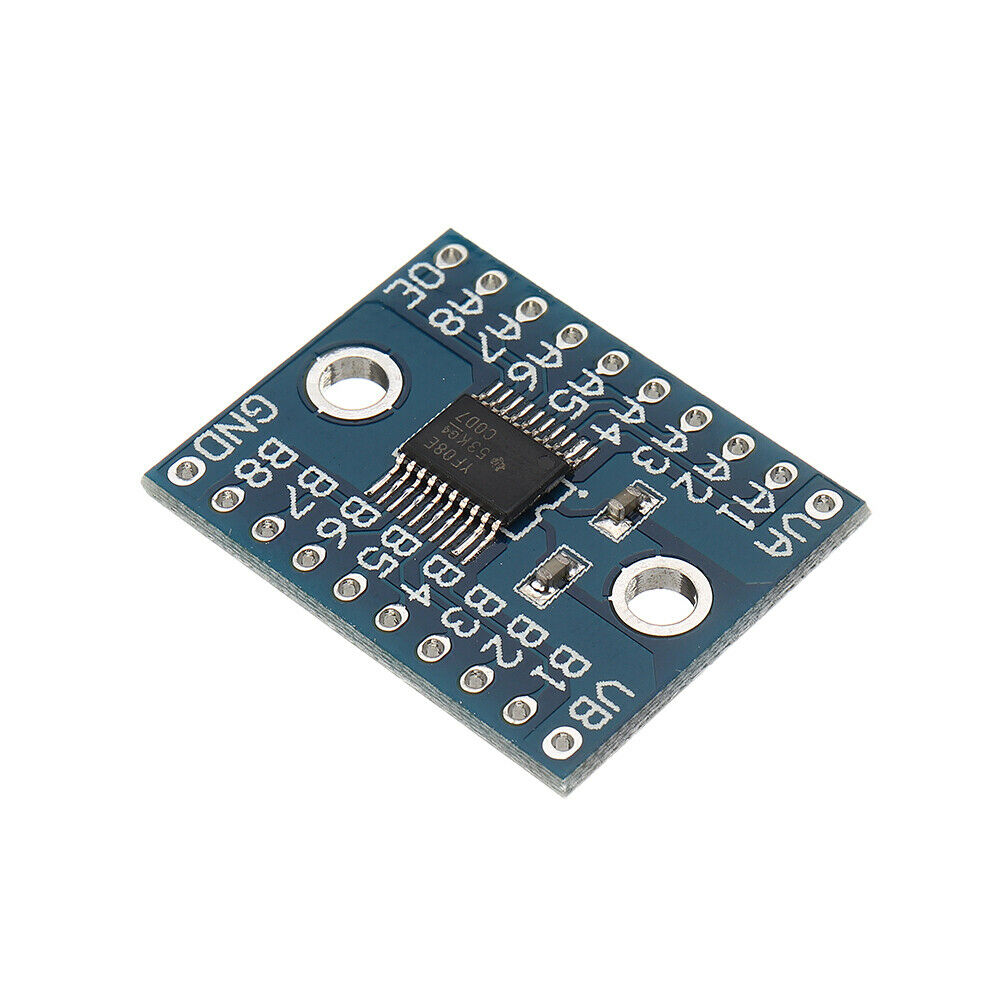

TXS0108E High Speed Full Duplex 8-Channel Level Translation Module 8-Bit

Out of stock
B-02-11-04
Module using chip: TXS0108E High-speed full-duplex 8-channel level conversion module Provide two-way communication capabilities VCCA terminal support voltage 1.2V-3.6V VCCB terminal support voltage...
$2.50
  customers are viewing this product

Module using chip: TXS0108E
High-speed full-duplex 8-channel level conversion module
Provide two-way communication capabilities
VCCA terminal support voltage 1.2V-3.6V
VCCB terminal support voltage 1.65v-5.5v
Common level shifting capabilities such as 3.3-5V 1.8-3.3v are available
Dimension: 21mm x 15mm

How to Use
In the case of translating between 3.3V and 5V system:
• VCCA connects to 3.3V power supply
• VCCB connects to 5V power supply
• GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
• When Ax has TTL 3.3V input, Bx will get TTL 5V output
• When Bx has TTL 5V input, Ax will get TTL 3.3V output
• NO direction control required

Main application:
1. 5V MCU and 3.3V module, 3.3V MCU and 5V module and other communication compatible support
2. Level conversion of single chip and SD card communication
3. Single-chip microcomputer and iic, spi serial device level conversion
4. OE enable IO is active high, it is recommended to connect IO port on low voltage side

Package Included:
1 x TXS0108E High Speed Full Duplex 8-Channel Level Translation Module 8-Bit
