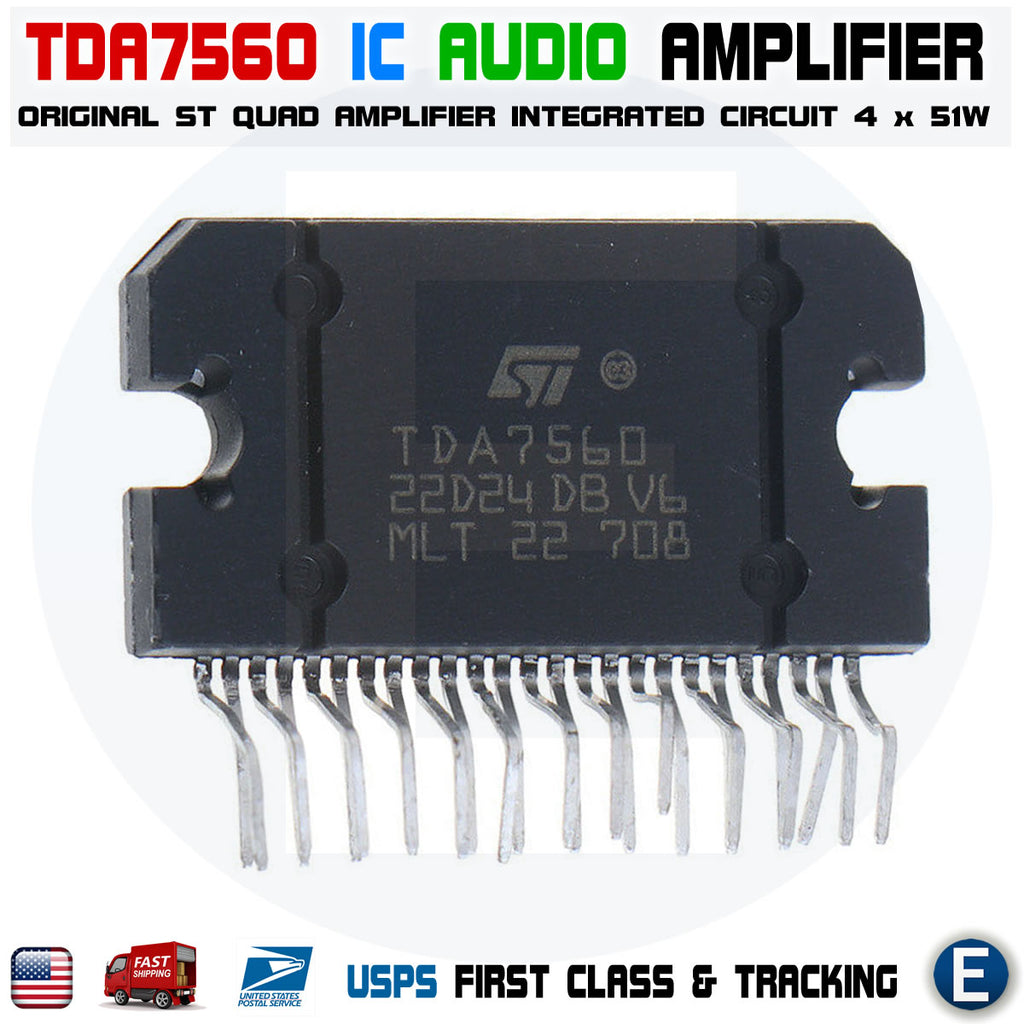

TDA7560 Original New Integrated Circuit TDA-7560 Quad Bridge Car Radio Amplifier

In stock
FeaturesSuperior output power capability:– 4 x 51 W/4 max.– 4 x 45 W/4 EIAJ– 4 x 30 W/4 @ 14.4 V, 1 kHz, 10 %– 4 x 80 W/2 max.– 4 x 77 W/2 EIAJ– 4 x 55 W/2 @ 14.4 V, 1 kHz, 10 %Multipower BCD techn...
  customers are viewing this product

Superior output power capability:
– 4 x 51 W/4 max.
– 4 x 45 W/4 EIAJ
– 4 x 30 W/4 @ 14.4 V, 1 kHz, 10 %
– 4 x 80 W/2 max.
– 4 x 77 W/2 EIAJ
– 4 x 55 W/2 @ 14.4 V, 1 kHz, 10 %
Multipower BCD technology
MOSFET output power stage
Excellent 2 driving capability
Hi-Fi class distortion
Low output noise
Standby function
Mute function
Automute at min. supply voltage detection
Low external component count:
– Internally fixed gain (26 dB)
– No external compensation
– No bootstrap capacitors
On board 0.35 A high side driver

– Output short circuit to GND, to VS, across the load
– Very inductive loads
– Overrating chip temperature with soft thermal limiter
– Output DC offset detection
– Load dump voltage
– Fortuitous open GND
– Reversed battery

The TDA7560 is a breakthrough BCD (Bipolar /
CMOS / DMOS) technology class AB audio power
amplifier in Flexiwatt 25 package designed for
high power car radio.
The fully complementary P-Channel/N-Channel
output structure allows a rail to rail output voltage
swing which, combined with high output current
and minimized saturation losses sets new power
references in the car-radio field, with unparalleled
distortion performances.
