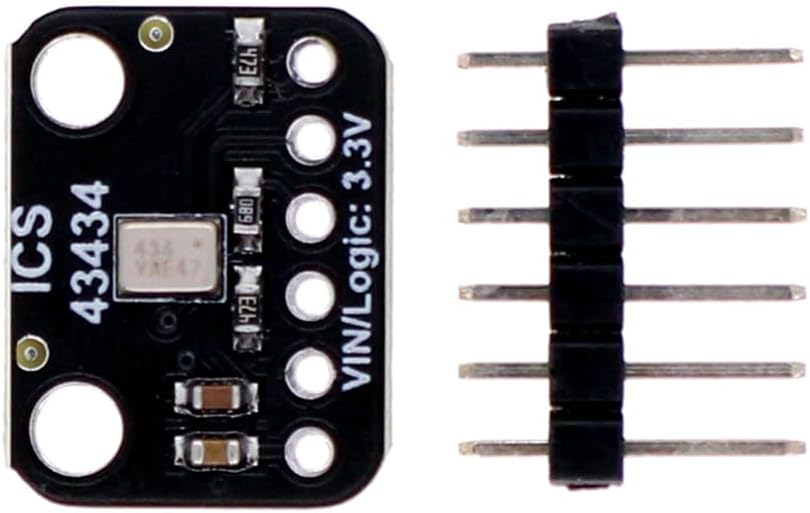

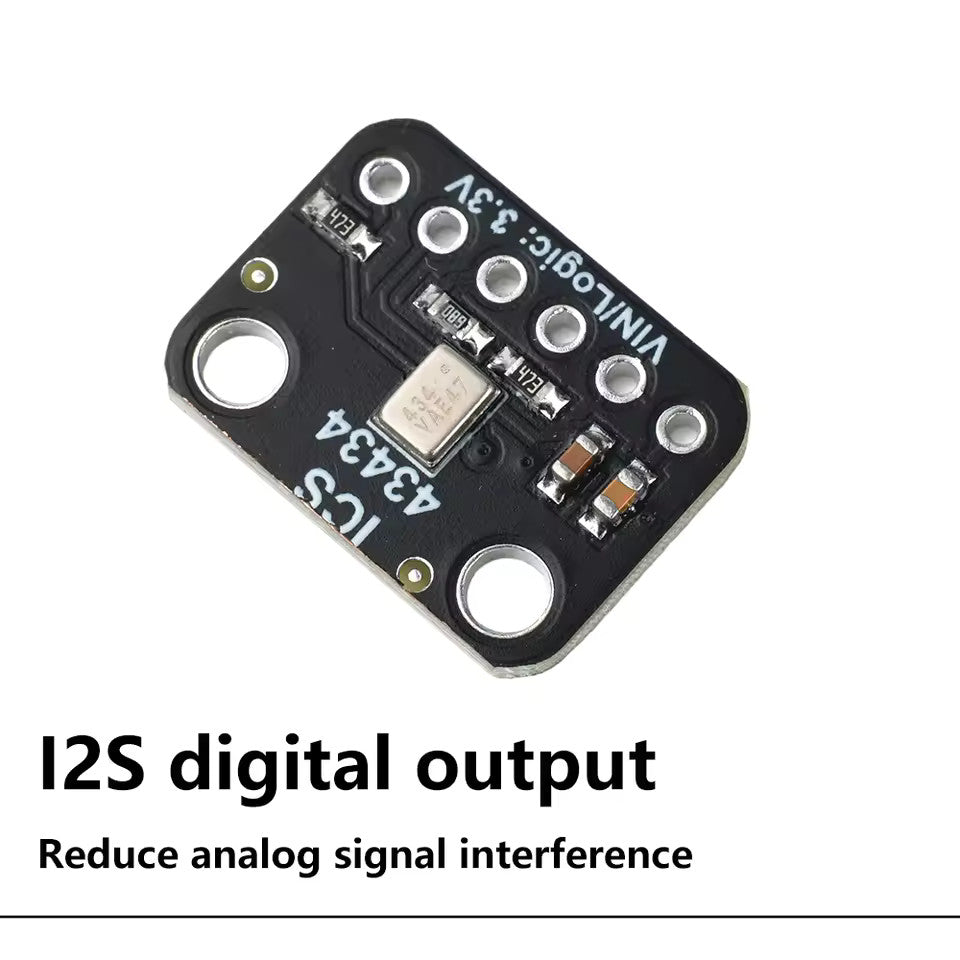

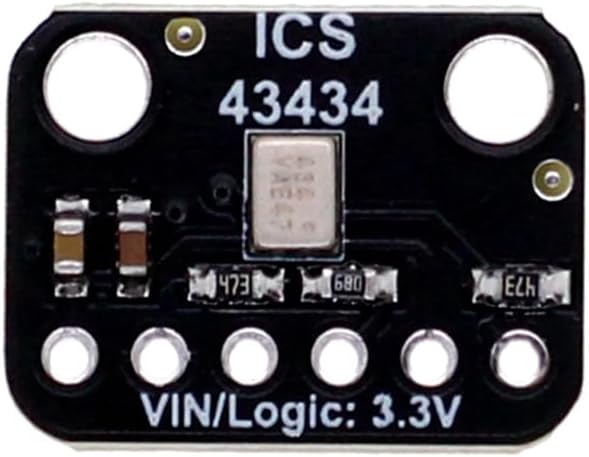

ICS-43434 I2S 3.3V MEMS microphone Module Breakout Low cost Pass Filter Mini
In stock
breadcrumb Business & Industrial Electronic Components & Semiconductors Semiconductors & Actives Development Kits & Boards
A-01-09-03
Advanced Audio Technology: This MEMS microphone module is equipped with an ICS-43434 I2S interface to high-quality audio capture, making it ideal for a variety of DIY audio projects.
Integrated Lo...
$14.89
Advanced Audio Technology: This MEMS microphone module is equipped with an ICS-43434 I2S interface to high-quality audio capture, making it ideal for a variety of DIY audio projects.
Integrated Low-Pass Filter: The built-in low-pass filter effectively reduces high-frequency noise and improves the clarity and quality of captured audio.
Low Power Consumption: The module operates at 1.5V - 3.6V (1.8V/3.3V recommended), and its efficient design minimizes power consumption while maintaining optimal performance.
Compact and Versatile: The mini module design makes it easy to integrate into space-constrained applications, making it an ideal choice for portable and embedded audio solutions.
Cost-effective: The combination of performance and price makes it an ideal choice for both amateurs and professionals.
Product Features:

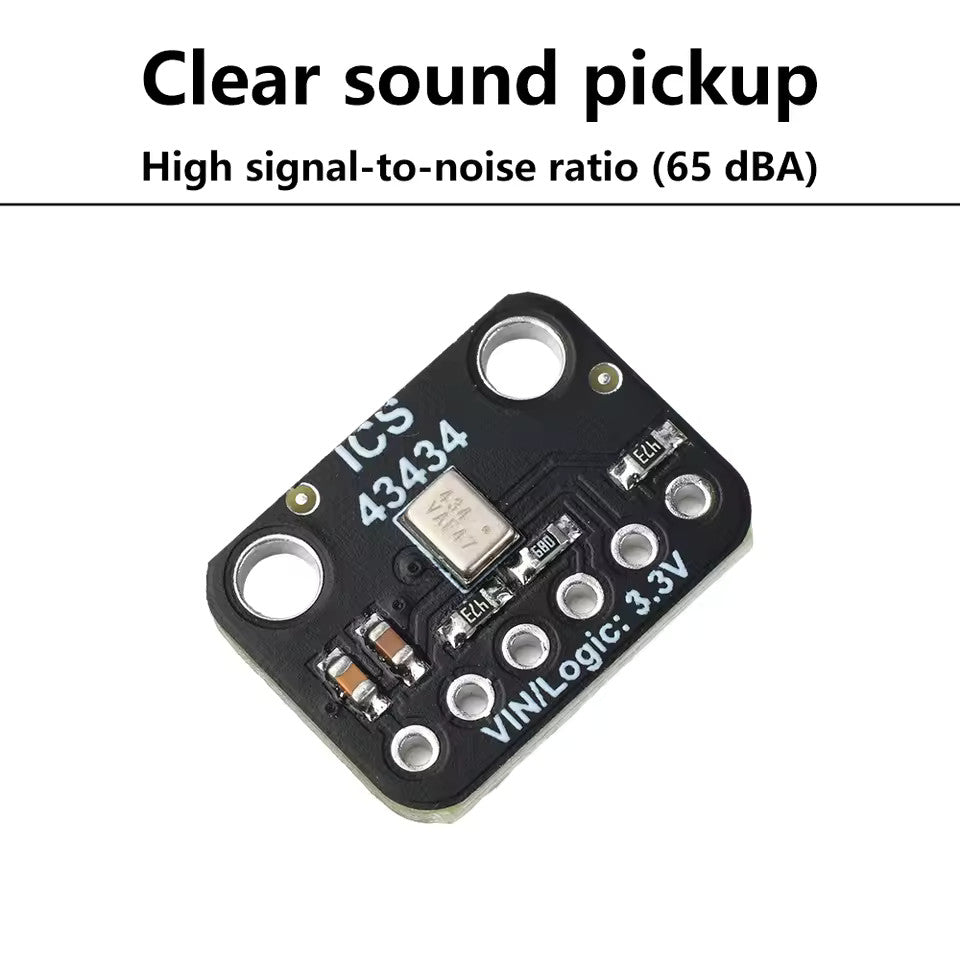

1. High signal-to-noise ratio (65dBA), clear pickup.
2. Ultra low power consumption, suitable for battery powered devices.

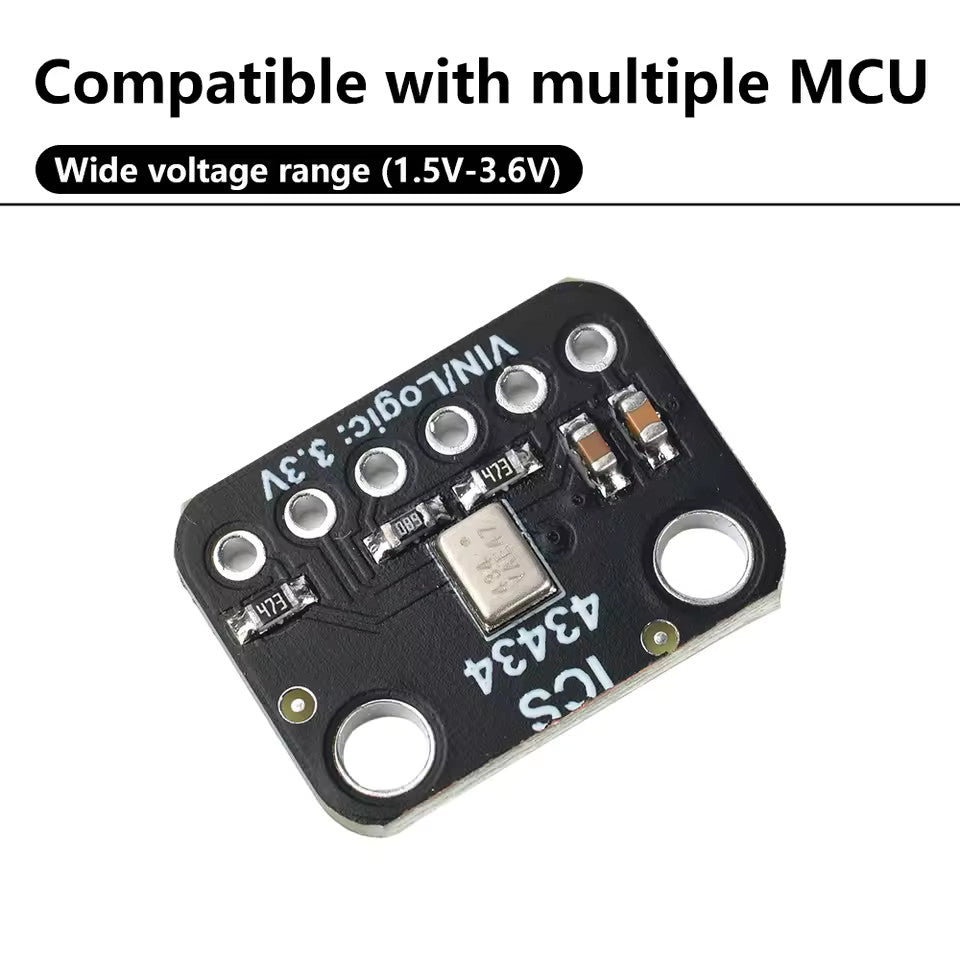

3. Wide voltage range (1.5V-3.6V), compatible with multiple MCUs.
4. I2S digital output reduces analog signal interference.
5. Ultra small size, suitable for compact design.
Product Introduction:
ICS-43434 is a high-performance MEMS digital microphone with I2S digital output, featuring high signal-to-noise ratio (SNR), low power consumption, and wide frequency response. It is suitable for smart voice devices, recording systems, IoT products, and other scenarios.
Core Parameters:
Interface type: I2S (compatible with PDM mode)
Signal to Noise Ratio (SNR): 65dBA
Sensitivity: -26 dBFS
Frequency response: 50Hz-20kHz
Working voltage: 1.5V-3.6V (recommended 1.8V/3.3V)
Power consumption: 1.5mA (typical value)
Directionality: Omnidirectional
AOP: (Acoustic Overload Point) 120dB SPL

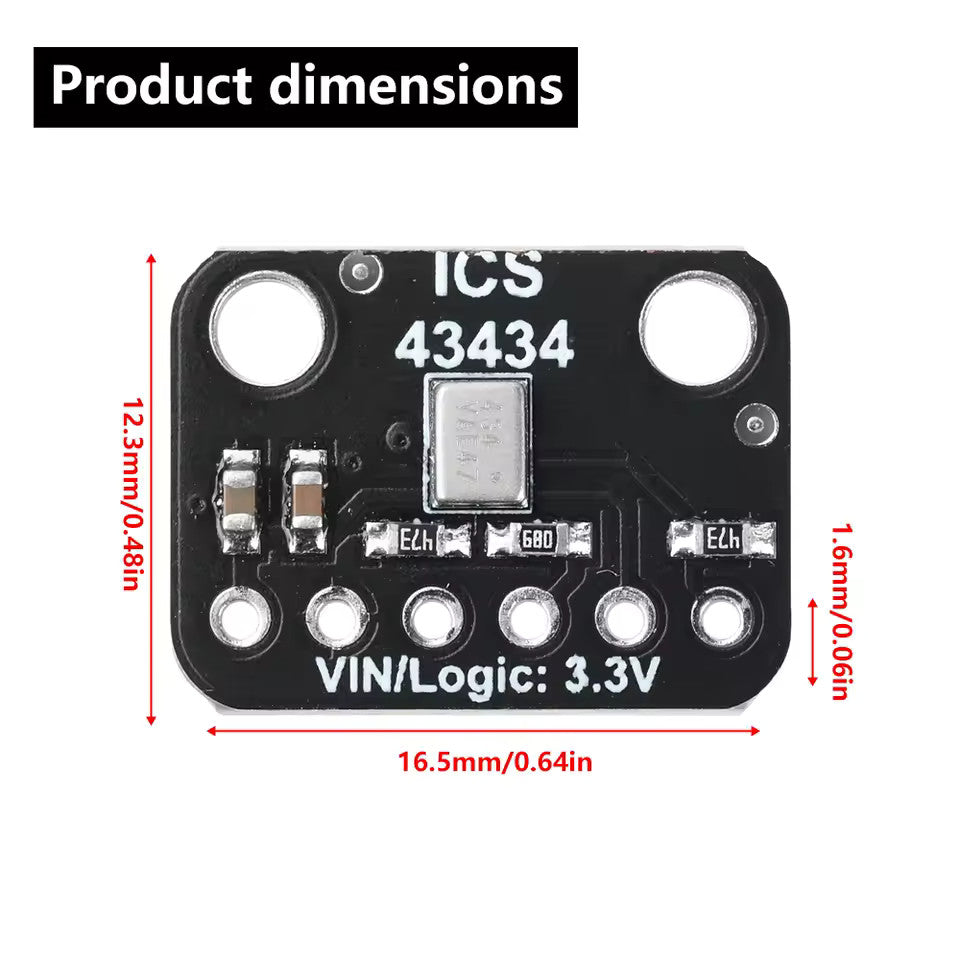

Size: 16.5mm × 12.3mm × 1.6mm
Typical Applications:
Smart voice devices: smart speakers, voice assistants, phone/tablet/TWS headphone microphone arrays
Smart home: voice control, security monitoring
Recording equipment: portable recording pen, conference microphone
IoT devices: wearable devices, drones

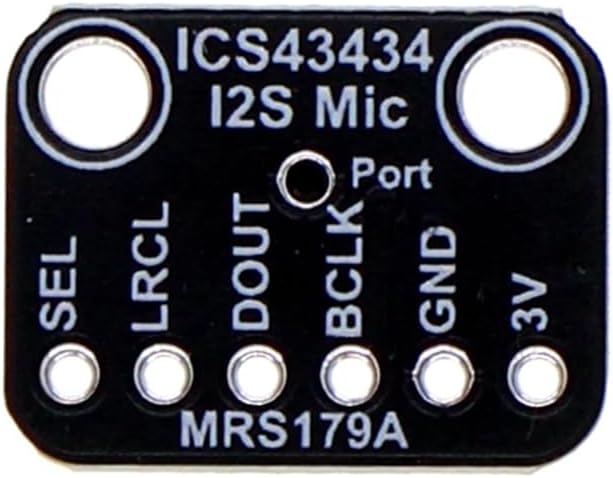

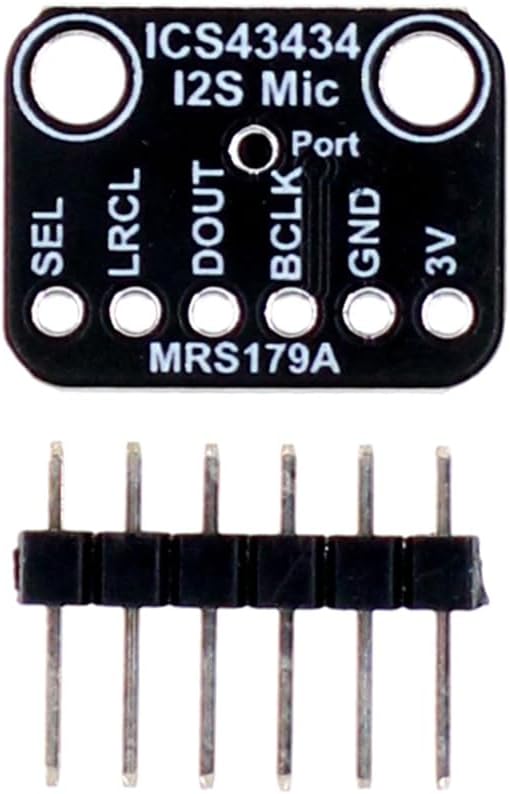

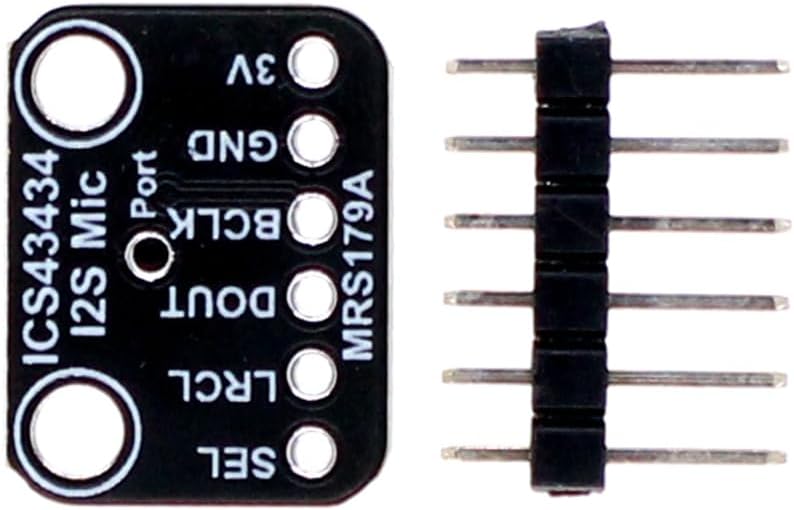

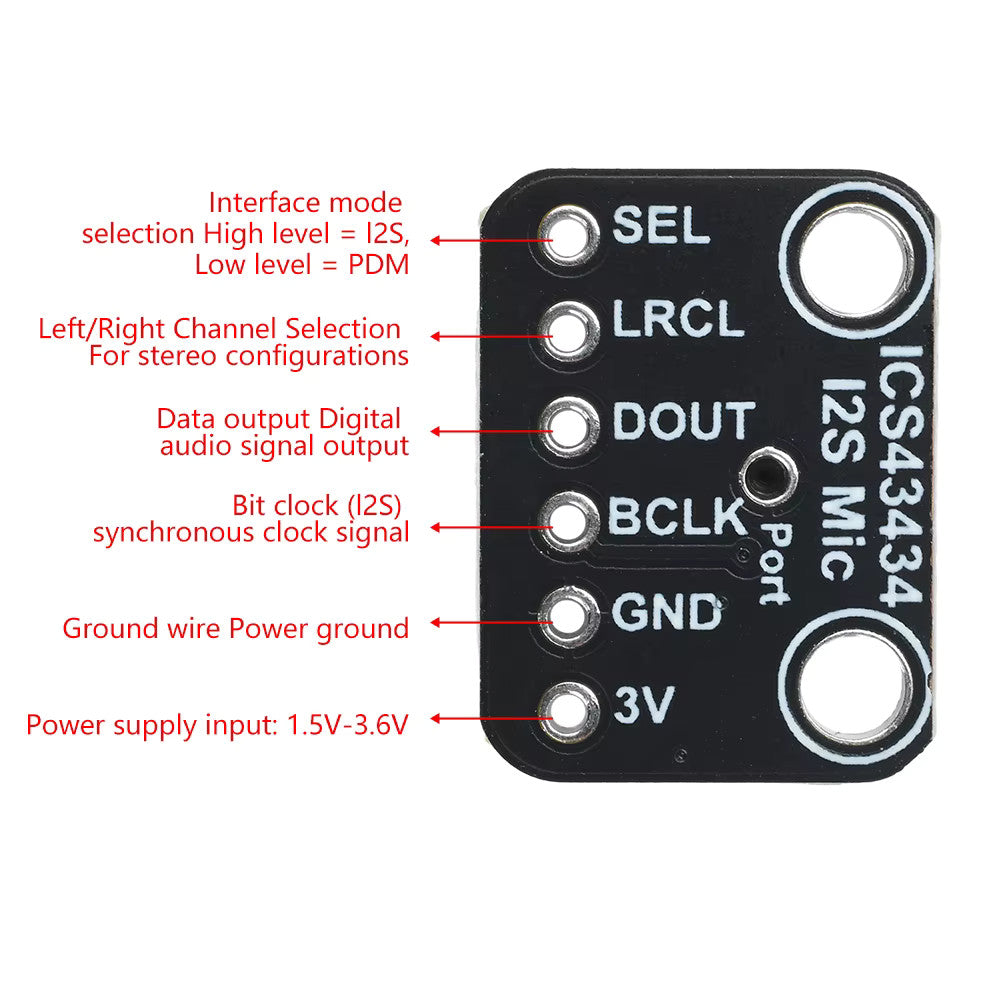

Pin Definition (Pinout):
(L/R): Left/right channel selection for stereo configuration
(GND): Ground wire, power supply ground
(VDD): Power input 1.5V-3.6V supply
(SEL): Interface mode selection: High level=I2S, Low level=PDM
(BCLK): Bit clock (I2S) synchronous clock signal
(DOUT): Data output, digital audio signal output
Package Included:
1 x ICS-43434 I2S 3.3V MEMS microphone Module Breakout Low cost Pass Filter Mini
