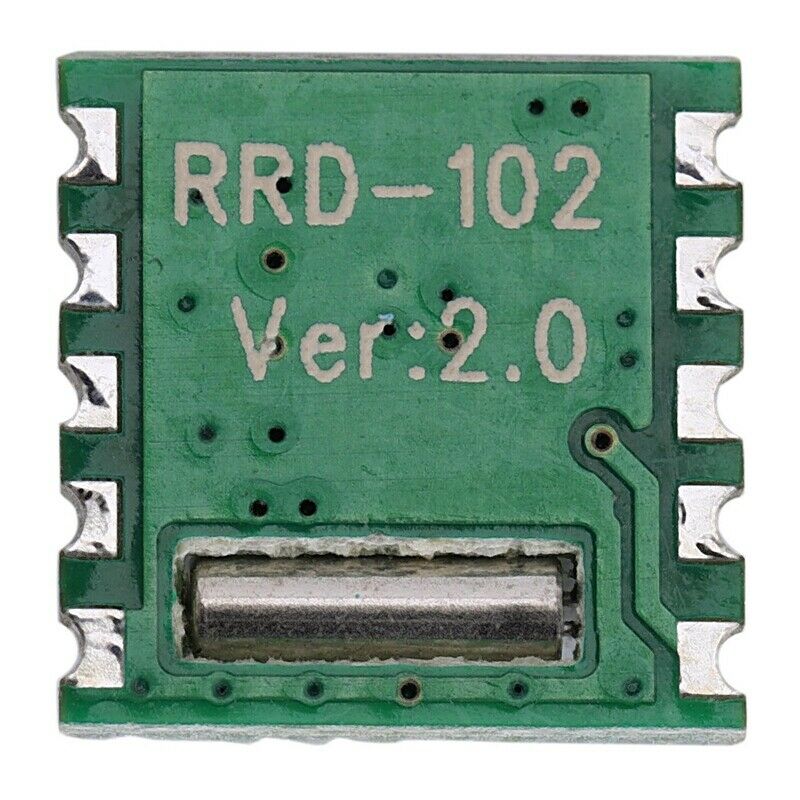

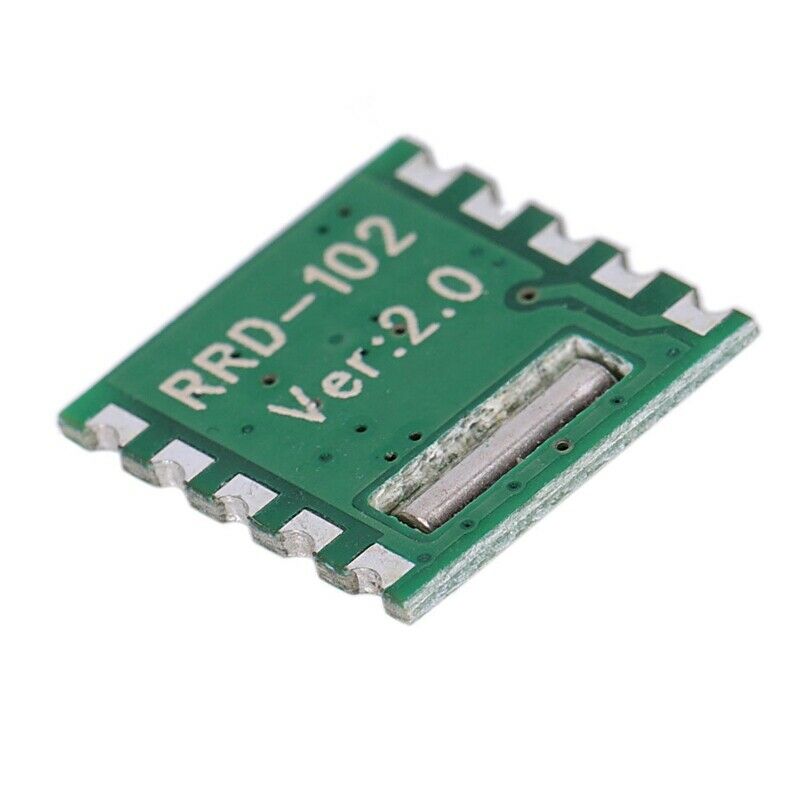

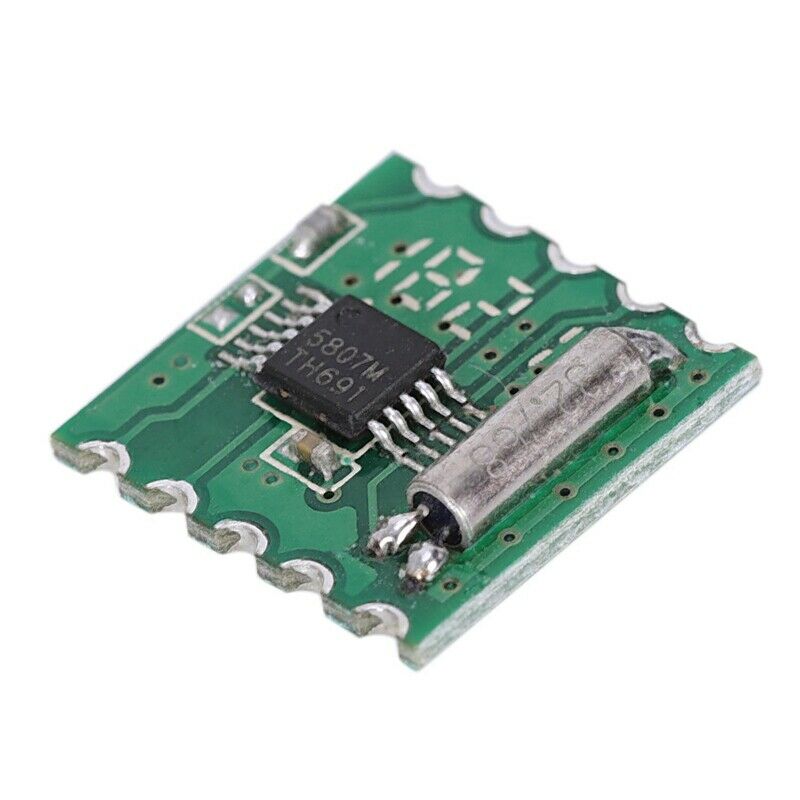

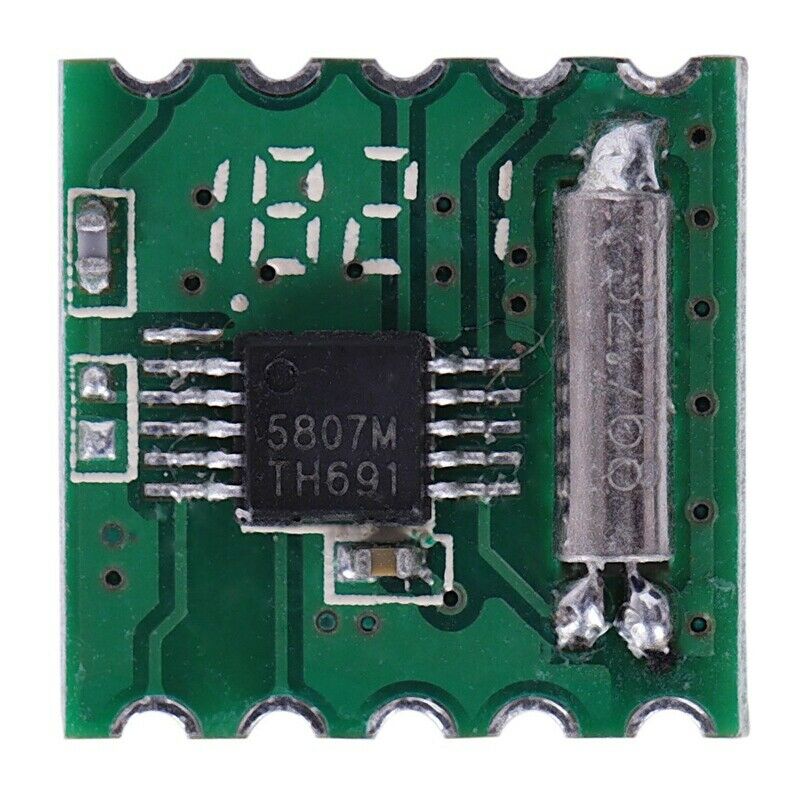

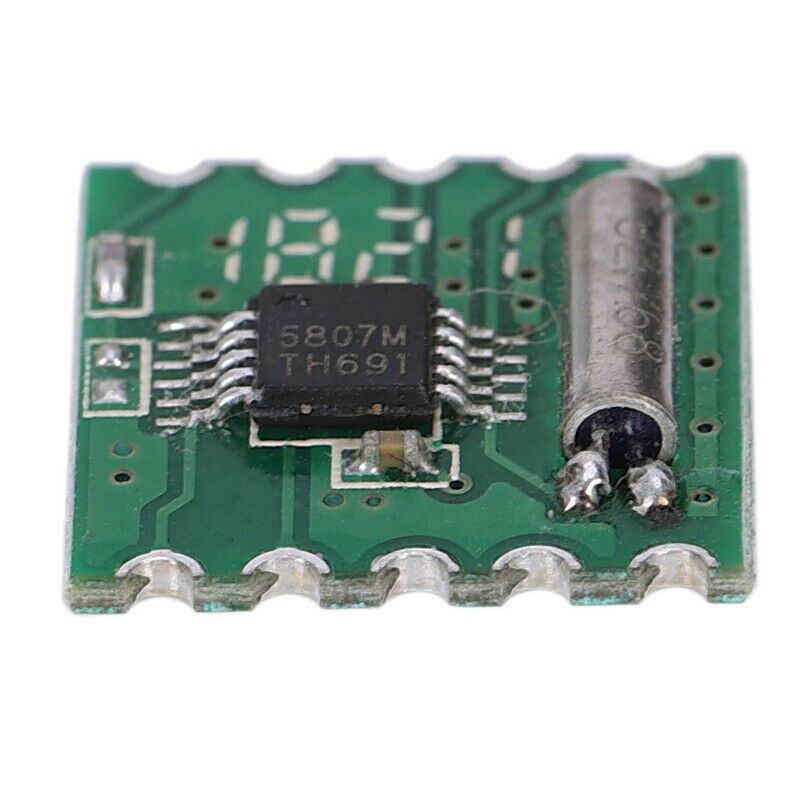

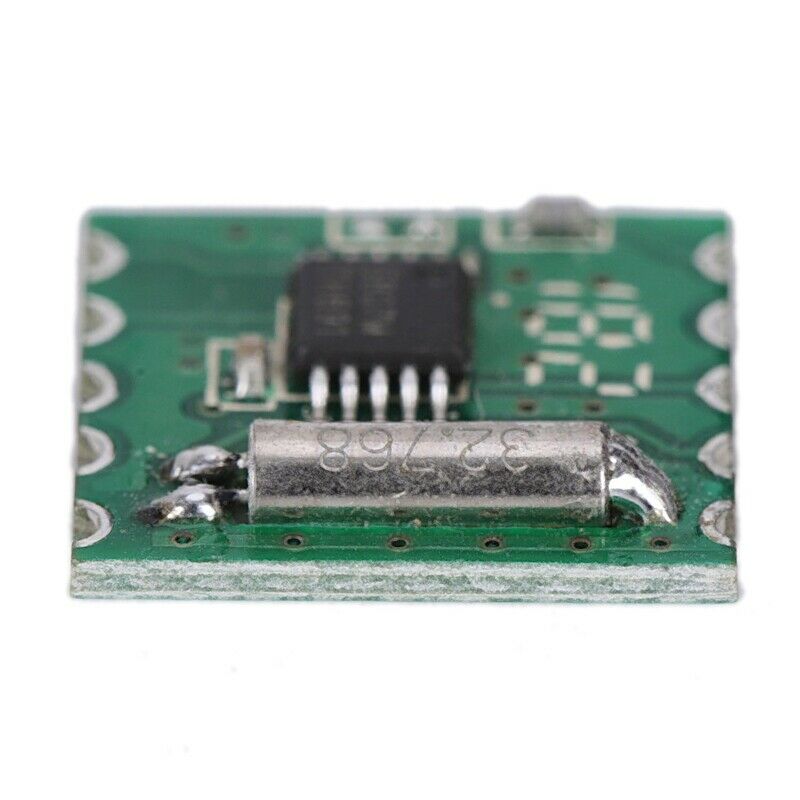

RDA5807M FM Stereo Radio Wireless I2C Module RRD-102V2.0 for Arduino
Product Overview
"RRD-102V2.0" stereo radio module (FM Stereo radio Module) high sensitivity, low power consumption, ultra- small size of the FM stereo radio module . Using RDA Microelectronics of...
$2.63
customers are viewing this product
Product Overview
"RRD-102V2.0" stereo radio module (FM Stereo radio Module) high sensitivity, low power consumption, ultra- small size of the FM stereo radio module . Using RDA Microelectronics of RDA5807M ( or RDA5802NM), this circuit fewer external components , the noise factor is minimal. Small size, low power consumption , low cost, simple application , the use of a wide range of advantages. Is an easy -to-use and possessed highly cost-effective single -chip FM stereo radio module.
A: Move DVD, TV, MP3, MP4 and other built -in FM wide-band wireless receiver module.
B: mining, business , campus , residential, tourist areas and other public places, stereo FM radio system .
C: wireless audio and wireless stereo headset functionality.
D: GPS navigation, TV broadcasting systems and other wireless FM radio .
E: high-end game consoles and wireless audio electronic toys.
F: mobile phones , mobile phones, intercom systems, mobile radio devices and other stereo radio .
G: PDAS and Notebook PC and other peripheral applications .
Functional Characteristics
A, using a common 102BC module package , users can directly replace the use , without changing the circuit design.

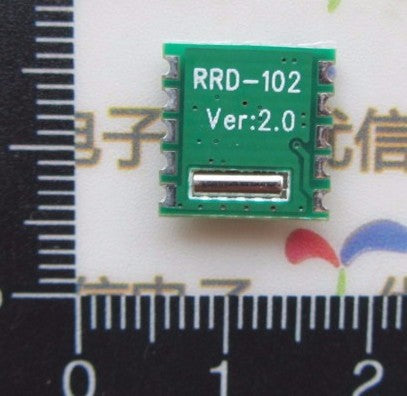

B, high sensitivity, low noise, anti-interference ability , very few external components , small size (11 * 11.2MM Max), extremely simple to use .
C, 76-108MHz FM band worldwide compatible ( 76-91MHz , including Japan , America and Europe 87.5-108.5MHz).
D, I2C serial data communications bus interface , support for external reference clock input.
E, COMS technology fully integrated single-chip integrated circuits , power consumption is minimal.
F, built-in high-precision A / D ( analog ) and digital frequency synthesizer.
G, built-in LDO regulator , low power, wide voltage range (2.7-3.6VDC).
H, built-in noise reduction, soft mute, bass boost circuit design.
I, 32Ω load high power audio output, headphone connections are direct , no external audio driver amplifier .
Package Included:
1 x RDA5807M FM Stereo Radio Wireless I2C Module RRD-102V2.0 for Arduino
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
