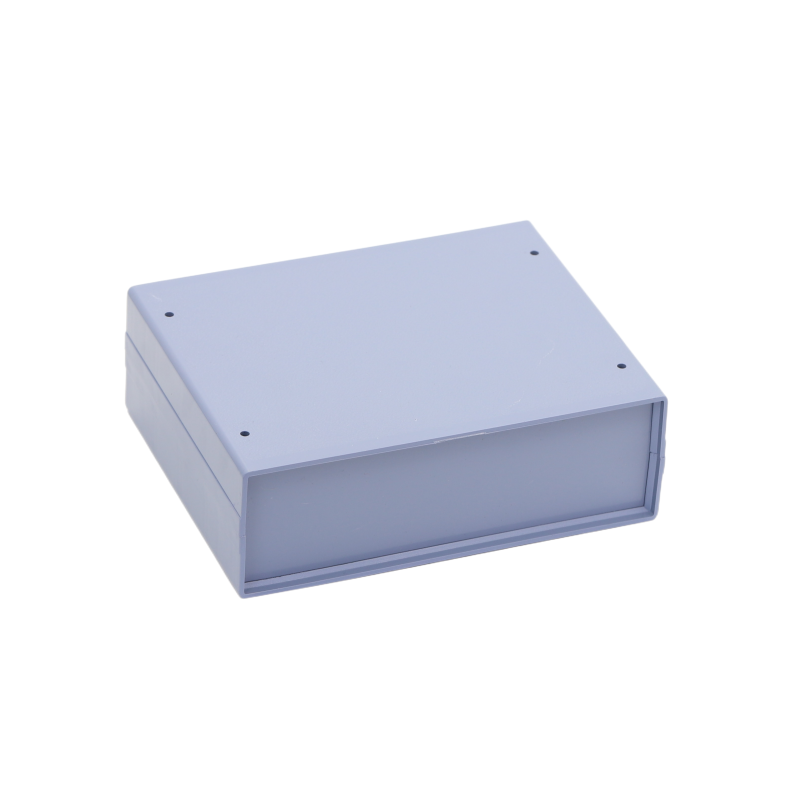

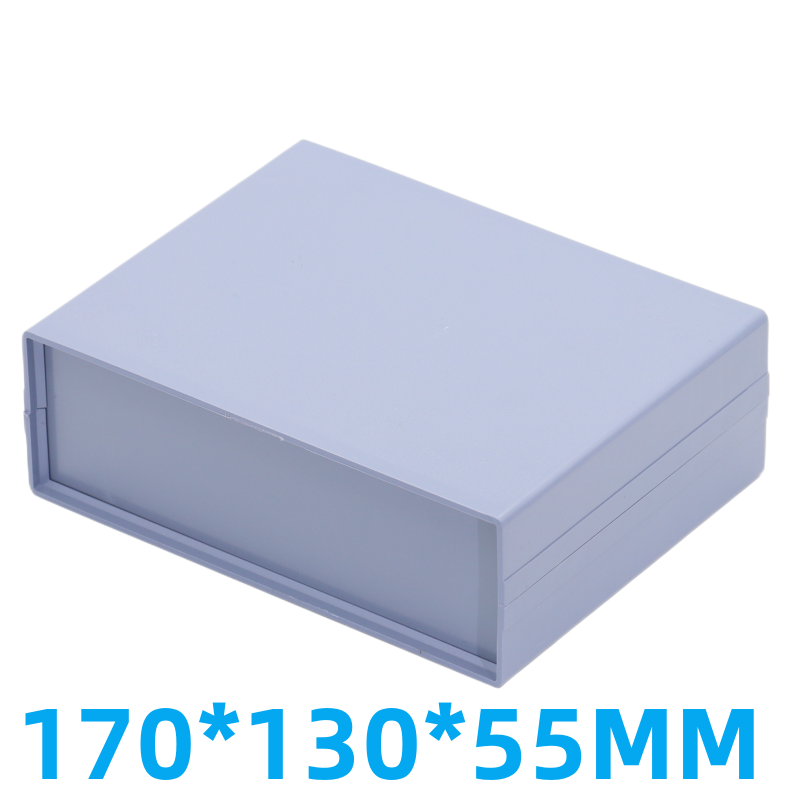

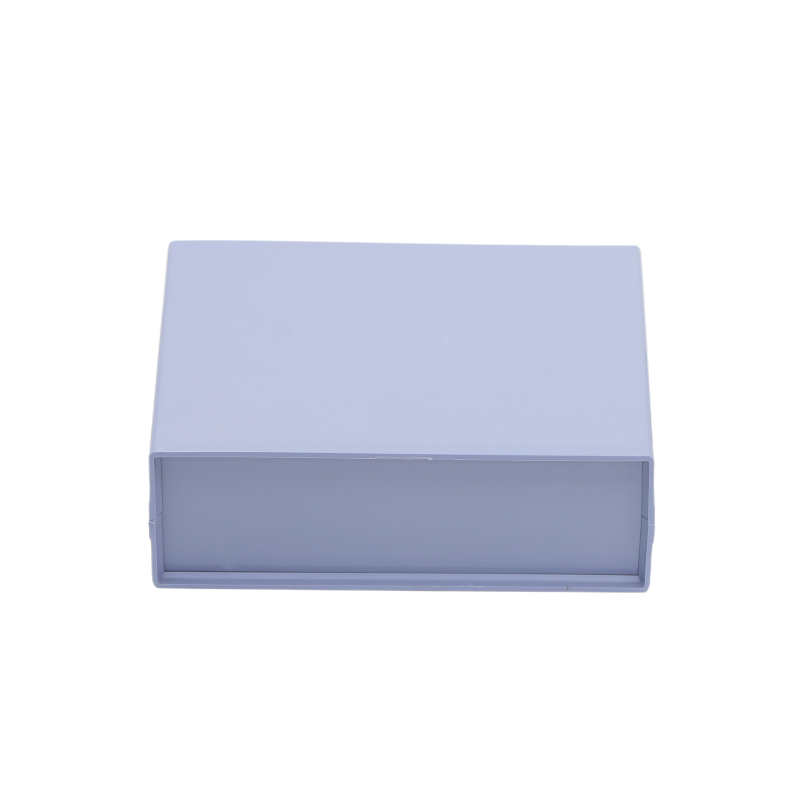

Plastic Enclosure Electronic Project Case DIY Power Junction Box 170x130x55mm
The enclosure is not a waterproof box, but a dustproof box. It is suitable for indoor use and is commonly used for electrical boxes, component boxes, audio and video junction boxes, etc.
The attac...
$17.89
customers are viewing this product
The enclosure is not a waterproof box, but a dustproof box. It is suitable for indoor use and is commonly used for electrical boxes, component boxes, audio and video junction boxes, etc.

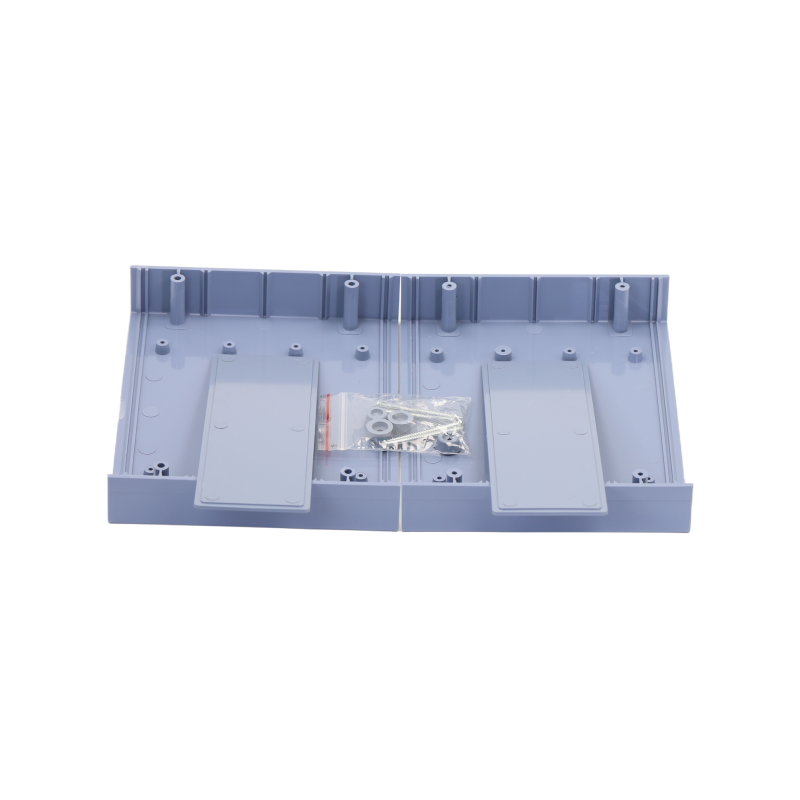

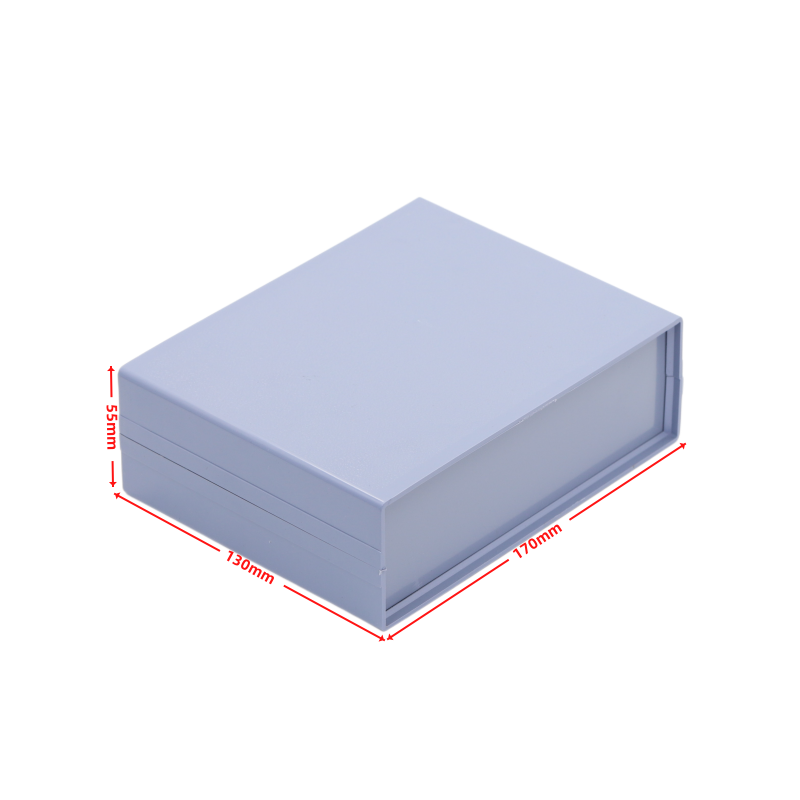

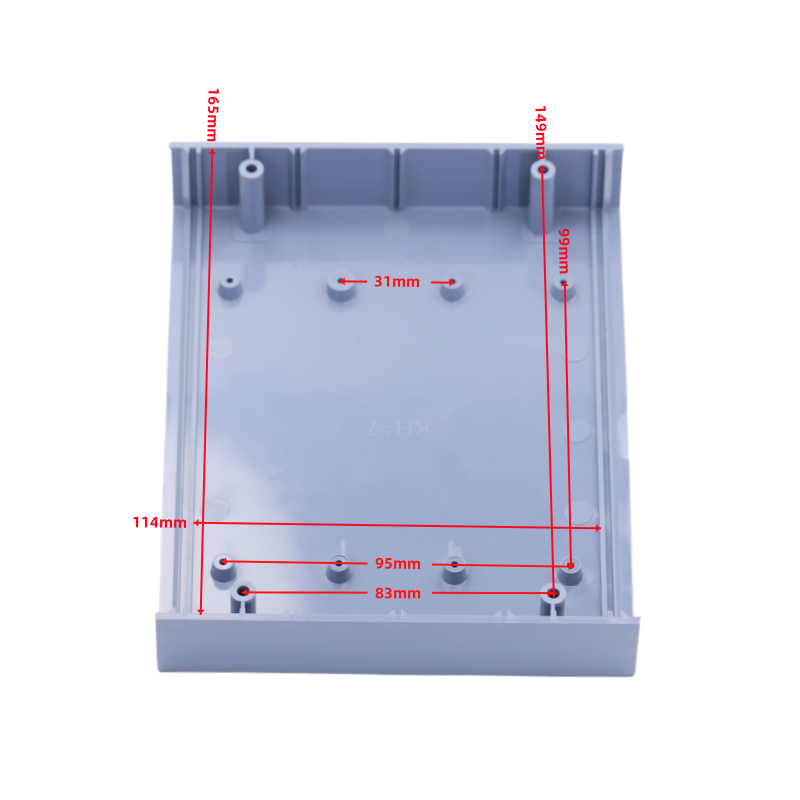

The attachment of the project, which we provide here, is in the following dimensions: External dimensions: 170x130x55mm; Internal dimensions: 164x114x30mm; Distance between mounting screw pillars: 147x76mm; Minimum mounting screw distance for the project board: 100x32mm;
Color: blue.
Made of ABS plastic, with excellent electrical insulation and flame retardant properties, it offers durable use. It is suitable for applications in electrical control, transmission, and other maintenance, repair, and operation applications.
Installation steps:
1. Secure the board or components as needed (refer to the dimensions above);
2. Confirm the wire hole size, then drill the hole;
3. Pass the wire, assemble the enclosure, and seal it with screws.
This plastic electrical box does not have any pre-installed wiring holes, so drill the holes as needed.
Package Included:
1 x Plastic Enclosure Electronic Project Case DIY Power Junction Box 170x130x55mm
