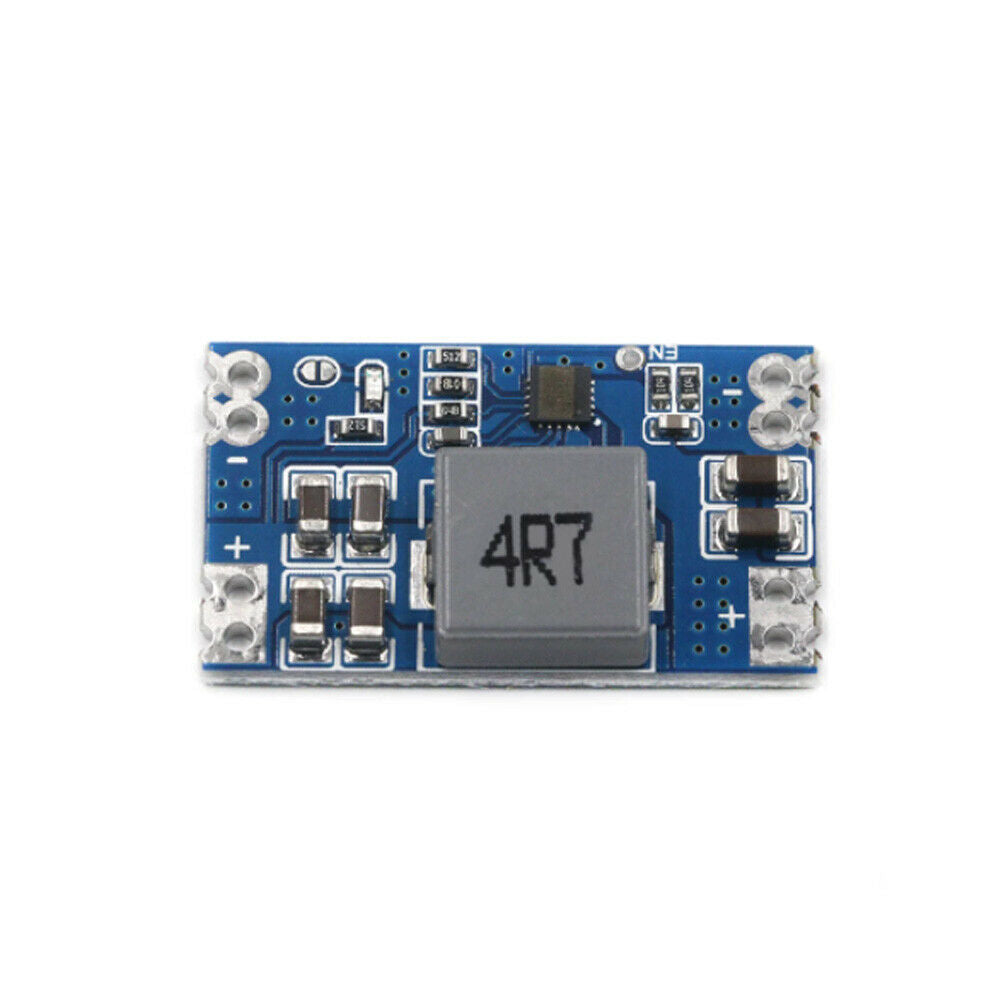

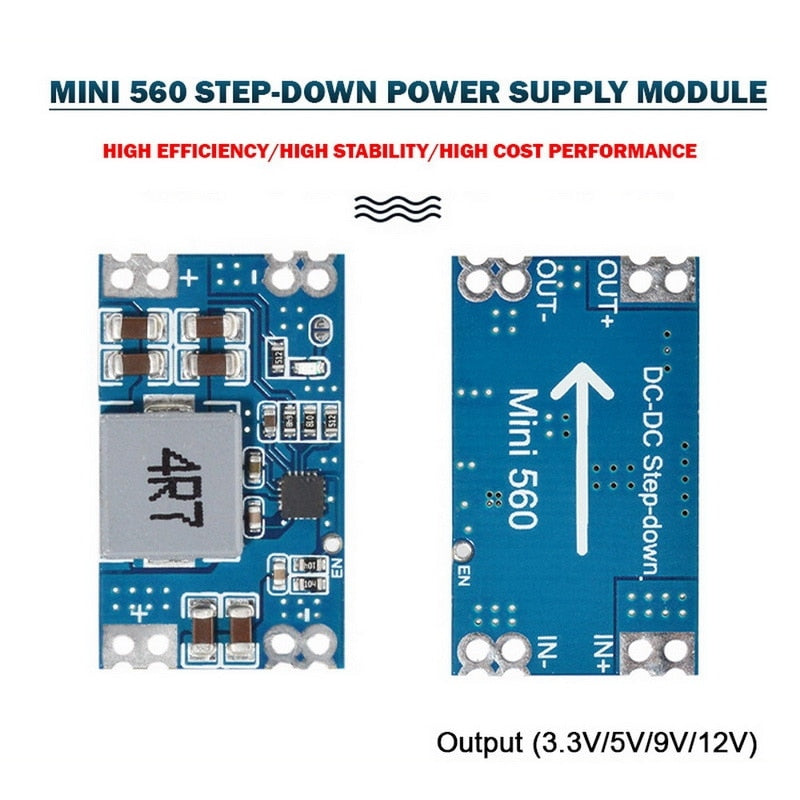

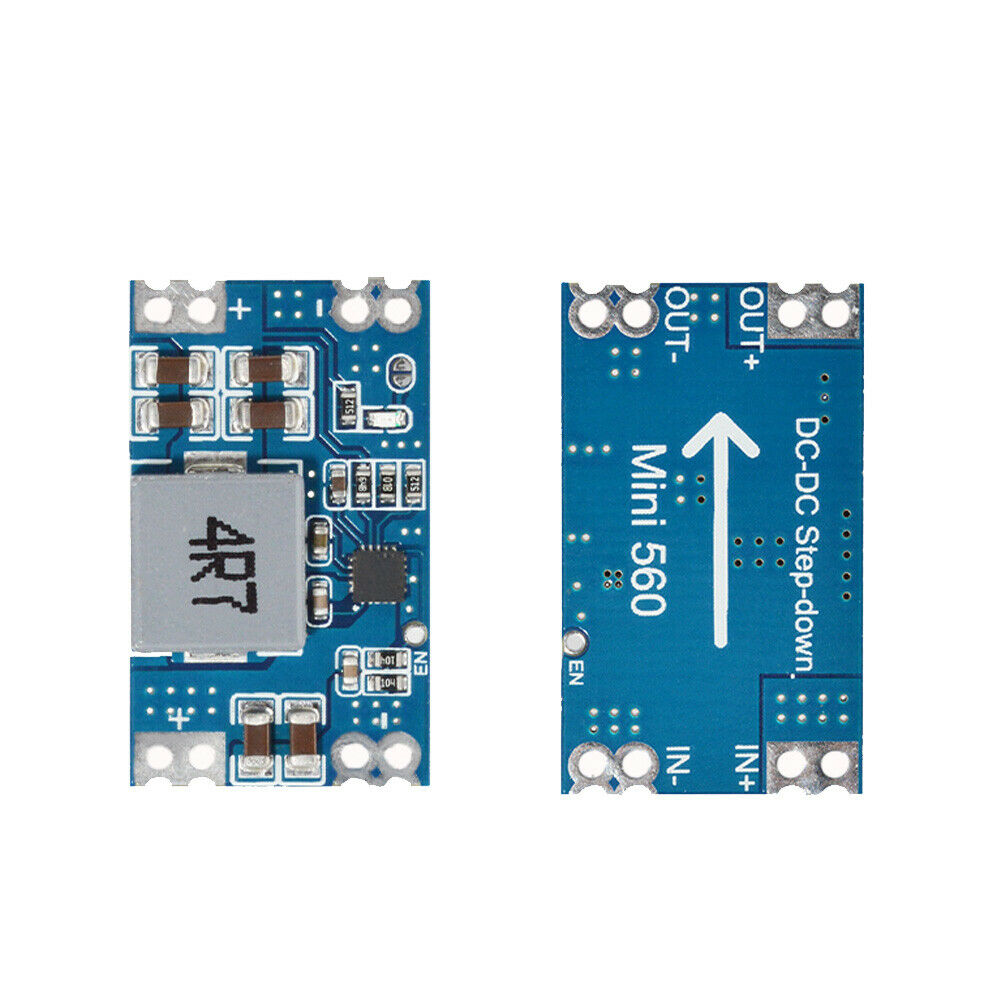

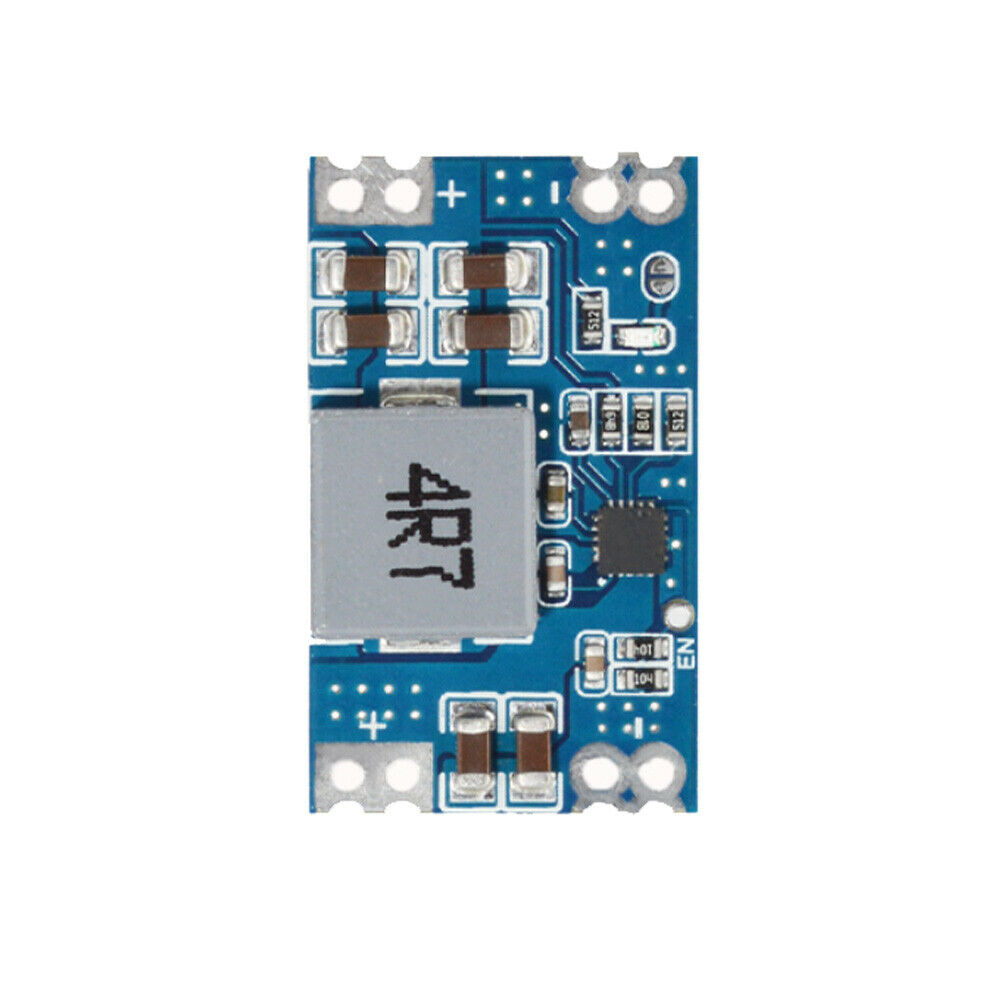

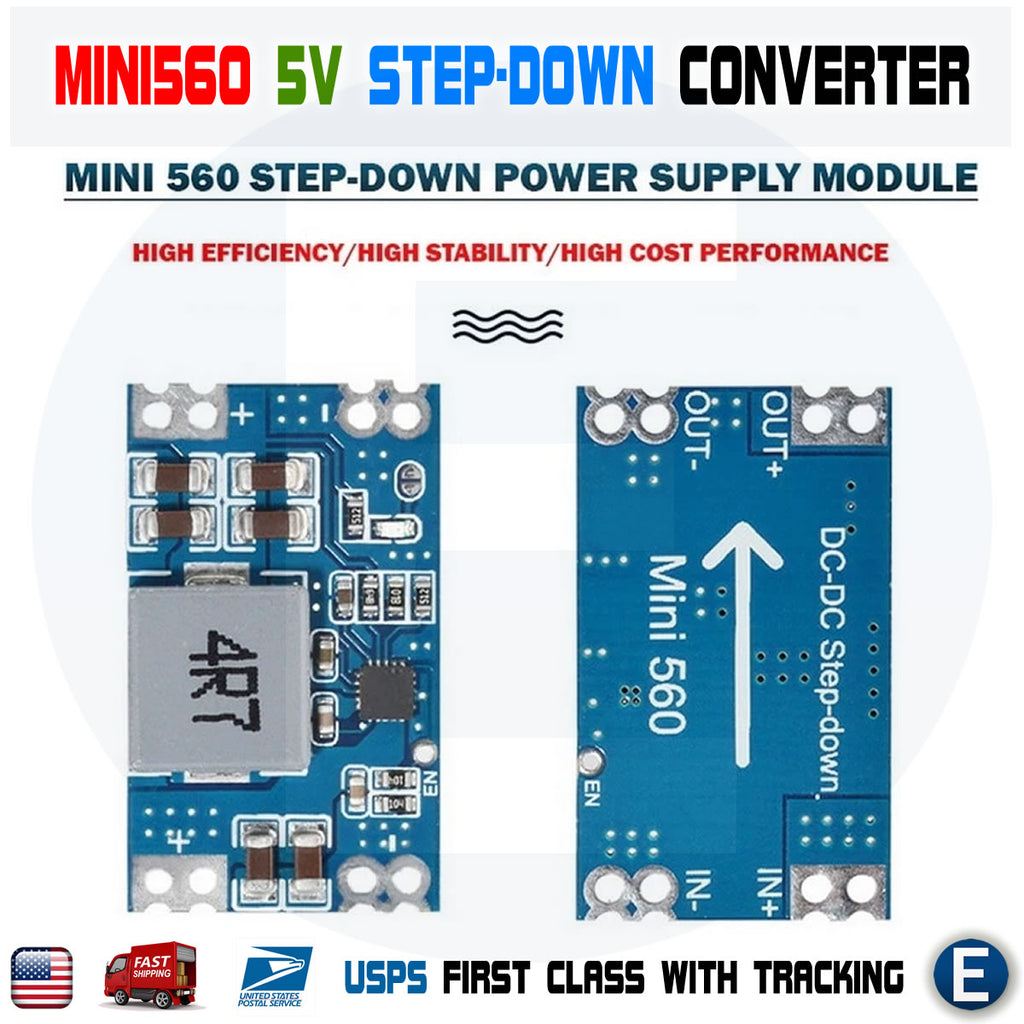

Mini560 Step-Down Stabilized Voltage Power Supply Module DC-DC Output 5V Buck Converter

Out of stock
B-02-08-01
High Efficiency Step Down DC DC Buck Converter Synchronous Rectifier Voltage Regulator Power Supply Board Mini560 5V Features: High efficiency, high stability, high cost performance. Ultra-small si...
$2.63
  customers are viewing this product

High Efficiency Step Down DC DC Buck Converter Synchronous Rectifier Voltage Regulator Power Supply Board Mini560 5V
Features:
High efficiency, high stability, high cost performance.

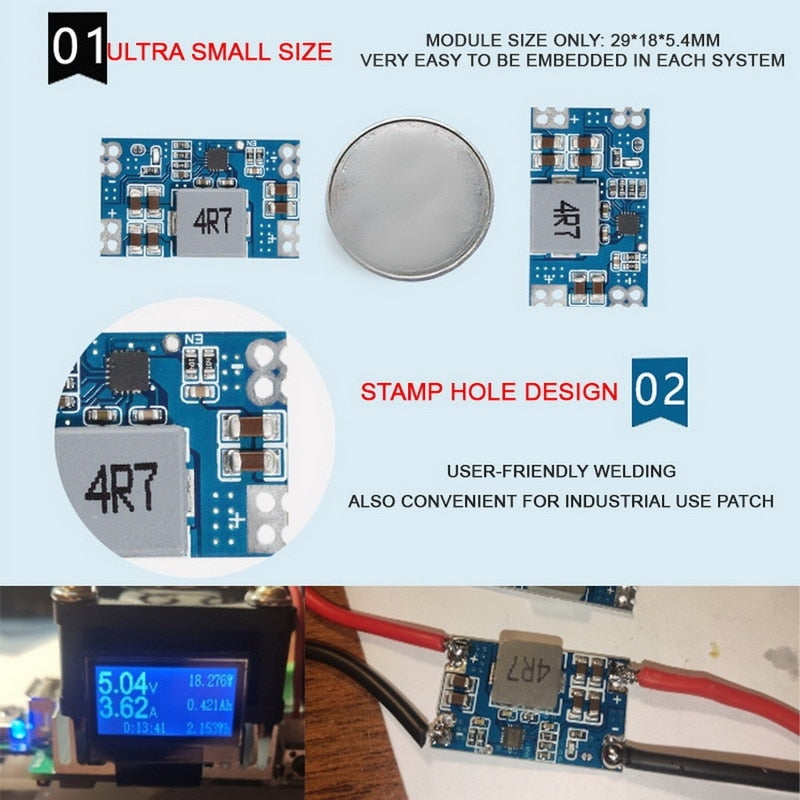

Ultra-small size, very easy to be embedded in each system
Stamp hole design, user-friendly welding. It is also convenient for industrial use of patches

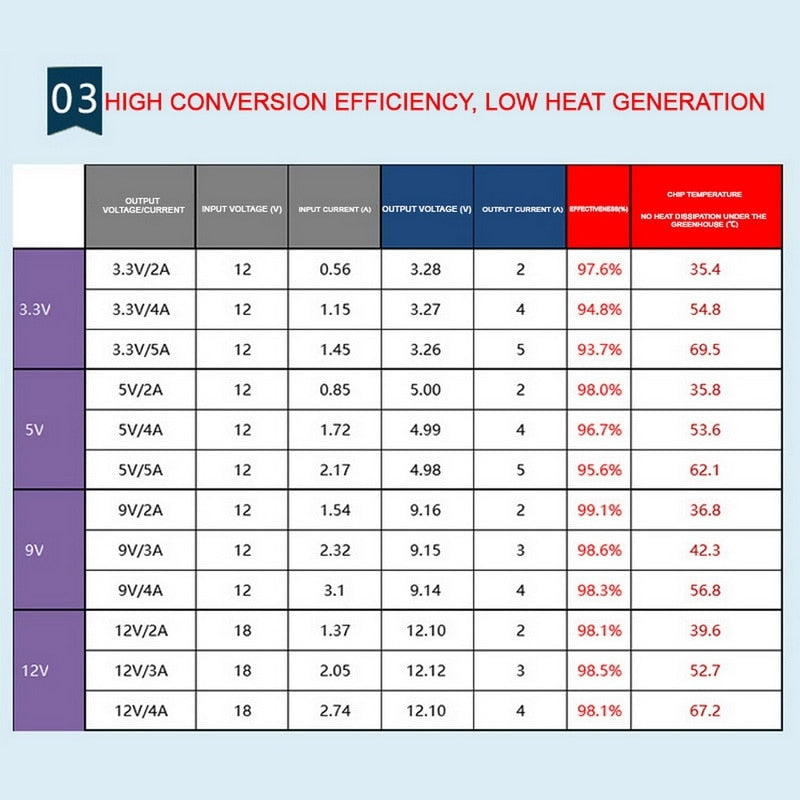

High conversion efficiency and low heat generation.

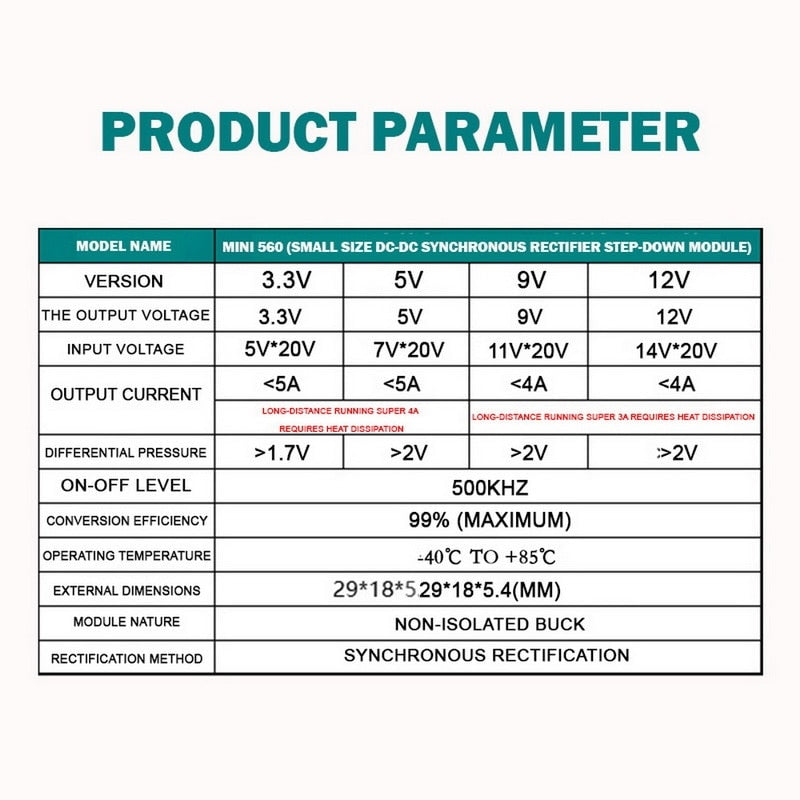

Parameters:
Model: Mini560 (small size DC-DC synchronous rectifier step-down module)

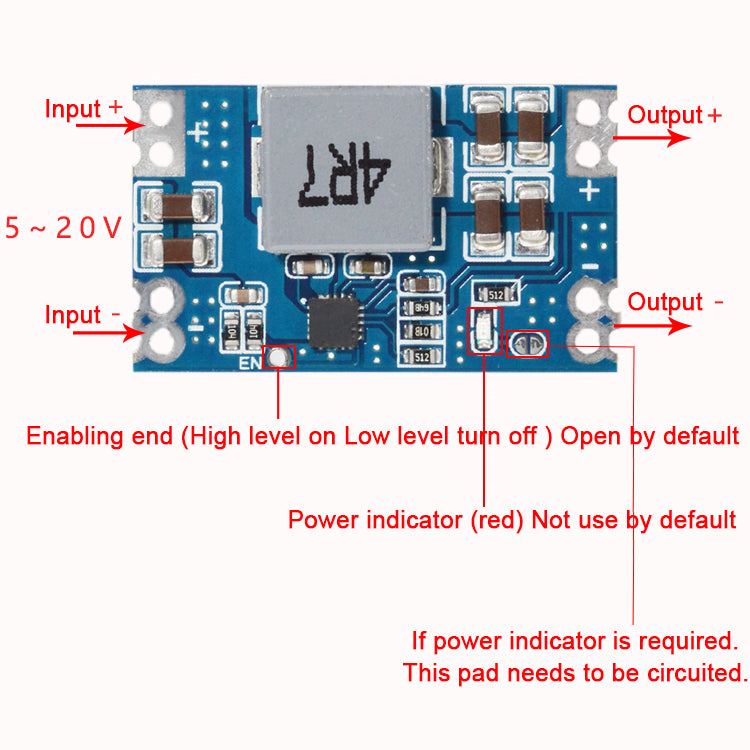

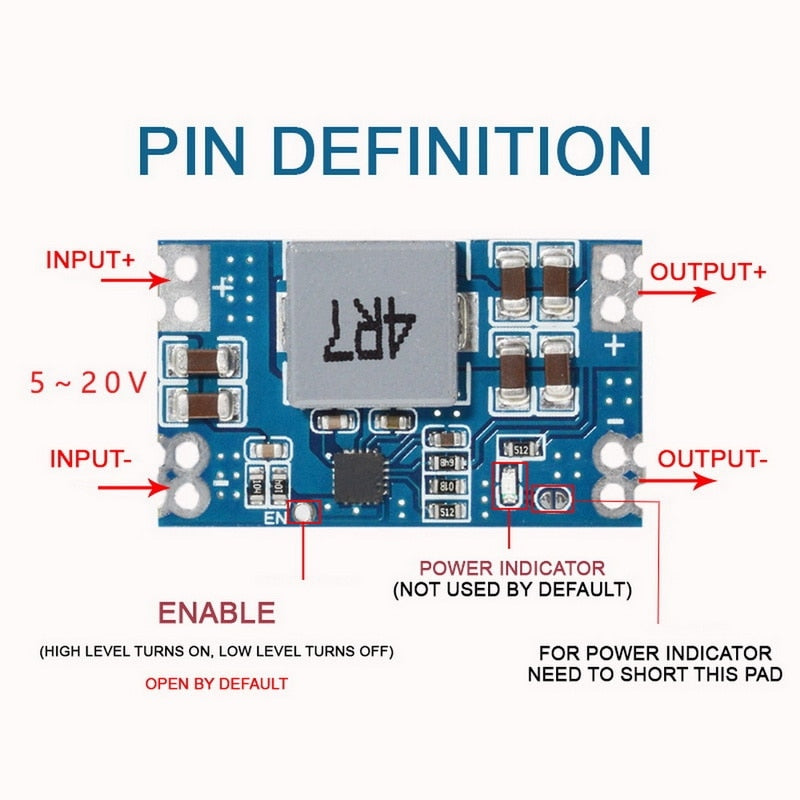

Voltage Input: 7V - 20V
Voltage Output: 5V
Switching frequency: 500KHz
Conversion efficiency: 99% (maximum)
Working temperature: -40 -85°C
Module nature: non-isolated step-down
Rectification method: Synchronous rectification

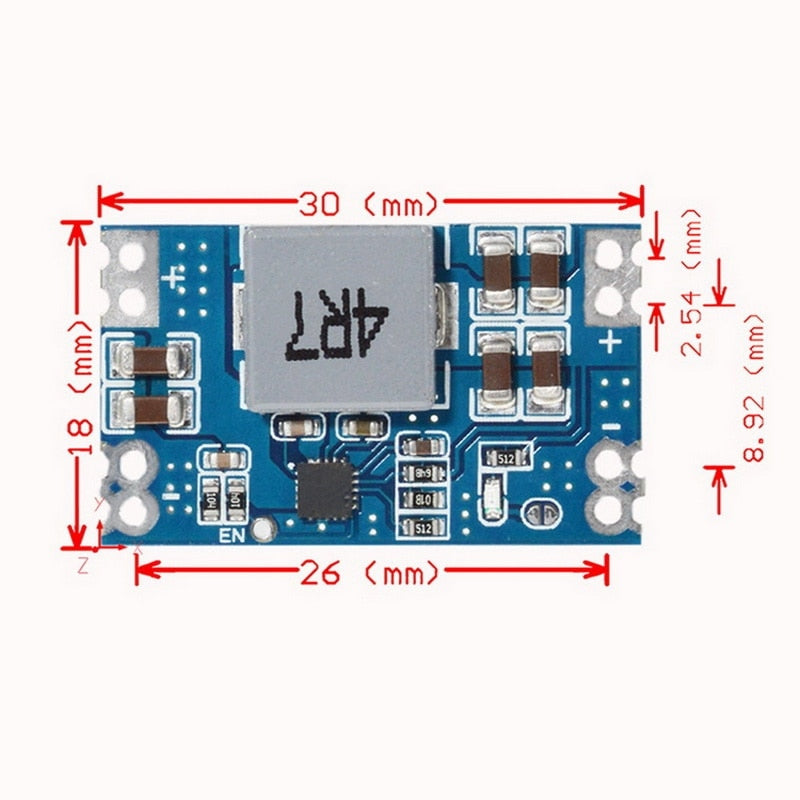

Module size: 29*18*5.4mm

Package Included:
1 x mini560 Step-Down Stabilized Voltage Power Supply Module DC-DC Output 5V Buck Converter
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
