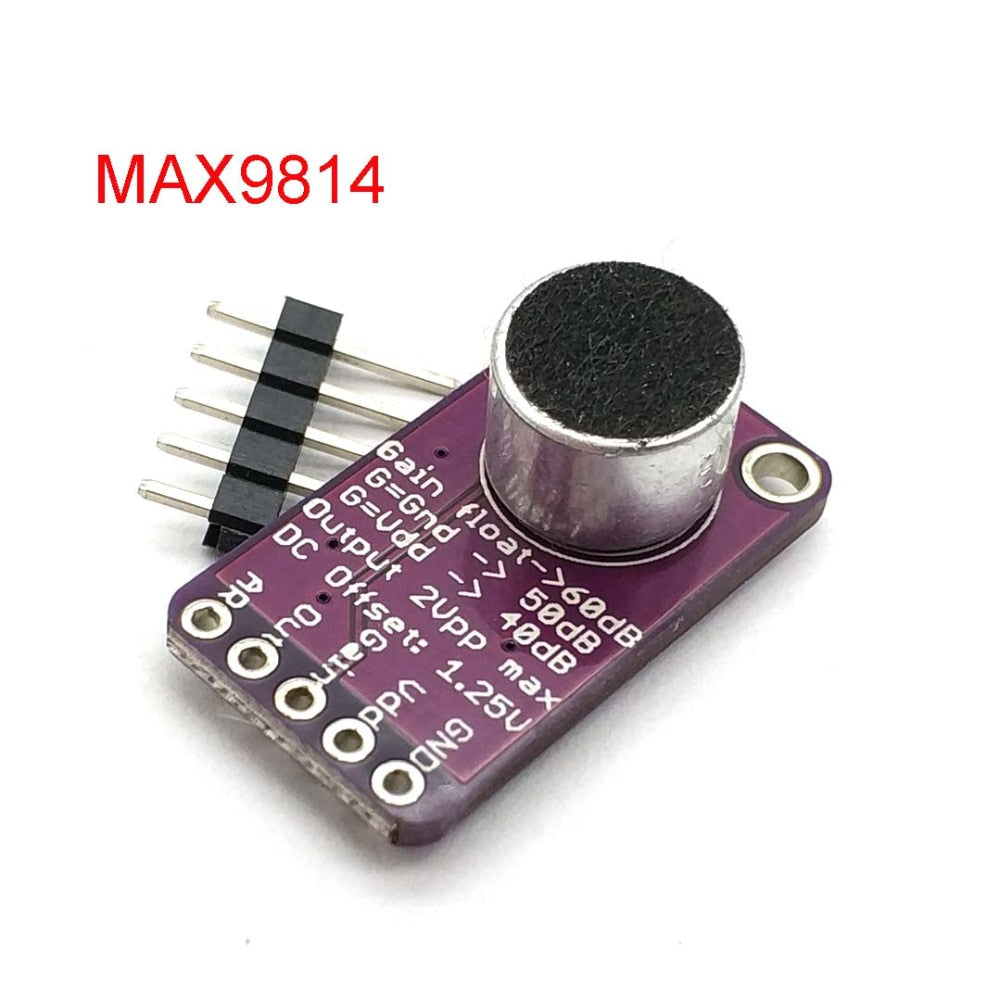

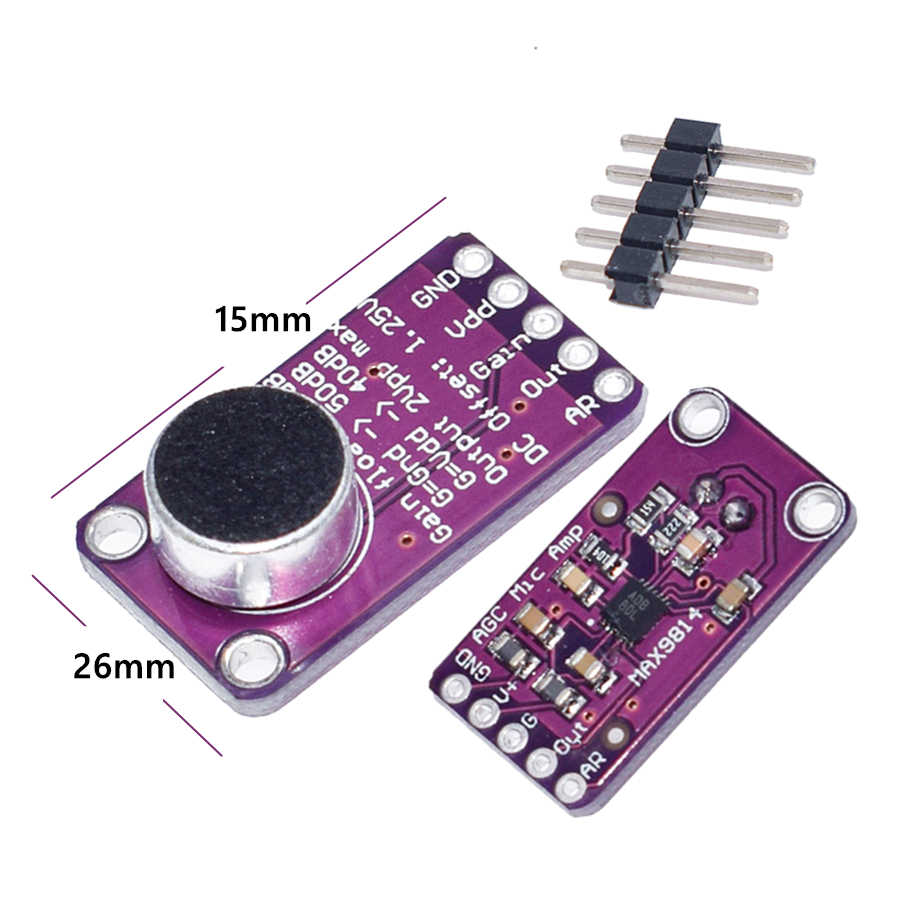

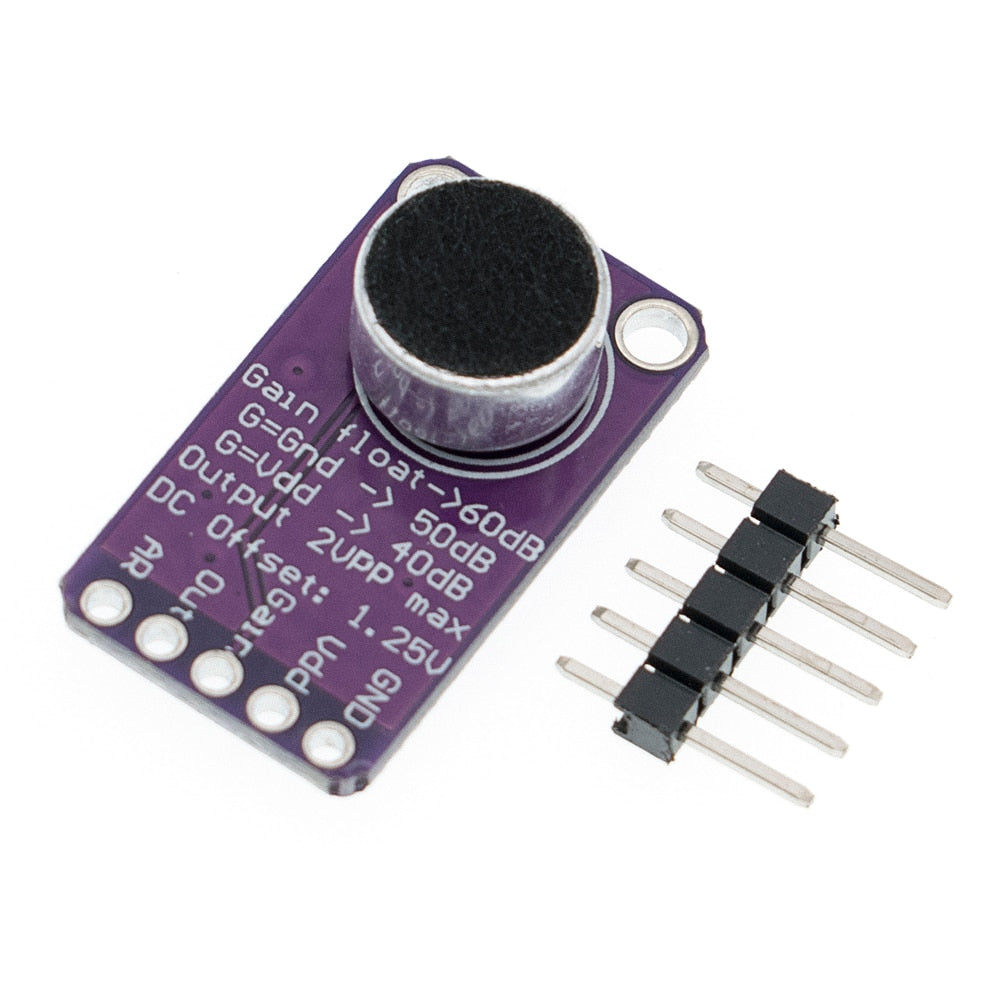

MAX9814 Electret Microphone Amplifier Stable Module Auto Gain Control AGC

In stock
A-01-04-04
Supply Voltage: 2.7v-5.5v @ 3mA current Output: 2Vpp on 1.25V bias Frequency Response: 20Hz - 20 KHz Programmable Attack and Release Ratio Automatic gain, selectable max from 40dB, 50dB or 60dB Low...
$4.89
$4.89
  customers are viewing this product

Supply Voltage: 2.7v-5.5v @ 3mA current
Output: 2Vpp on 1.25V bias
Frequency Response: 20Hz - 20 KHz
Programmable Attack and Release Ratio
Automatic gain, selectable max from 40dB, 50dB or 60dB
Low Input-Referred Noise Density of 30nV/
Low THD: 0.04% (typ)

Package Included:
1 x MAX9814 Electret Microphone Amplifier Stable Module Auto Gain Control AGC
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
