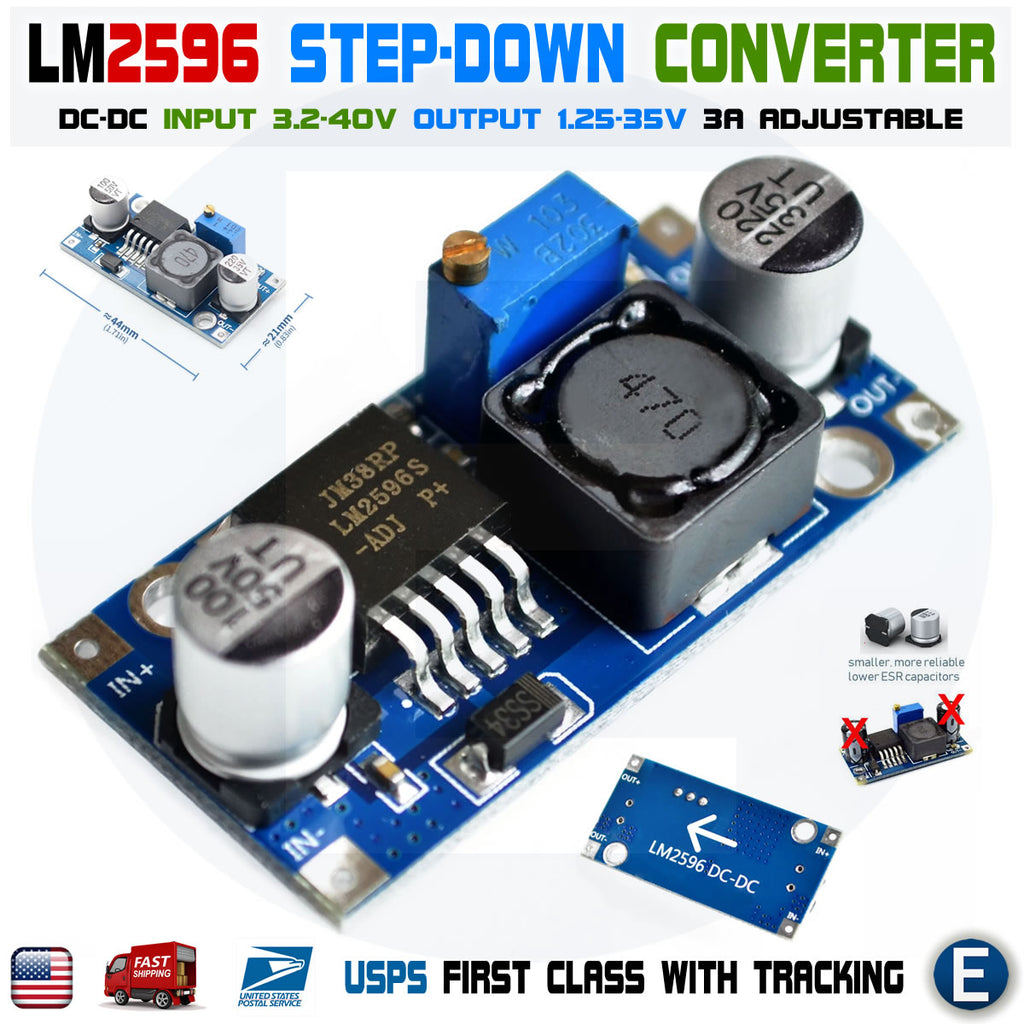

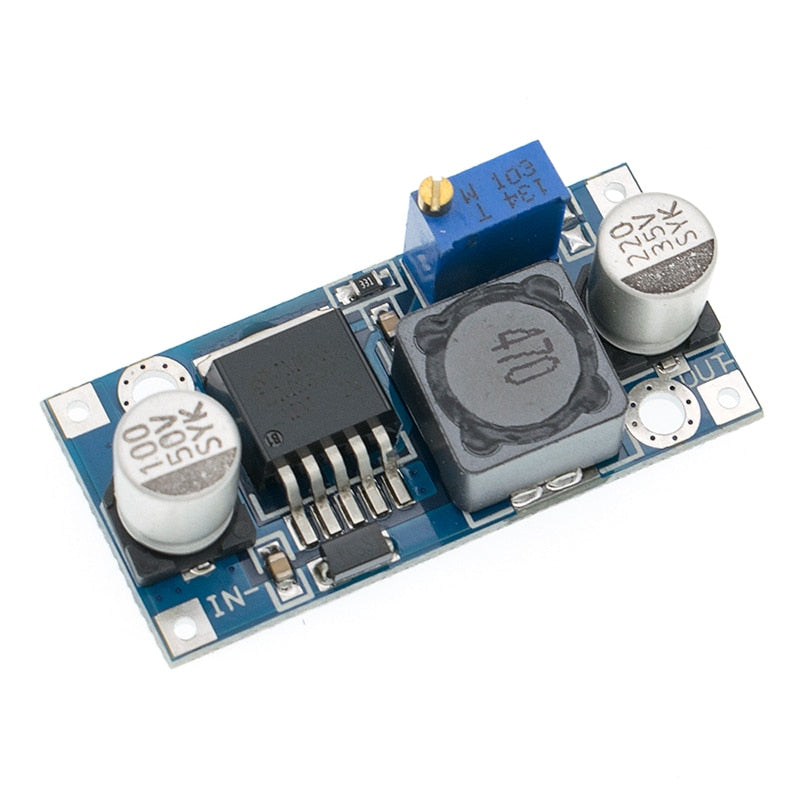

LM2596 DC-DC Buck Adjustable step-down Power Supply Converter Module LM2596S

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Power Regulators & Converters
B-02-01-03
DC-DC step-down power module Name / number LM2596S DC-DC step-down module Input voltage 3.2V ~ 40V Output voltage 1.25V ~ 35V Output current 3A (max) Conversion efficiency of 92% (maximum) Ou...
$2.63
$2.63
  customers are viewing this product
DC-DC step-down power module
Name / number LM2596S DC-DC step-down module
Input voltage 3.2V ~ 40V
Output voltage 1.25V ~ 35V
Output current 3A (max)
Conversion efficiency of 92% (maximum)
Output ripple <30mV
Switching frequency 65KHz
Operating temperature -45 ℃ ~ +85 ℃

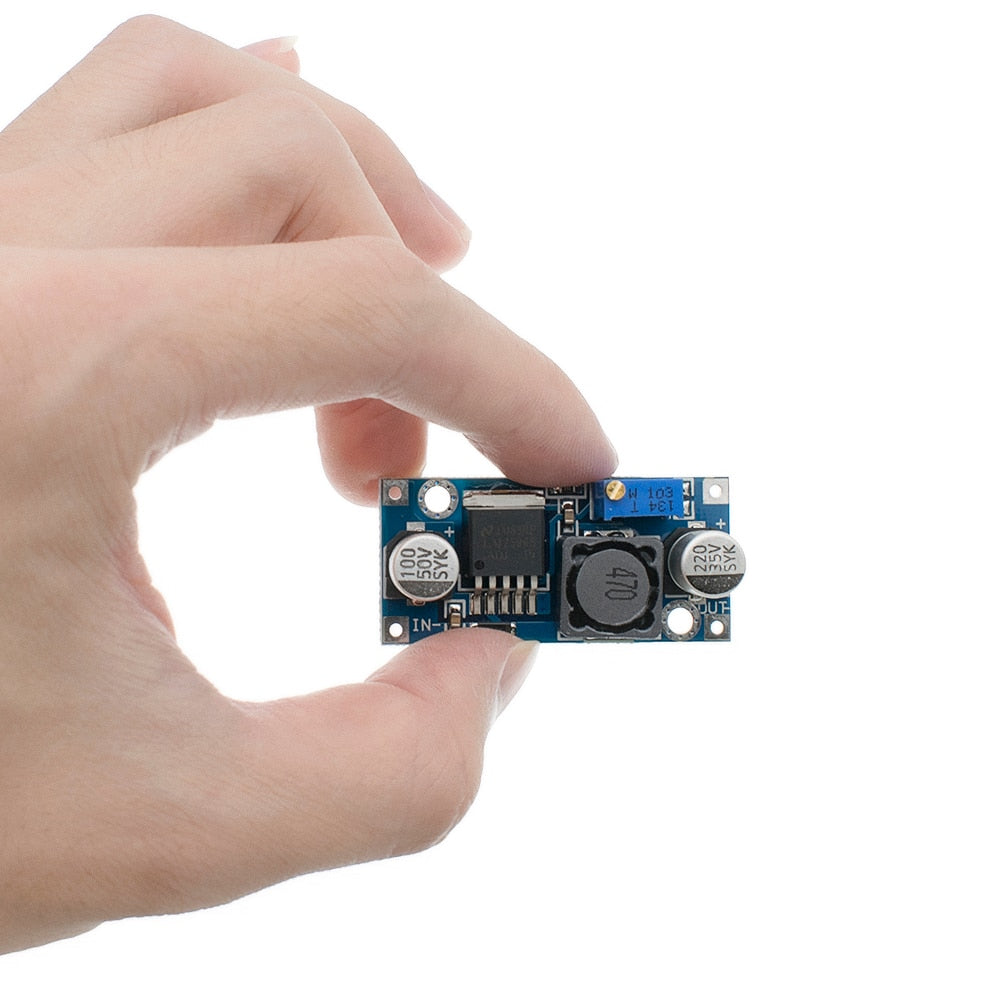

Size 43mm * 21mm * 14mm (L * W * H)
IN-IN + input Positive Input Negative!

- Positive output OUT + OUT-output negative
Input voltage range: DC 3.2V to 40V (input voltage must be greater than the output voltage to 1.5V or more high. Could not boost)

- Output Voltage Range: 1.25V to 35V DC voltage continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A, Measured 12V input, 5V output current is 1A load regulation rate of less than 1%

Package Include:
1 x LM2596 DC-DC buck adjustable step-down Power Supply Converter module
