LCR-T7 Tester Transistor TFT Diode Triode Capacitance Meter LCR ESR Tester Kit

Out of stock
Features: Used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.Can also be used to detect infrared wave forms...
  customers are viewing this product

Used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
Can also be used to detect infrared wave forms.
Can detect Zener Diode, has the function of self-calibration.
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
One button operation, automatically detect and shutdown.
Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Automatic detection of Zener diode 0.01-30V.
Self test with automatic calibration.
Support Hitachi IR coding.
IR waveform display.
Infrared receiving instruction.
Measurement results using TFT graphic display.
One key operation.
Auto power off (timeout settable).
Built-in high capacity rechargeable Li-ion battery.
Li-ion Battery voltage detection.
Used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries

Size: 88*80*28mm
Display: 3.5 inch
Diode Range: < 4.5V
Zener Diode: Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (included)
Sweep range: 0.1MHz
Voltage: 3.7V
Display: 160 * 128 TFT
Battery: 1 x Li-ion battery, 3.7V, 300mAh

Before testing, please discharge the electronic components to protect the detector.
When the voltage and the inside battery is under 3V, please charge it before usage.

Package Included:

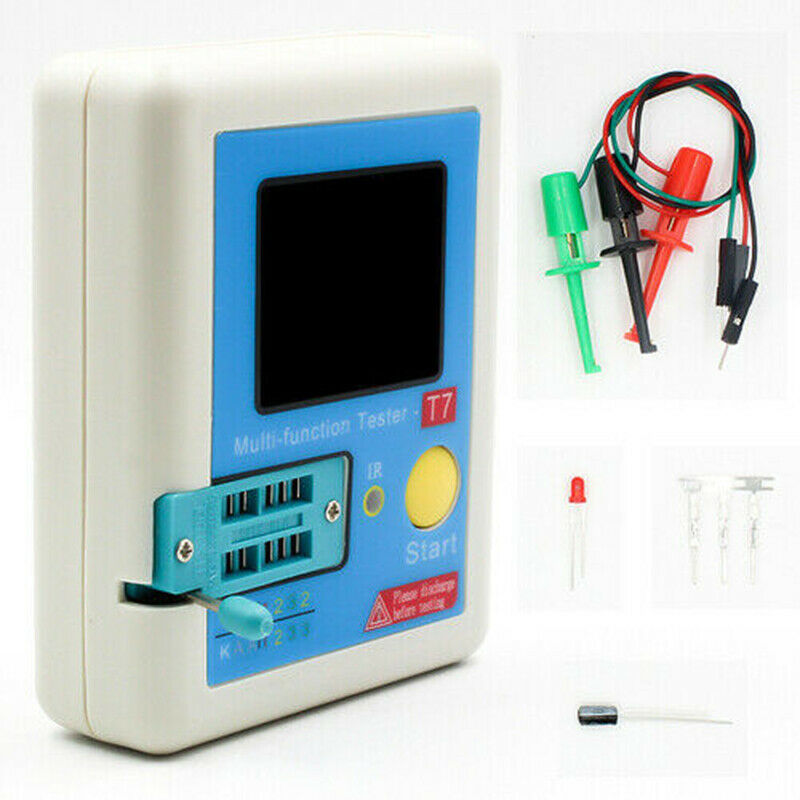

1x LCR-T7 Tester
1x Charging Wire
1x Test Chips
1x Test Components Package
Instructions are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
