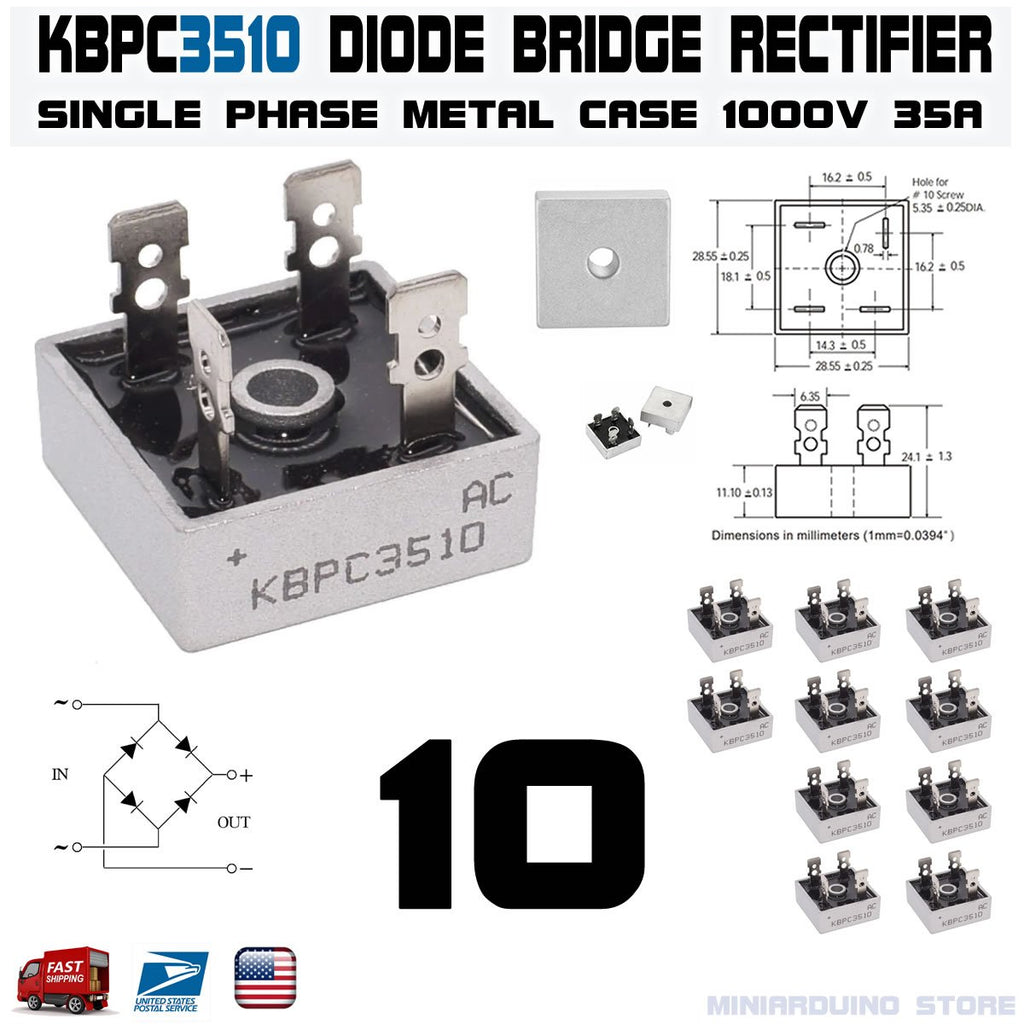

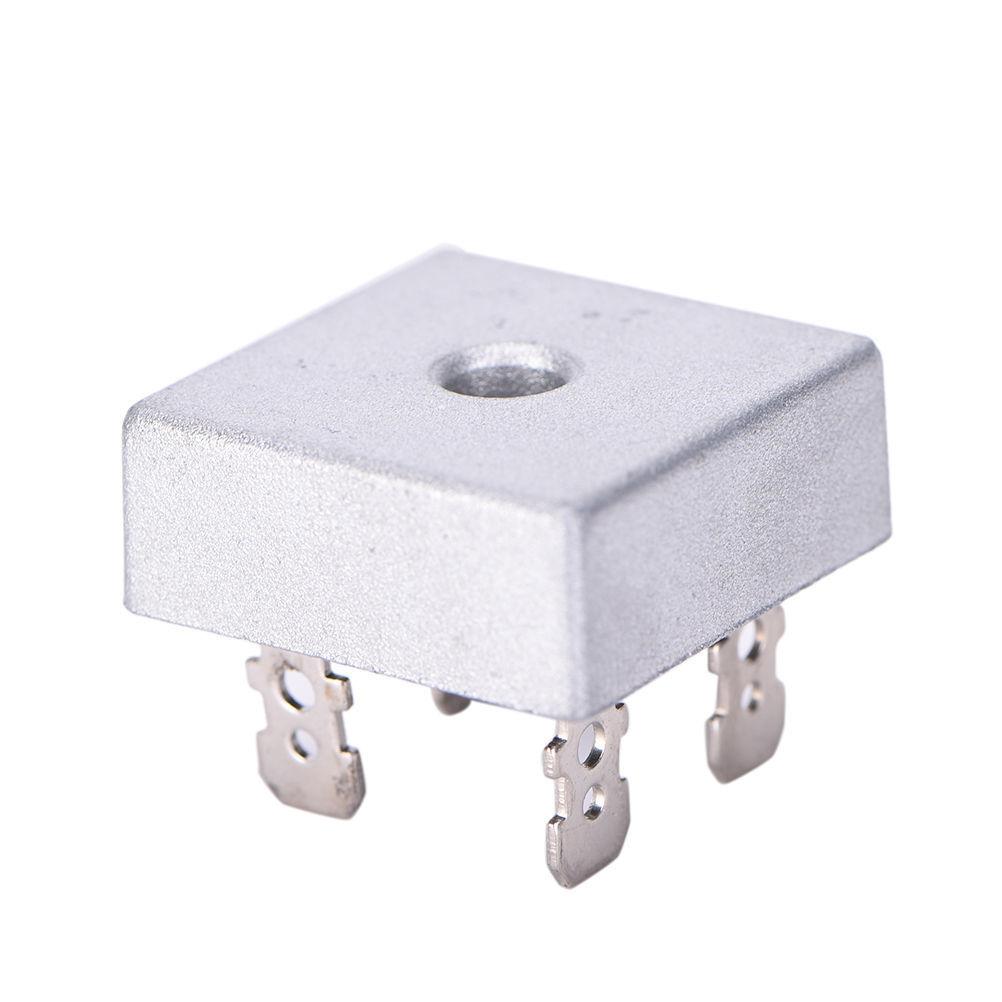

10pcs KBPC3510 Diode Bridge Rectifier Single Phase Metal Case 1000V 35A

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Diodes:Other Diodes
Specifications:Product name: KBPC-3510 bridge rectifierApplications: Common industrial applicationsPower characteristic: High-powerFrequency characteristic: SHFEfficiency: 100%Output Current(DC):35...
$18.89
$18.89
  customers are viewing this product

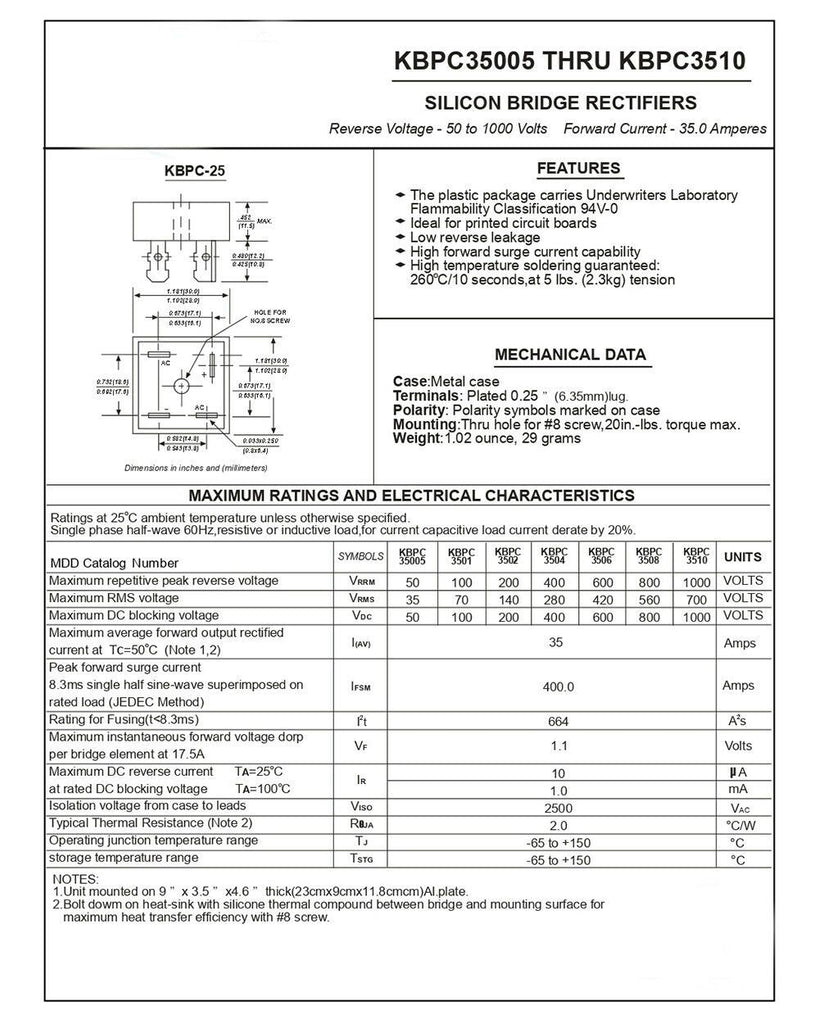

Specifications:
Product name: KBPC-3510 bridge rectifier
Applications: Common industrial applications
Power characteristic: High-power
Frequency characteristic: SHF
Efficiency: 100%
Output Current(DC):35A(Max)
Peak Current:5mA
Repetitive Peak Reverse Voltage(AC):1000V
Phase:Single Phase
Terminals : 4
Material:Resin, Metal

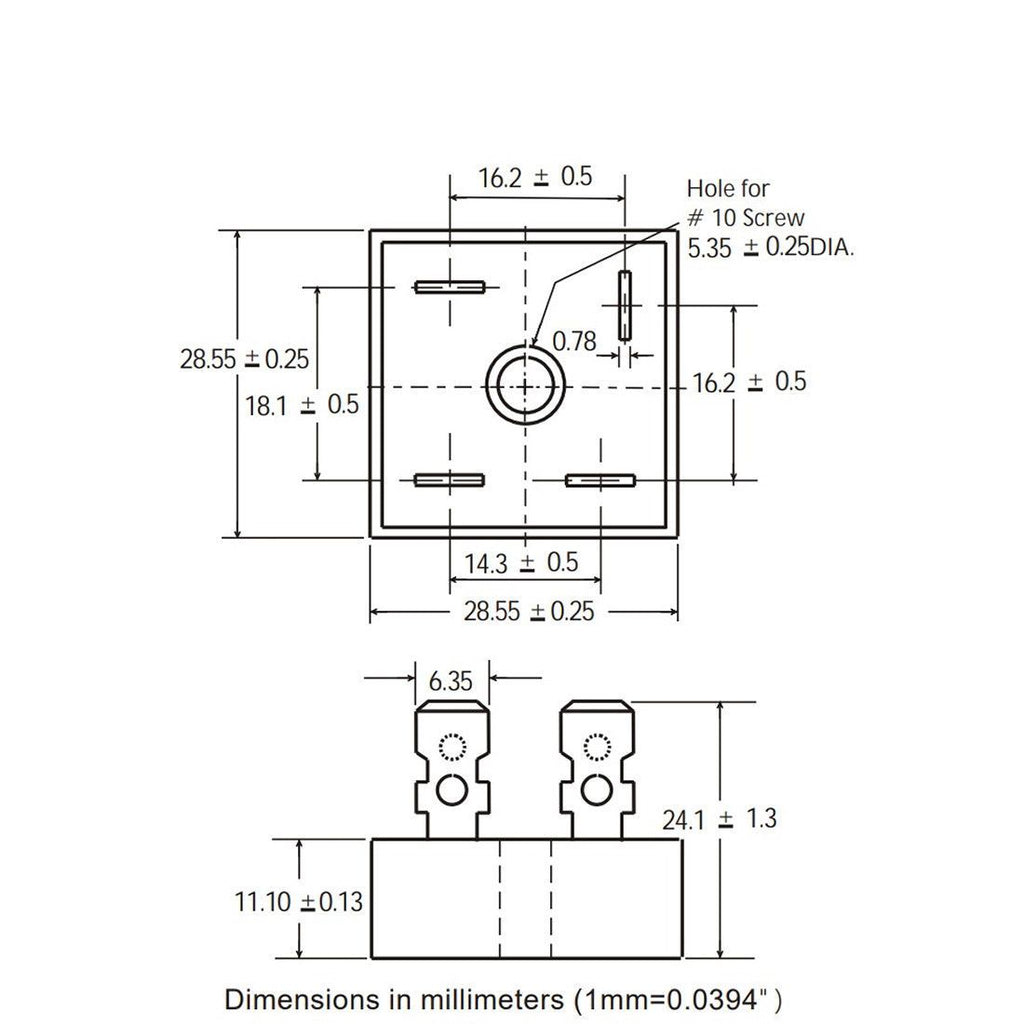

Fixing hole diameter: Approx. 0.22 inch/5.6mm
Size: Approx. 1.1 x 1.1 x 0.83 inch/28 x 28 x 21mm
Operating temperature range: -55~+150cº

Package Includes:
10 x KBPC3510 Diode Bridge Rectifier Single Phase Metal Case 1000V 35A
