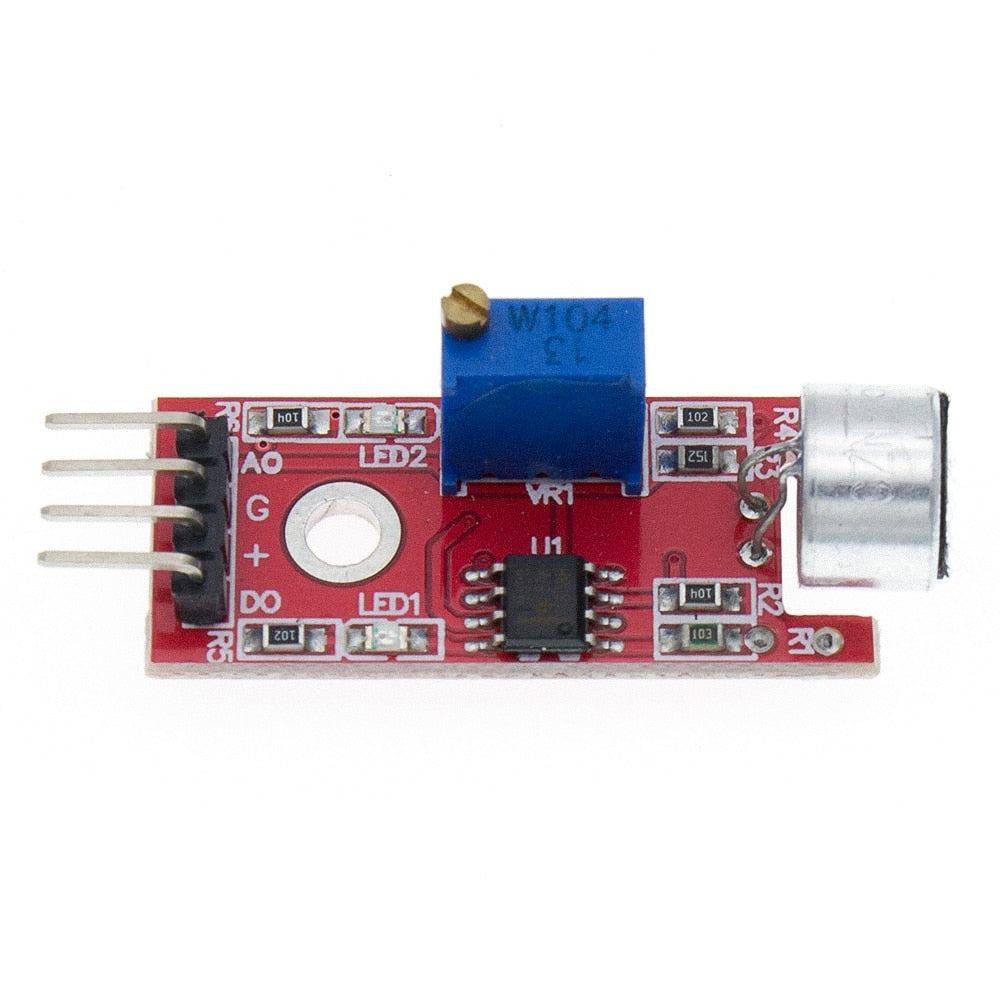

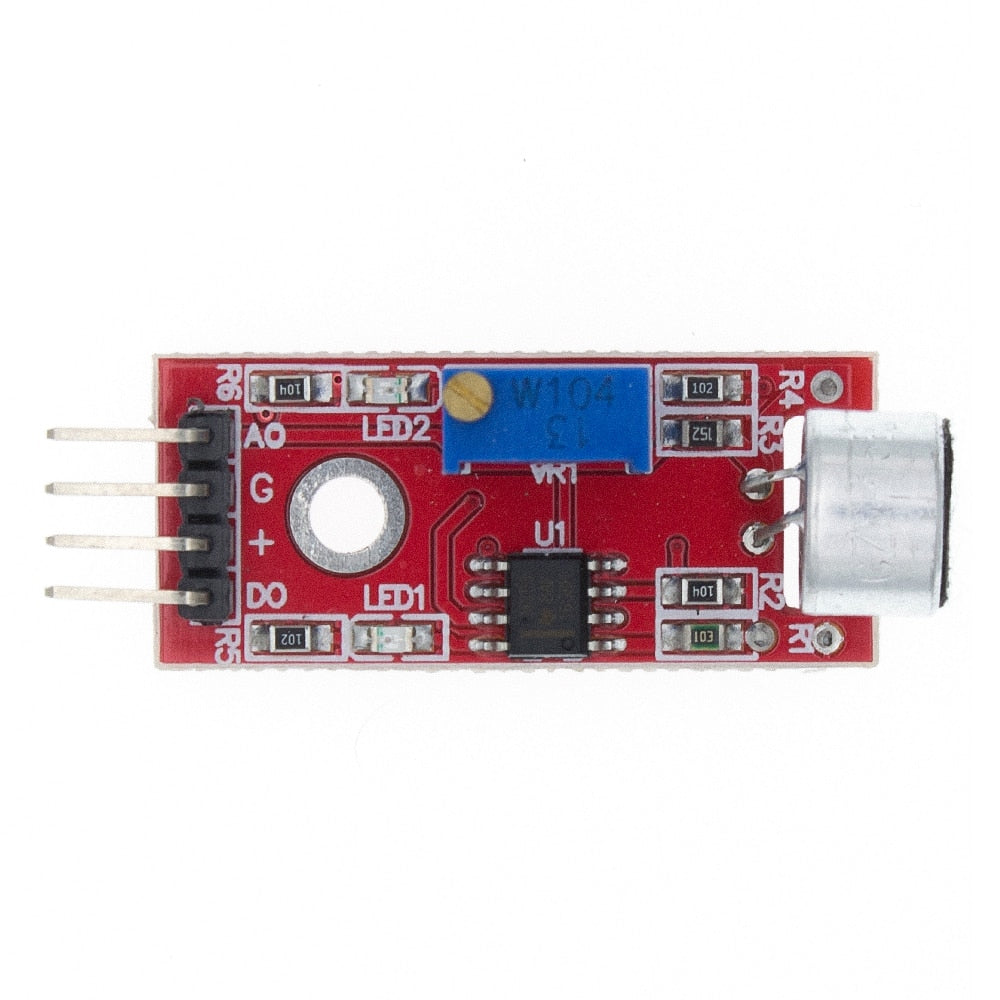

High Sensitivity Sound Microphone Sensor Detection Module For AVR PIC KY-037 Arduino

In stock
The module has two outputs:AO, analog output, real-time output of microphone voltage signalDO, when the sound intensity reaches a certain threshold, the output of high and low level signals, [thres...
$2.63
$2.63
  customers are viewing this product

The module has two outputs:
AO, analog output, real-time output of microphone voltage signal
DO, when the sound intensity reaches a certain threshold, the output of high and low level signals, [threshold-sensitivity can be adjusted by potentiometer]

Description
Size:32mm*17mm*8mm(length*width*height)
Main chip:LM393, Electret condenser microphone
Working voltage: DC 4-6V
Signal output indication
Single channel signal output
The output effective signal is low level
When there is sound, outputs low level and signal light
Can be used for Acoustic control light , give sound and light alarm working with Photosensitive sensor ,and sound control, sound detect
Circuit board output switch quantity
Note: The Maximum induction distance is 0.5M

Features
Uses 5V DC power supply
Microphone Sensor High Sensitivity Sound Detection Modules for Arduino PIC AVR
Has 3mm mounting screw hole
Package Includes:3pcs Microphone Sensor High Sensitivity Sound Detection Module
Has two outputs: AO, analog output, real-time output voltage signal of the microphone

Package Included:
1 x  High Sensitivity Sound Microphone Sensor Detection Module For AVR PIC KY-037 Arduino
