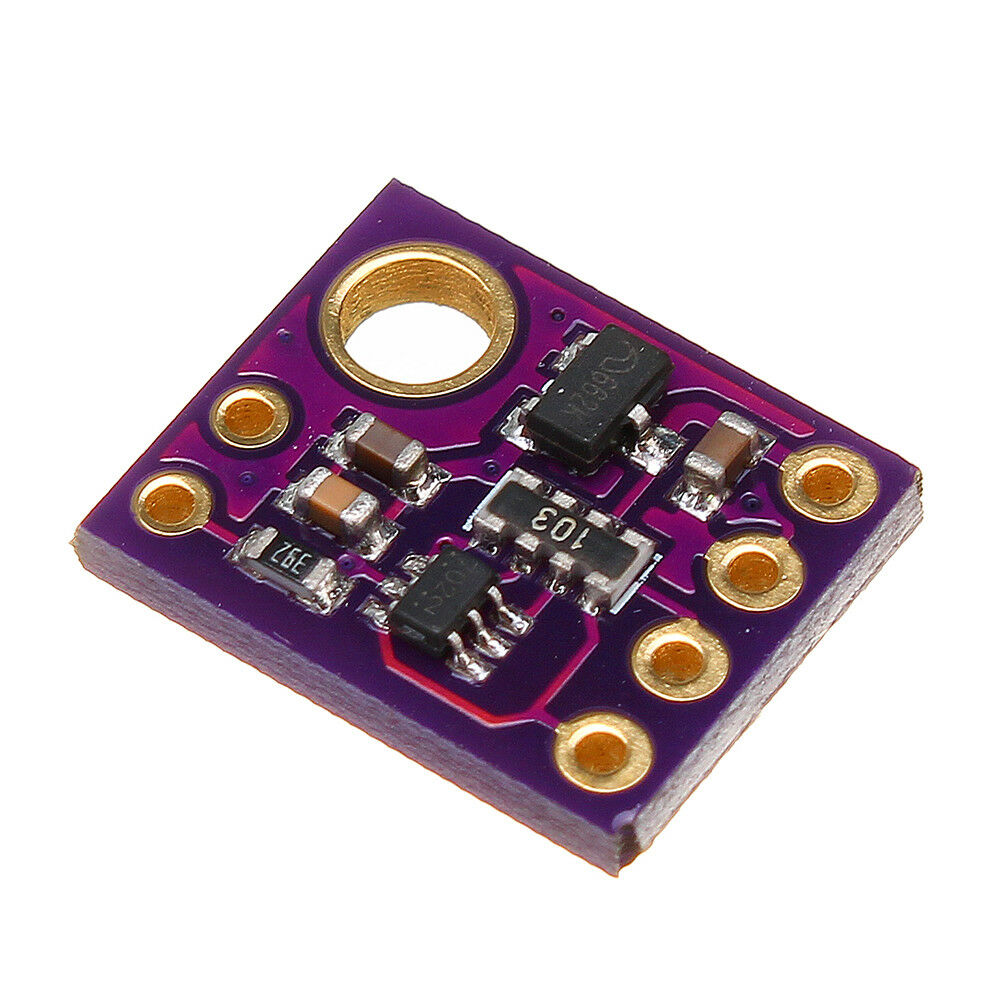

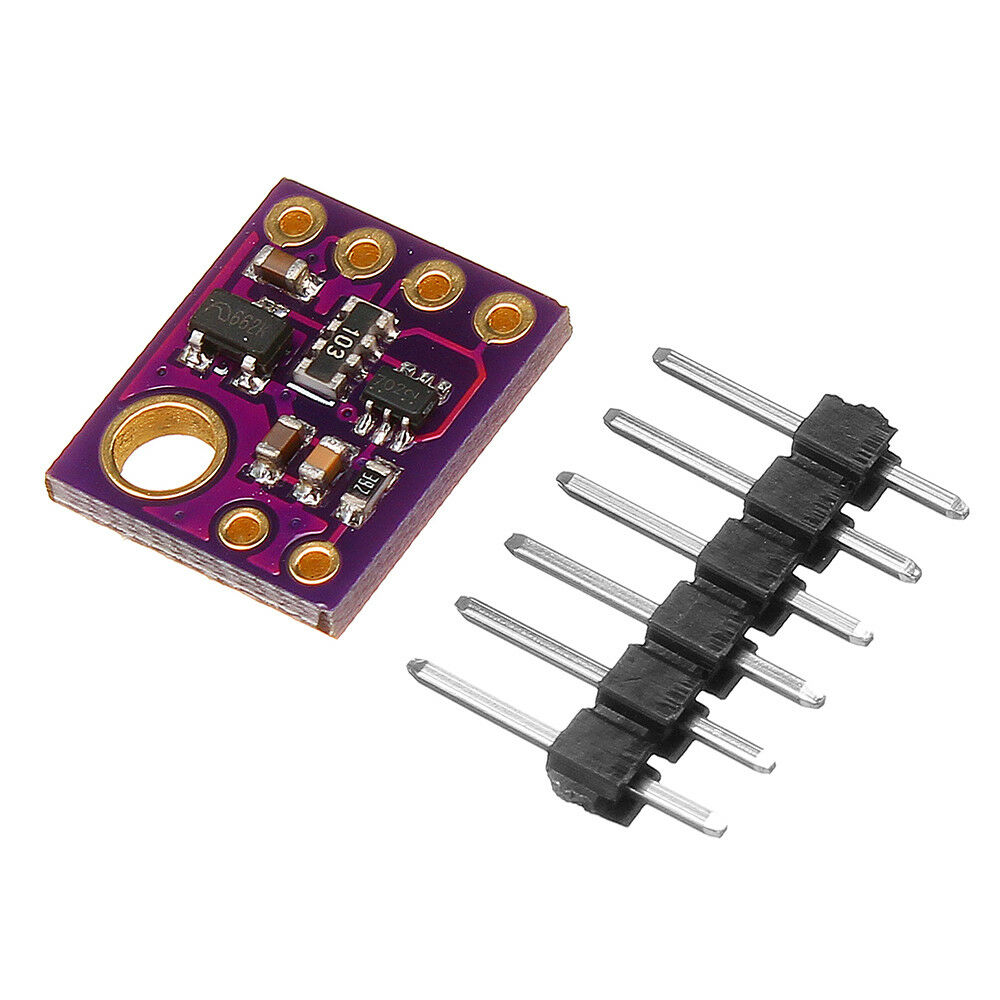

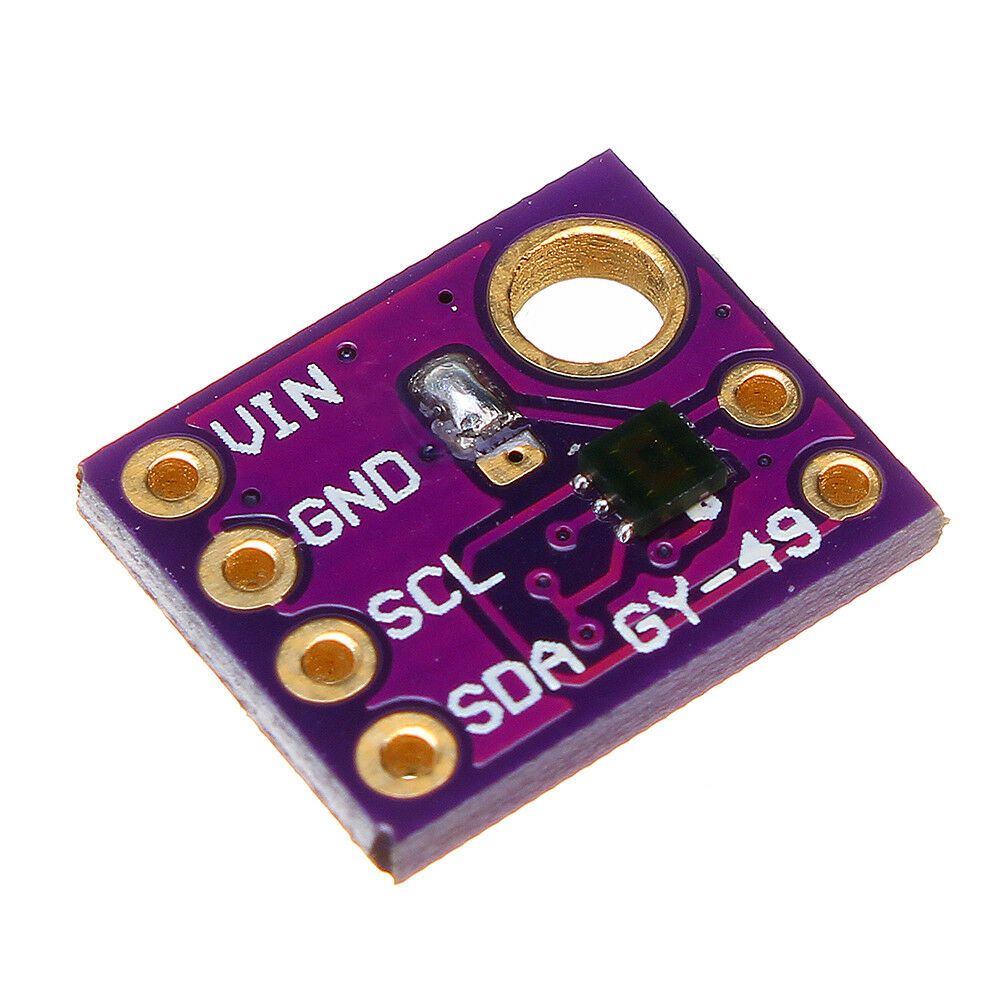

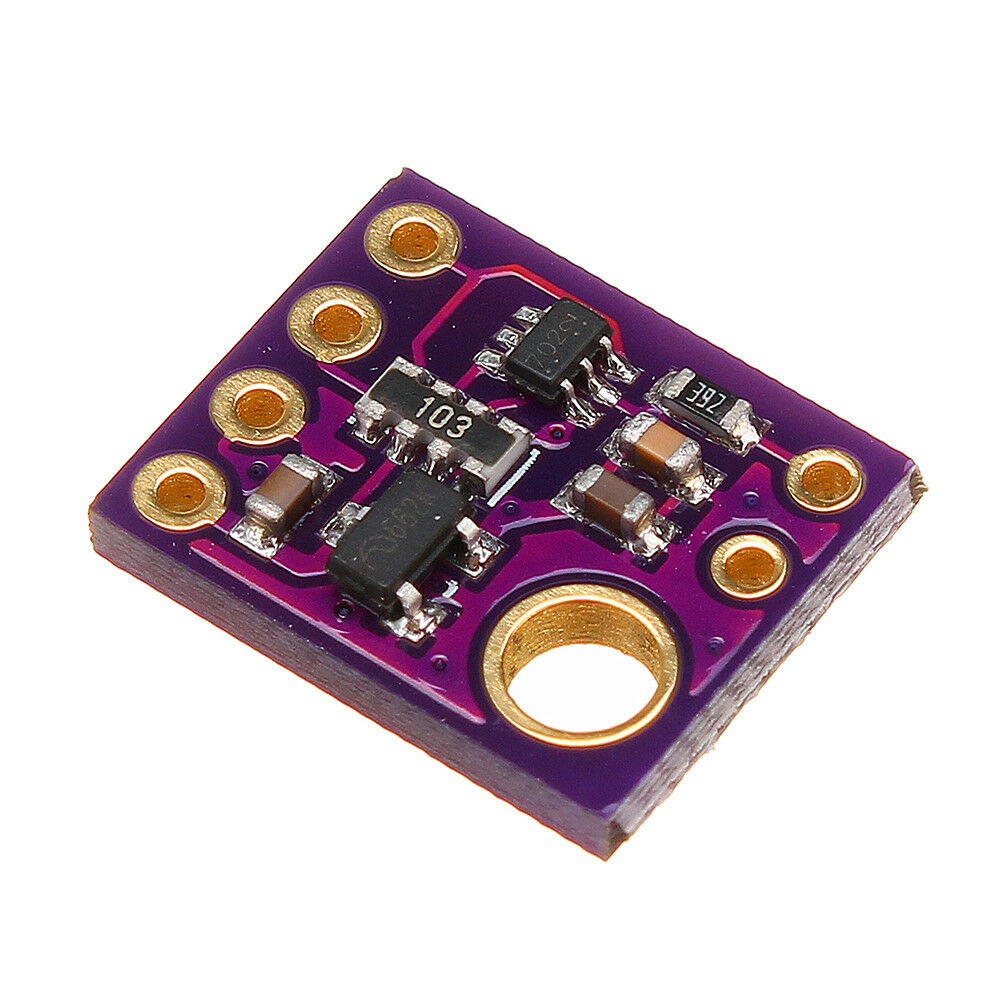

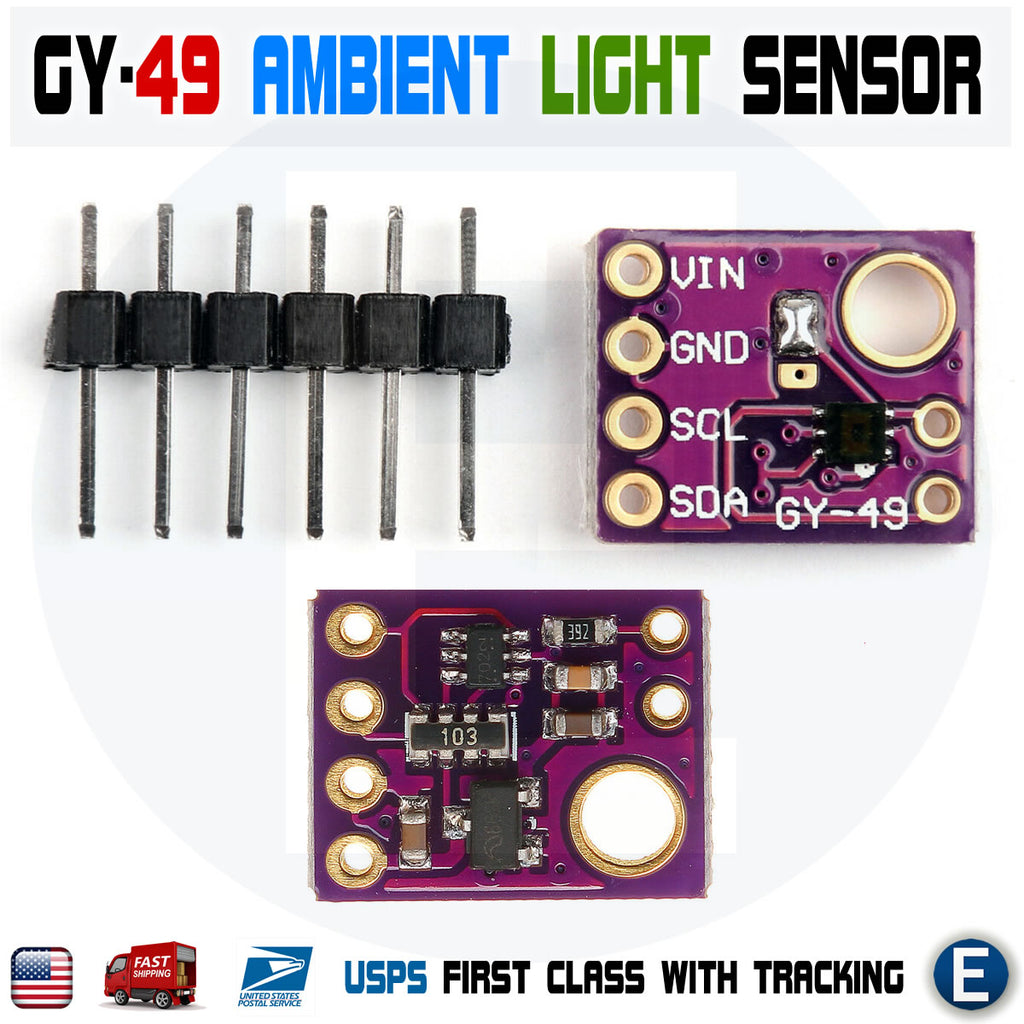

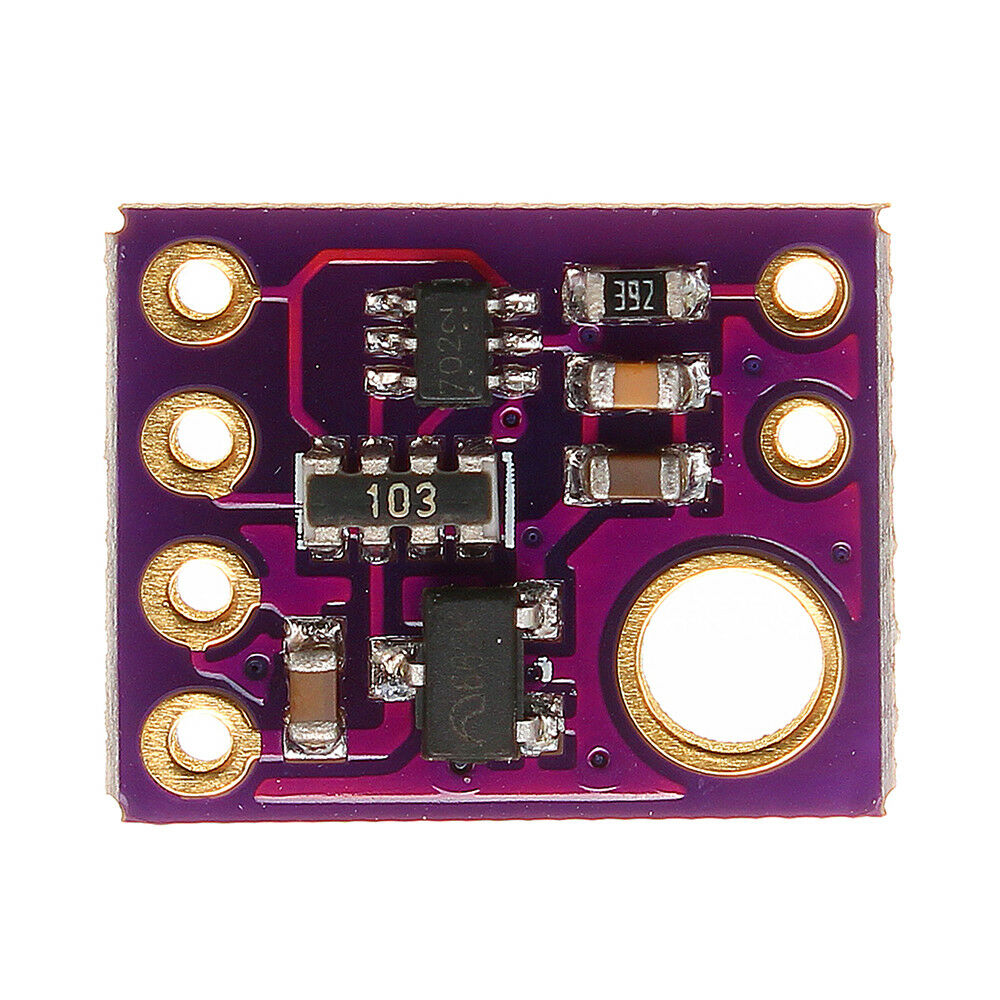

GY-49 MAX44009 Ambient Light Intensity Sensor I2C Module for Arduino

Out of stock
GY-49 MAX44009 Ambient Light Sensor Module for Arduino with 4P Pin Header ModuleDescription:The MAX44009 ambient light sensor features an I2C digital output that is ideal for a number of portable a...
$4.40
  customers are viewing this product

GY-49 MAX44009 Ambient Light Sensor Module for Arduino with 4P Pin Header Module
Description:
The MAX44009 ambient light sensor features an I2C digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors. At less than 1μA operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux.
Low-light operation allows easy operation in dark-glass applications.
The on-chip photodiode spectral response is optimized to mimic the human eye's perception of ambient light and incorporates IR and UV blocking capability. The adaptive gain block automatically selects the correct lux range to optimize the counts/lux.
The IC is designed to operate from a 1.7V to 3.6V supply voltage range and consumes only 0.65μA in full operation. It is available in a small, 2mm x 2mm x 0.6mm UTDFN-Opto package.

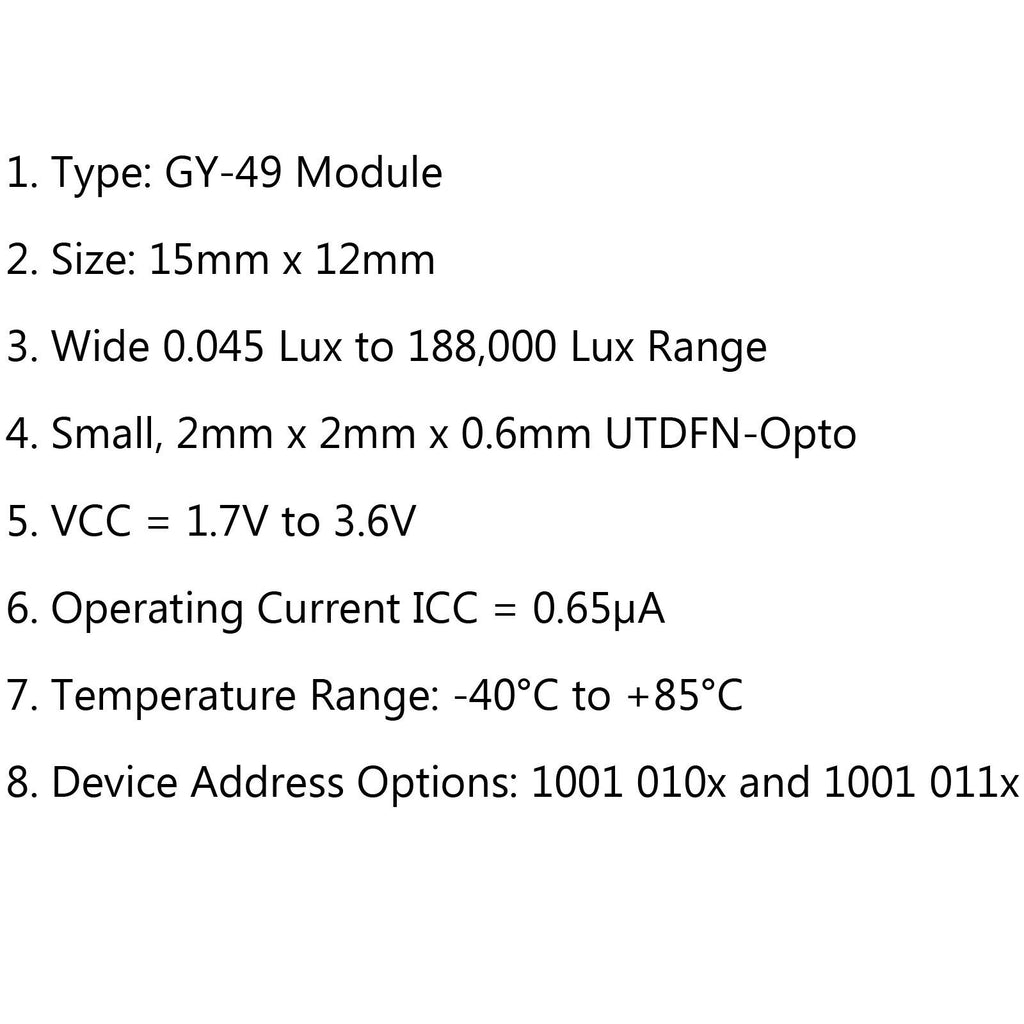

Specification :
Wide 0.045 Lux to 188,000 Lux Range
Small, 2mm x 2mm x 0.6mm UTDFN-Opto
VCC = 1.7V to 3.6V
ICC = 0.65μA Operating Current
-40°C to +85°C Temperature Range
Device Address Options
1001 010x and 1001 011x
PCB size:(L*W)1.32*1.05cm/0.52"*0.41"

Applications/Uses :
Cellular Phones/Smartphones
Digital Lighting Management
Portable Devices
Security Systems
Tablet PCs/Notebook Computers
TVs/Projectors/Displays

Package Included:
1 x GY-49 MAX44009 Ambient Light Intensity Sensor I2C Module for Arduino RaspberryPi
