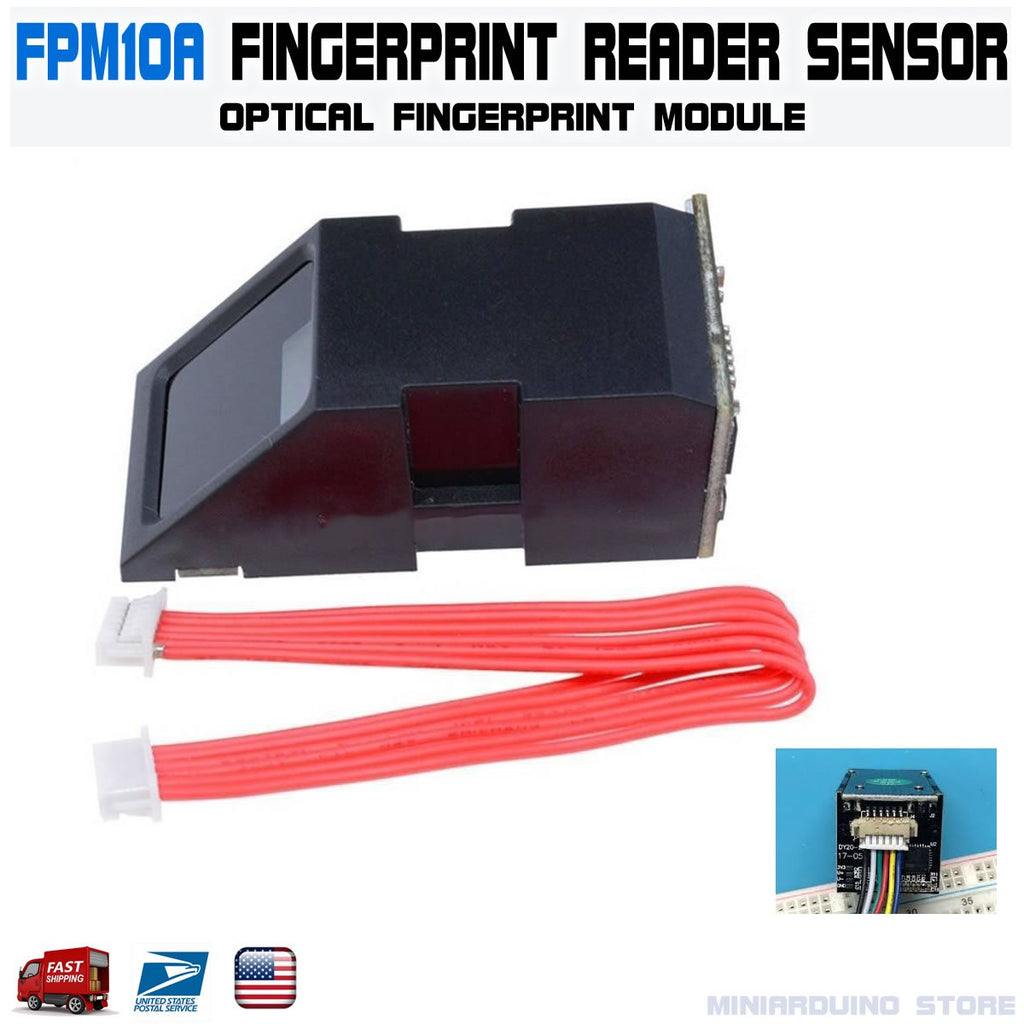

FPM10A Fingerprint Reader Sensor Module Optical Lock Serial Interface 3.3V/5V
Description:Supply voltage: DC 3.6 - 6.0V / 3.3V SupplyingSupply Current: Current: <120mAPeak current: <140mAFingerprint image time: <1.0 secondsWindow size: 14 x 18 mmMatching mode: Match...
$12.23
customers are viewing this product
Description:
Supply voltage: DC 3.6 - 6.0V / 3.3V Supplying
Supply Current: Current: <120mA
Peak current: <140mA
Fingerprint image time: <1.0 seconds
Window size: 14 x 18 mm
Matching mode: Match mode (1:1)
Search mode (1: N)
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: Max 200
Safety level: five (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): <0.001% (security level 3)
False Reject Rate (FRR): <1.0% (security level 3)
Search time: <1.0 seconds (1:500, the mean)
PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
Communication baud rate (UART): (9600 x N) bps where N = 1 - 12 (default value N = 6, ie 57600bps)
Working environment:
Temperature: -20 degree Celsius - +50 degree Celsius
Relative Humidity: 40% RH-85% RH (non-condensing)
Storage environment:
Temperature: -40 degree Celsius - +85 degree Celsius
Relative humidity: <85% H (non-condensing)
Dimensions (L x W x H): 56 x 20 x 21.5mm
Hardware connection:
Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2
Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD).
For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer
Circuitry (e.g.: MAX232 circuit)
Package includes:
1PCS x 3.3V/5V FPM10A Fingerprint Reader Sensor Module Optical Fingerprint Module Locks Serial Communication Interface For Arduino
