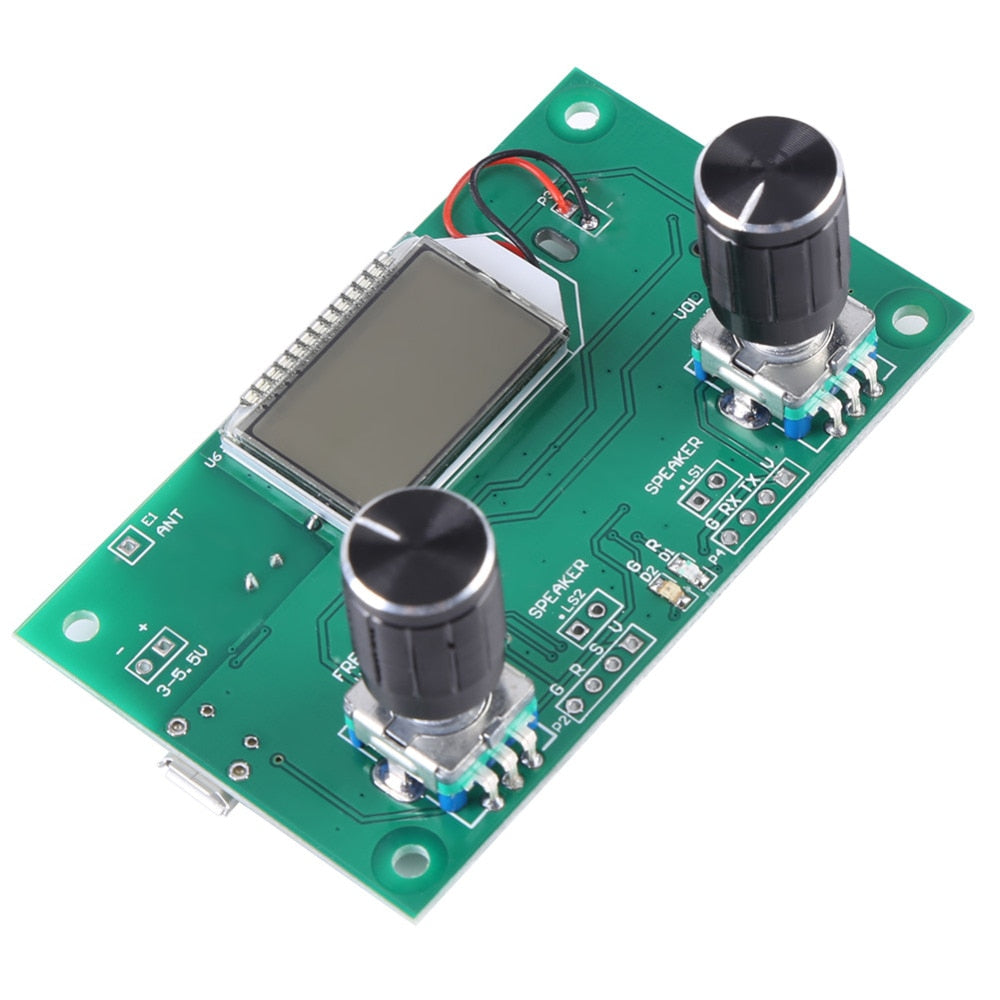

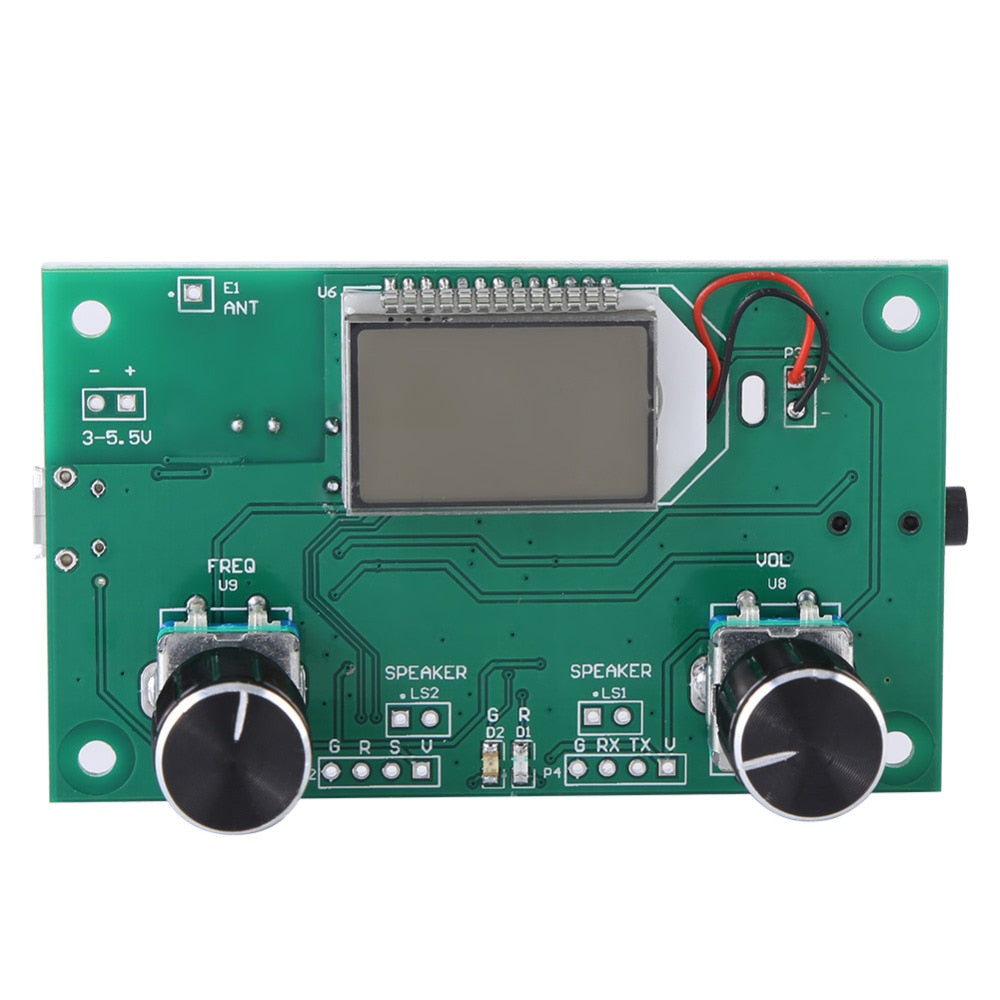

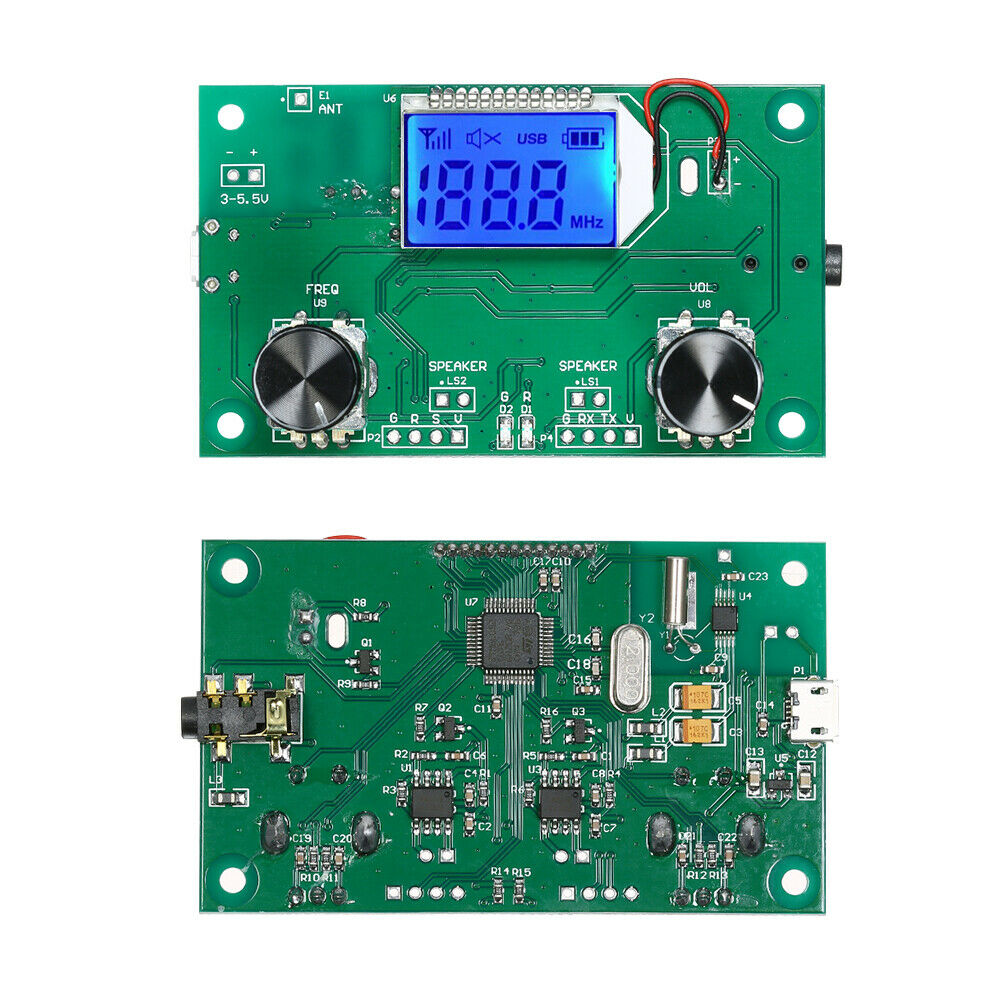

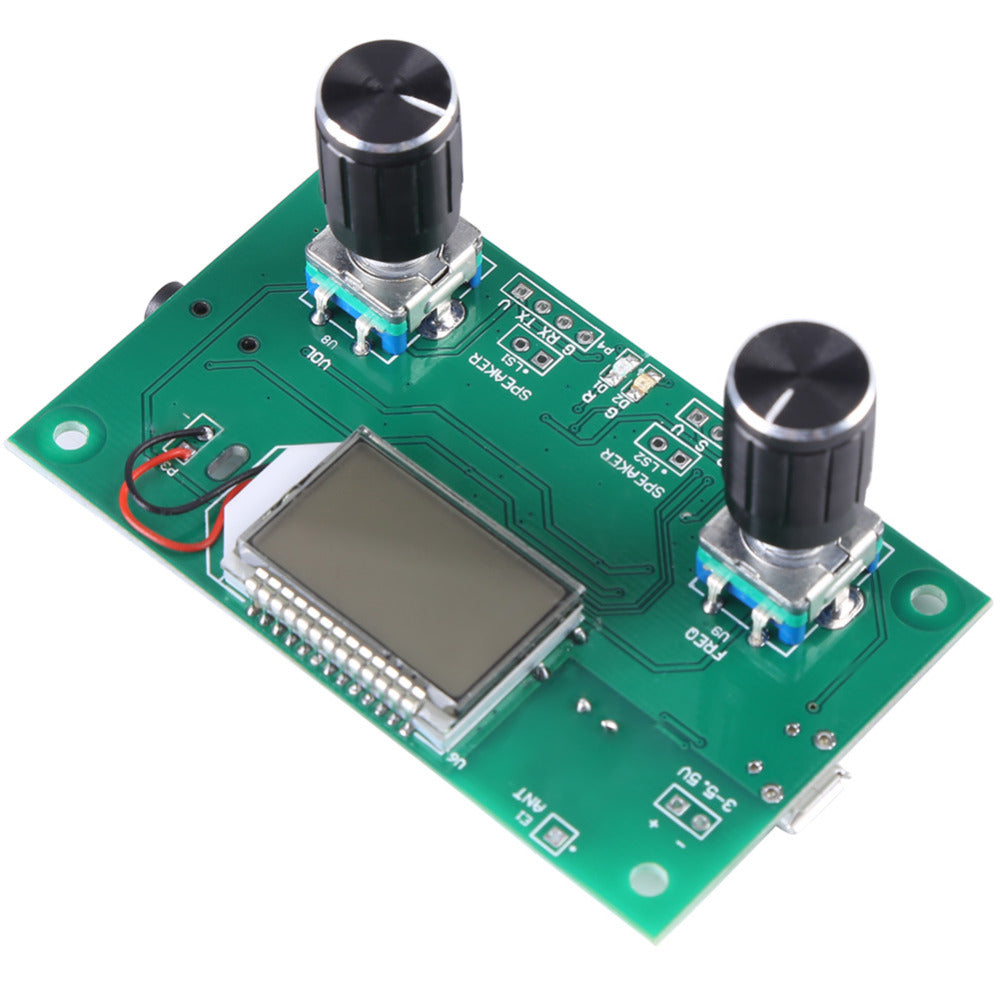

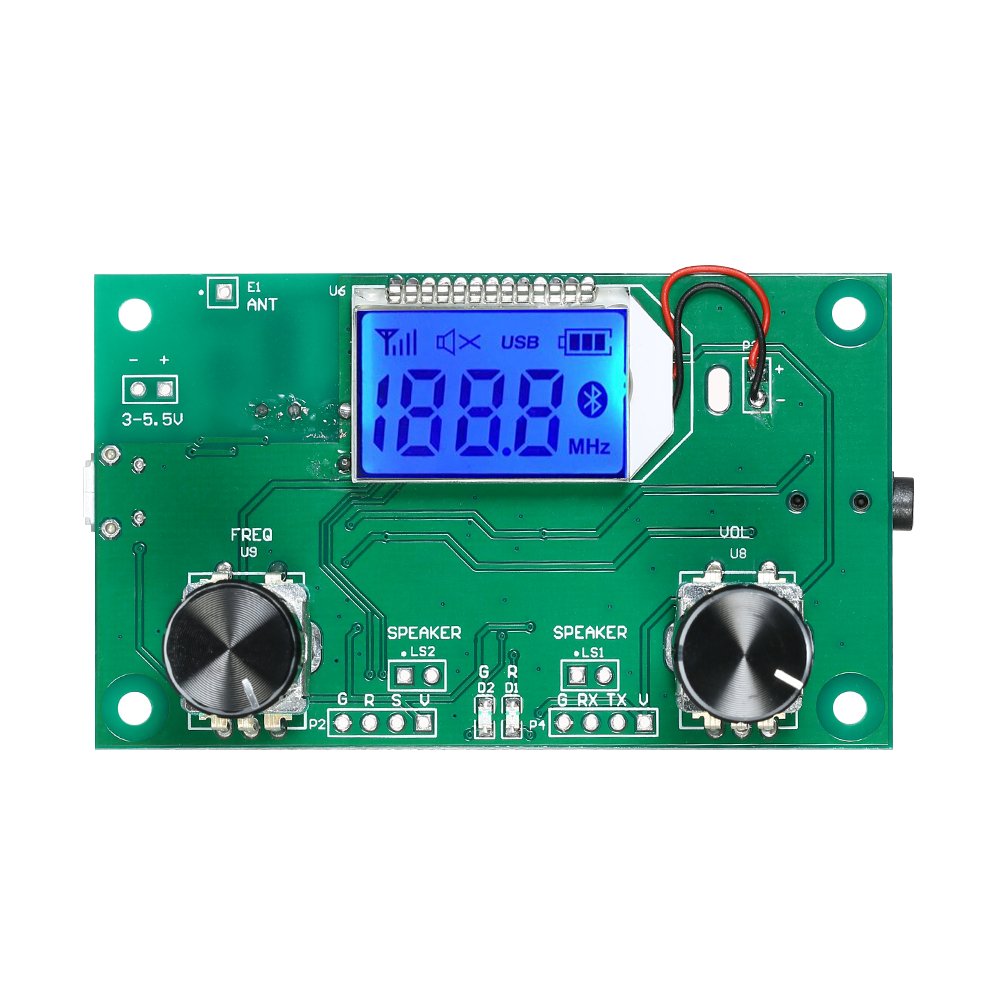

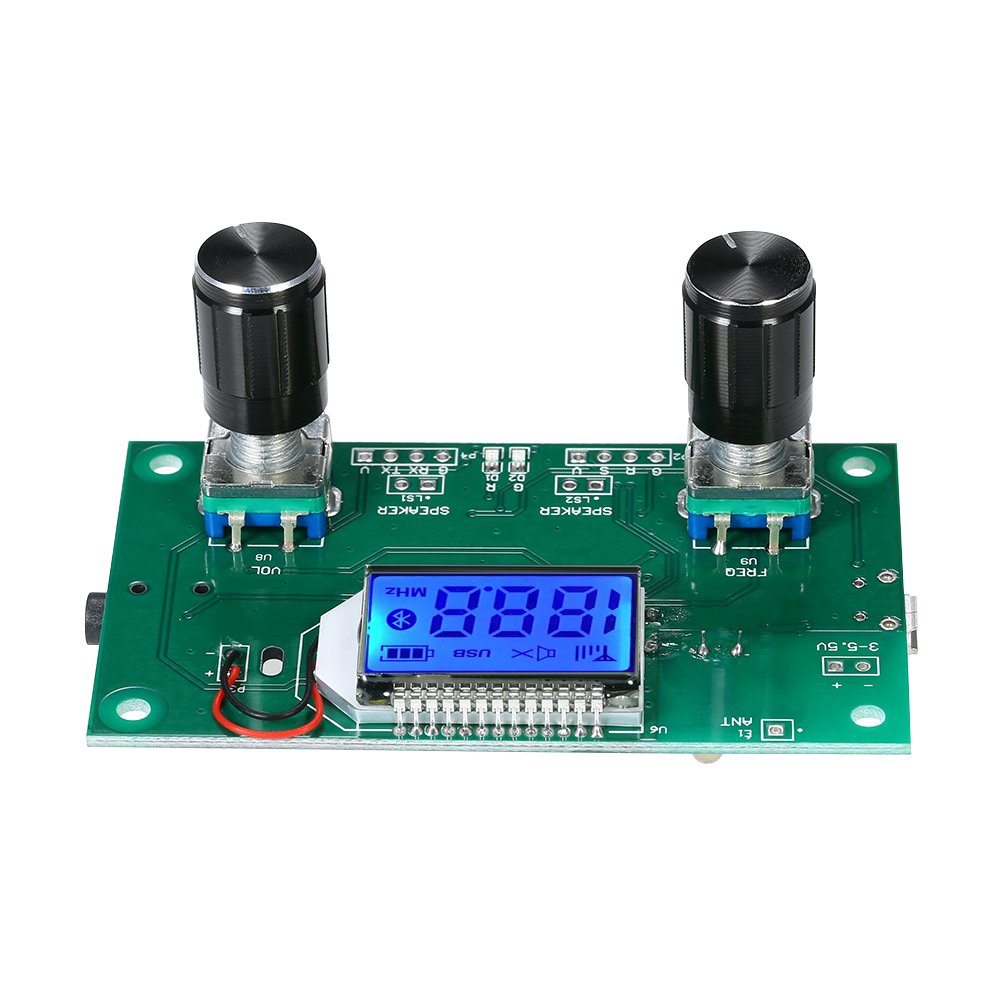

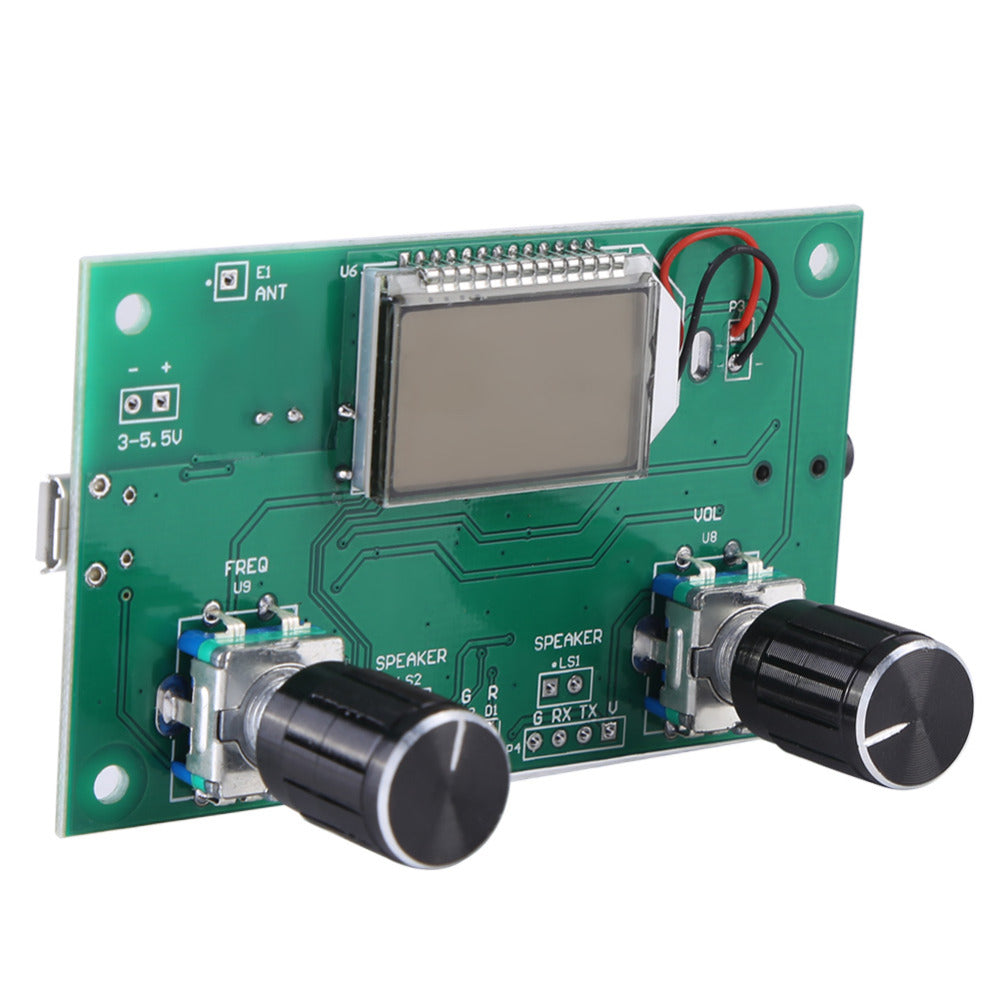

DIY FM Radio Wireless Receiver Module LCD Display DSP PLL 87.0MHz-108.0MHz with Rotary Potentiometer

In stock
C-01-02-01
Description: Mini stereo FM receiver module adopts advanced DSP and PLL technology ensure high quality broadcast receiving performance Blue backlight LCD display and potentiometer regulate the volu...
$13.63
$13.63
  customers are viewing this product

Description:
Mini stereo FM receiver module adopts advanced DSP and PLL technology ensure high quality broadcast receiving performance

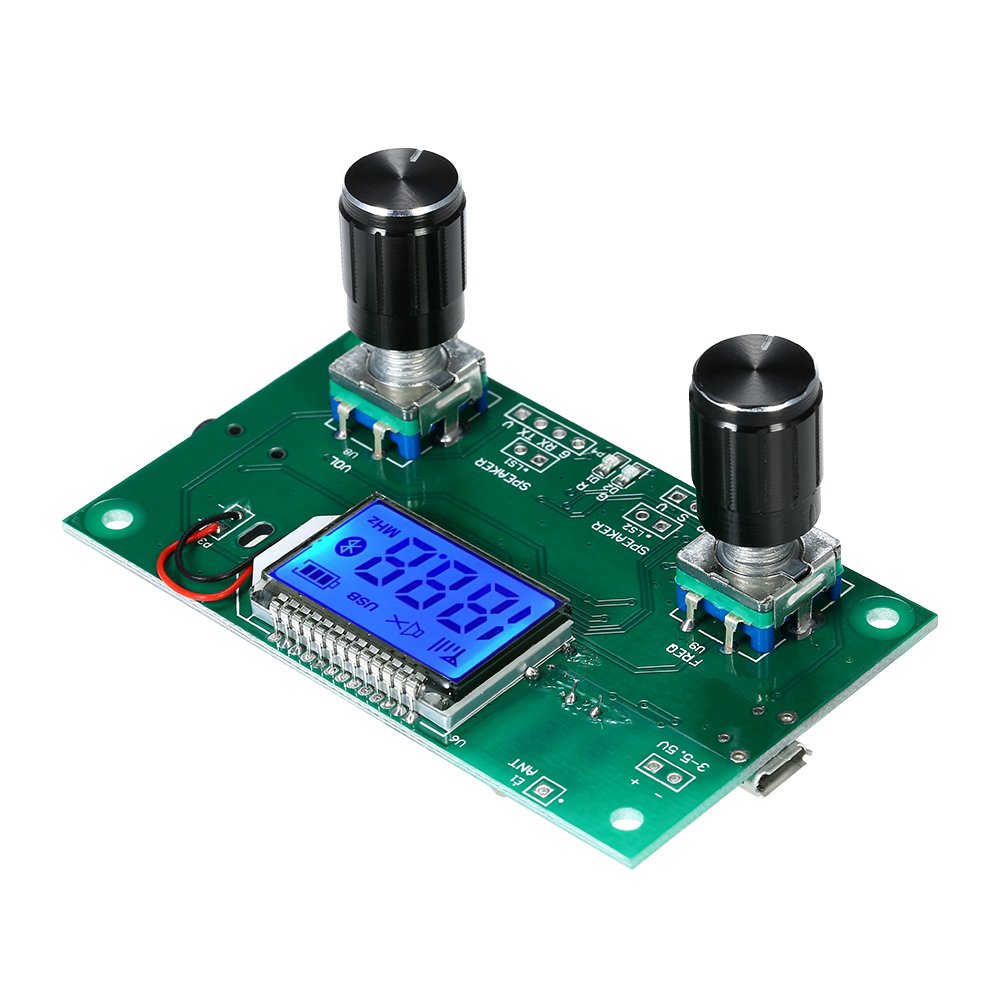

Blue backlight LCD display and potentiometer regulate the volume and frequency easy to operation

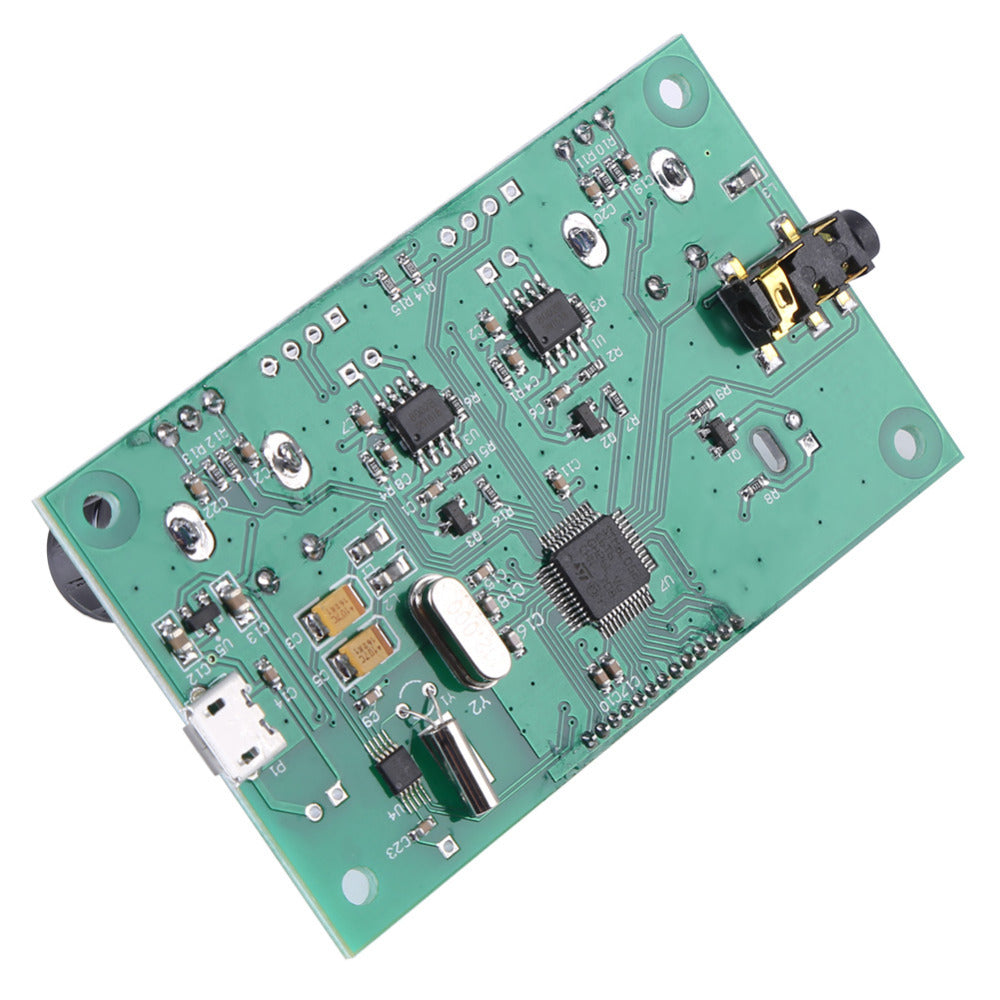

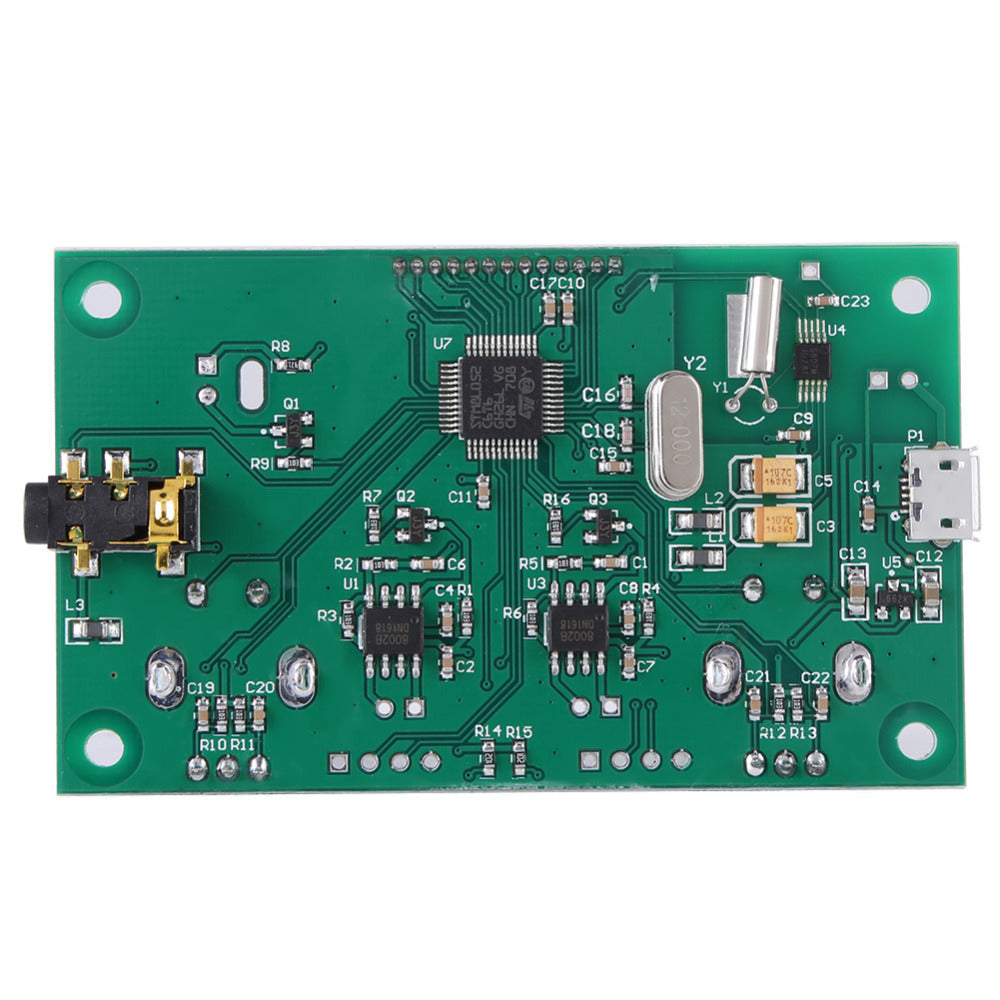

On-board 2X3W stereo audio amplifier chip enable you to DIY FM radio easily, no extra audio amplifier circuit needed

Specification:
Working Voltage: DC 3-5V
Frequency Range: 50Hz-18KHz
Output Power: 500mW

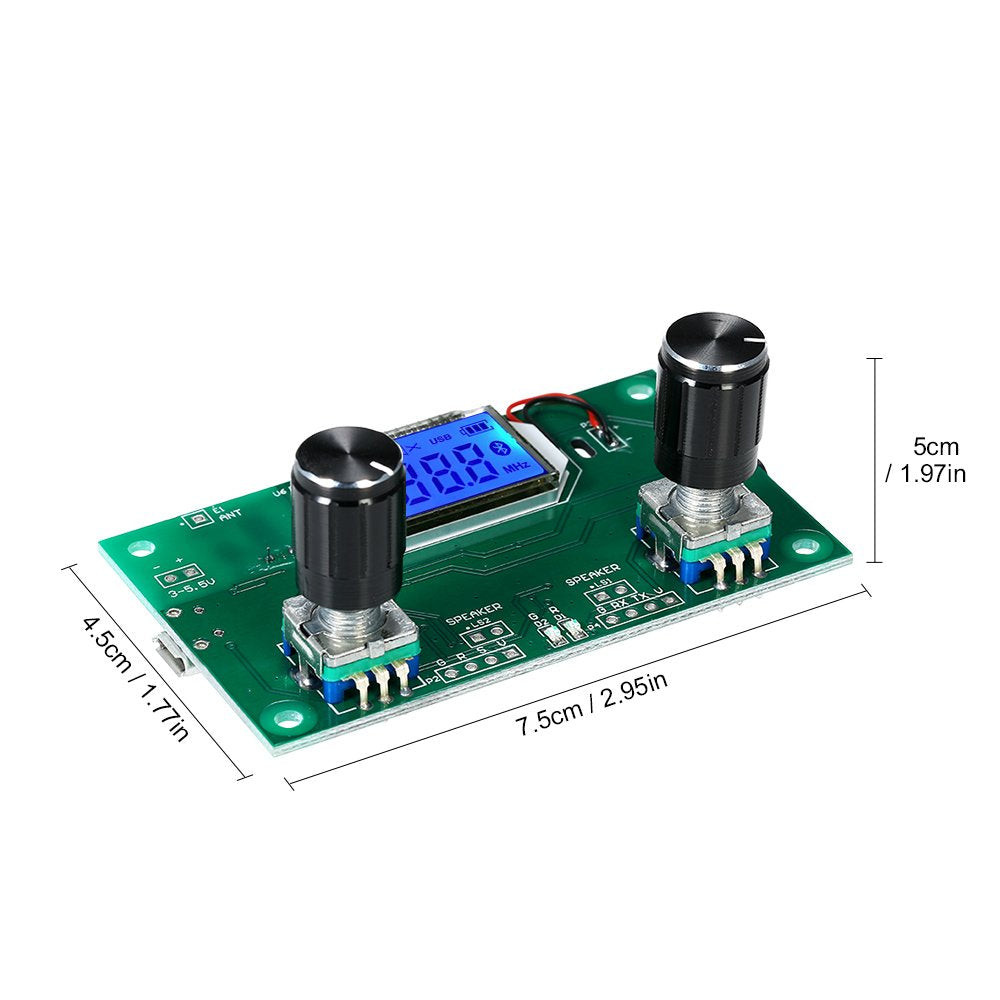

Board Size: 75 X 45 X 30mm/2.95 X 1.77 X 1.18inch

Instructions:
1. Mute/Unmute: short press the VOL potentiometer to turn on/off the mute.
2. Auto-squelch: Long press the FRE potentiometer to turn on/off the auto-squelch and the LCD will display the corresponding on/off.
3. Campus Broadcast On/Off: under power off status, long press the VOL potentiometer and power on the modulem the LCD display C1 means open the campus broadcast and display C0 means close the campus broadcast.
4. Under power off status, long press the FRE potentiometer and power on the module, LCD display BI means the backlight DC keep light up; display B0 means only light up 20 seconds (default B0)

Notice Please:
The antenna can use the wire or the standard telescopic antenna.
Radio is a radio-sensitive device. Any interference from the power supply or nearby may affect the normal operation of the module. Therefore, it is recommended to supply a stable voltage to the module by using a battery or a power frequency transformer. Do not use switching power supply (such as mobile phone charger, and any other switching power supply), power bank, switching DC-DC converter. There should not have any working D-class power amplifier, microwave oven and other equipment that will generate high-frequency electromagnetic interference.

Package Included:
1 x DIY FM Radio Wireless Receiver Module LCD Display DSP PLL 87.0MHz-108.0MHz with Rotary Potentiometer
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
