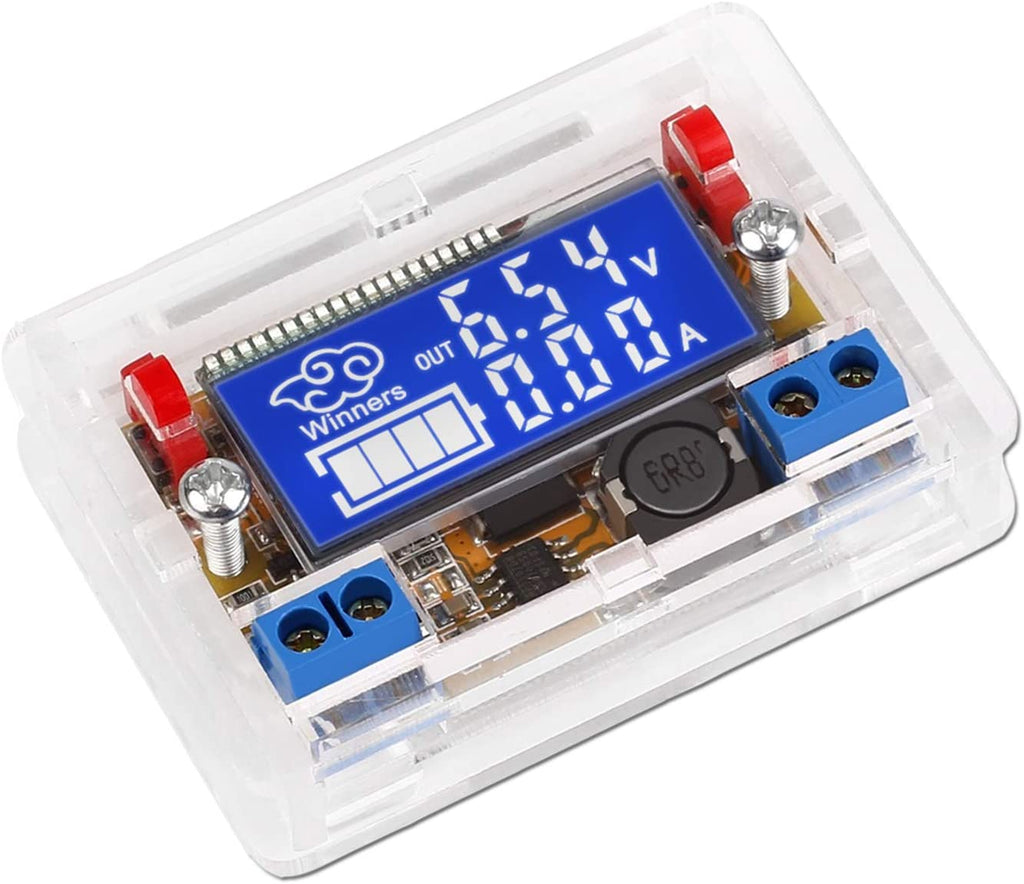

DC-DC Adjustable Power Supply Step-down Module LCD Voltage Current + Enclosure
Out of stock
Business & Industrial > Electrical Equipment & Supplies > Electronic Components & Semiconductors > Semiconductors & Actives > Power Regulators & Converters
B-02-08-05
Description:
1, Acrylic Enclosure.

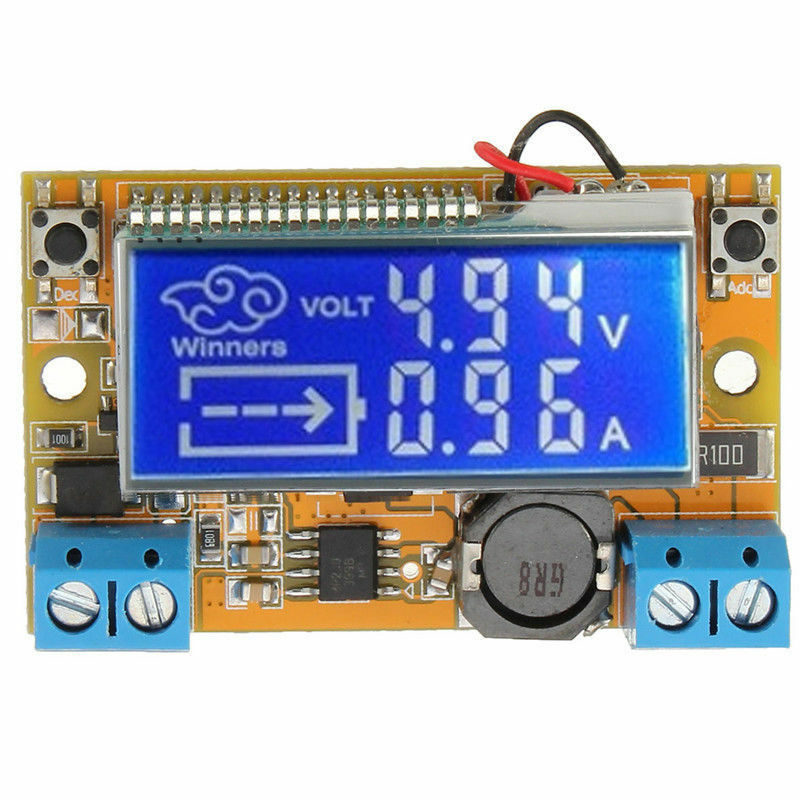

2, Using STN liquid crystal display screen, Voltage and Current can be displayed simultaneously, blue background and white character, wide angle and wide field of...
$9.63
customers are viewing this product
Description:
1, Acrylic Enclosure.
2, Using STN liquid crystal display screen, Voltage and Current can be displayed simultaneously, blue background and white character, wide angle and wide field of view.

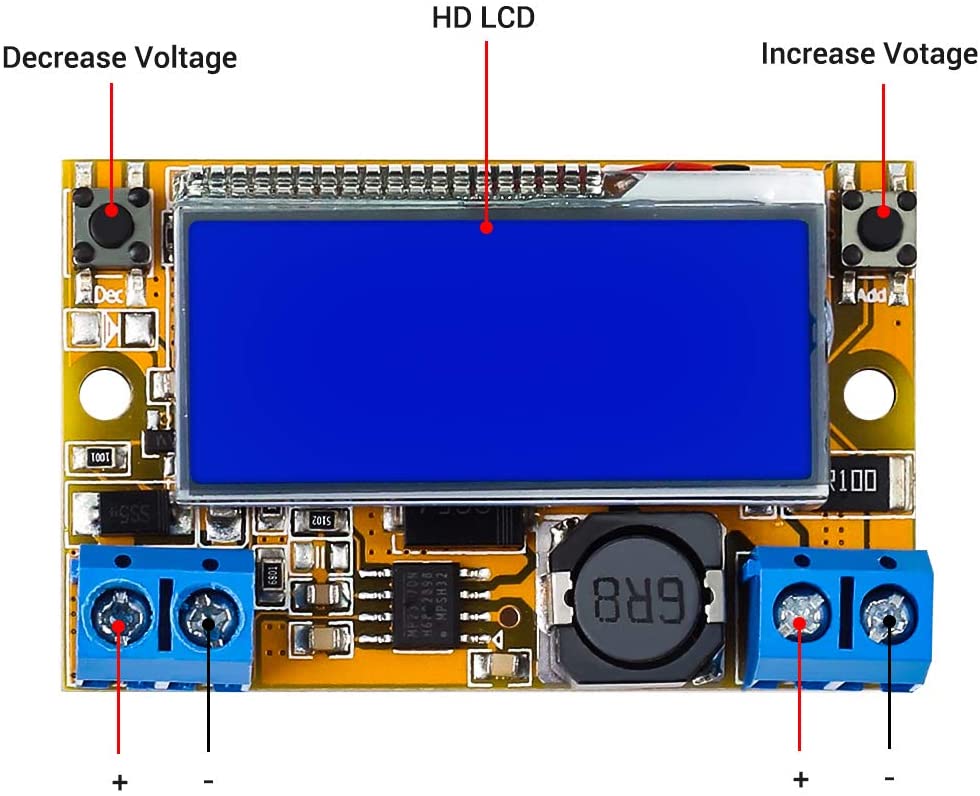

3, Using button adjustable voltage, left button to reduce the voltage, the right button to increasing voltage. press button one time can adjust 0.04V voltage, press and hold more than 1 second to quickly adjust voltage.
Calibration Method:
Power-off status, press and hold the left button access the power, the display starts flashing, release the left button. using multimeter measured the output terminal voltage, if the measured voltage is greater than 5V, press the left button reduced the voltage to 5V; if the voltage is less than 5V, press the right button to increase the voltage to 5V. When the LCD display voltage of 5V(sometimes it shows 4.99V), turn off the power, the calibration is complete.
Performance:
Input Voltage: 5~23V, Max 23V, recommended to use within 20V
Input voltage must be higher than the output voltage 1V above
Please check the input positive and negative polarity before connecting, reverse may damage the components
Output Voltage: 0~16.5V adjustable (It can save the last set voltage automatically)
Peak Current: Recommended use in 2A, accuracy of 1%, the minimum display 0.01A, less than 10mA will not be displayed.
Peak Current: 3A (Recommended use in 2A, accuracy of 1%, the minimum display 0.01A, less than 10mA will not be displayed.)
Specifications:
Converter type: DC-DC
Input voltage: 5~23V (Best voltage 20V)
Output voltage: 0V~16.5V (Continuously adjustable)
Peak current: 3A
Mainboard size: 50mm x 30mm x 12mm(LxWxH)
Display module: STN LCD
LCD size: 37.5mm x 17.0mm(LxW)
LCD accuracy: 1%
Conversion efficiency: 95%
Load regulation S(I):¡Ü0.8%
Voltage regulation S(U):¡Ü0.8%
The screen data can not be reprogramed.
Package Included:

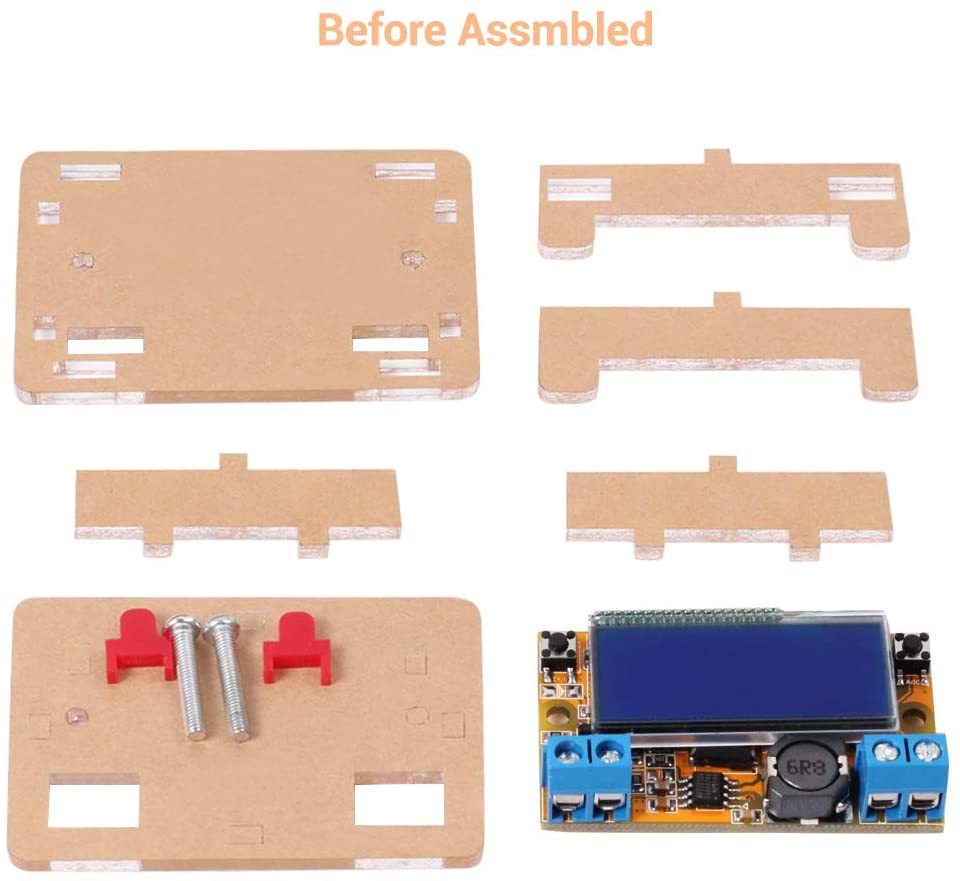

1 x DC-DC Adjustable Power Supply Step-down Module LCD Voltage Current + DIY Enclosure
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
