ATmega328P DIY arduino Mini Learning Kit 22pF 100nF 16MHz crystal breadboard

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Integrated Circuits (ICs):Other Integrated Circuits
Atmel
All microcontrollers tested, bootloader uploaded with sample arduino blink sketch on D9 (DIP#15) Introduction The Atmel® picoPower® ATmega328/P is a low-power CMOS 8-bit microcontroller based o...
$9.63
  customers are viewing this product

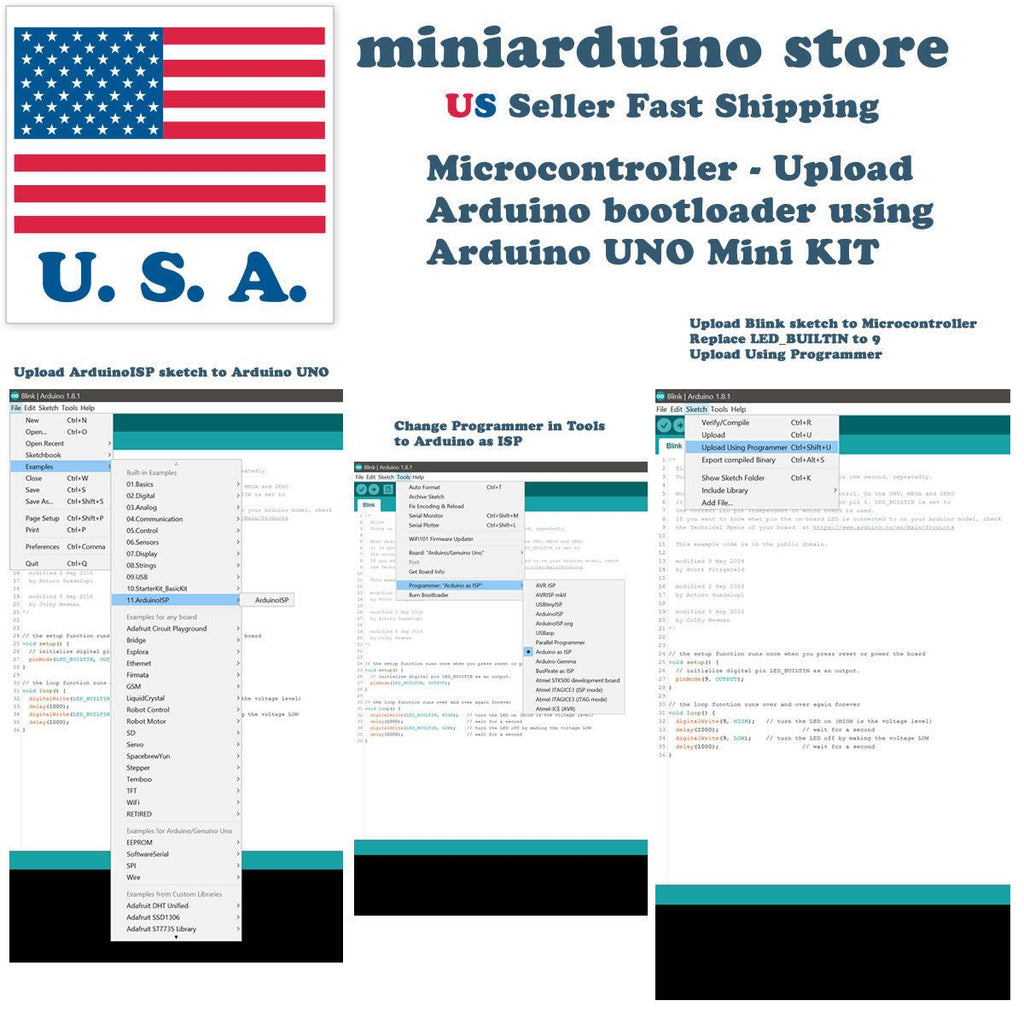

All microcontrollers tested, bootloader uploaded with sample arduino blink sketch on D9 (DIP#15)

Introduction
The Atmel® picoPower® ATmega328/P is a low-power CMOS 8-bit
microcontroller based on the AVR® enhanced RISC architecture. By
executing powerful instructions in a single clock cycle, the ATmega328/P
achieves throughputs close to 1MIPS per MHz. This empowers system
designer to optimize the device for power consumption versus processing
speed.
Feature
High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family
• Advanced RISC Architecture
– 131 Powerful Instructions
– Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 20 MIPS Throughput at 20MHz
– On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory Segments
– 32KBytes of In-System Self-Programmable Flash program
Memory
– 1KBytes EEPROM
– 2KBytes Internal SRAM
– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
– Data Retention: 20 years at 85°C/100 years at 25°C(1)
– Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
– Programming Lock for Software Security
• Atmel® QTouch® Library Support
– Capacitive Touch Buttons, Sliders and Wheels
– QTouch and QMatrix® Acquisition
– Up to 64 sense channels

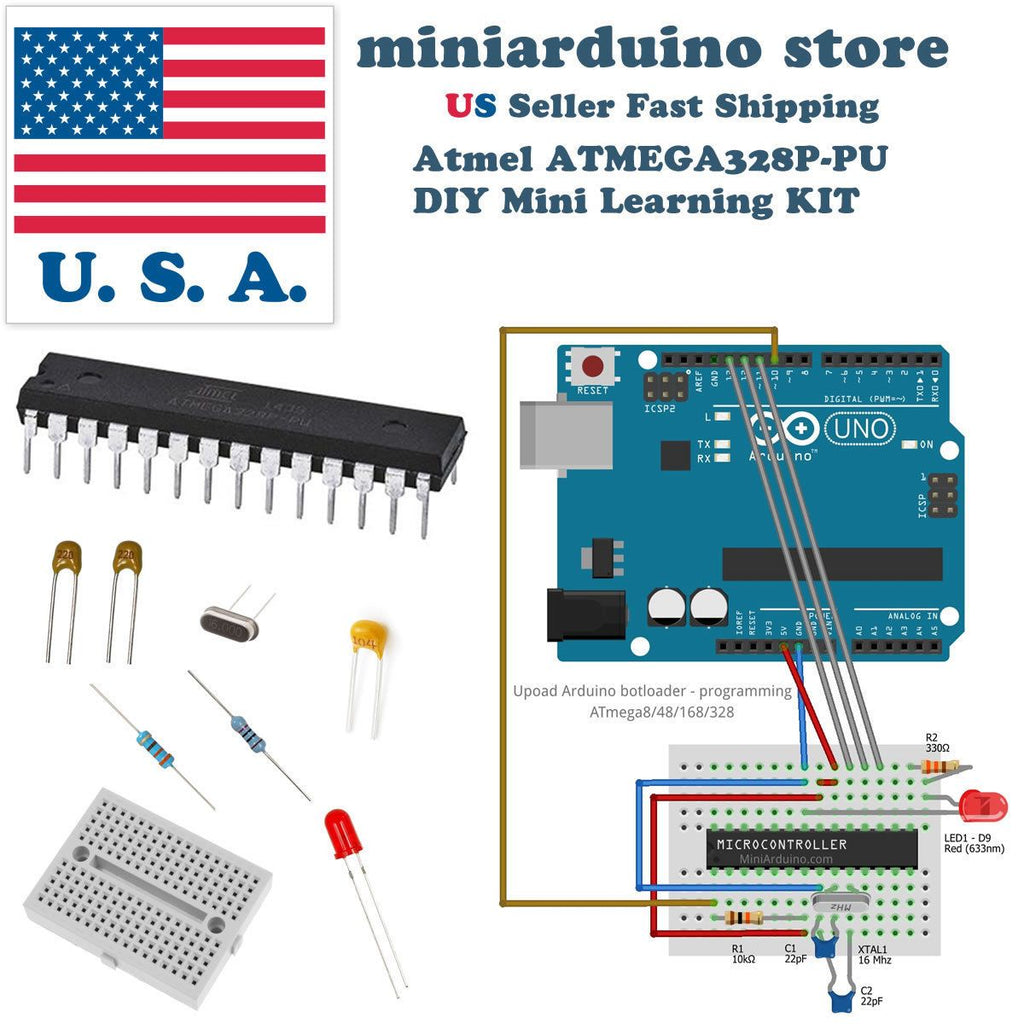

DIY kit Include:

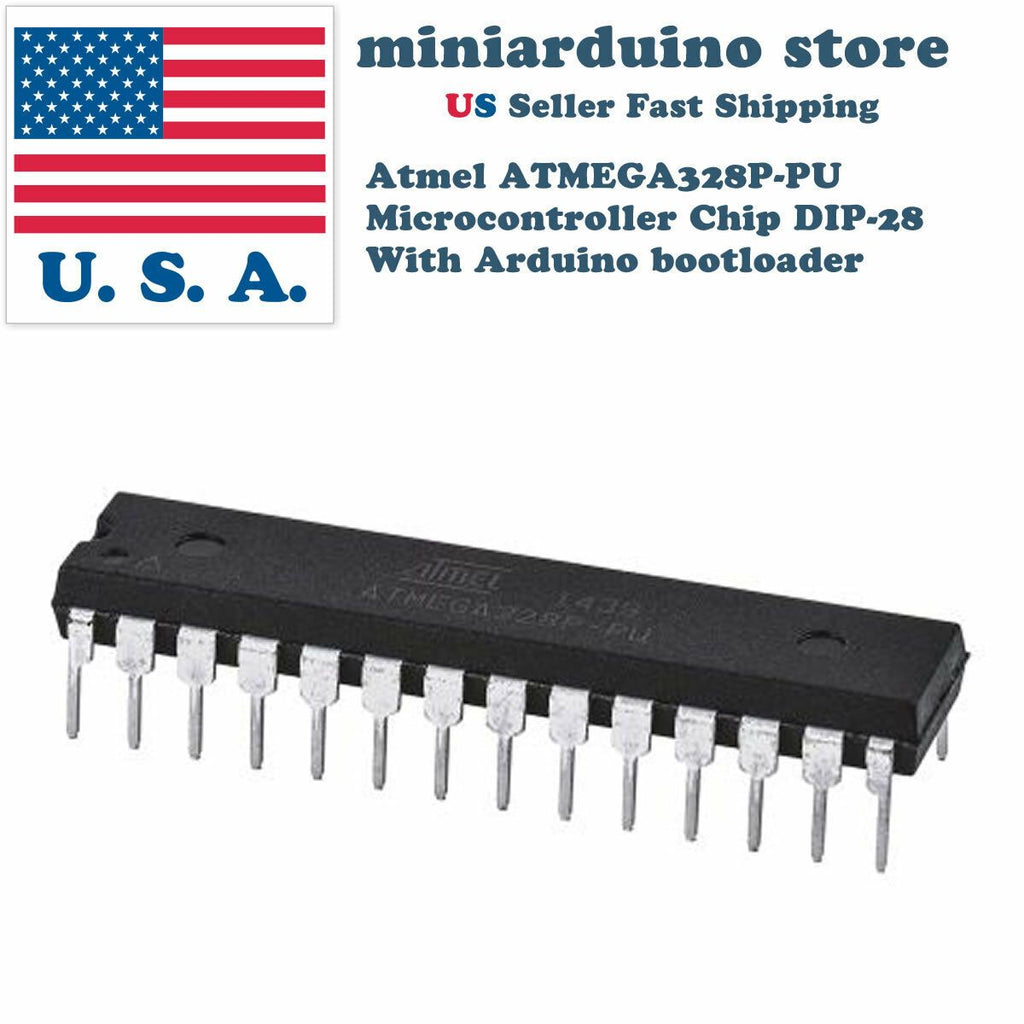

1 x ATmega328p IC Chip
1 x 16MHz crystal oscillator
1 x 10 KOhms resistor
1 x 330 Ohms
2 x 22pF capacitors

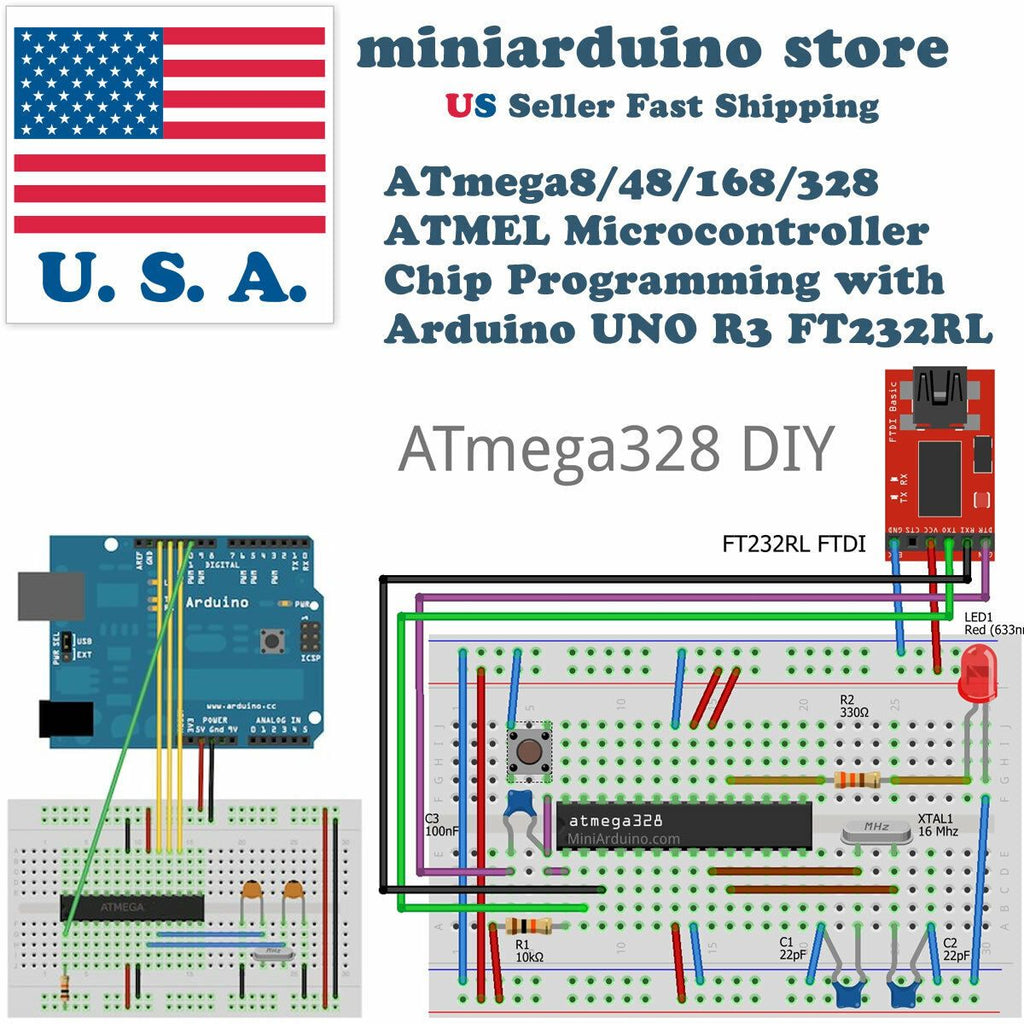

1 x 100nF capacitor (extra capacitor if you want to upload code using FT232RL)
1 x testing LED RED
1 x mini breadboard (random color) 170 tie-point

Technical support is NOT included in this auction
Arduino UNO is NOT included
