This board connects directly to the FTDI Basic Breakout board and supports auto-reset.
20 Digital input / output ports:TX, RX, D2 ~ D13, A0~A5
8 analog inputs ports:A0 ~ A7
1 pairs of TTL level serial transceiver ports RX / TX
6 PWM ports: D3, D5, D6, D9, D10, D11

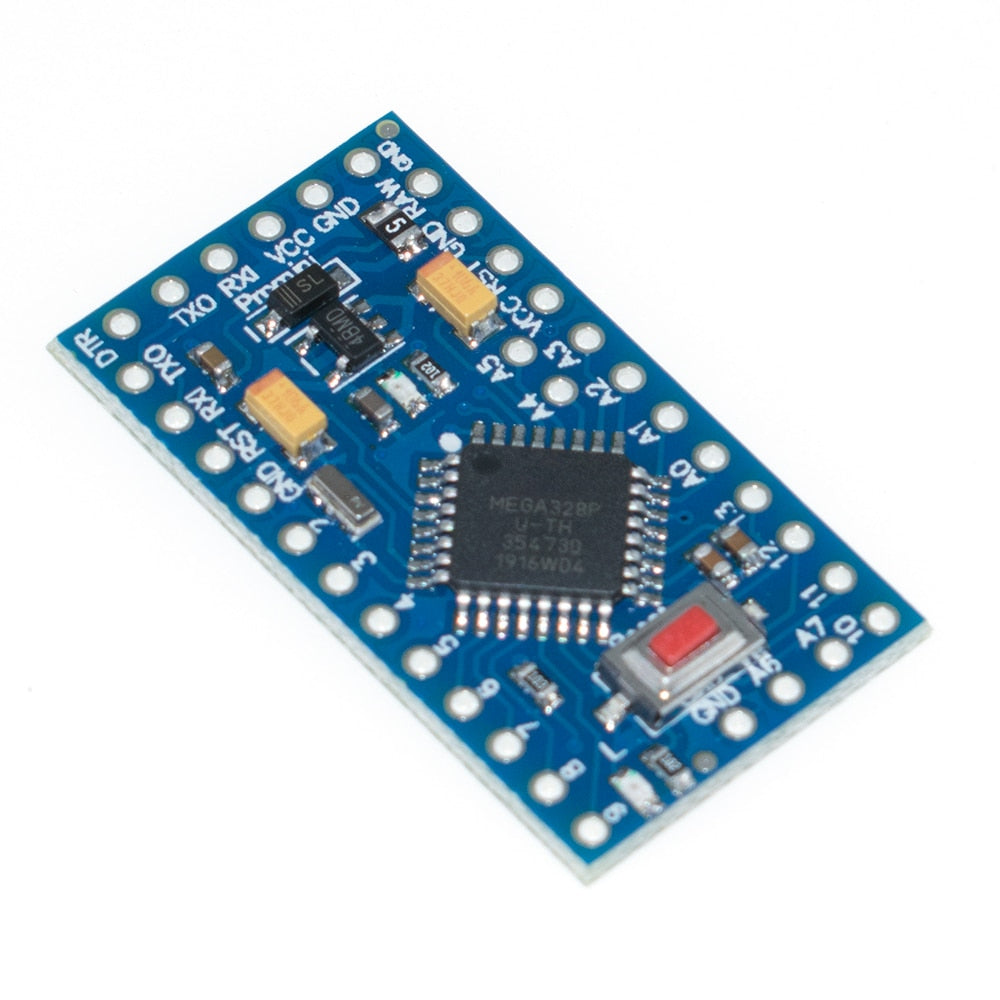

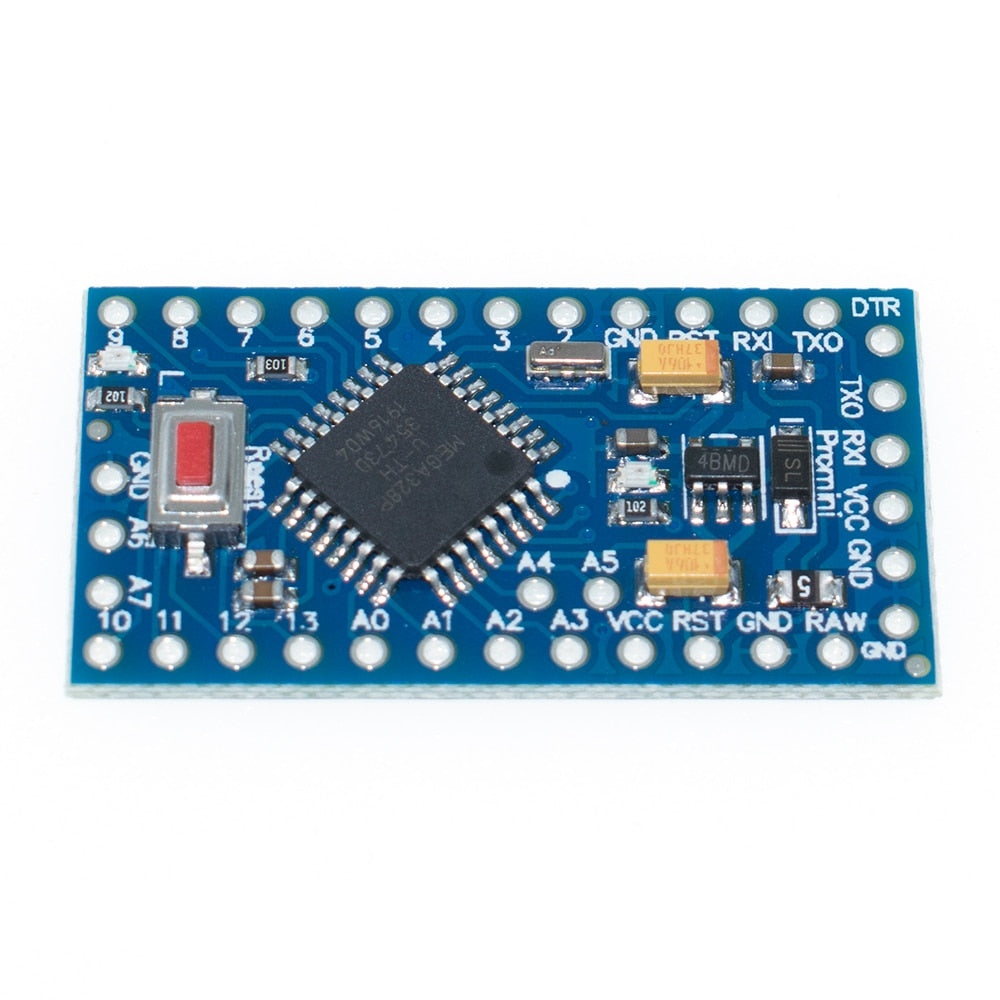

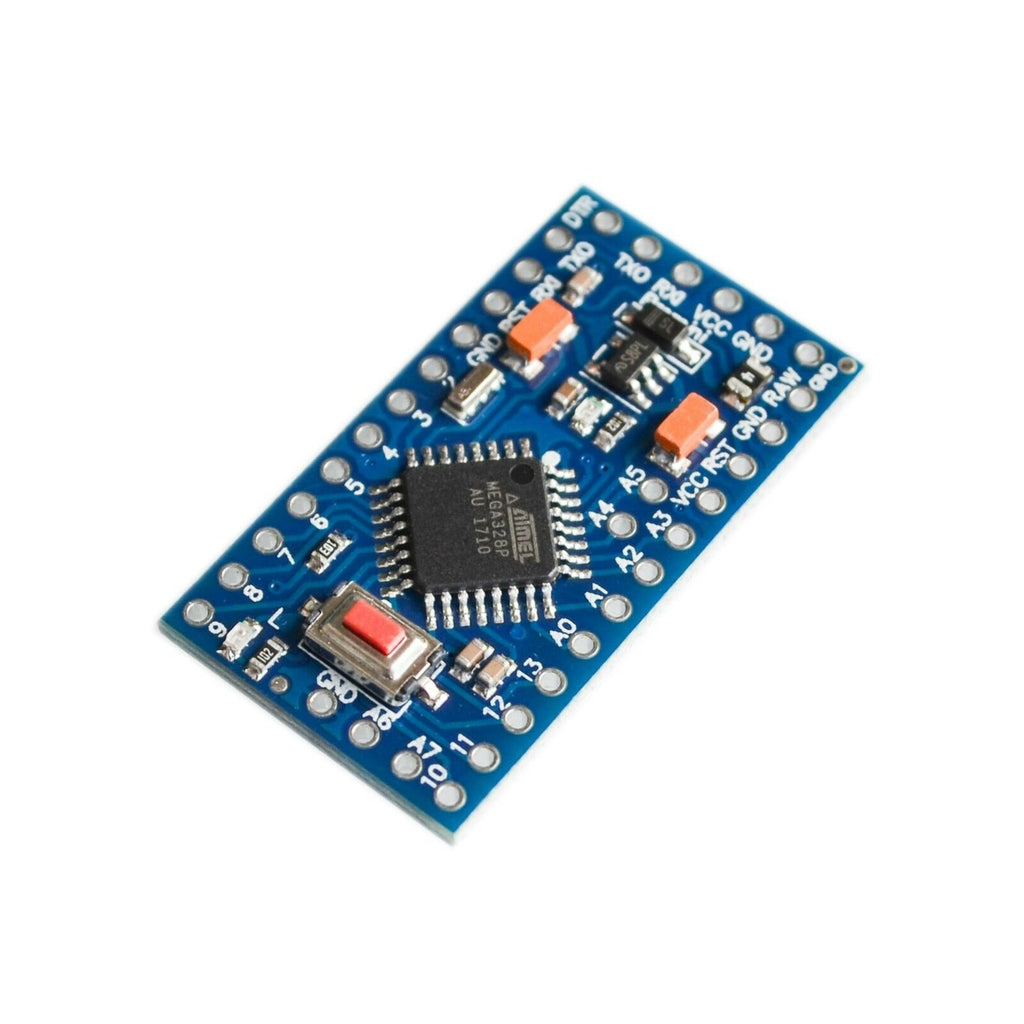

Main Chip Atmel ATmega328P-AU
The bootloader is already installed in the board.
Flash Memory: 32 KB of which 2 KB used by bootloader.
5V regulator, ATmega328 running at 16MHz with external resonator (0.5% tolerance).
USB connection off board.
Max 150mA output
Over current protected
Reverse polarity protected

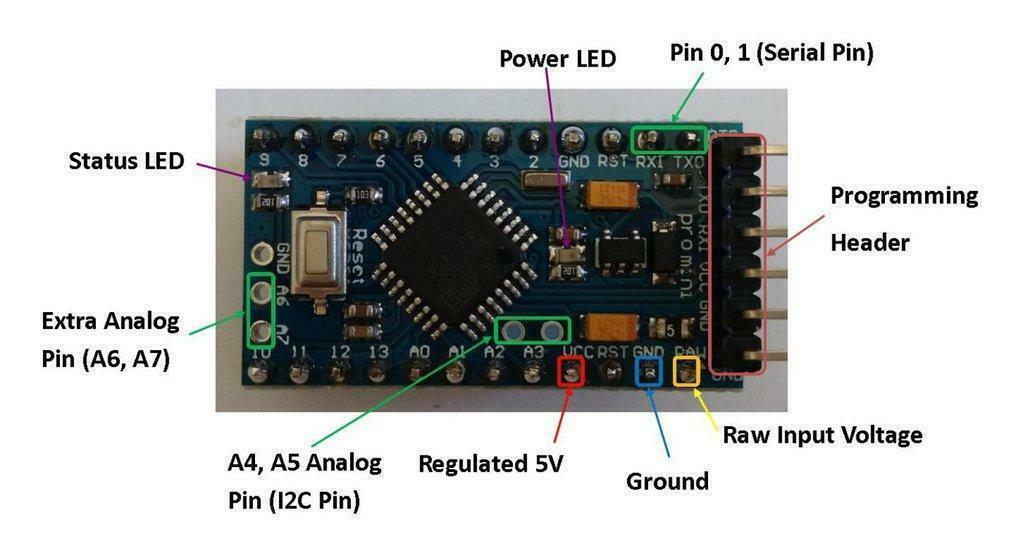

On board Power and Status LEDs
Support external power supply 5V-12V DC
Support 12V or less than 12V battery power supply (using RAW and GND power ports)

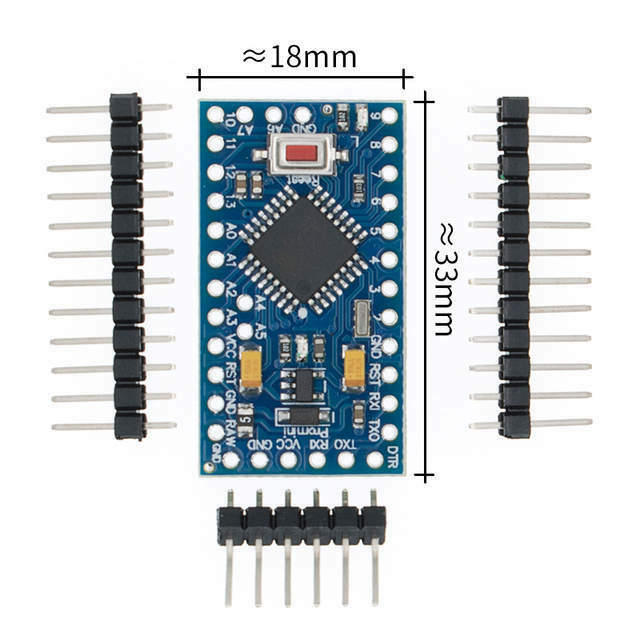

Size: 33.8mm x 18mm
Bootloader - yes

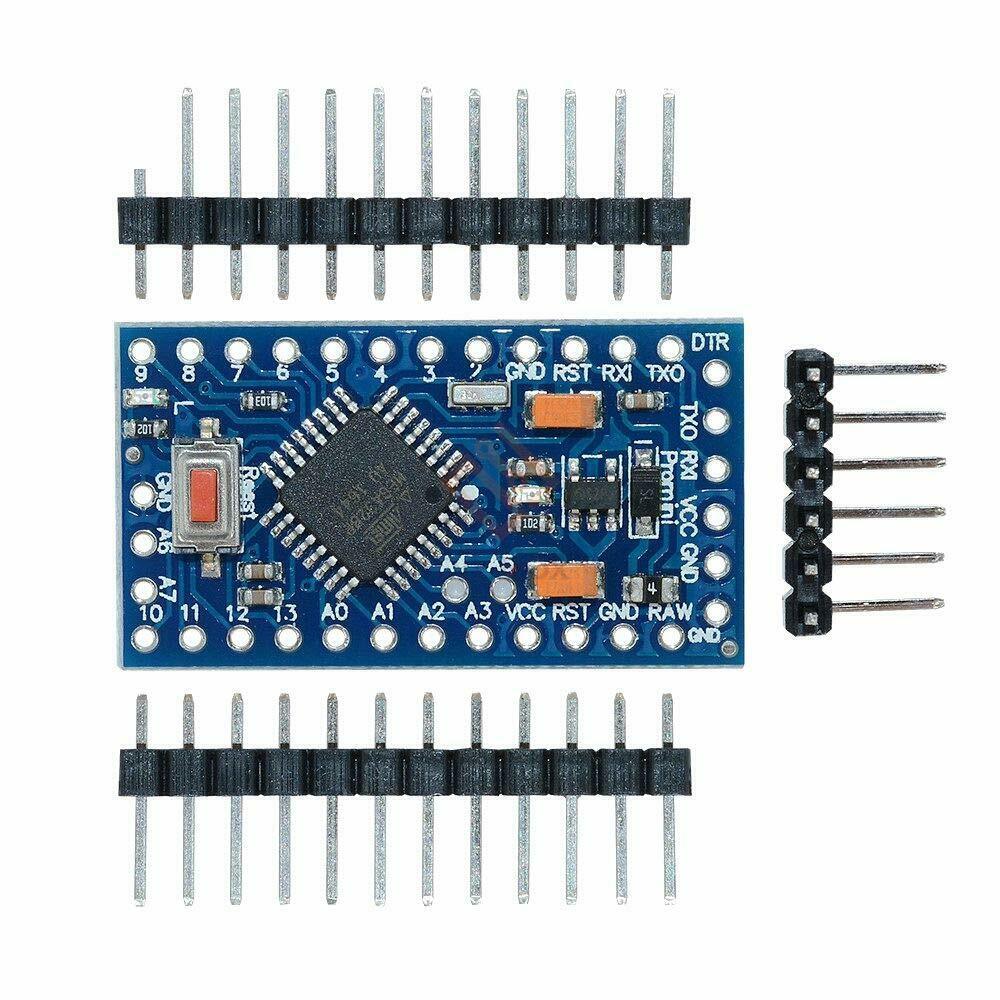

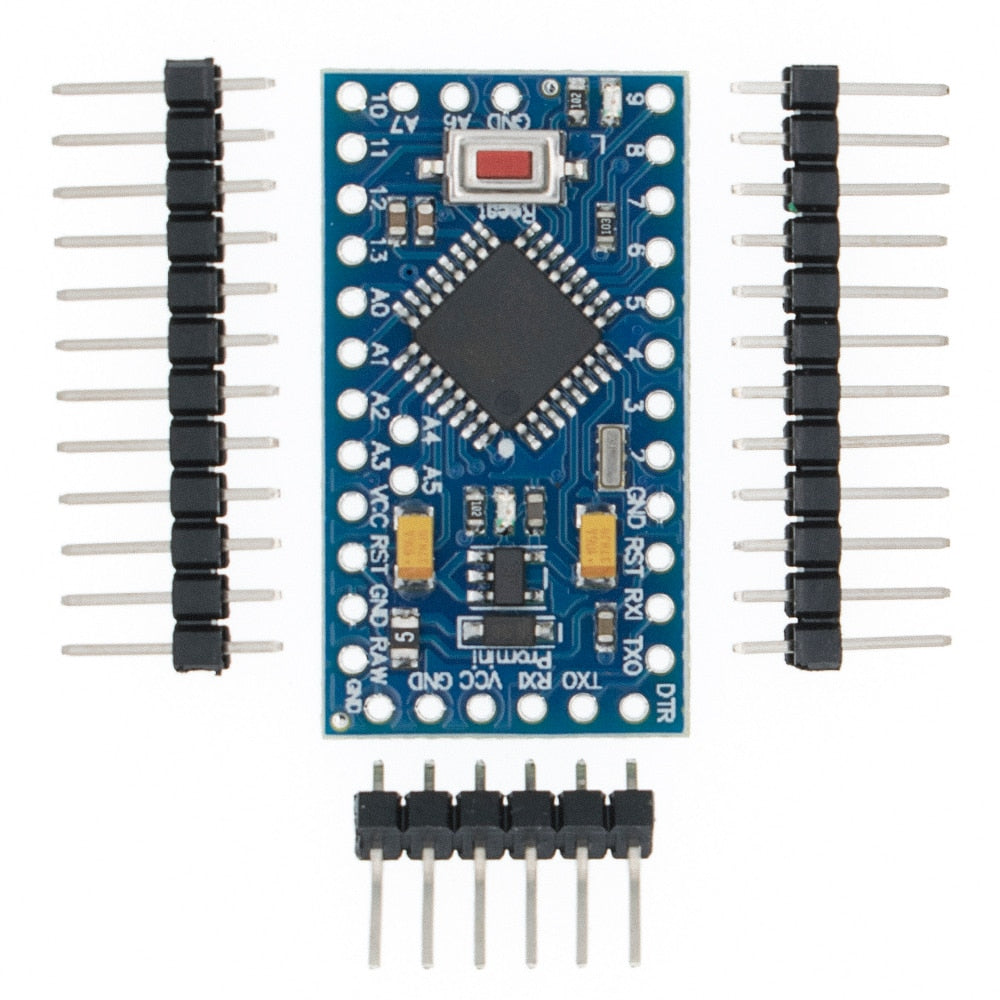

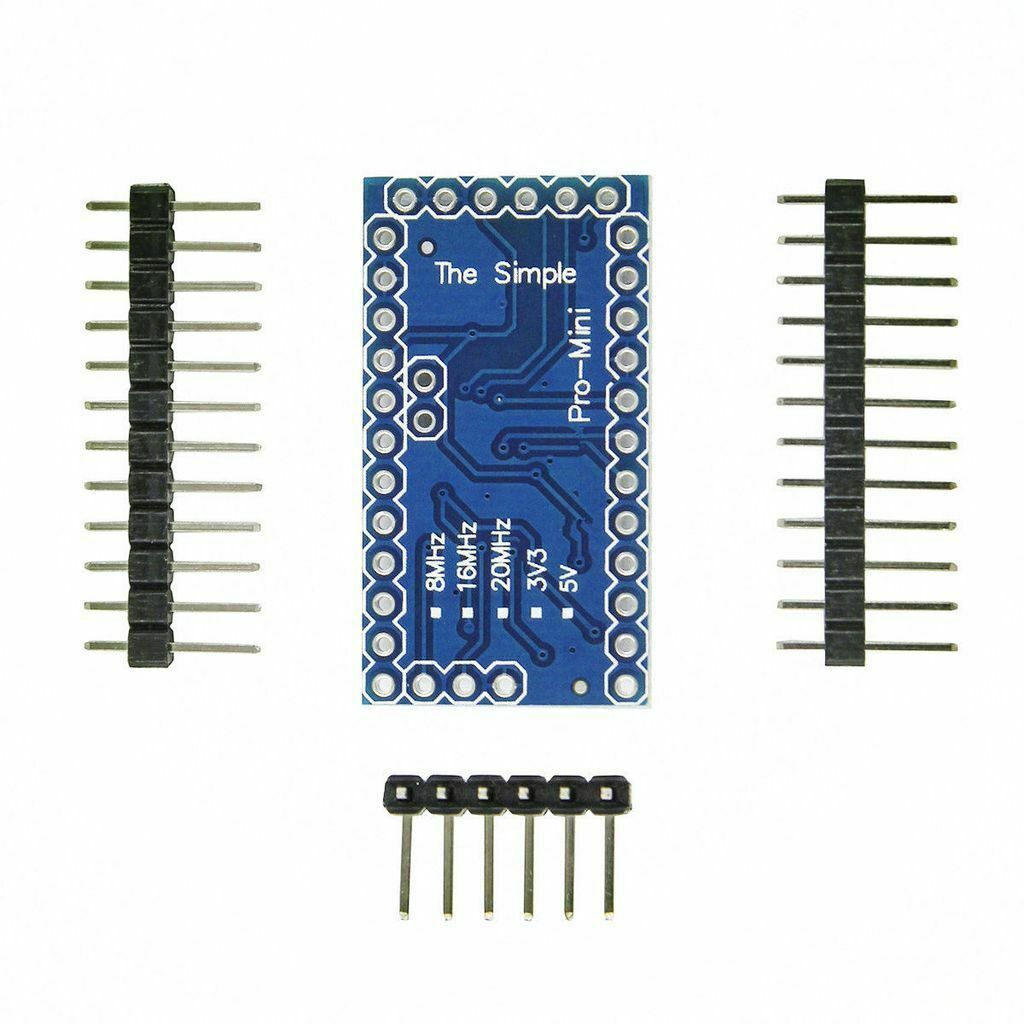

1 x ATMEGA328P Mini Pro Board Module for Arduino Pro Mini 8MHz 3.3V ATMEGA328
