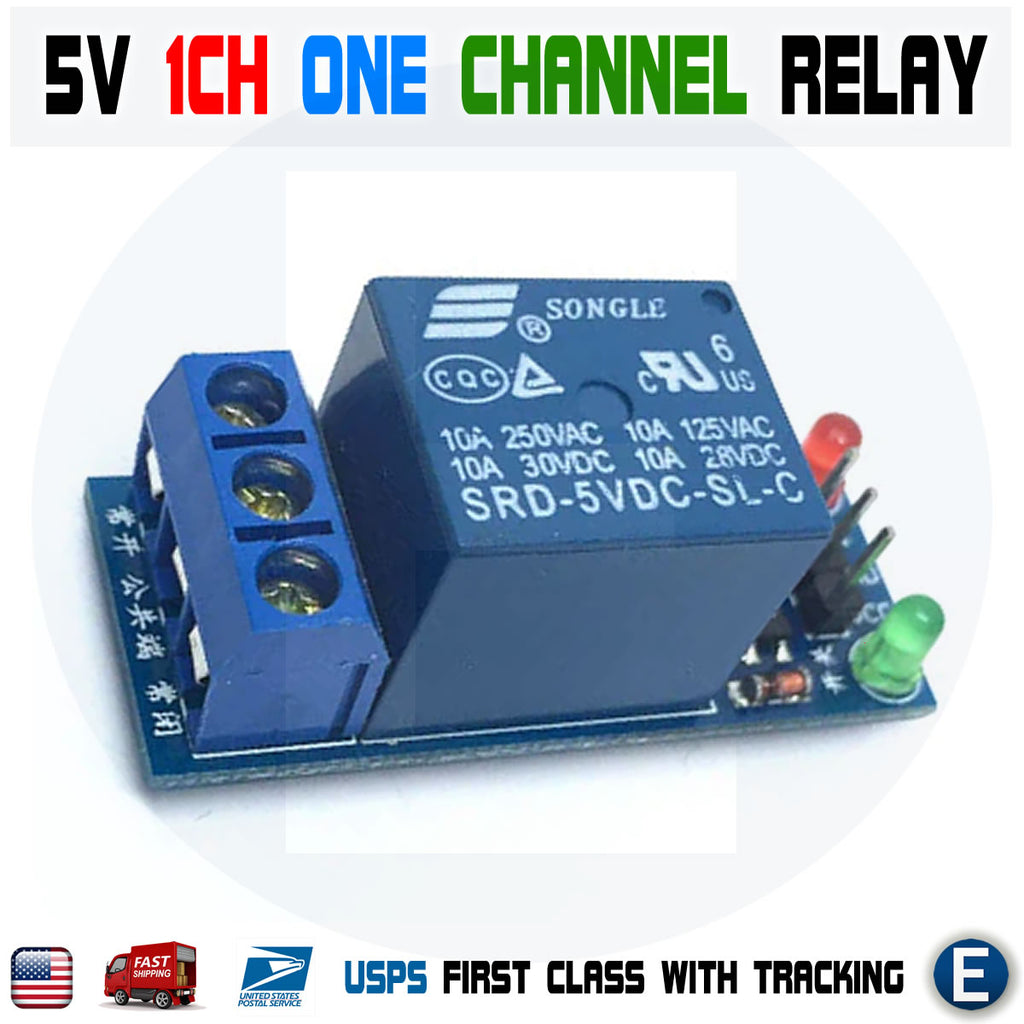

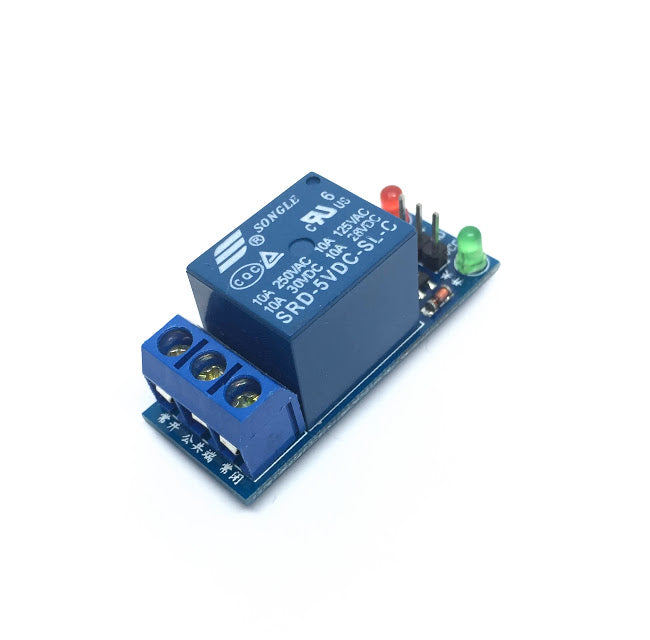

5V 1 CH One Channel Relay Module Board Shield For PIC AVR DSP ARM MCU Arduino

In stock
Business & Industrial:Electrical Equipment & Supplies:Relays:Relay Modules & Boards
222533081861
Description module size: 53x18x18.5mm   Module interface:Input part:VCC:connect to power positive (according to the relay voltage range)GND: connect to power negativeIN: relay module trigger pin (...
$2.23
$2.23
  customers are viewing this product

Description

module size: 53x18x18.5mm



Module interface:
Input part:
VCC:connect to power positive (according to the relay voltage range)
GND: connect to power negative
IN: relay module trigger pin (high level trigger)



Output part:
Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on;
Common pin (COM) : Common pin of the relay;
Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on;



Electrical parameters:
Voltage version:5V
The static current:4mA
Working current:65mA
Trigger voltage:2-5V
Trigger current:2mA



Package Included:
1 x 5V 1-Channel Relay Module with Optocoupler High Level Triger for Arduino
