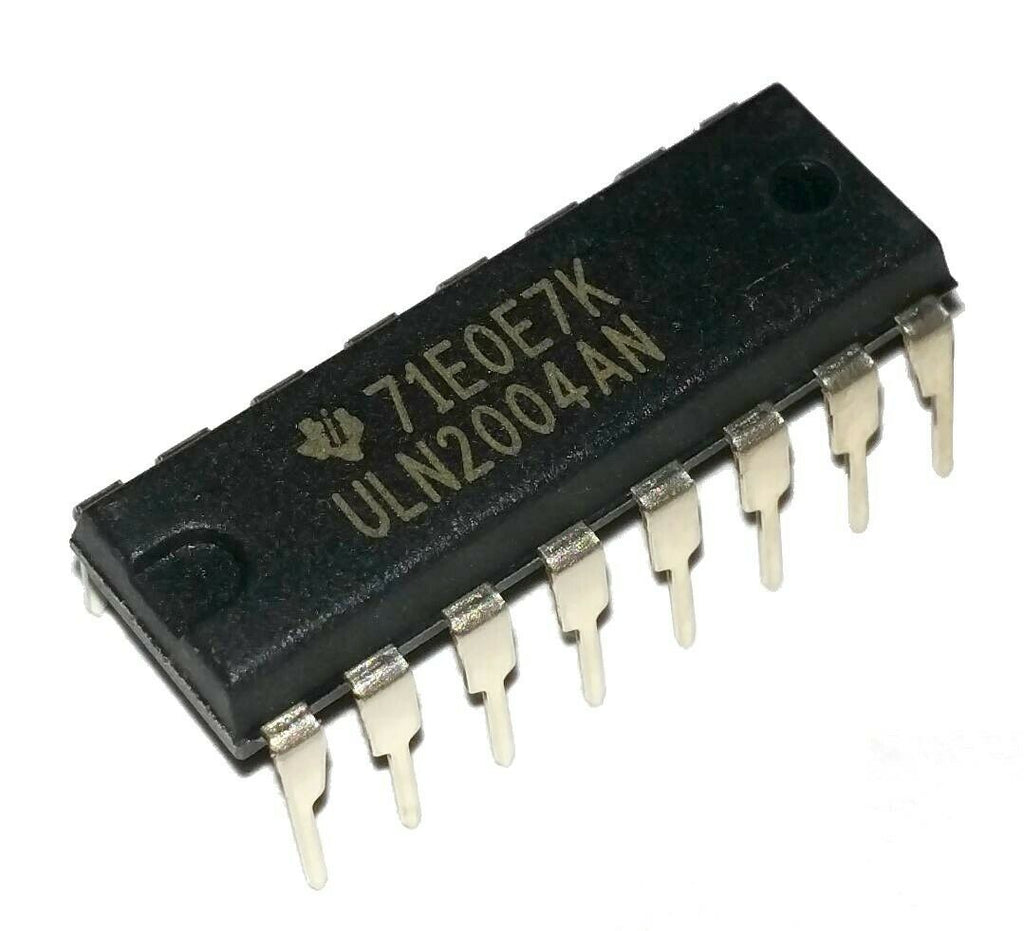

5pcs ULN2004 ULN2004AN Darlington NPN Transistor Array-7 50V 350 mA DIP-16 IC

In stock
Business & Industrial>Electrical Equipment & Supplies>Other Electrical Equipment & Supplies
uln2004an-darlington-transistor-array-5
The ULx200xA devices are high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for ...
$5.63
$5.63
  customers are viewing this product

The ULx200xA devices are high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.

The ULN2004A devices have a 10.5-kΩ series base resistor to allow operation directly from CMOS devices that use supply voltages of 6 V to 15 V. The required input current of the ULN2004A device is below that of the ULN2003A devices, and the required voltage is less than that required by the ULN2002A device.

Features
• 500-mA-Rated Collector Current (Single Output)
• High-Voltage Outputs: 50 V
• Output Clamp Diodes
• Inputs Compatible With Various Types of Logic
• Relay-Driver Applications

Package Included:
5pcs ULN2004 ULN2004AN Darlington NPN Transistor Array-7 50V 350 mA DIP-16 IC
