The TJA1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.
The TJA1050 provides different transmit performance for the bus and provides different receive performance for the CAN controller.
The TJA1050 is the successor to the PCA82C250 high-speed CAN transceiver.
The TJA1050 has made significant improvements in the following areas:
1. CANH and CANL ideally match to minimize electromagnetic emissions.
2. Performance is improved when there is no power-on node.

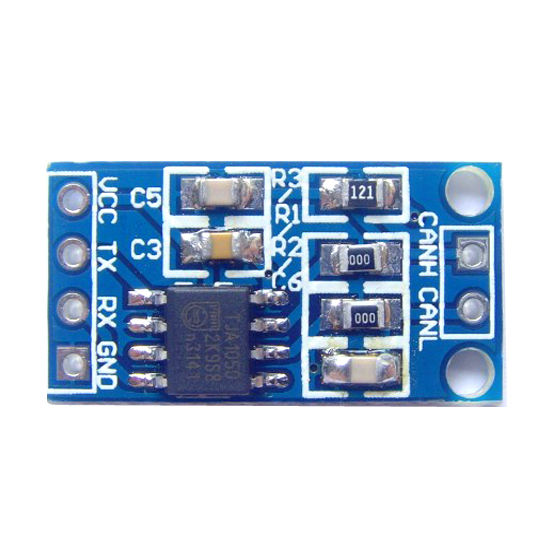

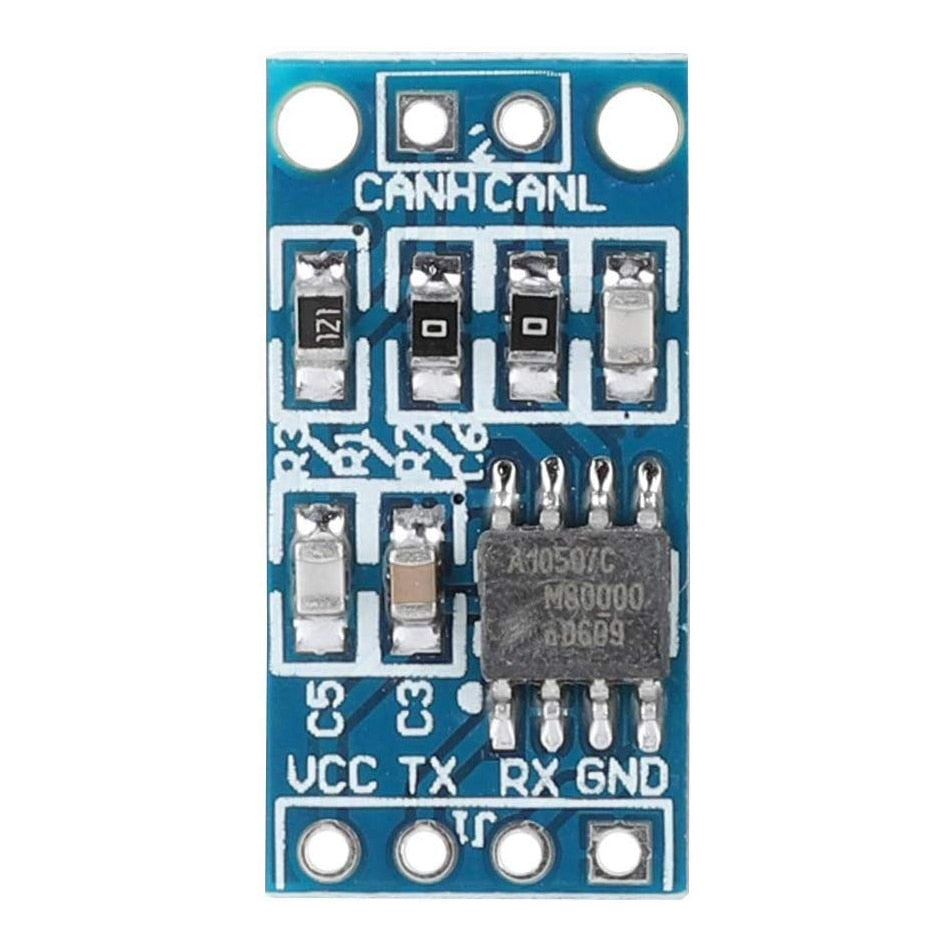

Pin Description:
TXD: Send data input
GND: Ground
VCC: power supply
RXD: Receive data input
CANL: Low level CAN bus
CANH: High level CAN bus
Package Included:

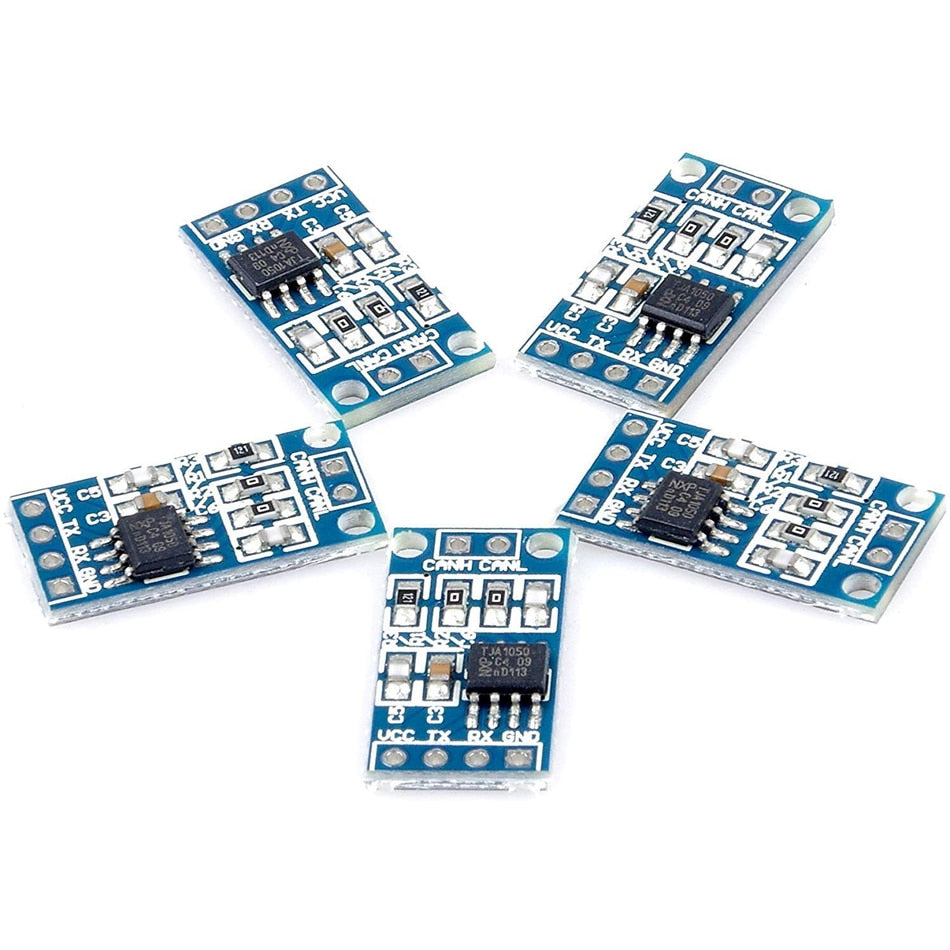

5 x TJA1050 CAN Bus Controller Module Transceiver Interface Driver for Arduino
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
