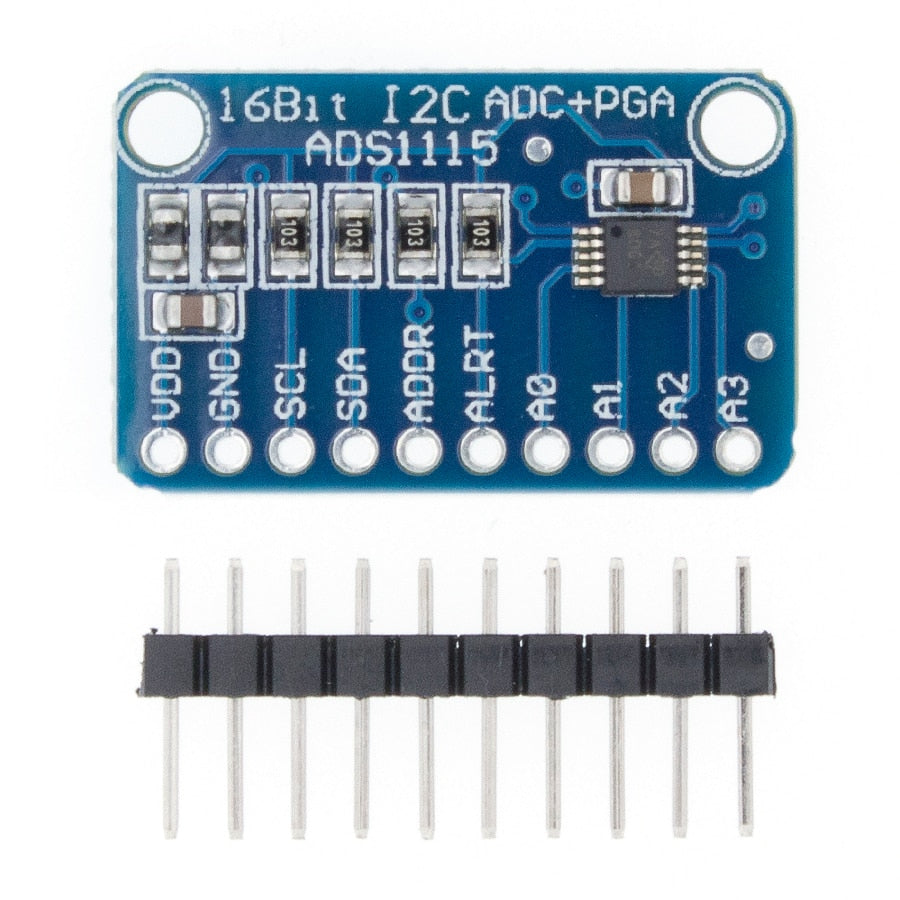

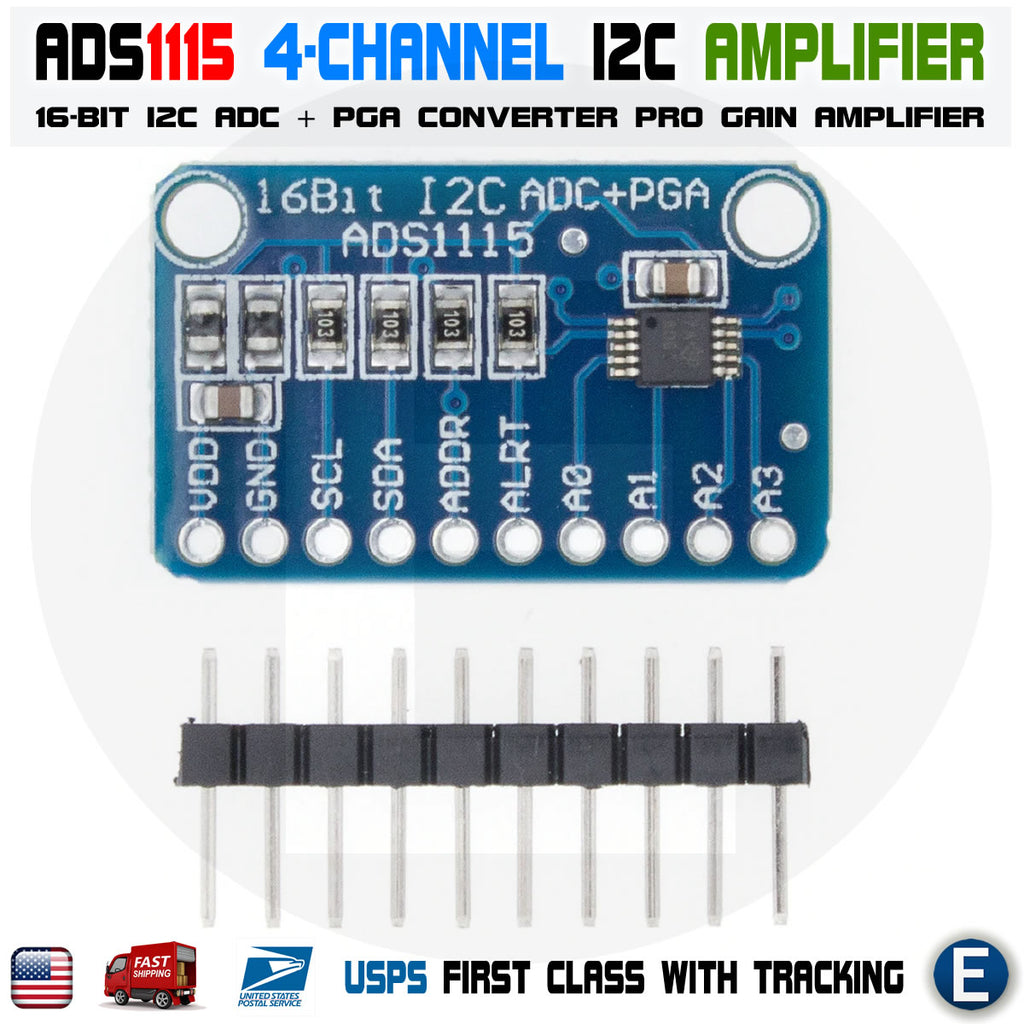

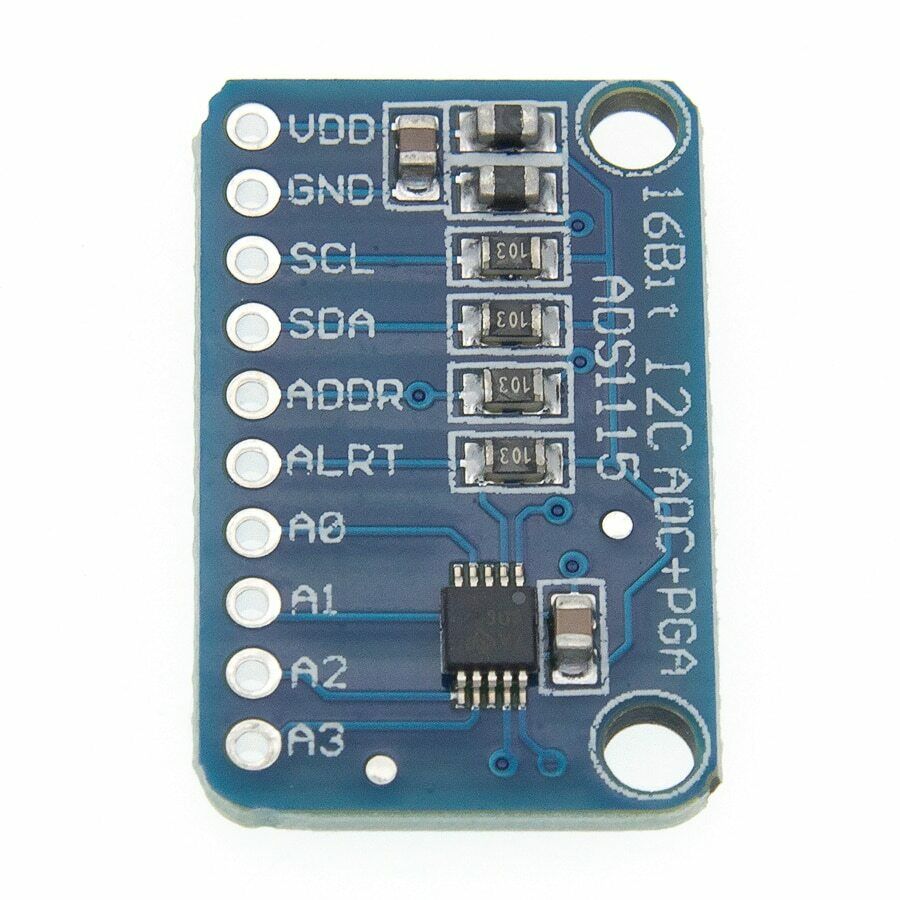

5pcs ADS1115 Module 16 Bit I2C ADC PGA 4 channel Pro Gain Amplifier Arduino RaspberryPi

Out of stock
Business & Industrial:Test, Measurement & Inspection:Signal Sources & Conditioning:Adjustable Power Supplies
B-03-10-01
Features: ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs Input voltage: 2.0-5.5v Channel input voltage :0-VDD Continuous Mode: Only 150μA Si...
$37.63
  customers are viewing this product
Features:

ADC Bit rate: 16 Bit
Interface Type: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs

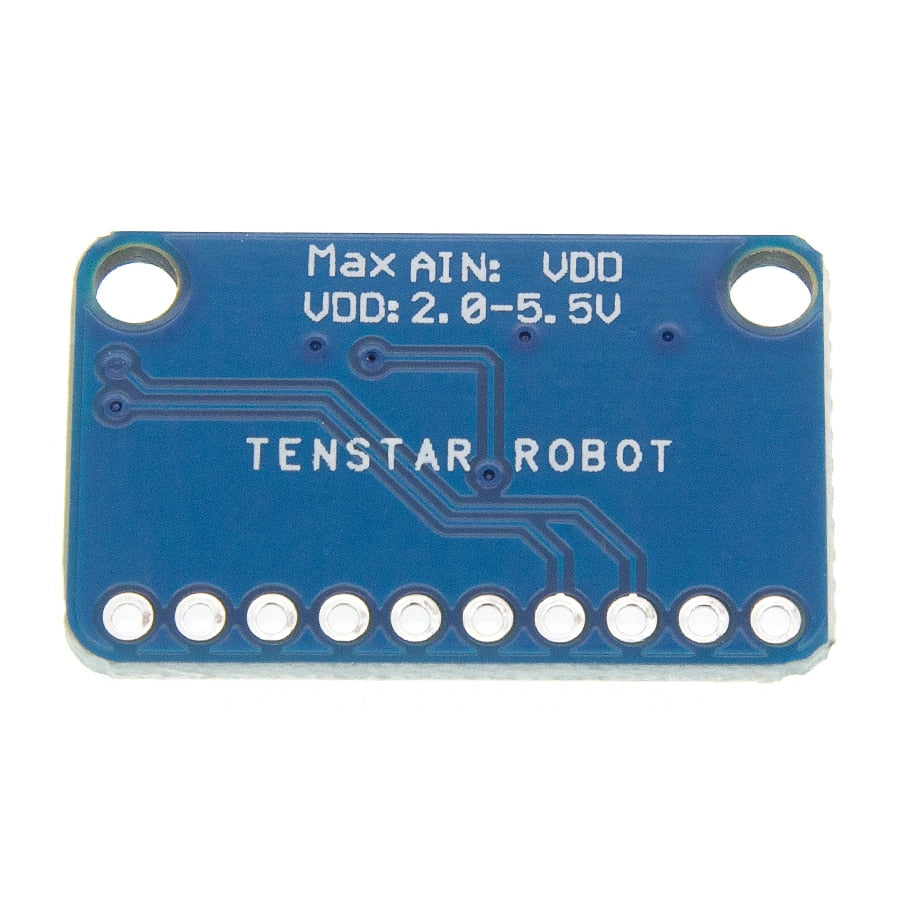

Input voltage: 2.0-5.5v
Channel input voltage :0-VDD
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE: 8sps-860sps
Input range programmed control, 7 types input ranges:

-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,
-2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V
I2C 7-bit addresses between 0x48-0x4B

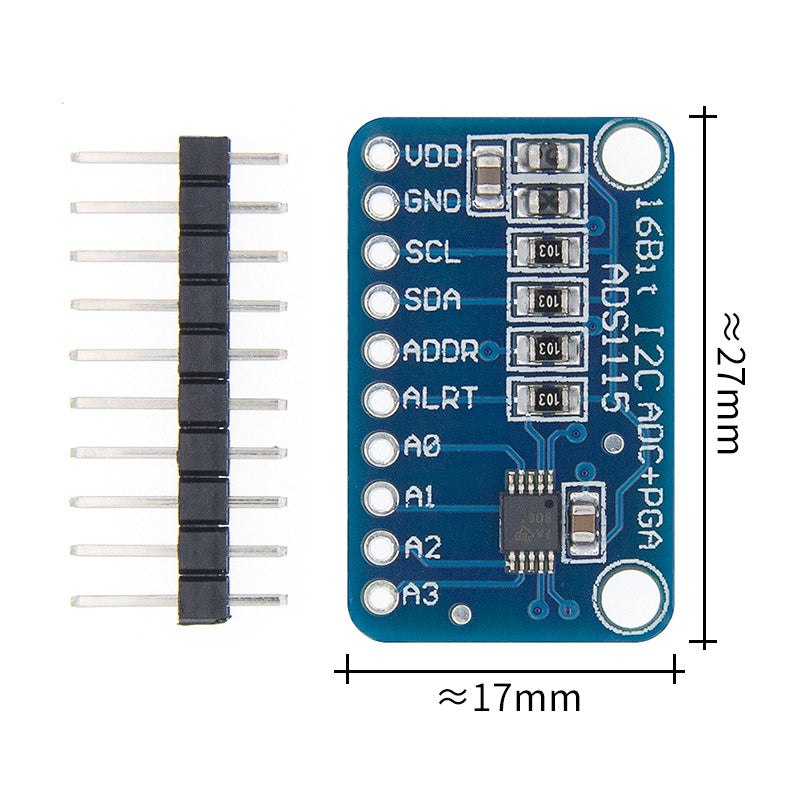

Size:18mm*28mm


Applications:
Portable instrumentation
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and process controls

Package Included:

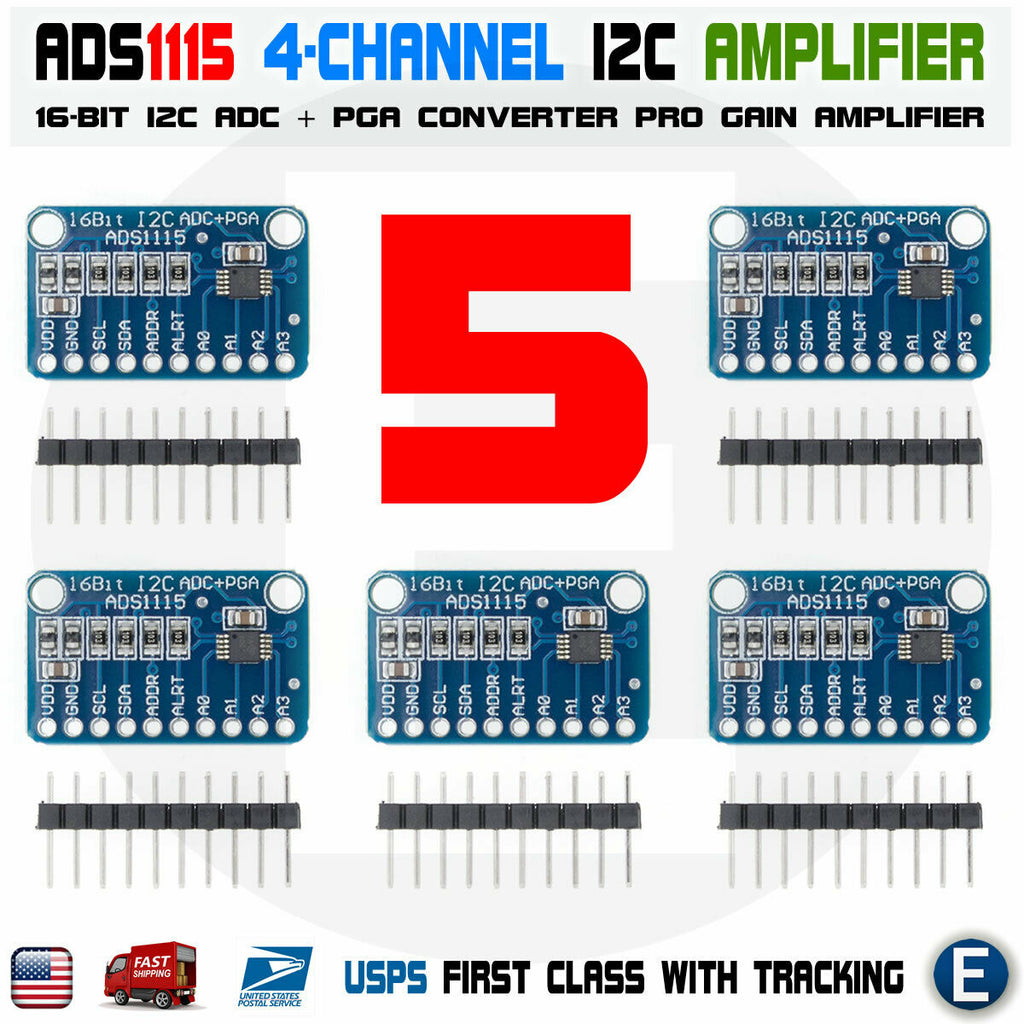

5 x 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for Arduino RPi
