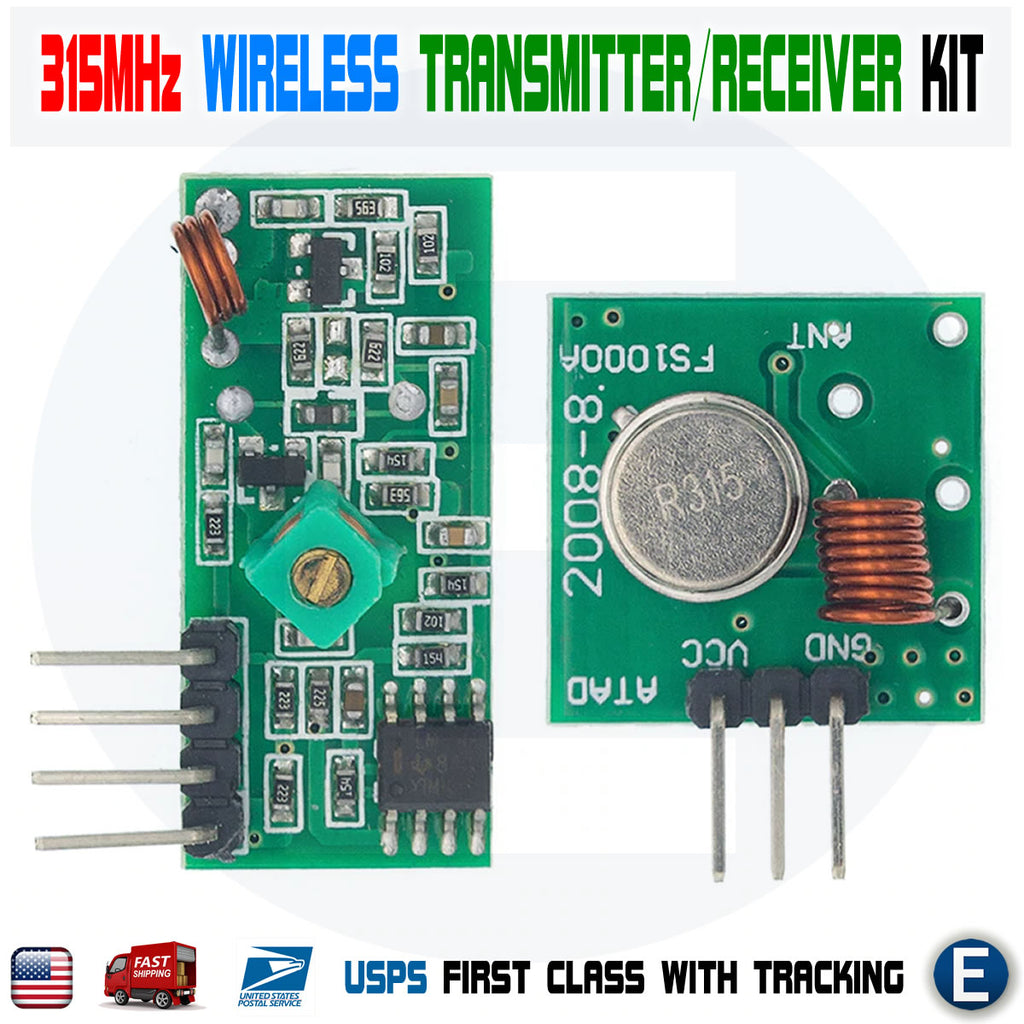

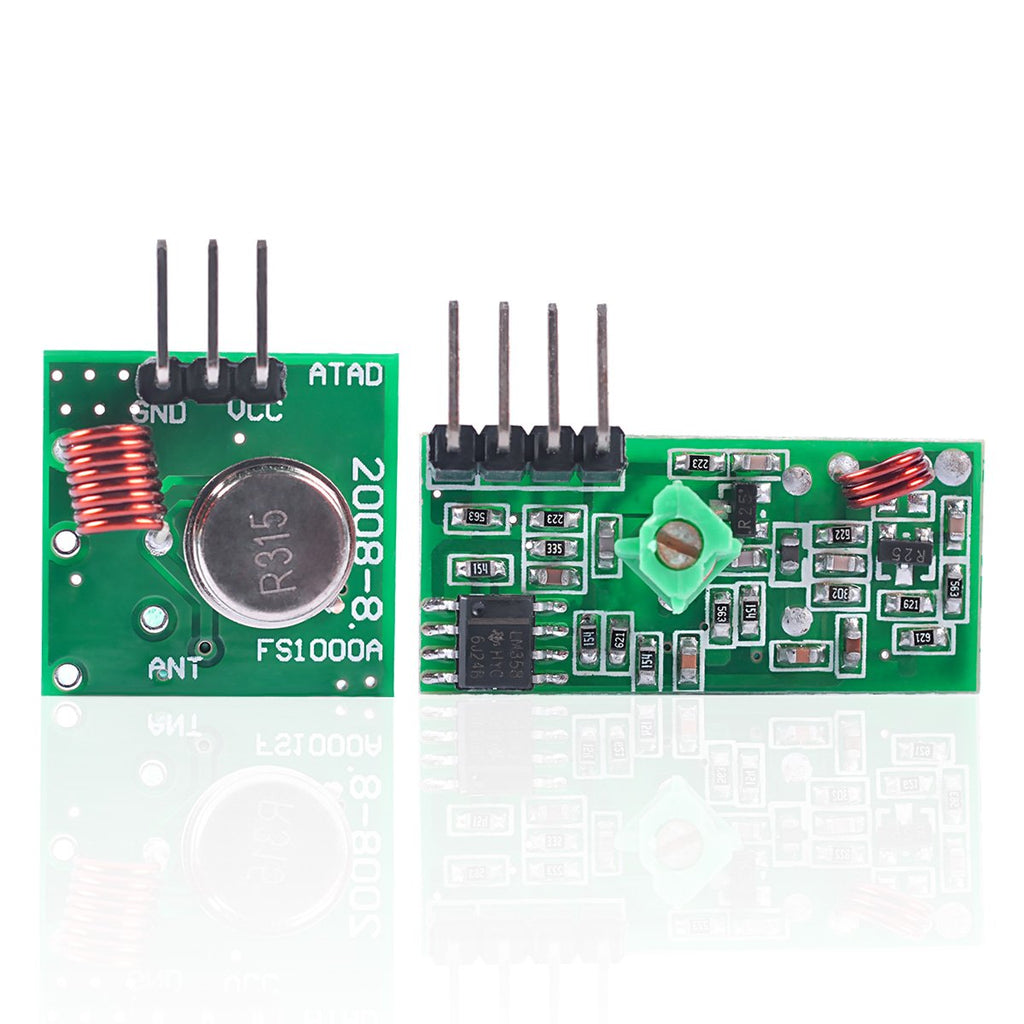

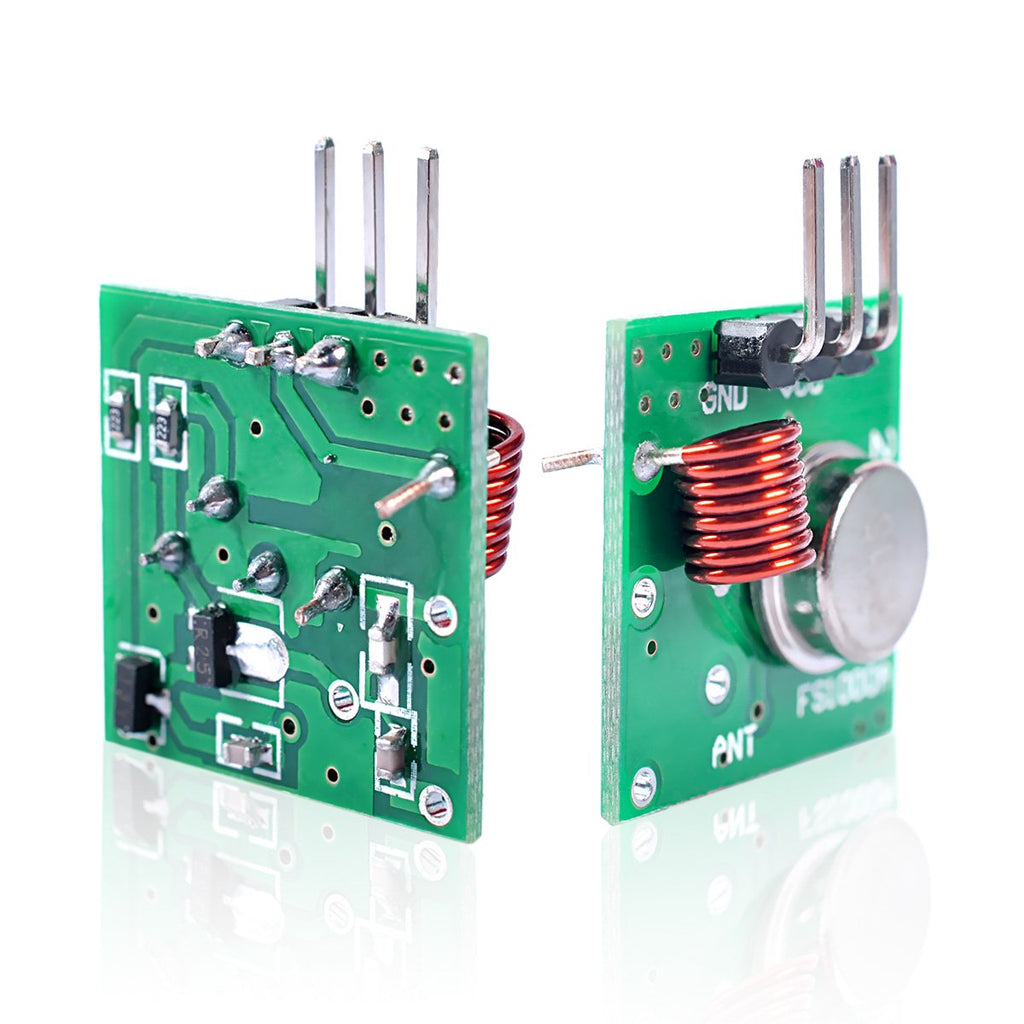

315Mhz Wireless RF Transmitter Module + Receiver Alarm Arduino DIY

In stock
C-01-10-07
TX Working voltage: 3V-12V. Working current: 20-28mA. Resonance mode: sound wave resonance (SAW) Modulation mode: ASK /OOK RX Working voltage: 5.0VDC. Static current:4MA Working principle: single c...
$2.89
$2.89
  customers are viewing this product

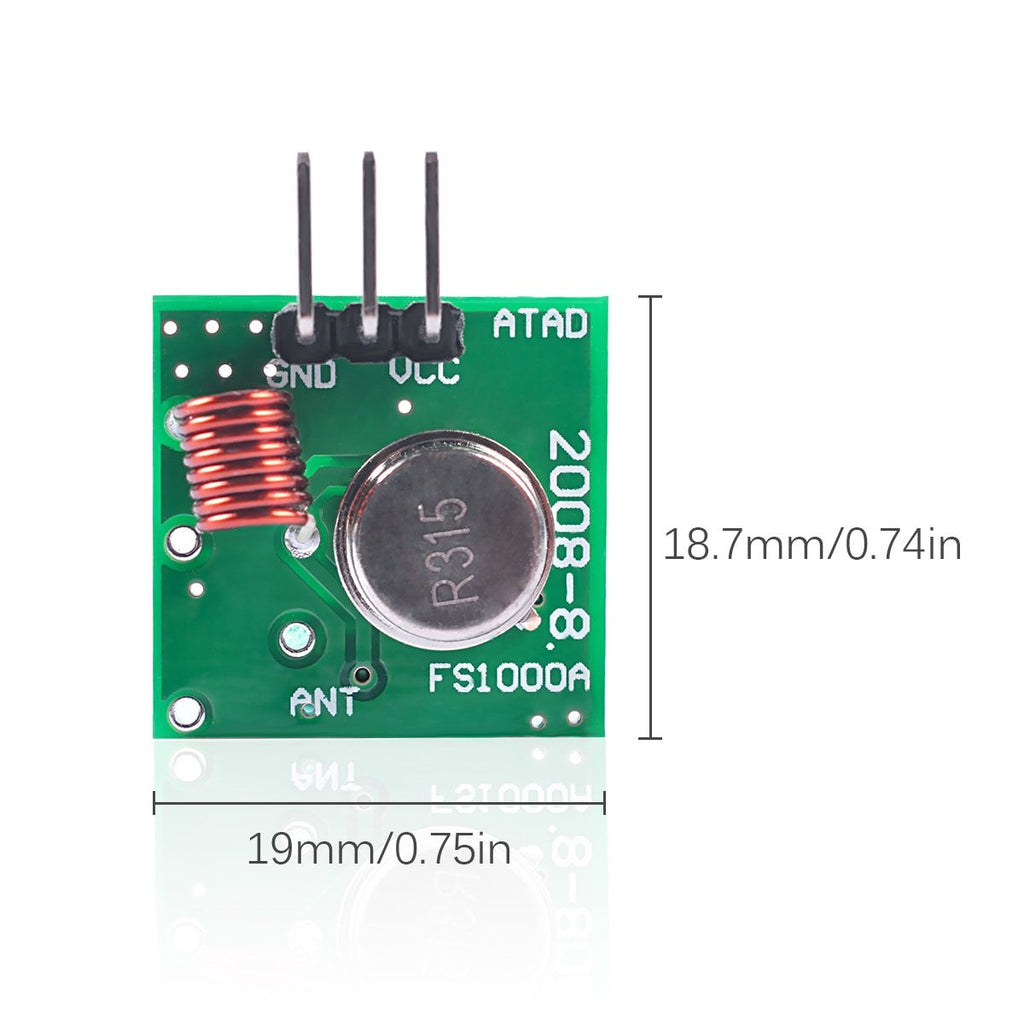

TX Working voltage: 3V-12V. Working current: 20-28mA.
Resonance mode: sound wave resonance (SAW)
Modulation mode: ASK /OOK

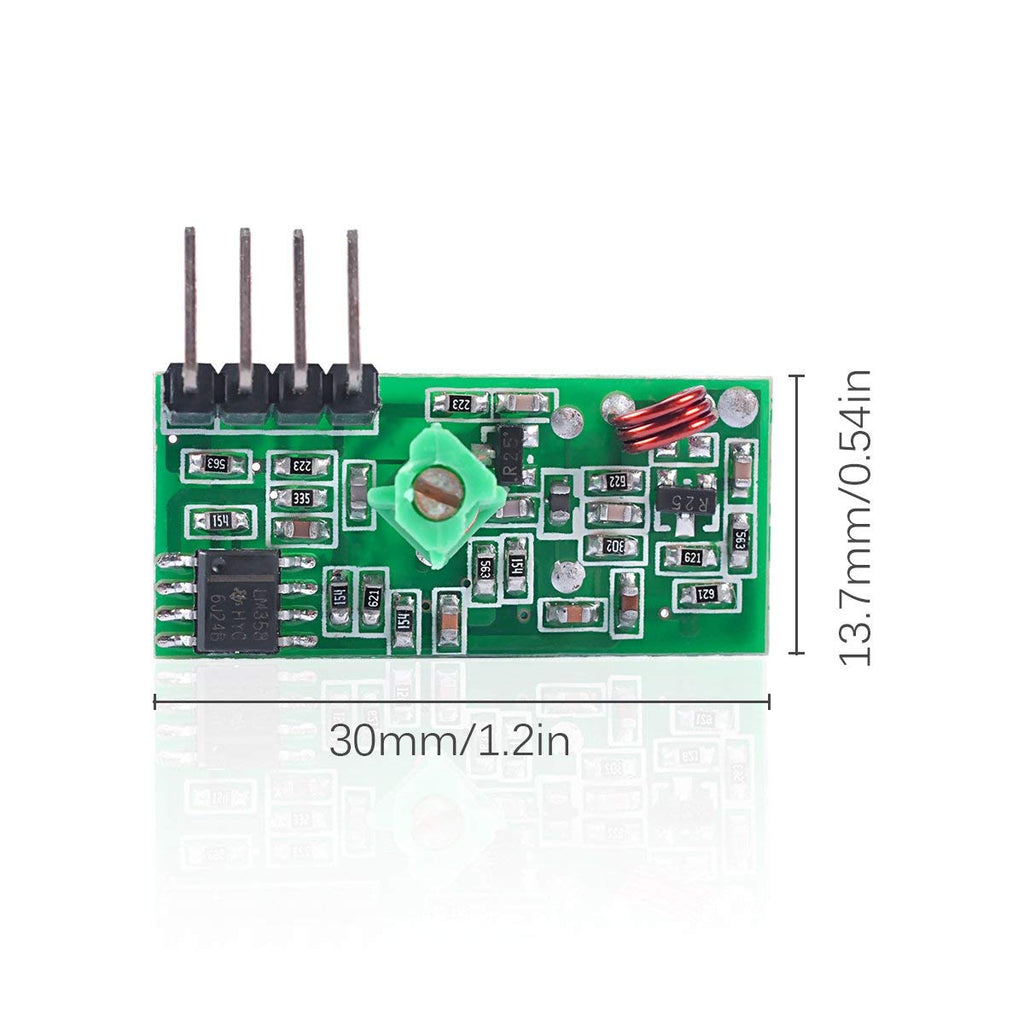

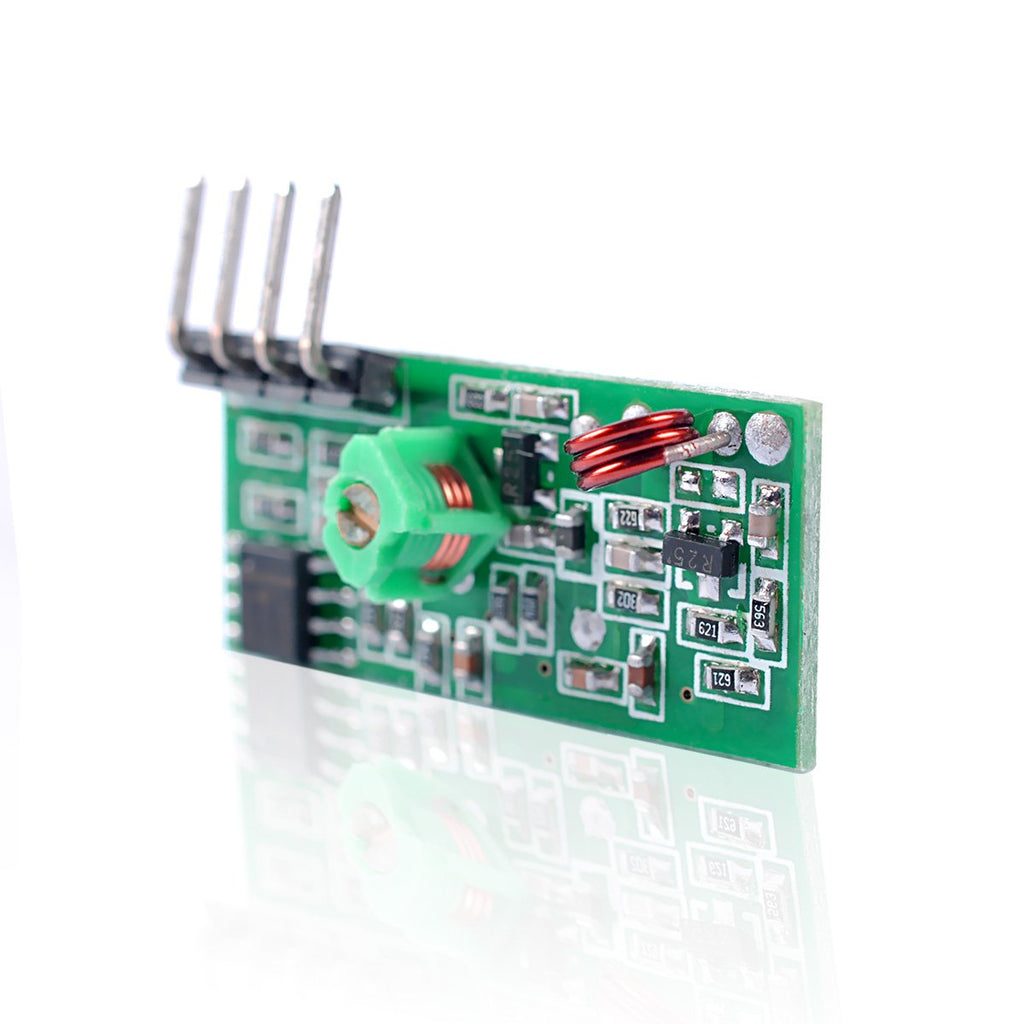

RX Working voltage: 5.0VDC. Static current:4MA
Working principle: single chip super regeneration receiving

Working voltage: 3V-12V
Working current: 20-28mA.
Working temperature: -10 degree to +70 degree
Resonance mode: sound wave resonance (SAW)
Modulation mode: ASK /OOK
Working frequency: 315MHz
Transmission distance:>500m,sensitivity to -103dBm, in open areas.
Transmission power: 25mW (315MHz at 12V)
Frequency error: +150kHz (max)
Velocity: ¡Ü10Kbps
Self-owned codes: negative

Working voltage: 5.0VDC
Static current:4MA
Working temperature: -10 degree to +70 degree
Working principle: single chip super regeneration receiving
Working method: OOK/ASK
Working frequency: 315MHz
Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm)
Sensitivity: excel ¨C100dBm (50¦¸)
Transmitting velocity: 9.6Kbps (at 315MHz and -95dBm)

Package Included:
1 Pair 315Mhz Wireless RF Transmitter Module + Receiver Alarm Arduino DIY

This product is DIY kit, NOT the end product!
We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
