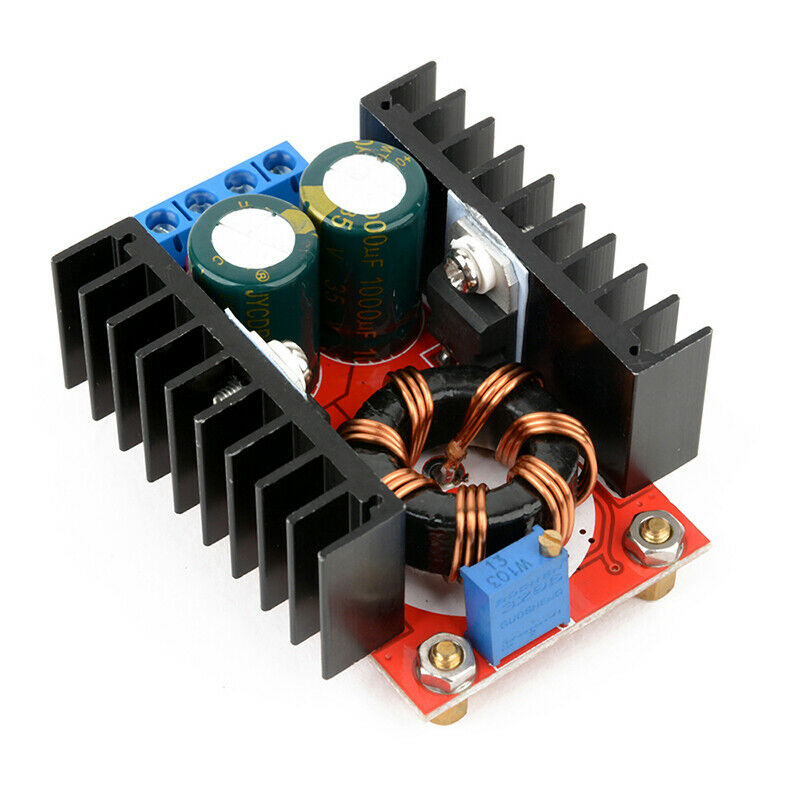

150W Boost Converter DC-DC 10-32V to 12-35V Step Up Power Supply Module

In stock
Specification:Newly Improved VersionSize: Approx.6.5 x 4.7 x 2cm (L x W x H)Input Voltage: DC 10V-32VOutput Voltage: DC 12V-35V (adjustable) Input Current: 16A (MAX) (more than 10A please strengthe...
$7.63
$7.63
  customers are viewing this product

Specification:
Newly Improved Version
Size: Approx.6.5 x 4.7 x 2cm (L x W x H)
Input Voltage: DC 10V-32V
Output Voltage: DC 12V-35V (adjustable)
Input Current: 16A (MAX) (more than 10A please strengthen heatsink)
Output Power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power
Conversion Efficiency: 94% (when Input 19V 2.5A Output 16V, Reference)
Output Ripple: 2% (MAX)
Working Temperature: industrial (- 40 °c to +85 °c)
Full-Load Temperature: 45 degrees
No-load Current: 25mA typical
Voltage Regulation: ± 0.5%
Load Regulation: ± 0.5%
Dynamic Response Speed: 200uS 5%
Short Circuit Protection: No (Please installs the fuse or protection circuit at input parts)

Features:
DIY one adjustable output car power supply, only need to input 12V, then it can output continuous adjustable voltage; note that the output voltage cannot be lower than the input voltage.

Universal car power supply for laptop; Connect input to 12V power supply, then adjust output voltage to fit your laptop.

It is also a boost charger, which you can use with a 12V power supply to charge a higher voltage storage battery, for example a 24V battery.

Power supply for your electronic equipments, it can work normally as long as you adjust voltage as needed and current should not exceed the rated current.

No Input Reverse protection (Comply with a reverse protection or connect a diode at input parts)

If room temperature is more than 40 °C degrees, please reduce power or enhance cooling system

The high-voltage module should avoid the use of electricity in high voltage no-load

Package Included:
1 x 150W Boost Converter DC-DC 10-32V to 12-35V Step Up Power Supply Module
Instructions/schematics are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
