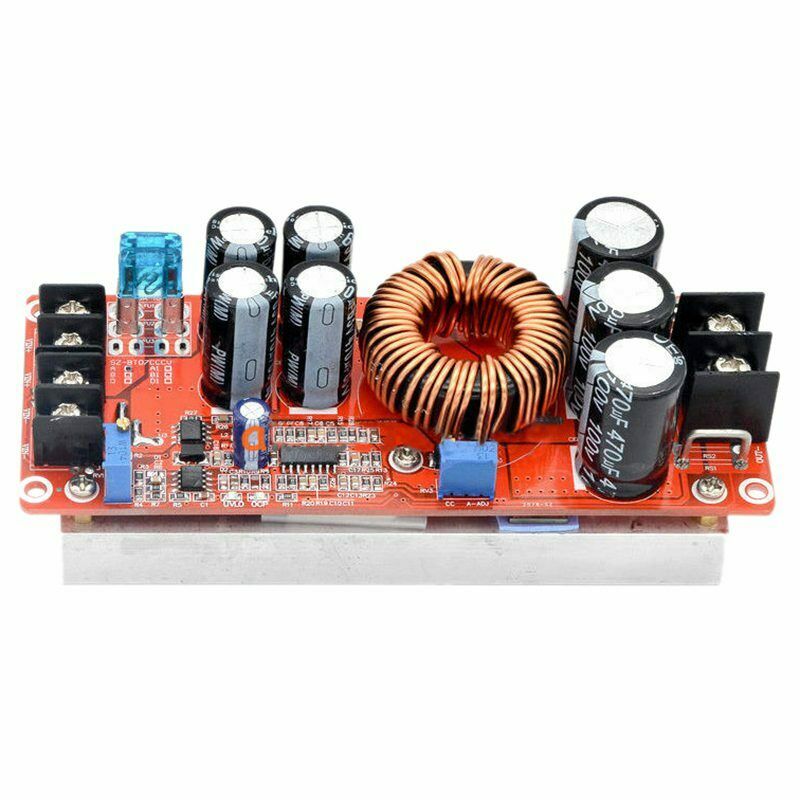

1200W 20A DC Converter Boost Step-up 8-60V To 12-83V Power Supply Module Car

In stock
B-02-13-01
Features: Input voltage: 8-60V Input Current: 20A Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet) Output voltage: 12-80V continuously adj...
$22.89
$22.89
  customers are viewing this product

Features:
Input voltage: 8-60V
Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5-20A

Output Power:
Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,
Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel,
The current per module can be adjusted to 15A.

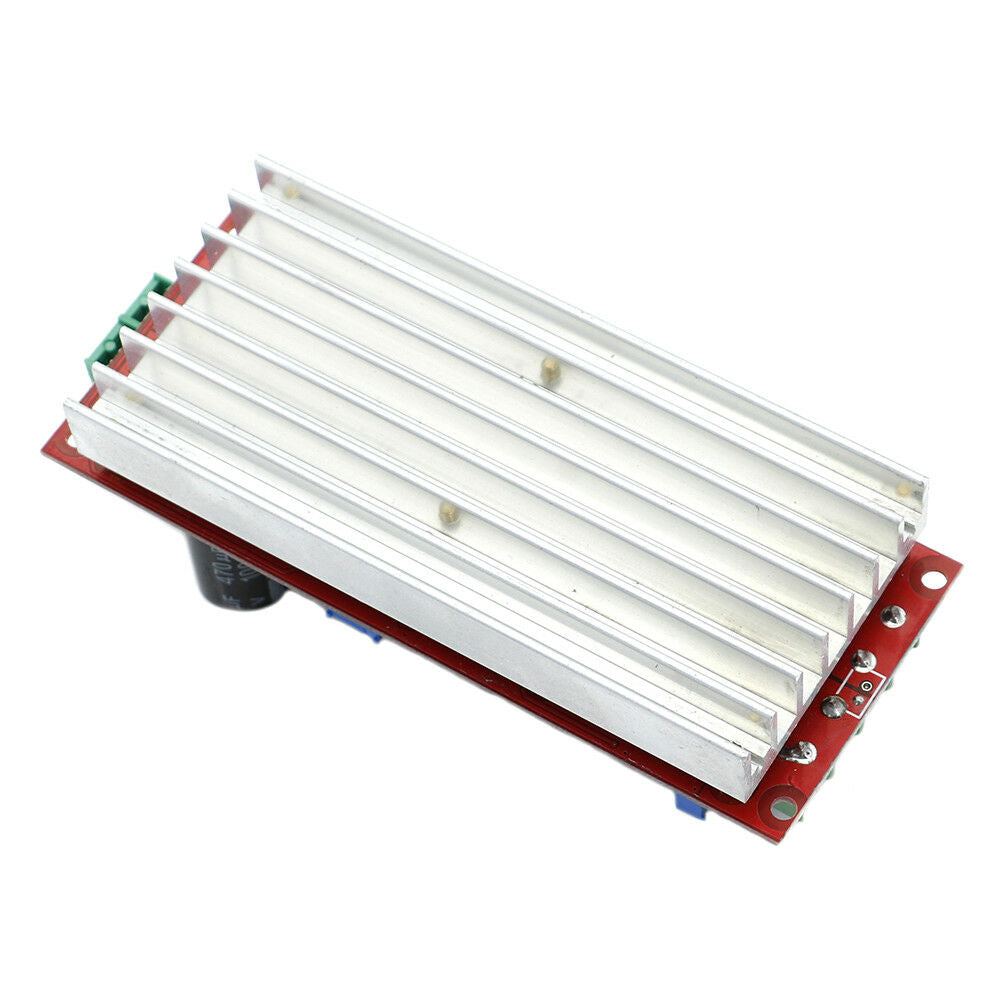

Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
Output Counter filling: Yes, for charging plus blocking diode is not required.
Installation: four 3mm screws
Connection: solderless terminals output

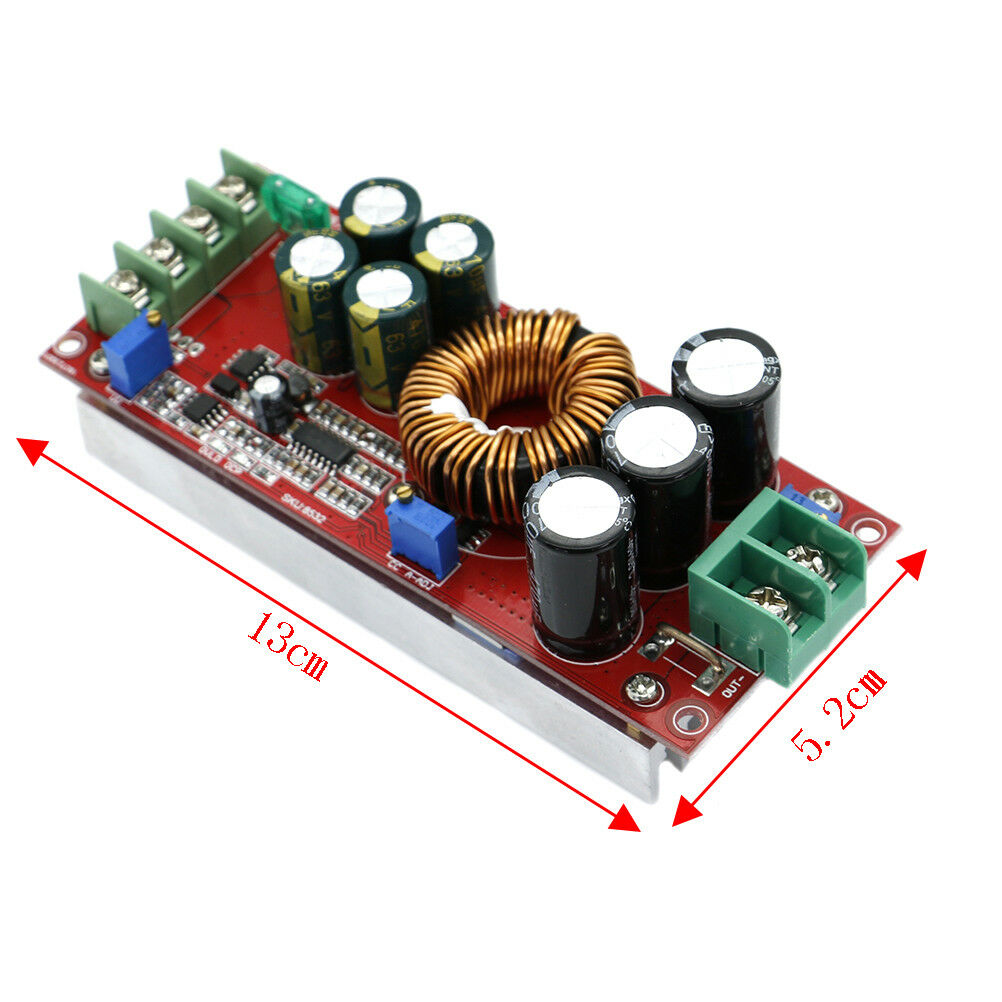

Module dimensions:116x52x15mm

Package Included:
1 x 1200W 20A DC Converter Boost Step-up 8-60V To 12-83V Power Supply Module Car
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
