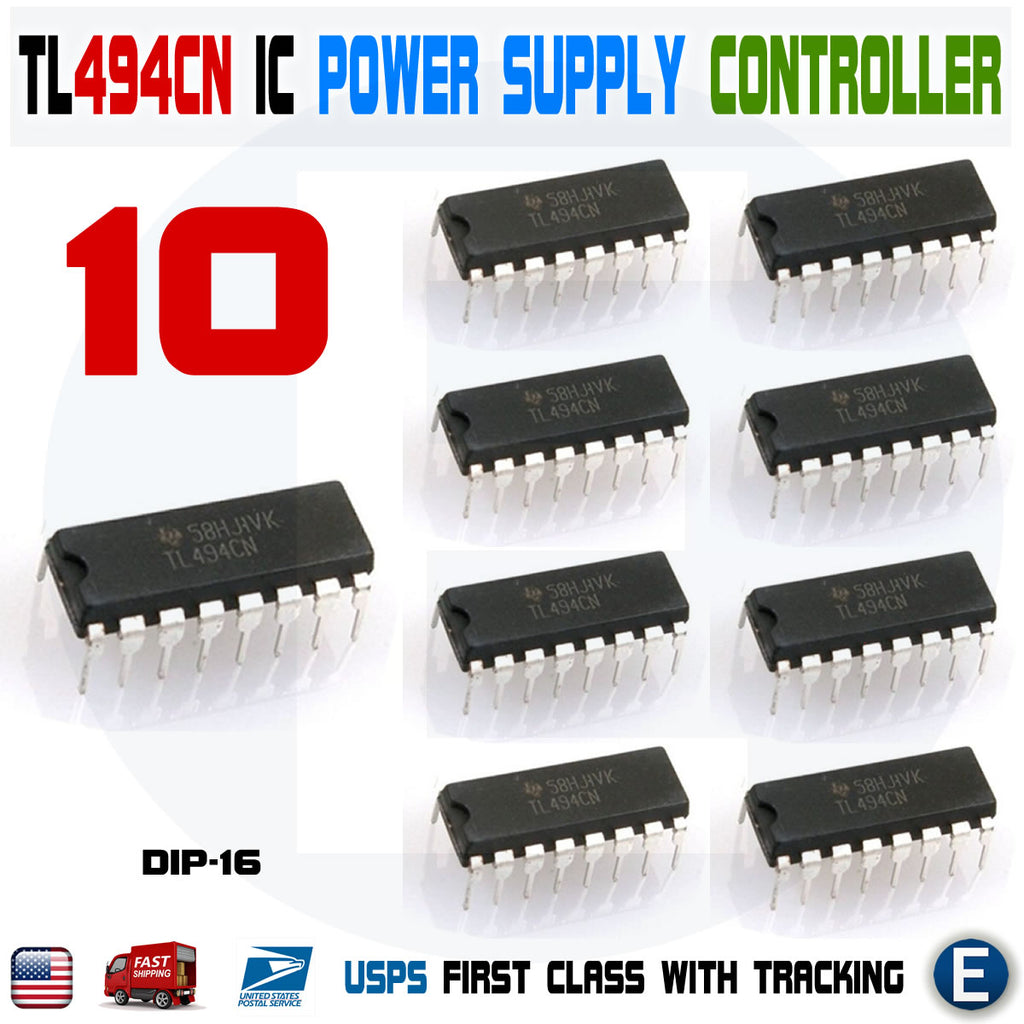

10pcs TL494CN TL494 PWM Power Supply Controller IC DIP-16 PWM

In stock
Manufacturer Part No: TL494CNPackage/Case: PDIP-16RoHS: YesProduct Category: Voltage Mode PWM ControllersNumber of Outputs: DualTopology: Boost or Buck or Flyback or Forward or Full-Bridge or Half-...
$8.63
$8.63
  customers are viewing this product

Manufacturer Part No: TL494CN
Package/Case: PDIP-16
RoHS: Yes
Product Category: Voltage Mode PWM Controllers
Number of Outputs: Dual
Topology: Boost or Buck or Flyback or Forward or Full-Bridge or Half-Bridge or Push-Pull
Output Voltage: 40 V (Max)
Output Current: 200 mA (Max)
Switching Frequency: 300 KHz
Synchronous Pin: No
Duty Cycle (Max): 45 % (Typ)
Rise Time: 100 ns
Fall Time: 40 ns
Maximum Operating Temperature: 70 C
Minimum Operating Temperature: 0 C

Package Included:
10pcs TL494CN TL494 PWM Power Supply Controller IC DIP-16 PWM
