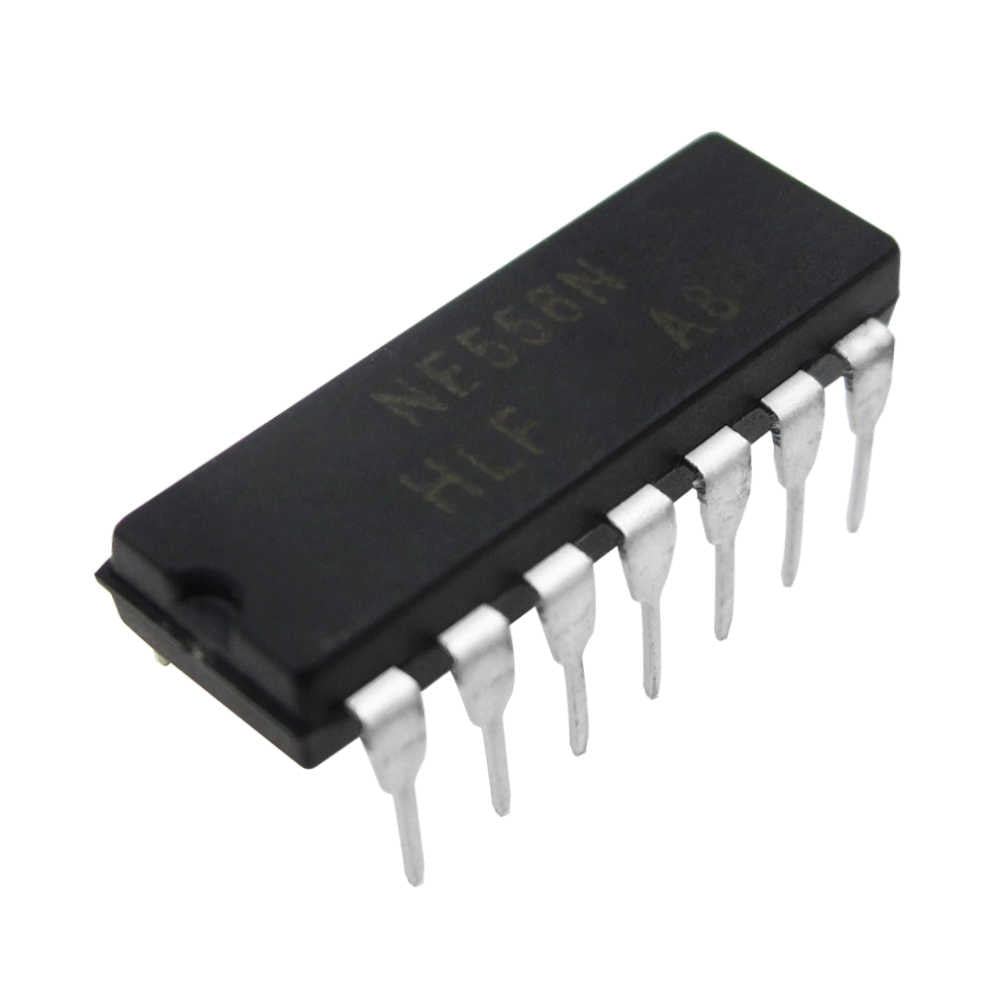

10pcs NE556N NE556 556 Dual Bipolar Timer IC General-purpose Dip-14

Out of stock
FeaturesLow turn-off timeMaximum operating frequency greater than 500 kHzTiming from microseconds to hoursOperates in both astable and monostable modesOutput can source or sink up to 200 mAAdjustab...
  customers are viewing this product

Low turn-off time
Maximum operating frequency greater than 500 kHz
Timing from microseconds to hours
Operates in both astable and monostable modes
Output can source or sink up to 200 mA
Adjustable duty cycle
TTL compatible
Temperature stability of 0.005% per °C

The NE556, SA556 and SE556 dual monolithic
timing circuits are highly stable controllers
capable of producing accurate time delays or
oscillation. In the time delay mode of operation,
the time is precisely controlled by one external
resistor and capacitor. For a stable operation as
an oscillator, the free running frequency and the
duty cycle are both accurately controlled with two
external resistors and one capacitor.
The circuits may be triggered and reset on falling
waveforms, and the output structure can source
or sink up to 200 mA.

Package included:

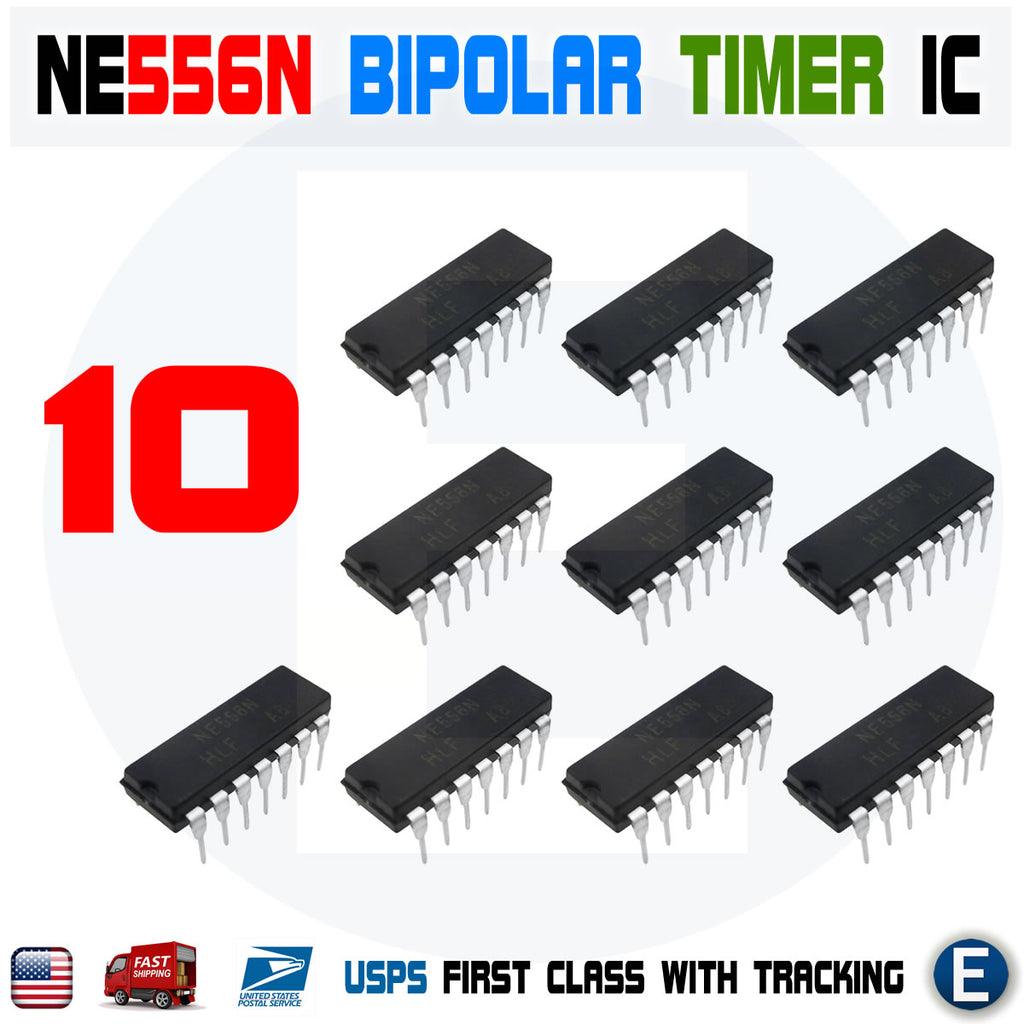

10pcs NE556N NE556 556 Dual Bipolar Timer IC General-purpose Dip-14
