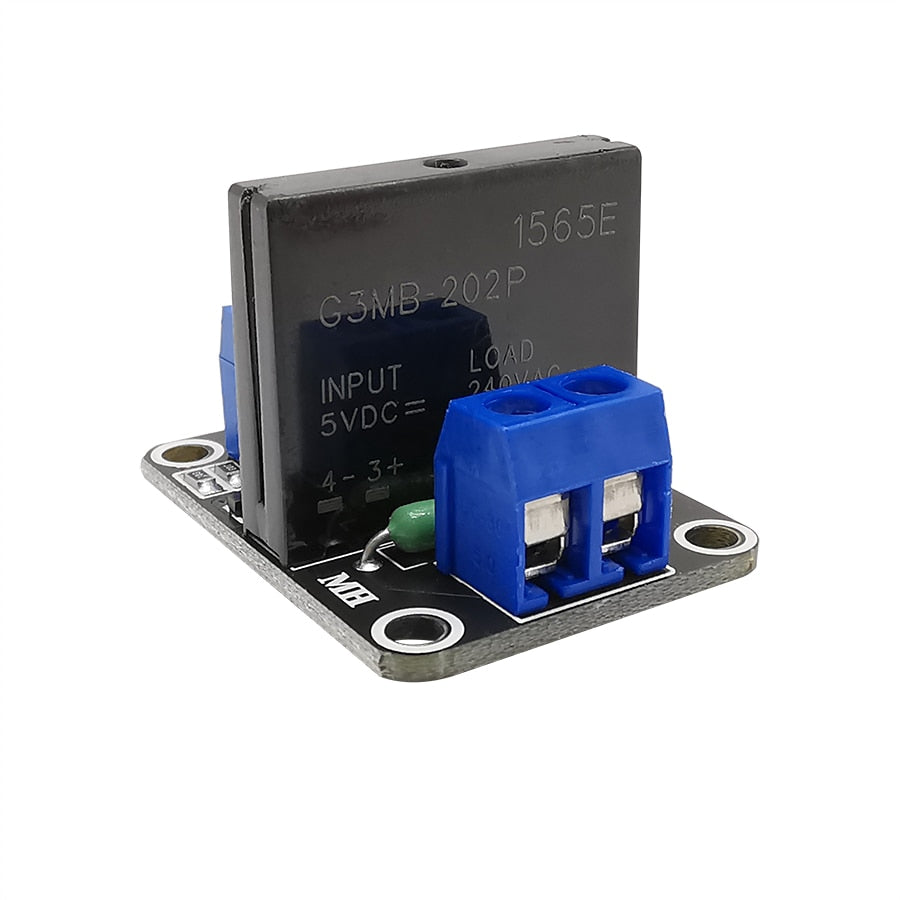

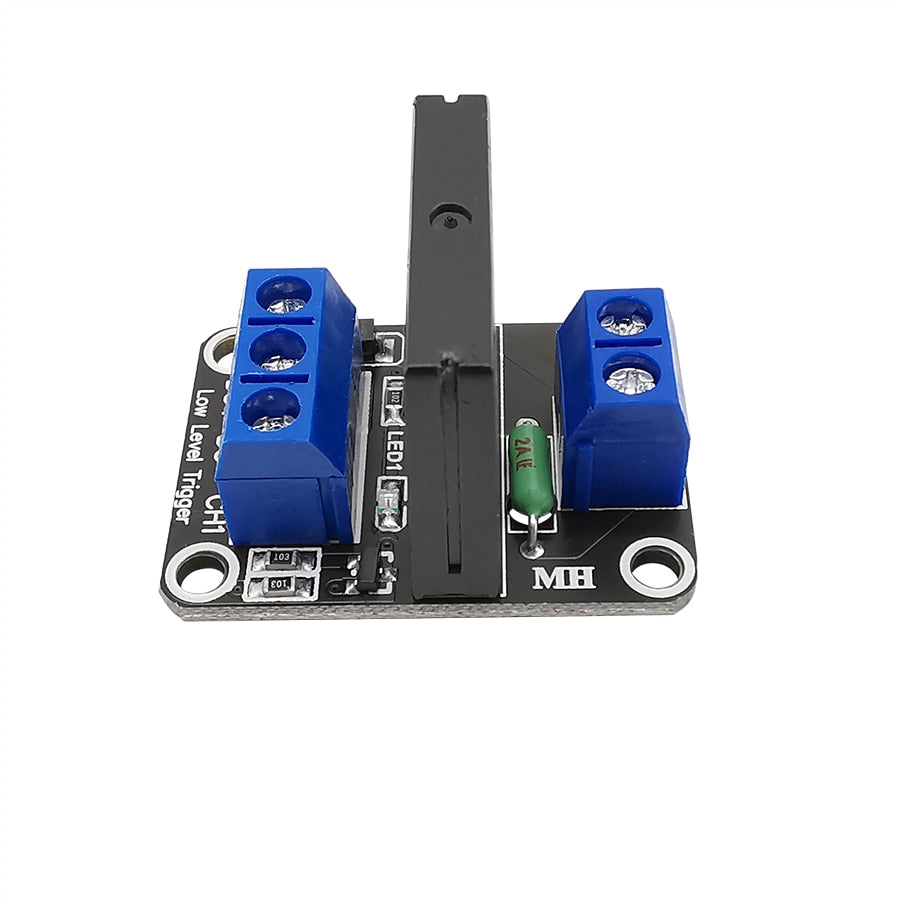

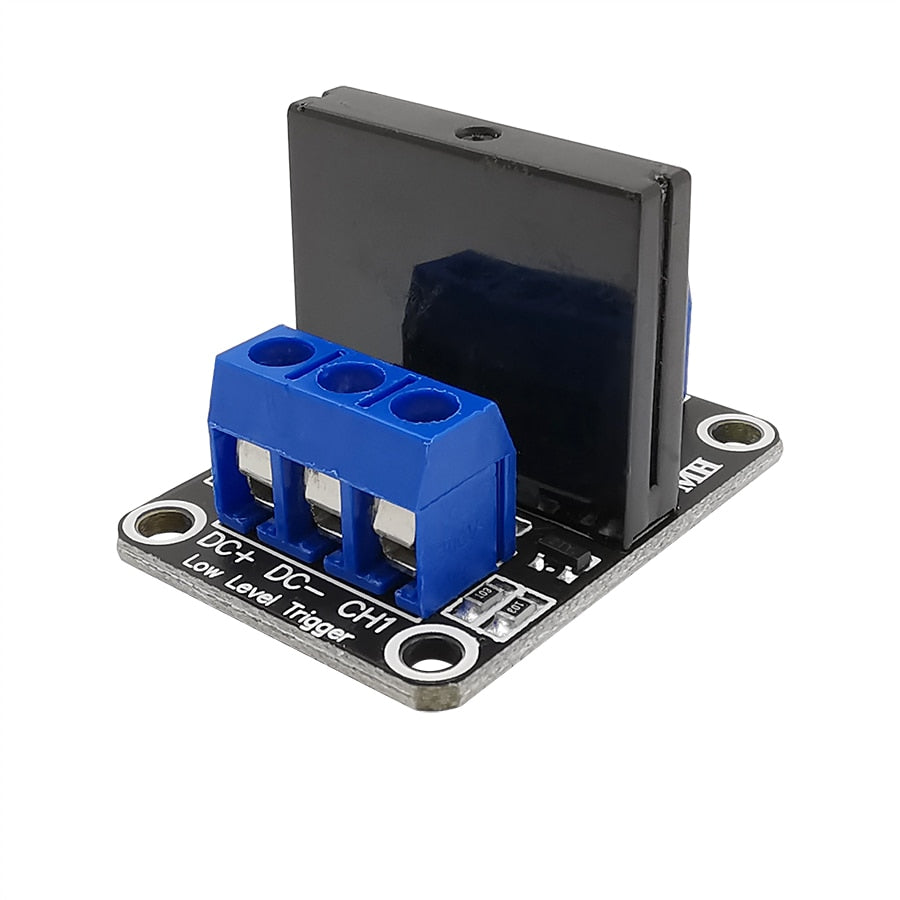

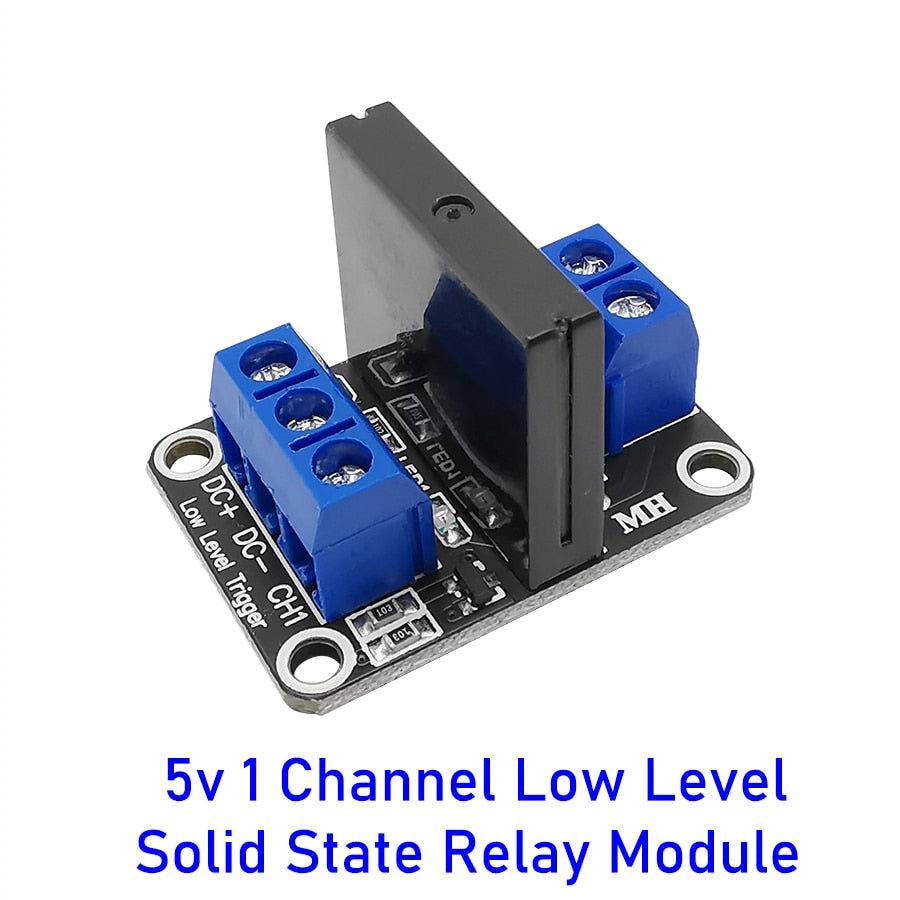

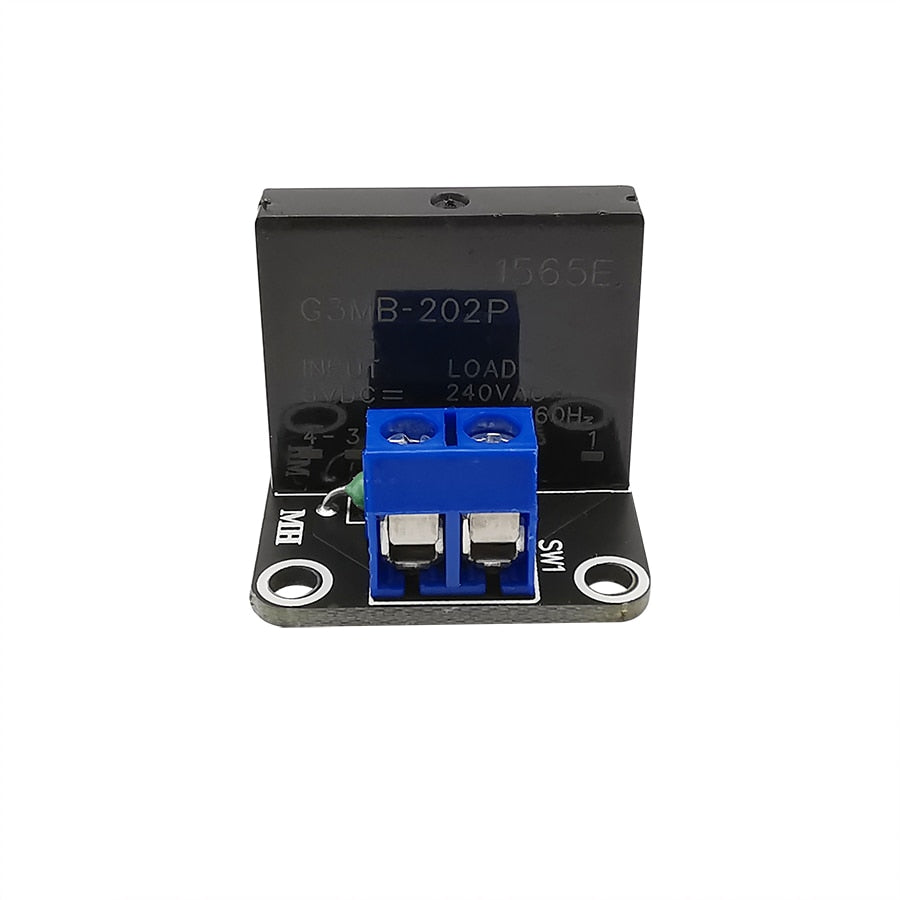

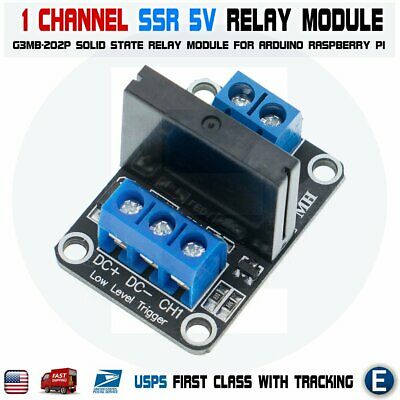

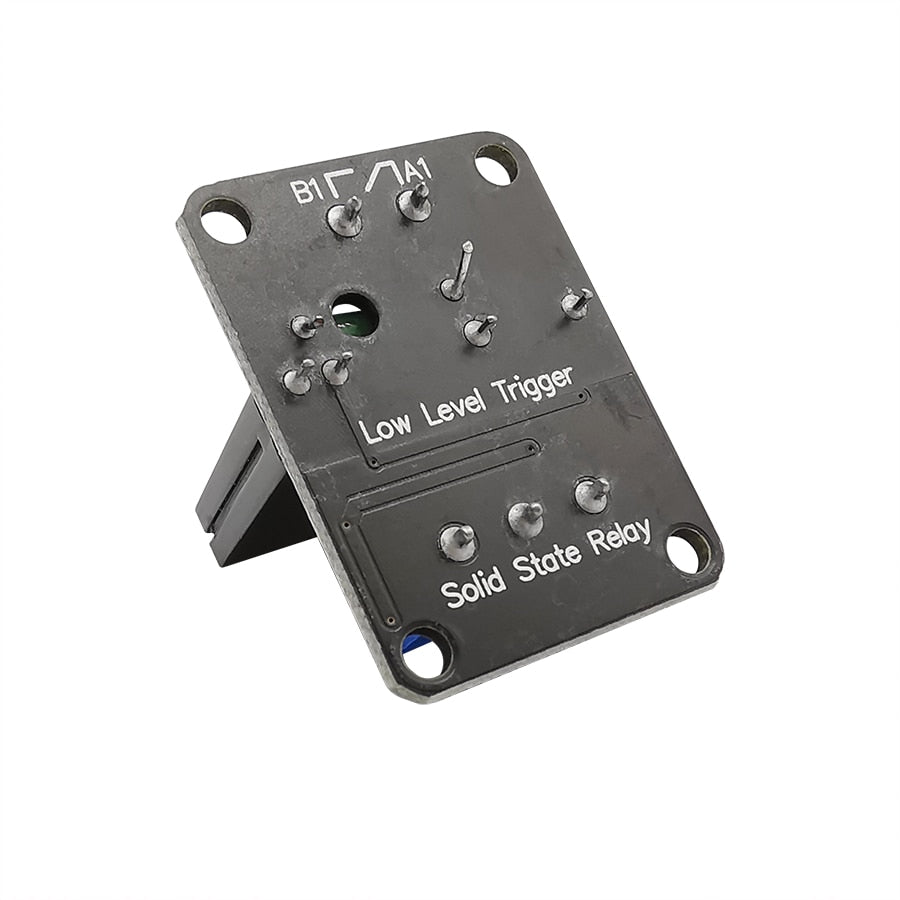

1 Channel 5V G3MB-202P SSR Solid State Relay Module Resistive Fuse Arduino

In stock
Business & Industrial:Electrical Equipment & Supplies:Relays:Solid State Relays
322466123075
Features:100% Brand new and high quality!5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2AIt can be able to control various appliances, and other equipments with large current...
$2.55
$2.55
  customers are viewing this product

Features:
100% Brand new and high quality!
5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A
It can be able to control various appliances, and other equipments with large current
Easy to be controlled by a lots of Microcontrollers( Such as for Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, PLC,TTL logic)
Just use 5v input signal to control

Equipped with high-current relay, AC250V 10A, AC150V 10A; DC30V 10A , DC28V 10A
Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)
Voltage version 5V
Static current 0mA
Working current 12.5mA
Trigger voltage 3.3-5V
Trigger current 2mA

Specifications:

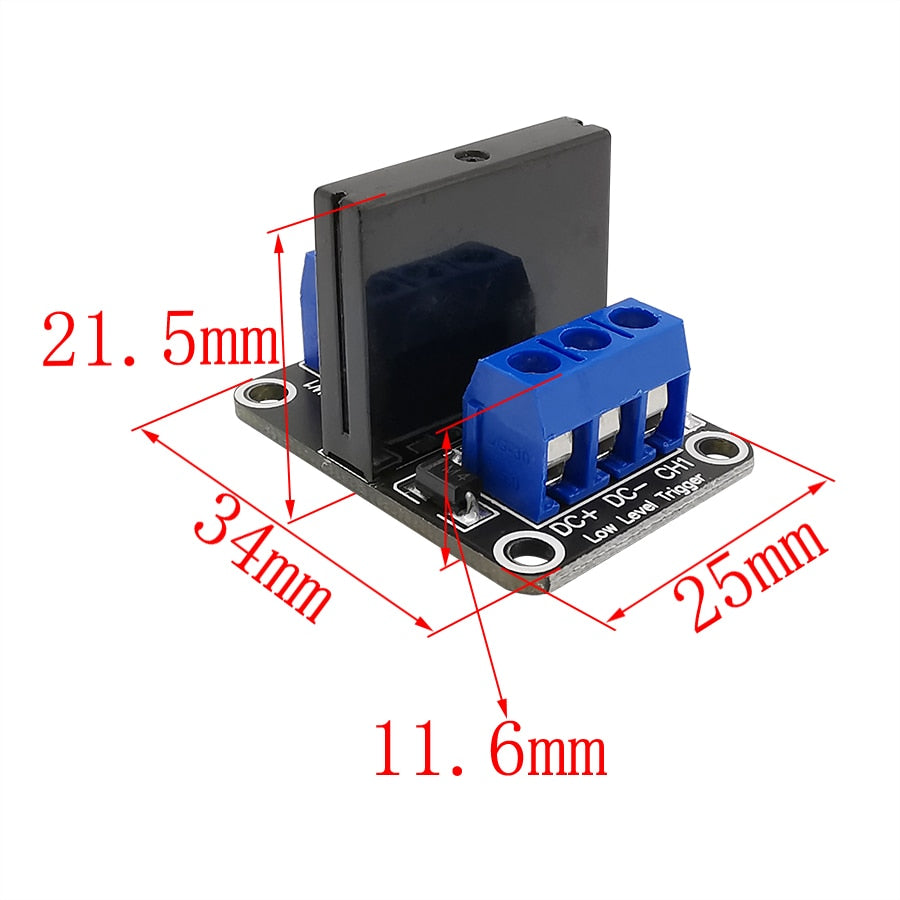

Size: 26*34mm
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3-5V state high relay ON)

Package Includes:
1 x 1 Channel 5V SSR G3MB-202P Solid State Relay Module W/Resistive Fuse
