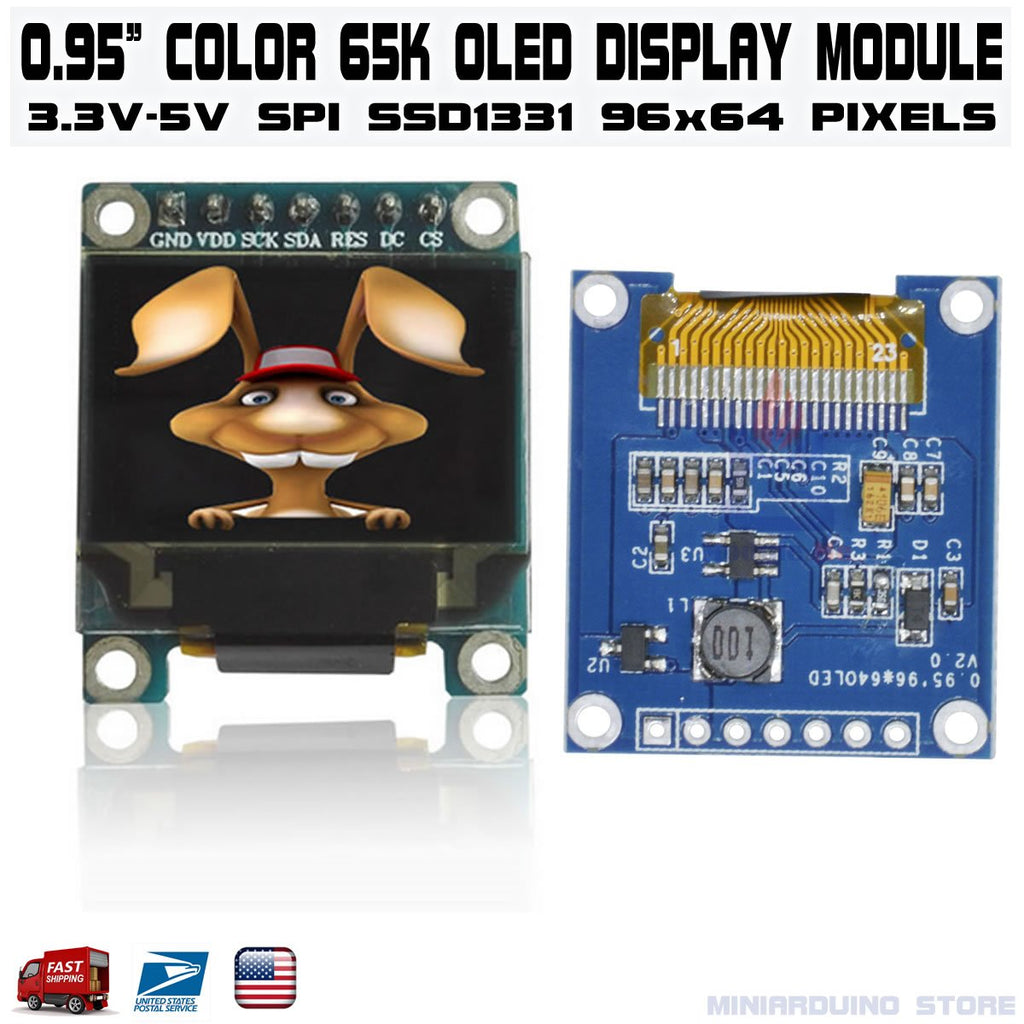

0.95" inch SPI FULL Color OLED Display Module SSD1331 96x64 for Arduino RGB

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:LEDs, LCDs & Display Modules:LCD Display Modules
3V3-5The SSD1331 Chipset Driver The SSD1331 is a single chip CMOS OLED/PLED driver with 288 segments and 64 common outputs.  The  SSD1331 has embedded Graphic Display Data RAM (GDDRAM).  It suppor...
  customers are viewing this product
3V3-5The SSD1331 Chipset Driver
The SSD1331 is a single chip CMOS OLED/PLED driver with 288 segments and 64 common outputs.  The
SSD1331 has embedded Graphic Display Data RAM (GDDRAM).  It supports 8, 9, & 16 bits 8080 / 6800
parallel interfaces as well as serial peripheral interface. It has 256-step contrast and 65K color control.
To facilitate communication between lower operating voltages MCU, it has separate power for I/O
interface logic.
What is OLED?
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered
organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require
a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as
the ultimate technology for the next generation of flat-panel displays.
The use of OLED technology offers several advantages for flat-panel displays …
·       A simplified manufacturing process compared to TFT-LCD
·       Self-emitting light, in contrast to the required backlight for TFT-LCD
·       High luminosity
·       Lightweight and thin
·       Capable of wide viewing angles
·       Low operating voltage and power consumption
·       Quick response
·       Wide range of operating temperatures (-40c to 85c)
100% Brand new and high quality.

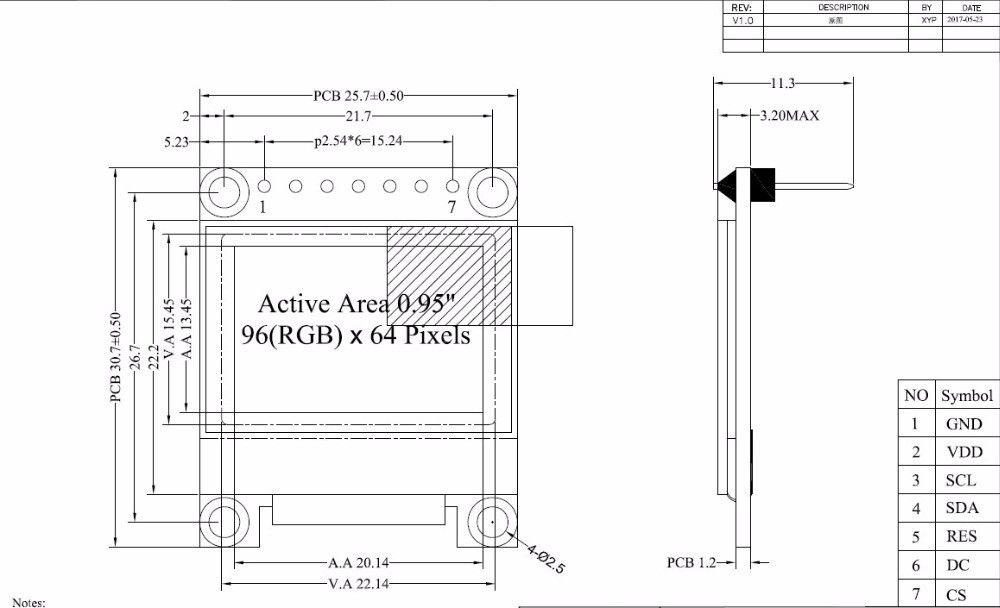

Resolution:         96 pixels X 64 pixels
Color:                  65536 Colors
Driver IC:            SSD1331
Voltage:              3.3V ~ 5.0V
Pin definition of SPI Connector:
1.  GND Ground
2.  VCC  Positive Voltage
3.  SCL   Clock Line
4.  SDA  Data Line
5.  RES  Reset
6.  DC    Data/Demand
7.  CS     Chip Select
Package Includes:
1 x 0.95 inch Full Color SPI OLED Display
Technical support is NOT included in this auction
