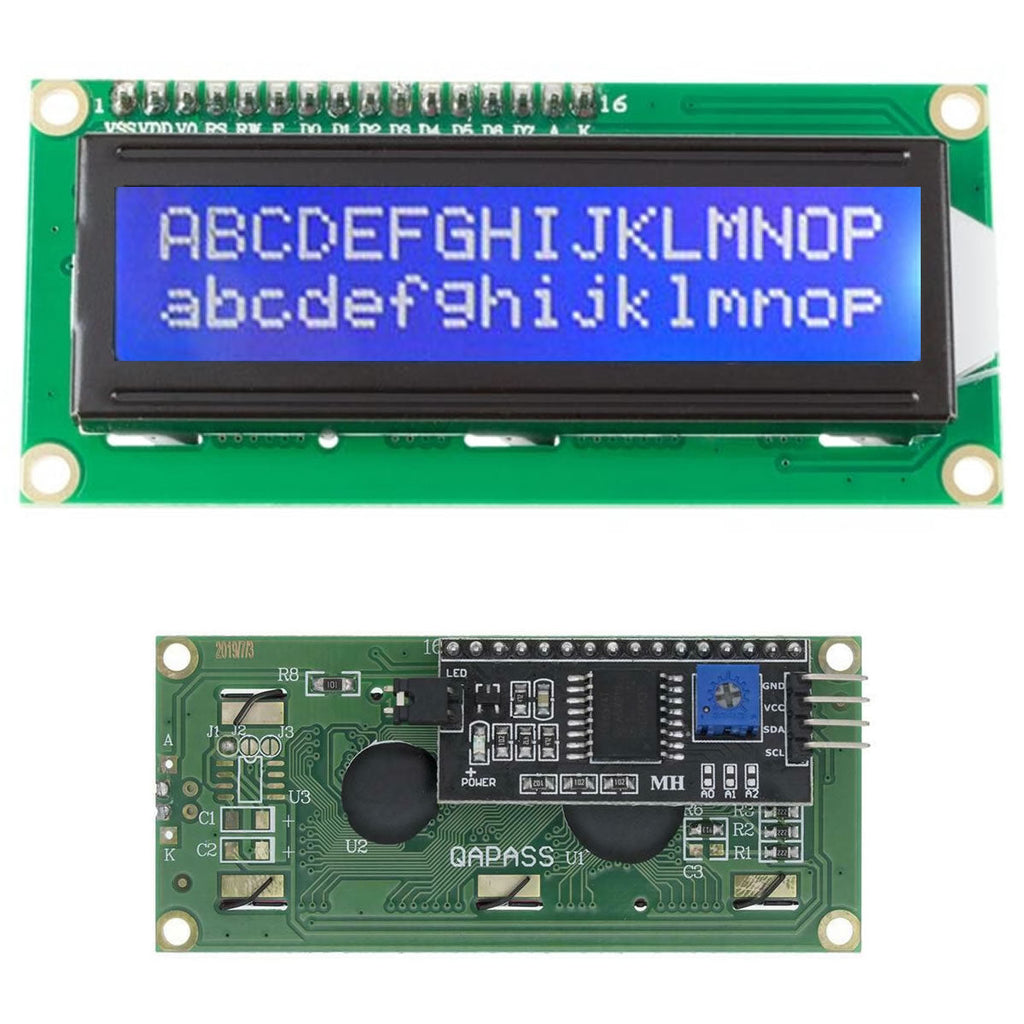

A 1602 LCD with I2C Serial Interface Adapter is an improvement over a traditional 1602 LCD without this adapter. The I2C interface allows for communication between the LCD and a microcontroller or computer using only two wires. This reduces the number of wires required for the connection and frees up valuable pins on the microcontroller.
In contrast, a traditional 1602 LCD without an I2C adapter requires multiple wires for data transfer, control signals, and power. This increases the complexity of the wiring and can make it difficult to connect multiple displays to a single microcontroller.
The I2C interface also provides the advantage of multiple devices sharing the same two communication lines. This allows for a large number of devices to be connected to a single microcontroller, reducing the overall system cost and complexity.
Another advantage of the I2C interface is the ability to daisy chain multiple displays, where one display acts as the master and the others as slaves. This allows for a large number of displays to be connected to a single microcontroller, and the displays can be controlled using a single set of commands.
In conclusion, the 1602 LCD with I2C Serial Interface Adapter is a better option compared to a traditional 1602 LCD without an adapter. It simplifies the connection between the LCD and the microcontroller, saves valuable pins, reduces overall system cost and complexity, and allows for multiple devices to be connected and controlled using a single set of commands.
Here is an example of an Arduino code to display "Hello World!" on a 1602 LCD with I2C Serial Interface Adapter:
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
// Create an instance of the LiquidCrystal_I2C library
LiquidCrystal_I2C lcd(0x27, 16, 2); // 0x27 is the I2C address of the LCD
void setup() {
lcd.begin(); // Initialize the LCD
lcd.backlight(); // Turn on the backlight
lcd.print("Hello World!"); // Print the message
}
void loop() {
// No code is needed in the loop function
}
In this example, the Wire.h library is included for I2C communication, and the LiquidCrystal_I2C.h library is included for the LCD display. The lcd object is created with the I2C address of the LCD (0x27) and the number of columns and rows (16 columns, 2 rows).
In the setup function, the begin function is called to initialize the LCD and the backlight function is called to turn on the backlight. The message "Hello World!" is printed on the LCD using the print function.
In the loop function, no code is needed because the message only needs to be displayed once.
This code is just a starting point and can be modified to display other messages or perform other functions as needed.
