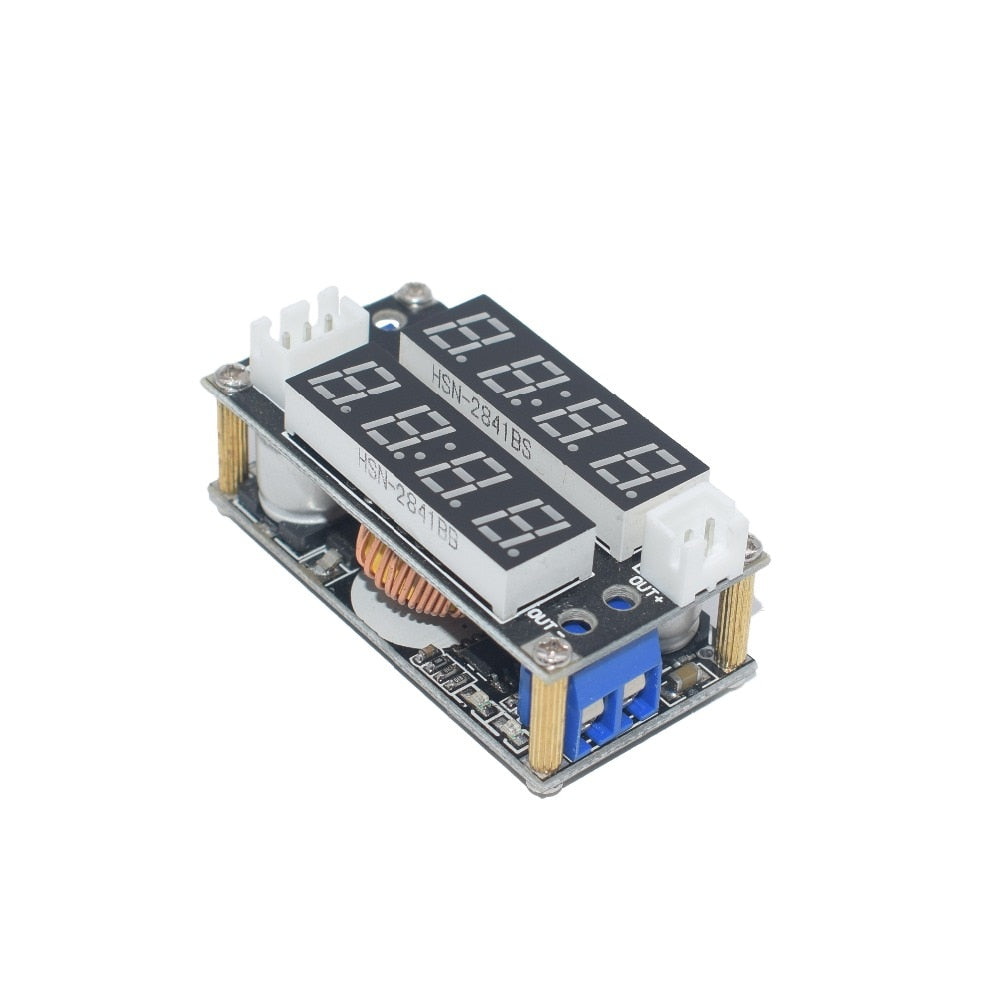

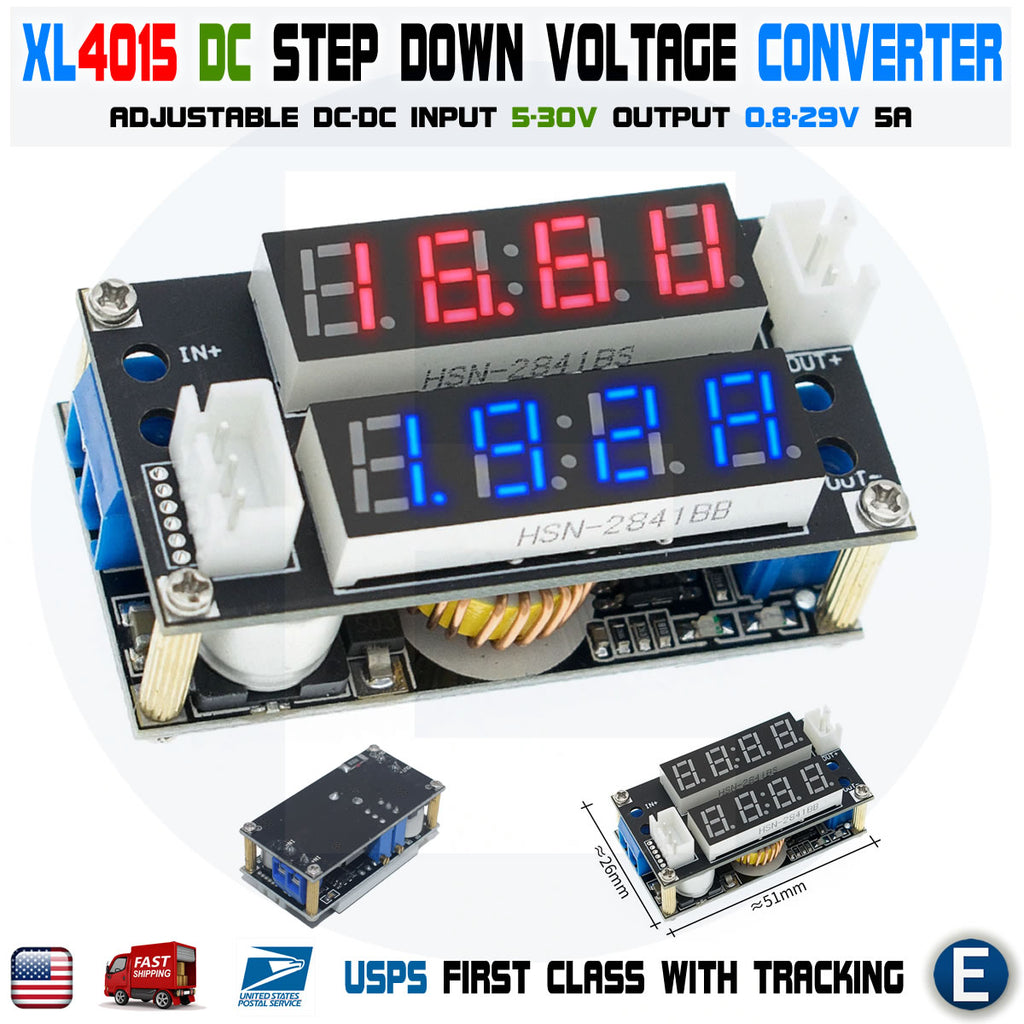

XL4015 LED Display 5A DC Buck Step Down Voltage Converter Constant Current Power Module

In stock
B-02-09-05
Rectification: Non-synchronous rectification Input voltage: 5V-30V Output voltage: 0.8V-29V Output current: maximum 5A (more than 3A need heatsink) Conversion efficiency: 95% (highest) Switching fr...
$9.63
$9.63
  customers are viewing this product

Rectification: Non-synchronous rectification
Input voltage: 5V-30V
Output voltage: 0.8V-29V
Output current: maximum 5A (more than 3A need heatsink)
Conversion efficiency: 95% (highest)
Switching frequency: 300 KHz
Output ripple: 50mV (max) 20M bandwidth
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating temperature: -40 ℃ to +85 ℃
Measurement accuracy: 0.1%
Refresh time: about 200ms
Display: double 4 0.28 "digital tube
Operating current: less than 15mA
Size: 5.1*2.63*1cm

Features:
<< High efficiency: The module uses chips with high efficiency up to 95%, and can go to 5A current.
<< The voltage difference between input and output is 1V, with a minimum output voltage of 0.8v.
<< This module is an adjustable step-down module. The output voltage can be changed by adjusting the blue adjustable resistor on the module.
<< Module above marked IN-(input negative), IN+(input positive), OUT-(output negative), OUT+(output positive) must be correctly connected, otherwise it may lead to module damage.

Package Included:
1 x XL4015 LED Display 5A DC Buck Step Down Voltage Converter Constant Current Power Module
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
