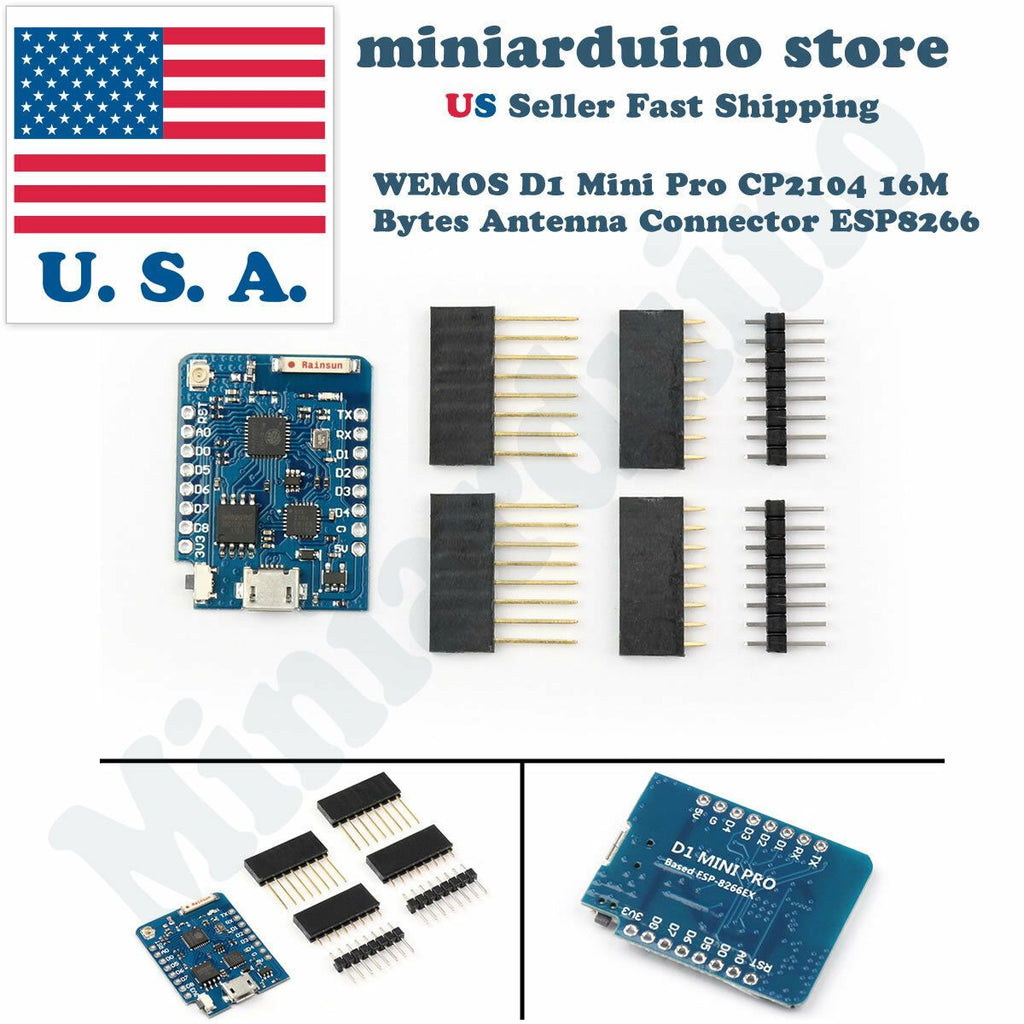

WEMOS D1 Mini Pro V1.1.0 16M Bytes External Antenna Connector ESP8266 WIFI IoT

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Development Kits & Boards
323421972130
Features   11 digital input/output pins Interrupt/pwm/I2C/one-wire 1 analog input(3.2V max input) 16M bytes(128M bit) Flash External antenna connector Built-in ceramic antenna New CP2104 USB-TO-UA...
$6.23
$6.23
  customers are viewing this product
Features

11 digital input/output pins
Interrupt/pwm/I2C/one-wire
1 analog input(3.2V max input)
16M bytes(128M bit) Flash
External antenna connector
Built-in ceramic antenna
New CP2104 USB-TO-UART IC
Same size as D1 mini, but more light

Specification

Microcontroller ESP-8266EX
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1(Max input: 3.2V)
Clock Speed 80MHz/160MHz
Flash 16M bytes
Length 34.2mm
Width 25.6mm
Weight 2.5g
NOTE : All of the IO pins have interrupt/pwm/I2C/one-wire support except D0,  All of the IO pins run at 3.3V

Package Included:
1 x WEMOS D1 Mini Pro V1.1.0 16M Bytes External Antenna Connector ESP8266
